3.1 Main body (used figure is KD-G440)

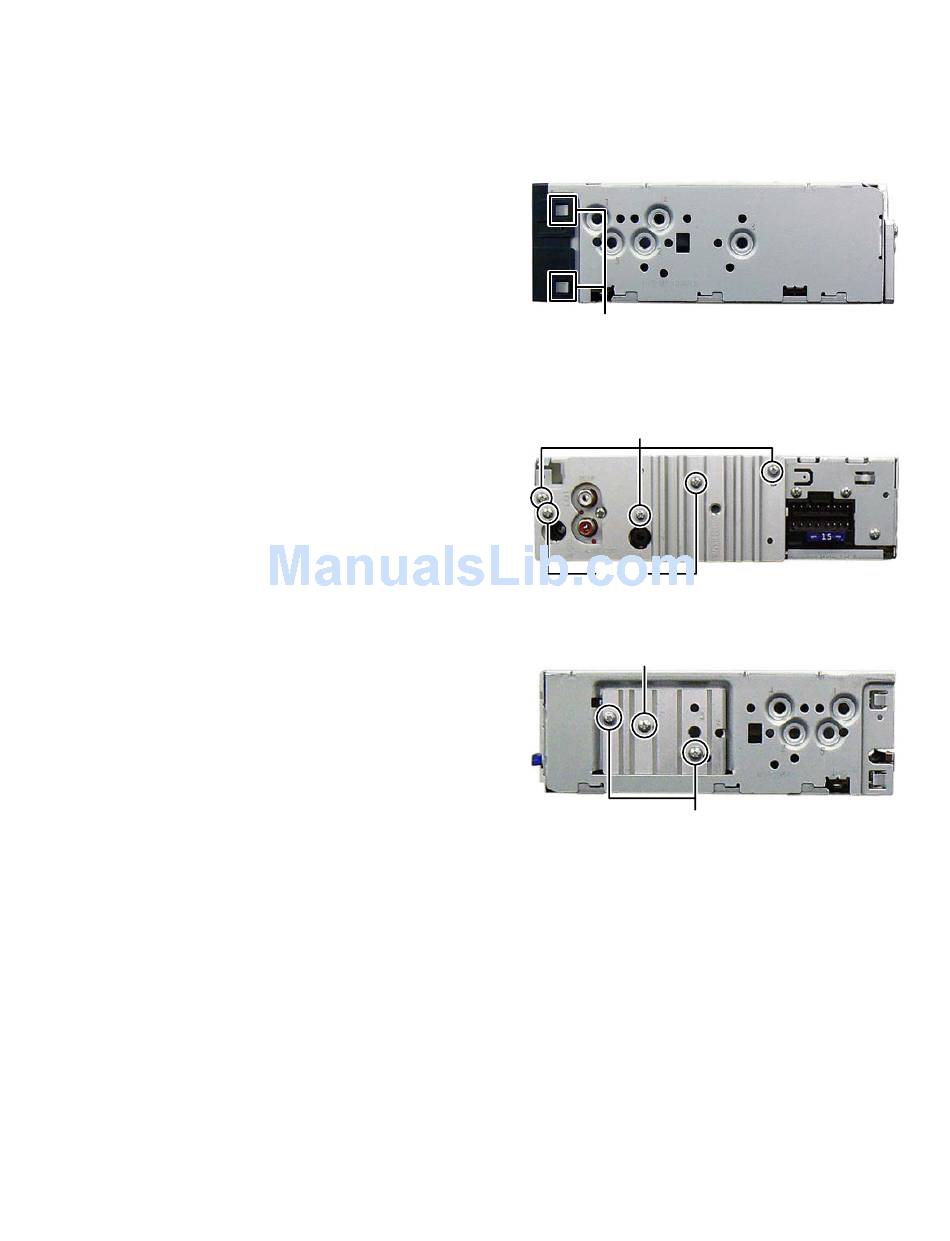

3.1.1 Removing the FRONT CHASSIS assembly (See Fig.3-1)
(1) Disengage the four hooks a engaged the both side of the
FRONT CHASSIS assembly.
3.1.2 Removing the HEAT SINK (See Fig.3-2, 3-3)
(1) Remove the three screws A and the two screws B attaching
the HEAT SINK. (See Fig.3-2)
(2) Remove the two screws C and the one screw D attaching
the HEAT SINK. (See Fig.3-3)
SECTION 3

DISASSEMBLY

hook
a
Fig.3-1
A
B
Fig.3-2
D
C
Fig.3-3
(No.MA377<Rev.004>)1-13
