S3.15
Strength-Training
Fitness Equipment
Assembly and Maintenance Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the move beyond S3.15 and is the answer not in the manual?

Questions and answers

Related Manuals for Precor move beyond S3.15

Summary of Contents for Precor move beyond S3.15

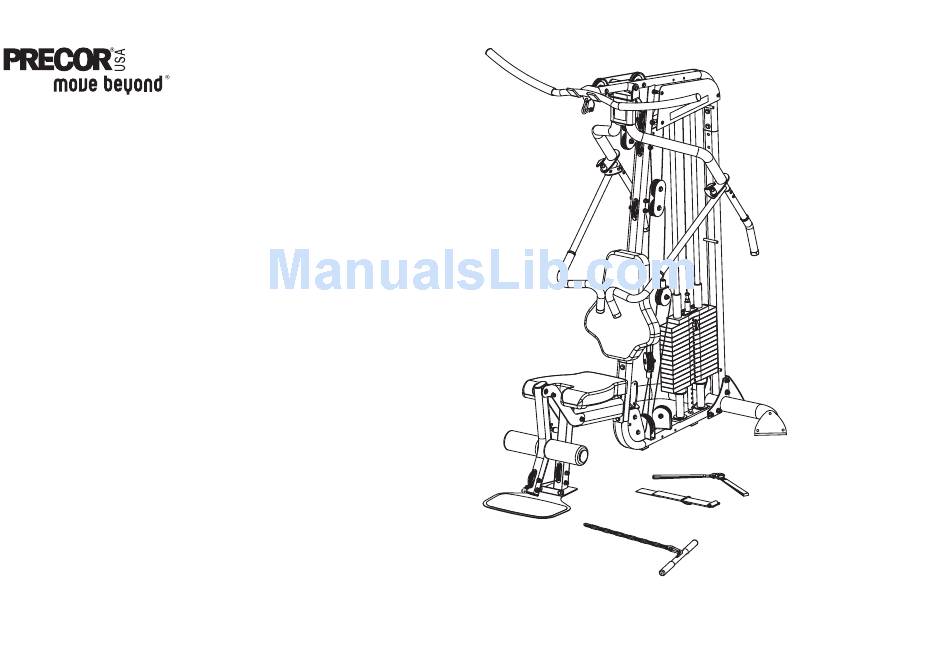

  • Page 1 S3.15 Strength-Training Fitness Equipment Assembly and Maintenance Guide...

  • Page 2: Important Safety Instructions

    You can find the serial number printed on required. • Use the equipment only for its intended purpose as a label affixed to the side of the S3.15. For • Read each step in the assembly instructions and described in this manual. Do not use accessory future reference, write the serial number in follow the steps in sequence.

  • Page 3: Table Of Contents

    S3.15 Assembly and Maintenance Guide Table of Contents Important Safety Instructions .................. 2 Personal Safety During Assembly ......................2 Obtaining Service ............................. 2 Before You Begin ....................... 4 Unpacking the Equipment ......................... 4 Optional Equipment ..........................4 Preparations ......................5 Required Tools ............................

  • Page 4: Before You Begin

    S3.15 Assembly and Maintenance Guide Before You Begin S3.15 Thank you for purchasing the S3.15. This unit is part of the Precor Strength line of quality strength training machines, which let you target specific muscle groups to achieve better muscle tone and overall body conditioning.

  • Page 5: Preparations

    You must review and follow the instructions in this access. guide. If you do not assemble and use the S3.15 • Insert all fasteners in the same direction. For according to the following guidelines, you could void...

  • Page 6: Assembly Instructions

    S3.15 Assembly and Maintenance Guide Assembly Instructions Assembly of the S3.15 takes professional installers about 1½ hours to complete. If this is the first time you have assembled this type of equipment, plan on significantly more time. Professional installers are highly recommended!

  • Page 7: Open The Box

    S3.15 Assembly and Maintenance Guide Open the Box Use wire tie cutters to open the box. Top Assembly The illustration shows how the S3.15 will look when you have completed its assembly. The callouts identify Lat Bar specific pieces. Press Arm Assembly...

  • Page 8: Assemble Main Structure

    S3.15 Assembly and Maintenance Guide 1. Assemble Main Structure A. Attach the Main Base to the Rear Crossbar using Rear Crossbar -inch hex head bolts four flat washers two locknuts B. Install the Rear Upright to the Main Base using...
  • Page 9 S3.15 Assembly and Maintenance Guide D. For ease of assembly, disassemble and remove the top pulley and its fasteners on the Main Align Top Beam with uprights. Upright. E. Install the Top Beam on the Rear and Main Uprights and reinstall the top pulley and fastener Top Beam assembly.

  • Page 10: Assemble Leg Extension

    S3.15 Assembly and Maintenance Guide 2. Assemble Leg Extension A. Attach the Leg Extension to the Main Base using two ½-inch bolts two spring washers Wrench tighten. Threaded B. Insert the 2-inch threaded shaft into the Leg Shaft Extension Arm.

  • Page 11: Install Seat And Rollers

    S3.15 Assembly and Maintenance Guide 3. Install Seat and Rollers A. Attach the Seat Pad to the Seat Stem using four 1-inch zinc buttonhead bolts Back two zinc flat washers Wrench tighten using a 6mm hex key. B. Insert the Seat Stem into the Seat Upright 2 - 2½"...
  • Page 12 S3.15 Assembly and Maintenance Guide D. Slide a Plastic Washer and a Roller Pad onto one end of a Roller Pad Rod. Insert one Mushroom Cap to plug the end hole. If necessary, pound the Mushroom Cap in place using the rubber mallet.

  • Page 13: Assemble Weight Stack

    S3.15 Assembly and Maintenance Guide 4. Assemble Weight Stack Important: Obtain adult assistance before installing the Guide Rods and Weights. A. Place the Guide Rods into the two outside holes in the Main Base. CAUTION: The lubricant on the Guide Rods can stain clothes.
  • Page 14 S3.15 Assembly and Maintenance Guide D. Orient the hole in the Top Cap Weight with the curve in the weight plates. Place the Top Cap Weight onto the Guide Rods and slide the Selector Stem into the weight stack. E. Slide the Guide Rod Bracket onto the Guide Rods...

  • Page 15: Assemble Press Arm

    S3.15 Assembly and Maintenance Guide 5. Assemble Press Arm 1 - threaded shaft Important: Obtain adult assistance to attach the Press 2 - " buttonhead bolts Arm Assembly. 2 - zinc washers A. Attach the Press Arm Assembly, with the label...
  • Page 16 S3.15 Assembly and Maintenance Guide B. Slide the Handlebars in place on the Press Arm. Handlebars curve inward. Review the illustration for correct handlebar placement. C. Attach the Row Handles using eight ¼ x ½-inch buttonhead screws eight radius washers...

  • Page 17: Install Main Cable

    S3.15 Assembly and Maintenance Guide 6. Install Main Cable Pulley assemblies Note: All pulleys are installed in the frame 4½-inch Pulley assemblies. As you begin each new step, remove 1 - bolt the fasteners and pulley. Feed the cable around...
  • Page 18 S3.15 Assembly and Maintenance Guide E. Feed the cable over the lower 3½-inch pulley located in the Press Arm assembly. Attach the 2 - bolts pulley to the Press Arm assembly using 4 - washers 2 - locknuts one 2-inch zinc hex head bolt 1 - 2"...

  • Page 19: Install Ab Cable And Floating Pulleys

    S3.15 Assembly and Maintenance Guide 7. Install Ab Cable and Floating Pulleys A. Start at the center pulley on the Main Upright. Feed the threaded end of Ab Cable 130196 through the opening and over one 3½-inch pulley. Attach the pulley to the Main Upright using...

  • Page 20: Install Leg Extension Cable

    S3.15 Assembly and Maintenance Guide 8. Install Leg Extension Cable A. Before feeding the cable through the pulley Rubber Washer assemblies, remove the U-bracket assembly, cable Cable Stop Ball stop ball and rubber washer at the end of the Leg Extension Cable 130198.
  • Page 21 S3.15 Assembly and Maintenance Guide G. Continue to feed the cable through the Seat Frame. H. Disassemble the 3½-inch pulley located beneath the seat. Feed the cable over the pulley and reattach the pulley to the Seat Frame using one 3-inch hex head bolt -inch shoulder spacers 1 - 3"...

  • Page 22: Install Leg Press Option Cable Connection

    S3.15 Assembly and Maintenance Guide 9. Install Leg Press Option Cable Connection Note: If you plan to attach the Multi-Hip or Leg Press Options, make sure that cable ends are on opposite sides of the Main Base. Do not position the cable ends as shown in this illustration.

  • Page 23: Attach Upper Shrouds

    S3.15 Assembly and Maintenance Guide 10. Attach Upper Shrouds A. Attach the Upper Shrouds to the Top Beam using six 1¾-inch zinc buttonhead bolts 6 - 1¾" zinc buttonhead bolts 6 - black plastic washers six black plastic washers 6 - tapered spacers six tapered spacers Wrench tighten.

  • Page 24: Attach Accessories

    S3.15 Assembly and Maintenance Guide 11. Attach Accessories A. At the end of the Top Beam, attach the Lat Bar to the Main Cable using a spring clip. Note: The two small hooks at the end of the Top Beam can be used to store the Lat Bar when it’s not in use.

  • Page 25: Apply Weight Decals And Lubricant

    C. Apply one tube of lubricant to each Guide Rod. CAUTION: The lubricant can stain clothes. Wear proper attire when lubricating the Guide Rods. This completes the assembly of your S3.15 Strength- Training Fitness Equipment. Before exercising on the S3.15, adjust the cable tension. Refer to Cable Guide Rod Spacers* Adjustments and Maintenance .

  • Page 26: Cable Adjustments And Maintenance

    S3.15 Assembly and Maintenance Guide Cable Adjustments and Maintenance When the S3.15 is completely assembled, you need to check the cables for proper tension. Obvious signs that cable problems exist include: ✔ Top Cap Weight does not rest squarely on the top weight of the Weight Stack.

  • Page 27: Cable Tension

    S3.15 Assembly and Maintenance Guide 1. Cable Tension If you experience any of these cable problems, take the following steps to reduce tension on the cables: A. Place the Weight Pin in the Top Weight. B. Place the Leg Press Support Arm in the upright (non-extended) position.

  • Page 28: Cable Adjustments

    S3.15 Assembly and Maintenance Guide 2. Cable Adjustments You may need to adjust the cables after installation and Threads periodically thereafter. If the cables remain slack after you have followed the steps found in Cable Tension , perform the following: Jam Nut A.

  • Page 29: Maintenance

    S3.15 Assembly and Maintenance Guide 3. Maintenance Lubricant Guide Rod Guide Rods Lubricate the Guide Rods every six months. Inspection Inspect the unit daily. Look and listen for loose fasteners, cable tension issues, unusual noises and any other indications that the equipment may be in need of service.
  • Page 30 Use a clean, nonabrasive cloth and light pressure to avoid scratching the acrylic surface. The acrylic Shrouds on the S3.15 are easily scratched or damaged through improper cleaning techniques. To avoid problems, dust the shrouds often with a clean, lint-free cloth and light pressure.

  • Page 31: Appendix - Shrouds

    S3.15 Assembly and Maintenance Guide Appendix – Shroud Assembly 6 - 1 " buttonhead screws Two acrylic Shrouds can be attached to the Main 6- tapered spacers Frame. Complete the assembly steps for one side of the unit before moving the other.

  • Page 32: Limited Warranty Statement

    Satisfactory proof of purchase is required in all cases. For any product described above that fails to conform to its warranty, Precor will provide, at their option, one of the following: (1) repair; (2) replacement; or (3) refund of the purchase price. Precor Limited Warranty service...
  • Page 34 Please detach and mail in the warranty registration within ten days of purchase.

  • Page 36: Specifications

    Any party contemplating the use of Warranty Statement 36287-110 Precor’s product designs is hereby forewarned that Precor considers the unauthorized appropriation of its proprietary rights to be a 18 September 2006...
