Grundfos UPM3 FLEX AS 25-70 180 Installation And Operation Manual

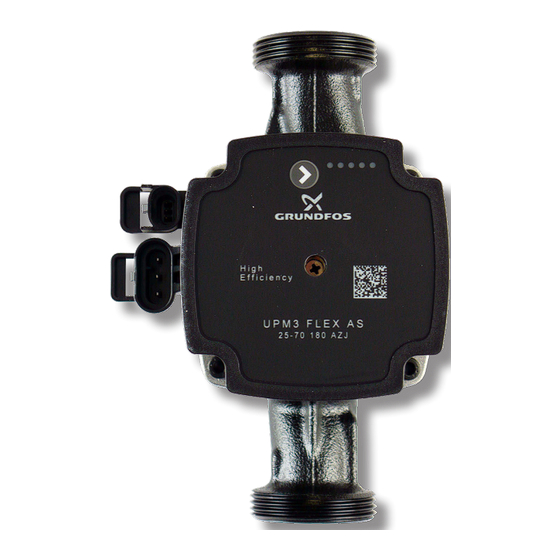

180 mm circulation pump, by regulus
Hide thumbs
Also See for UPM3 FLEX AS 25-70 180:
- User manual ,
- Instructions manual (36 pages) ,
- Installation and operating instructions manual (24 pages)
Related Manuals for Grundfos UPM3 FLEX AS 25-70 180
Summary of Contents for Grundfos UPM3 FLEX AS 25-70 180
- Page 1 Installation and Operation Manual Grundfos UPM3 FLEX AS 25-70 180 mm Circulation Pump UPM3 FLEX AS 25-70 180...
- Page 2 UPM3 FLEX AS 25-70 180 mm Circulation Pump Design A wet running circulation pump with G 6/4” M connections. Electric Data Power supply 230 V, 50 Hz Power input (min./max.) 2/52 W Current (min./max.) 0.04/0.5 A IP rating IP44 Max. speed...
- Page 3 Performance Display DISPLAY STATE PERFORMANCE in % of P STAND-BY MODE 1 flashing green LED (EXTERNAL CONTROL ONLY) 1 green + 1 yellow LEDs LOW PERFORMANCE 0-25 1 green + 2 yellow LEDs MEDIUM-LOW PERFORMANCE 25-50 1 green + 3 yellow LEDs MEDIUM-HIGH PERFORMANCE 50-75 1 green + 4 yellow LEDs...
- Page 4 Prohibited pump positions Permissible pump (actuator) positions Pump wiring N (blue) L (brown) PE (yellow-green) PWM GDN (blue) PWM out (black) PWM in (brown) power supply (A) and signal (B) socket for power supply (A) terminals and signal transmission (B) v1.0-09/2020 ©2020 We reserve the right to errors, changes and improvements without prior notice.
