Summary of Contents for Siamp INTRA Ground fixed pan

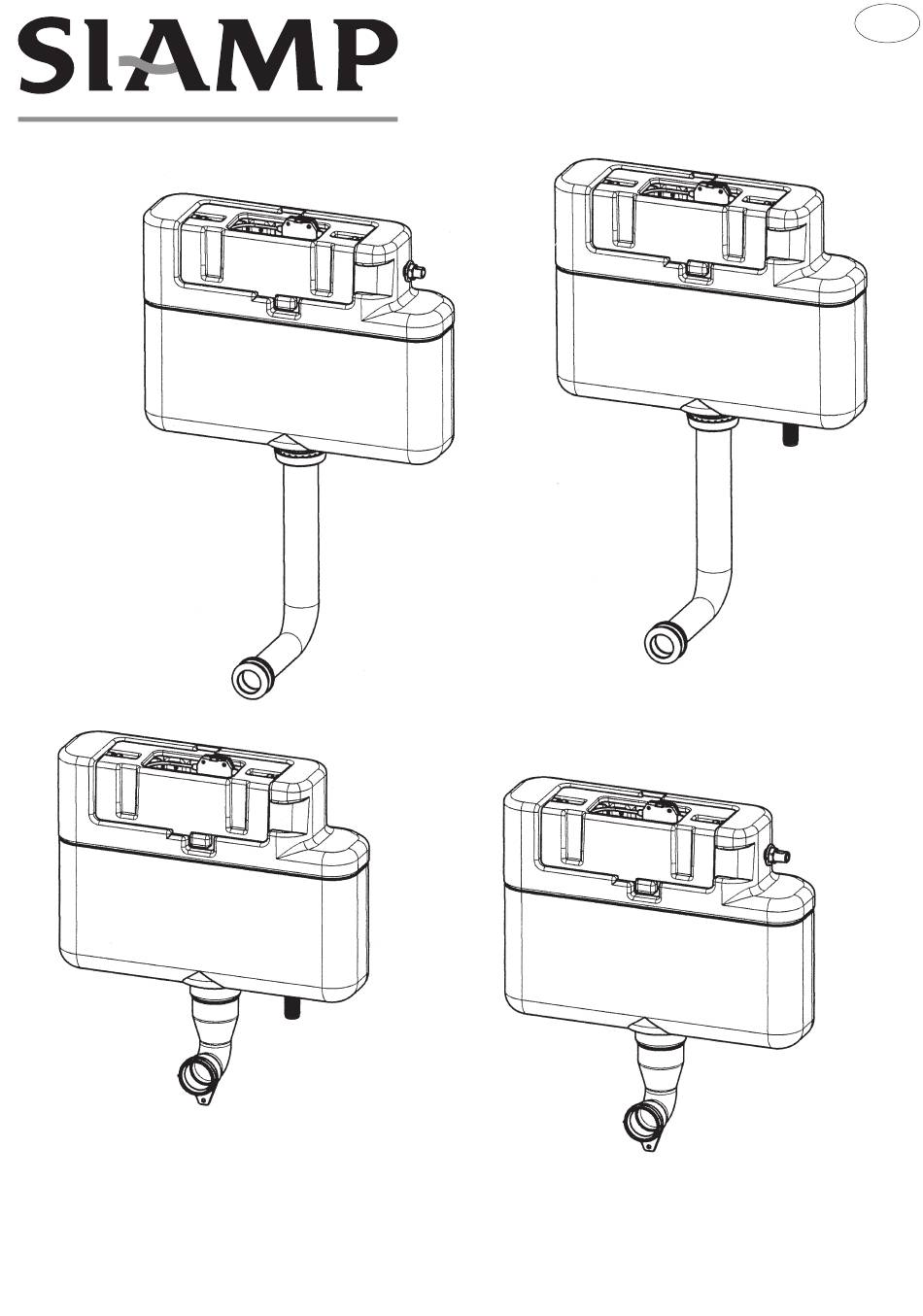

- Page 1 Ground fixed pan model Wall hung pan model CISTERN FOR FURNITURE AND BACK TO WALL INTRA ASSEMBLY INSTRUCTION...
- Page 2 1 - Do not overtight in any case. 2 - Do not use any sealing paste and/or compound in any case 3 - Do not use connector handling the internal part of the inlet valve. SIAMP will be not responsible in case these warnings are not respected.
- Page 3 I - ATTACHING THE CISTERN ➋ ➊ Attach the cistern attachment lugs ➊ ➋ Position the cistern ➍ ➌ ➐ ➑ ➏ ➎ ➌ Adjust the supply sleeve to the position of the toilet bowl (height and length) Fit the supply sleeve nut and the seal ➍...
- Page 4 II - FLUSH BUTTON INSTALLATION ➊ ➋ Bolts ➌ ➊ Position the closing plate according to the type of control (top control (A) or front control (B)) ➋ Attach the plate with the bolts ➌ Position the button: - place button on panel and screw button nut - clip cable case - Place panel back on top or...
- Page 5 Installation range Installation range top fixation front fixation Cistern front view Cistern top view Cistern side view...
- Page 6 1 - Do not overtight in any case. 2 - Do not use any sealing paste and/or compound in any case 3 - Do not use connector handling the internal part of the inlet valve. SIAMP will be not responsible in case these warnings are not respected.
- Page 7 I - INSTALLING THE TOILET BOWL FRAME ➌ Measure the centre distance of the toilet bowl ➊ and insert the toilet bowl attachment rods in the holes in the frame corresponding to the centre distance ➋ Lock the rods with the nuts ➋...
- Page 8 II - ATTACHING THE CISTERN ➋ ➊ Position the cistern temporarily on the ➊ supply sleeve Mark the position of the cistern attach- ➋ ment lugs on the furniture ➌ Remove the cistern Attach the cistern attachment lugs and ➍ insure they are level ➌...
- Page 9 III - TOILET BOWL CONNECTION ➊ Using a rule placed as shown in the above drawing, ➋ Remove the sleeves from the toilet bowl and fit them draw a mark on the toilet bowl side, on the two to the frame. Using a rule placed as shown in the sleeves.
- Page 10 B + 20 mm ➐ Measure the thickness at the rear of the toilet bowl (B) ➑ If necessary, cut the attaching rods (I) so thatthe part protruding from the wall measures (B) + 20 mm ➒ Shorten the flexible sheaths (j) so that the part protruding from the wall measures (B) - 15 mm ➓...
- Page 11 IV - FLUSH BUTTON INSTALLATION ➊ Position the closing plate according to the type of control (top control (A) or front control (B)) ➊ ➋ Attach the plate with the bolts ➌ Position the button: - place button and screw button nut - clip cable case - Place lid back on top or front of furniture ➍...
- Page 12 You have just installed a concealed cistern for furniture and back to wall DUAL FLOW by SIAMP and we would like to thank you for your confidence in our products. As expert in technical equipment and accessories for the toilet, SIAMP has...
