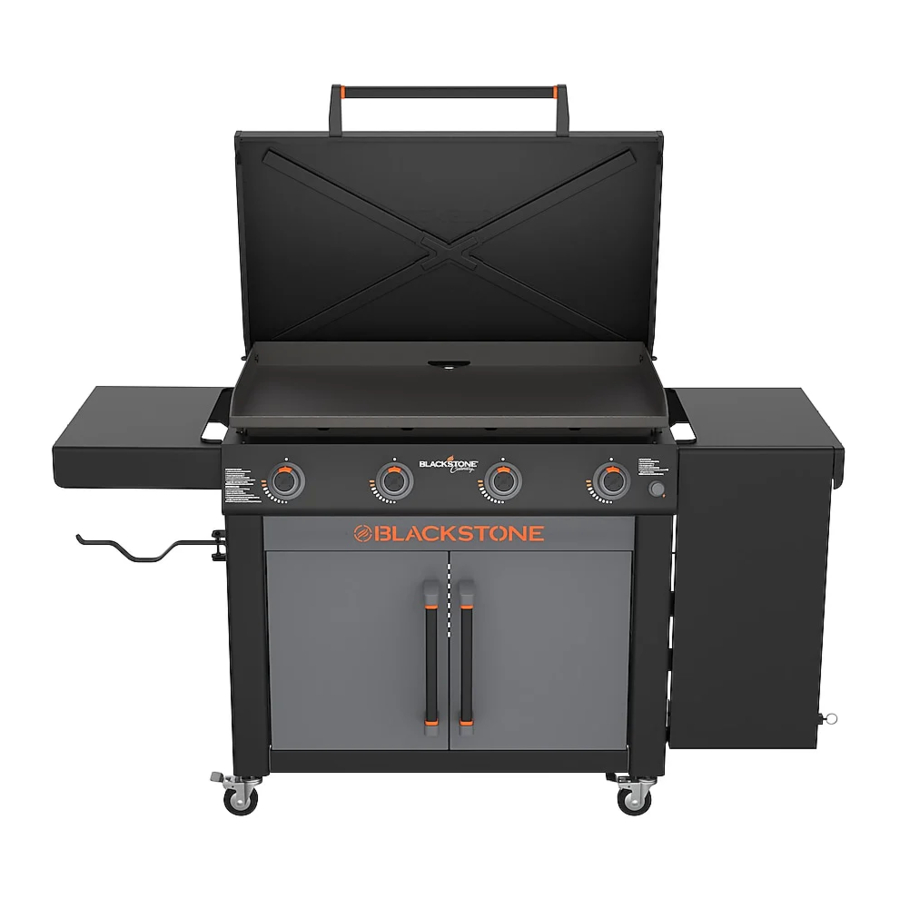

BLACKSTONE 2230 - 36" GRIDDLE Manual

ASSEMBLY GUIDE

EXPLODED VIEW

PARTS LIST

35. 35 Hardware pack (1 piece)

    1. M6x12 screw (52 pieces) (8 pieces)
    2. M6x16 screw (2 pieces)
    3. M6x16.5 shoulder bolt (4 pieces)
    4. M4x22 shoulder bolt (4 pieces)
    5. M6x19 shoulder bolt (1 piece)
    6. M6x12 flat head screw (2 pieces)
    7. M4x10 screw (2 pieces)

ASSEMBLY INSTRUCTIONS
Find a large, clean area to assemble your appliance
Remove all packing material before assembling

Sharp edges. Wear gloves while assembling.

Heavy pieces. Two people should assemble this appliance.

NOT INCLUDED:

lPG cylinder lPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
lPG cylinder must include collar to lPG cylinder must include collar to protect lPG cylinder valve. protect lPG cylinder valve.

NOT INCLUDED: AA battery

TOOL NEEDED: Phillips head screwdriver

1. Use ten (10) M6x12 screws [a.] to attach the four (4) legs to bottom of the griddle body. (Three (3) screws in each front leg, two (2) screws in each rear leg.)

2. Use two (2) M6x12 screws [a.] to attach one (1) door magnet bracket to the logo panel.

3. Use four (4) M6x12 screws [a.] to attach the logo panel to the front legs.

4. Use four (4) M6x12 screws [a.] to attach the cart base to the legs.

5. Screw the four (4) caster wheels into the legs. (ensure that the wheels are locked.)

6. Set the cart on its feet. Use six (6) M6x12 screws [a.] to attach one (1) side panel to the right side of the cart.

7. Use six (6) M6x12 screws [a.] to attach one (1) side panel to the left side of the cart

8. Use four (4) M6x12 screws [a.] to attach the rear panel to back of the cart.

9. Use two (2) M6x12 screws [a.] to attach one (1) door magnet bracket to the cart base.

10. Insert two (2) door handle OFFsets into one (1) door handle. Use two (2) M6x12 screws [a.] to attach the door handle assembly to one (1) cabinet door. Repeat with the other door handle OFFsets, door handle and cabinet door.

11. Insert the inner shelf leg into the cart base hole. Rest the shelf on the four (4) inner shelf brackets.

12. Attach the left cabinet door assembly to the cart by first inserting the door into the lower door hinge pin, then pressing down and inserting the upper door hinge pin. Repeat with the right cabinet door assembly.

13. Use four (4) M6x12 screws [a.] to attach one (1) garbage bag bracket (l) and one (1) garbage bag bracket (R) to the right side of the cabinet.

14.

    1. Thread two (2) M4x22 shoulder bolts [d.] into the lower holes of the garbage bag brackets.
    2. Use two (2) M4x22 shoulder bolts [d.] to attach the garbage bag holder to the garbage bag brackets.
15. Use two (2) M6x12 screws [a.] to attach the Z shaped bracket to the right side of the cabinet.
    Use two (2) M6x12 flat head screws [f.] to attach the plastic bumper to the right side of the cabinet.

16. Use two (2) M6x12 screws [a.] to attach the paper towel holder to the left side of the cabinet.

17. Use four (4) M6x12 screws [a.] to attach one (1) side shelf bracket (l) and one (1) side shelf bracket (R) to the left side of the griddle body.

18. Attach three (3) side shelf pegs to one (1) side shelf. Repeat with the other three (3) side shelf pegs and side shelf.

19. Thread two (2) M6x16.5 shoulder bolts [c.] into the left side shelf.

20. Hook the left side shelf's upper shoulder bolts onto the side shelf brackets. Thread two (2) M6x16.5 shoulder bolts [c.] through the side shelf brackets to secure.

21. Slide the side table into the right side shelf pin.

22. Use one (1) M6x19 shoulder bolt [e.] to secure the side table to the right side shelf.

23. Use two (2) M4x10 screws [g.] to attach the table stopping bracket to the side table.

24. loosely thread two (2) M6x12 screws [a.] into the right side of the griddle body.

25. Hook and slide down the side shelf table keyholes on the M6x12 screws.

26. Use two (2) M6x12 screws [a.] to secure the side shelf table to the right side of the griddle body. Tighten the upper screws.

27. Install the four (4) control knobs by pushing them into place in the OFF position.

28. Hang the grease cup in the slot on the back of the griddle body.

29. Insert two (2) hood handle OFFsets into the hood handle.

    Use two (2) M6x16 screws [b.] to attach the hood handle assembly to the front of the hood.

30. With the help of another person, place the griddle top and hood onto the griddle body by aligning the four pins to the holes on top of the unit.

    Make sure the front pins are fully seated in the holes, then push the griddle in place.

31. Proceed to USING YOUR BLACKSTONE.


NOTICE
DO NOT leave the hood closed for more than 10 minutes while cooking.

NOTICE

• Maximum weight on the side shelf is 10 lbs (4.5 kg).
• The side shelf may get hot while appliance is in use.

NOTICE
DO NOT sit or stand on the table.

TO UNFOLD THE SIDE TABLE:
Raise the side table

1. Pull the pull ring to release the upper leg assembly
2. Press the spring latch on each leg to release the lower legs Adjust each leg to the desired height Re-insert the latch pins

USING YOUR BLACKSTONE

THE LPG CYLINDER VALVE MUST HAVE:

• Type 1 valve outlet (thread on the outside)
• Safety relief valve
• Ul listed overfill Protection device (OPD) This OPD safety feature is identified by a unique triangular hand wheel
• Safety cap (dust cap)

LPG CYLINDER REQUIREMENTS

• The lPG supply cylinder to be used must be constructed and marked in accordance with the specifications for lP gas cylinders, US department of Transportation (DoT) or the Standard for Cylinders, Spheres and Tubes for the Transportation of dangerous Goods, CAN/CSA-B339
• only lPG cylinders marked "propane" shall be usedThe lPG cylinder supply system must be arranged for vapor withdrawal
• Always keep new lPG cylinders in upright position during use, transit or storage.
• Always keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.

REGULATOR SAFETY

Cross threading can occur if you force thread a connection at an improper angle. This will damage the threads, lead to propane leaking, and potentially result in a build-up of fuel that can ignite. DO NOT cross thread the connection between your LPG cylinder and regulator.

If you can not connect the regulator, DO NOT use the regulator. Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.
Use this appliance, as purchased, only with gas and regulator/valve assembly supplied

FITTINGS & HOSES

• Annual checking and tightening of metal fittings is recommended
• Keep the fuel supply hose away from any heated surfaces
• Before each use, check to see if hoses are cut or worn Replace damaged hose before using appliance. (Use only Blackstone approved replacement parts for valve, hose, or regulator. Failure to comply will void the warranty.)

CONNECT THE lPG CYlINDER
20 LB (9 KG)

1. Turn the control knobs to OFF

   1. Ensure that the lPG cylinder is OFF by turning the OPD hand wheel clockwise to a full stop
   2. Remove the safety cap from the Type 1 valve outlet
2. Hold the regulator in a straight line with the Type 1 valve outlet so as not to cross thread the connection
   Center and insert the regulator nipple into the Type 1 valve outlet
   Hand-tighten the coupling nut in a clockwise direction (DO NOT use tools to connect) If connection cannot be completed, disconnect regulator and repeat this step.

3. Set the lPG cylinder on the cart base Tighten the cart base wing screw to secure it to the appliance


LEAK TEST INSTRUCTIONS
NOTICE
DO NOT use household cleaning agents. Damage to gas valve, hose, and regulator components may result. Use a clean paintbrush and a 10/90 mild soap and water solution to perform the leak test.

LEAK TEST: LPG CYLINDER

• Leak test new and exchanged lPG cylinders BeFoRe connecting to griddle
• DO NOT smoke during leak test
• DO NOT use an open flame to check for gas leaks
• Appliance must be leak tested outDoors in a well-ventilated area, away from ignition sources such as gas fired or electrical appliances
• During leak test, keep appliance away from open flames or sparks

1. Brush soapy solution onto joint areas of the lPG cylinder.
   (Indicated by arrows in figure 01.)


• leaks are indicated by growing bubbles.

  If growing bubbles appear during leak test, DO NOT use or move the LPG cylinder. Immediately contact an LPG supplier or fire department.

LEAK TEST: VALVES, HOSE & REGULATOR

1. Turn the control knobs to OFF.
2. Connect the regulator to the lPG cylinder.
3. Completely open the lPG tank by turning the OPD hand wheel counterclockwise.

• If you hear a rushing sound, turn gas OFF immediately. There is a major leak at the connection.
• Immediately close the lPG cylinder by turning the OPD hand wheel clockwise and re-tighten connections. If leaks cannot be stopped DO NOT TRY TO REPAIR.

If leaks cannot be stopped, DO NOT try to repair. Regulator must be replaced with a Blackstone approved model by a professionally licensed, authorized dealer.

FIRST TIME ClEANING
CLEANING YOUR GRIDDLE TOP
NOTICE
Soap will ruin a seasoned griddle. This is the only time you should use soap on the griddle cooking surface.

1. Wash the griddle cooking surface with hot, soapy water
2. Rinse and dry completely

IGNITION INSTRUCTIONS

1. CHECK VALVES

   1. Turn knob to OFF position
   2. Push in knob and release Knob should spring back
      If knobs DO NOT spring back, replace valve assembly before using appliance.
   3. Rotate knob to loW then turn back to OFF Knob should turn smoothly

If burner does not ignite with open LPG cylinder valve, gas will continue to flow out of burner and could accidentally/ inadvertently ignite with risk of injury. Ensure gas is o at the supply shut o valve before checking appliance valves.

2. BATTERY POWERED IGNITION
   DO NOT lean over the appliance while lighting
   1. Insert one (1) AA battery (not included) under the ignitor button
      Screw the button into place over the positive terminal

   2. 1. Turn the control knob to OFF
         Turn gas oN at the lPG cylinder by turning the OPD hand wheel counterclockwise 1 to 3 turns

   3.

      2. Push and hold the ignitor button
      3. Push and turn the control knob counter-clockwise to HIGH
         (Release the ignitor button when the burner lights)
      4. Adjust the temperature to desired level

HEALTHY BURNER FLAME PATTERN

1. Flickers of yellow color.
2. Dark blue color.
3. Vibrant blue.

GRIDDLE SEASONING INSTRUCTIONS

VIDEO TUTORIAL

How to Season a New Blackstone Griddle
youtube.com/watch?v=VspmdVnj2pI&t=3s

1. Wipe any debris off griddle top.

2. Set your griddle to high heat until your griddle top changes color. (~10 min)

3. Use tongs to hold a paper towel or cotton cloth and spread 2-3 tablespoons of your seasoning oil across the entire griddle top.
   When seasoning your griddle top, remember to use a thin and even layer remember to use a thin and even layer of oil—the thinner the layer of oil, the easier it will be to burn it off.

4. The griddle top is ready for another layer of oil when it stops smoking. Repeat STEP 03 3-4 times, or until the griddle surface is black.


SEASONING TROUBLESHOOTING
THERE IS A BROWNISH RESIDUE ON THE GRIDDLE SURFACE:

THE EDGES OF THE GRIDDLE SURFACE ARE NOT BLACK:
After using your griddle for multiple cooks, the seasoning will even out and improve

PREVENTING RUST
Use your griddle frequently every time you cook, you are adding to the seasoning, which makes rust less likely
NOTICE
If you live in a humid or coastal climate, your griddle may require more frequent seasonings between uses.
If rust appears on the griddle surface, rub it OFF with steel wool, low grit sandpaper or the Blackstone Pumice Stone and re-season the surface

VIDEO TUTORIAL
Recovering your Blackstone Griddle Top
youtube.com/watch?v=thPe2IgnSiI

COOKING ON YOUR BlACKSTONE

Flammable items can spontaneously combust if placed near the appliance. DO NOT place flammable items such as aerosol containers, oily or greasy towels near the cooking surface.

This appliance will be hot during and after use. DO NOT handle hot parts with unprotected hands. Use long-handled cooking utensils and oven mitts.
NOTICE
DO NOT store any items within 3 in (8 cm) of the cooking surface while in use.

IF GREASE OR OTHER HOT MATERIAL DRIPS ONTO VALVE, HOSE OR REGULATOR:

1. Turn OFF gas supply immediately
2. determine the cause and correct it
3. Clean and inspect valve, hose and regulator
4. Perform a leak test (Please reference the leak Test Instructions in USING YOUR BLACKSTONE)

VIDEO RECIPES
Find recipes and cooking tips at:
BlackstoneProducts.com/blogs/recipes
youtube.com/c/BlackstoneGriddles

@blackstoneproducts

ClEANING YOUR APPlIANCE
Clean your appliance after each use, after it is cool to the touch

• DO NOT use abrasive pad on areas with graphics
• If a bristle brush is used to clean any of the cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to cooking

Grease build up can cause a fire. Clean any part of the appliance that gets hot and experiences grease build up after each use.

PLASTIC PARTS & PAINTED SURFACES:
Wash with warm soapy water and wipe dry with a non-abrasive cloth
NOTICE
DO NOT use Citrisol, abrasive cleaners, or a concentrated cleaner on plastic parts. This may result in damage to and failure of parts.

APPLIANCE STORAGE

DO NOT move the appliance when in use. Allow the appliance to cool to 115°F (45°C) before moving or storing.

COVER FIT GUIDE
Always cover your appliance when stored outdoors.
To find a cover that will fit your appliance, visit BlackstoneProducts.com/support.

CLEANING YOUR GRIDDLE TOP
Clean griddle top after each use, while still warm

• DO NOT use soap on the griddle top This will destroy the griddle's seasoning
• The grease cup must be removed and emptied after each use

Grease cup will be hot during and after use. DO NOT remove the grease cup until the griddle has completely cooled.

VIDEO TUTORIAL

How to Clean your Blackstone Griddle
youtube.com/watch?v=-Iedu9z6NPY

1. Push loose food debris into the grease cup with spatula or straight metal scraper

2. Wipe Down griddle top with paper towel

3. Apply a few tablespoons of water to the griddle surface, then scrape the water and debris into the grease cup (For stuck-on food residue, use a bit of coarse salt)

4. Wipe again with a paper towel and dry completely

5. Apply thin coat of cooking oil to maintain seasoning and protect the griddle top


DISCONNECT THE lPG CYLINDER
20 LB (9 KG)

1. Ensure that the control knobs are turned to OFF

   1. Ensure that the lPG cylinder is OFF by turning the OPD hand wheel clockwise to a full stop
   2. Turn the coupling nut counter-clockwise by hand to remove the regulator (DO NOT use tools to disconnect)
2. Place safety cap on lPG cylinder valve outlet wheNEVER cylinder is not in use only install the type of safety cap on cylinder valve outlet that is provided with the cylinder valve. other types of caps or plugs may result in leakage of propane.


STORING LPG CYLINDERS

• The lPG cylinder must be turned OFF when the appliance is not in use
• lPG cylinders must be stored outDoors and out of the reach of children
• DO NOT store an lPG cylinder inside a building, garage, or any other enclosed area

FILLING & EXCHANGE

• Use only those reputable exchange companies that inspect, preci-sion fill, test and certify their cylinders lPG dealer must purge new cylinder before filling
• Volume of propane in cylinder will vary by temperature

A frosty regulator indicates gas overfill. Immediately close LPG cylinder valve and call local LPG dealer for assistance.

• DO NOT release liquid petroleum gas (lPG) into the atmosphere
• To remove gas from lPG cylinder, contact a certified lPG dealer or local fire department for assistance
• Exchange cylinder only for an OPD safety feature-equipped cylinder

Your retailer can help you match a replacement lPG cylinder to your appliance.

TROUBLESHOOTING

IGNITION TROUBLESHOOTING

BURNER WILL NOT IGNITE

If ignition Does not occur in 5 seconds:

1. Turn the burner control knob OFF
2. Wait 5 minutes
3. Repeat the lighting procedure
   If this Does not work, to determine the cause, please try to ignite your appliance with a match.

MATCH LIGHTING INSTRUCTIONS
Before beginning, check for gas leaks. open hood (if applicable).

1. Turn control knob to OFF position
2. Light a match (or long lighter) no shorter than 11 inches long
3. Place the flame next to the burner

4. Push in and turn the control knob to start gas flowing ensure burner lights and stays lit

IF YOU CAN IGNITE YOUR APPLIANCE WITH A MATCH:

POSSIBLE CAUSES	SOLUTION
Dead / improperly installed battery	Replace with new battery.
Ignitor wire misaligned	Ensure that the ignitor needle is positioned 3-7mm away from the burner, and aligned with the burner holes.
Damage to the ignition system	Contact customer service for replacement parts.

GAS FLOW TROUBLESHOOTING

BURNER FLAMES ARE YELLOW OR IRREGULAR

• Appliance will not achieve a high heat or heats unevenly
• Burner flames start strong, then immediately drop to low even when burner is set to high position
• Flame height drops when a second burner is lit
• Flames DO NOT extend the full length of the burner, or only run on one side of the burner
• Burner flames are inconsistent

A FLAME IS COMING OUT OF THE AIR GATE

CLEANING THE BURNER ASSEMBLY
VIDEO TUTORIAL

How to Clean Your Burner Tube
youtube.com/watch?v=xKQTCrFCzf8

1. Ensure that the gas is turned oFF at control knobs and gas supply. Remove the cooking top.
2. Carefully detach and remove the burner.

3. Clean the inside of the burner:


• Run a narrow bottle brush through each burner tube several times. (do NoT use wire brushes)
• Run a stiff wire bent into a small hook through each burner tube several times.
• Use compressed air to blow through the burner tube and out the burner ports. Check that air blows through each hole. (Wear eye protection)

4. Brush entire outer surface of burner to remove grime.

5. Clean any blocked ports with stiff wire such as an open paper clip.

6. Carefully replace burners and reattach.
   The gas rail fuel nozzle must be reengaged within the burner opening.


IMPORTANT SAFETY INFORMATION

This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow all warnings and instructions before assembling and using the appliance. Follow all warnings and instructions when using the appliance. Keep this manual for future reference. Installer/Assembler: leave these instructions with the consumer.

SAFETY ALERT KEY

Indicates a hazarDous situation that, if not avoided, will result in death or serious injury.

Indicates a hazarDous situation that, if not avoided, could result in minor or moderate injury.

Indicates a hazarDous situation that, if not avoided, could result in death or serious injury.
NOTICE
Indicates information considered important, but not hazardrelated (e.g. messages related to property damage).

GAS APPLIANCE SAFETY

• The use of alcohol, prescription, or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the appliance
• Keep children and pets away from the appliance at all times
• Have a type BC or ABC fire extinguisher readily available

DO NOT USE FOR PURPOSES OTHER THAN INTENDED:

• DO NOT use for commercial cooking
• DO NOT use this appliance as a heater

THIS APPLIANCE SHALL BE USED OUTDoORS ONLY.

• DO NOT use this appliance inside buildings, garages, or any other enclosed area
• DO NOT install this appliance in or on a boat
• DO NOT install this appliance in or on a recreational vehicleMAINTAIN PROPER CLEARANCES FROM COMBUSTIBLE MATERIAL:
• DO NOT use this appliance on or under any apartment or conDo-minium balcony or deck
• DO NOT use this appliance under overhead combustible construction
• DO NOT obstruct the flow of combustion and ventilation air
• DO NOT operate this appliance any closer than 36 in (1 m) from the sides and back of the appliance


INSTALLATION MUST CONFORM WITH LOCAL CODES
In the absence of local codes, installation must conform with:

1. National Fuel Gas Code, ANSI Z2231/NFPA 54, Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58; or
2. Natural Gas and Propane Installation Code, CSA B1491; Propane Storage and Handling, CSA B1492; or
3. TheStandard for Recreational Vehicles, ANSI A1192/NFPA 1192; and Recreational Vehicle Code, CSA Z240 RV Series, as applicable

CUSTOMER SERVICE
Visit us online at BlackstoneProducts.com/support for assistance concerning appliance use, replacement parts, or your warranty
CUSTOMER SERVICE HOURS:
Monday – Friday 7:00 am – 5:00 pm (MST)
