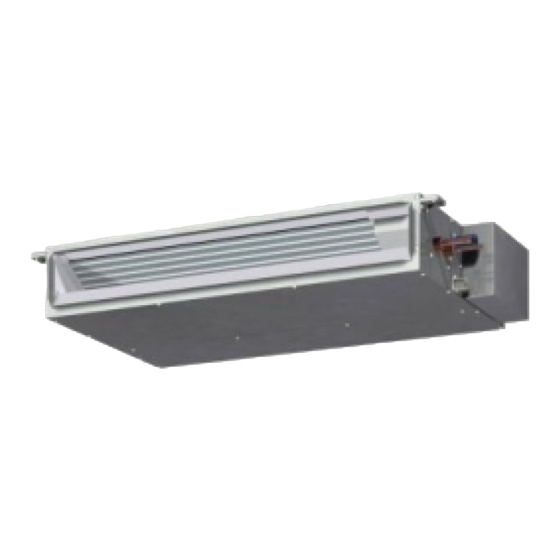

- Page 1 <ORIGINAL> Air-Conditioners INDOOR UNIT PEFY-P15,P20,P25,P32,P40,P50,P63 VMS1-E PEFY-P15,P20,P25,P32,P40,P50,P63 VMS1L-E OPERATION MANUAL For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit.
- Page 2 Controlador remoto-Botón Remote controller-Button Bottone dell’unità del comando a distanza Fernbedienungs-Taste Knop afstandbediening Touche Commande à distance Botão do controlo remoto 1 Botón [Ajuste de la temperatura] 2 Ajuste [Menú de temporizador] 3 Botón [Modo] Botón [Monitor/ajuste] Botón [Atrás] 4 Botón [Conexión/desconexión de temporizador] 5 Botón [Rejilla] Botón [Ajuste del día] Botón [Funcionamiento]...
- Page 3 ∆ËϯÂÈÚÈÛÙ‹ÚÈÔ-∫Ô˘Ì› Кнопка контроллера ДУ Uzaktan kumanda ünitesi - Dü¤me 1 ∫Ô˘ÌÈ [Set Temperature] 2 ∫Ô˘ÌÈ [Timer Menu] 3 ∫Ô˘ÌÈ [Mode] ∫Ô˘ÌÈ [Monitor/Set] ∫Ô˘ÌÈ [Back] 4 ∫Ô˘ÌÈ [Timer On/Off] 5 ∫Ô˘ÌÈ [Louver] ∫Ô˘ÌÈ [Set Day] ∫Ô˘ÌÈ [Operation] 6 ∫Ô˘ÌÈ [Fan Speed] 7 ∫Ô˘ÌÈ...
- Page 4 Fjärrkontrollknapp Бутон Дистанционен регулатор 1 Knapp [ställ in temperatur] 2 Knapp [timermeny] 3 Knapp [läge] Knapp [övervaka/ställ in] Knapp [bakåt] 4 Knapp [timer på/av] 5 Knapp [galler] Knapp [lägg in dag] Knapp [drift] 6 Knapp [fläktvarvtal] 7 Knapp [vingkontroll] 8 Knapp [ventilation] Knapp [drift] 9 Knapp [kontrollera/töm] 0 Knapp [provkör]...
- Page 5 Controlador remoto-Indicador Remote controller-Display Display dell’unità del comando a distanza Fernbedienung-Anzeige Display afstandbediening Affichage Commande à distance Visualização do controlo remoto A Hora actual/hora del temporizador B Indicador de control centralizado C Indicador de desconexión del temporizador D Indicador de modo del temporizador E Pantalla de modo de funcionamiento: REFRIGERACIÓN, DESHUMIDIFICACIÓN,...
- Page 6 ∆ËϯÂÈÚÈÛÙ‹ÚÈÔ-∂›‰ÂÈÍË Дисплей контроллера ДУ Uzaktan kumanda ünitesi-Göstergesi A ∆ÚÂ¯Ô˘Û· ˆÚ·/øÚ· ¯ÚÔÓԉȷÎÔÙË B ∂Ó‰ÂÈÍË ÎÂÓÙÚÈÎÔ˘ ÂÏÂÁ¯Ô˘ C ∂Ó‰ÂÈÍË ¯ÚÔÓԉȷÎÔÙË OFF D ∂Ó‰ÂÈÍË ÏÂÈÙÔ˘ÚÁÈ·˜ ¯ÚÔÓԉȷÎÔÙË E ∂Ó‰ÂÈÍË ÙÚÔÔ˘ ÏÂÈÙÔ˘ÚÁÈ·˜: COOL, DRY, AUTO, FAN, HEAT F ∂Ó‰ÂÈÍË ÙÚÔÔ˘ ÏÂÈÙÔ˘ÚÁÈ·˜ G ¶ÚÔηıÔÚÈÛÌÂÓË ıÂÚÌÔÎÚ·ÛÈ· H ∂Ó‰ÂÈÍË ÏÂÈÙÔ˘ÚÁÈ·˜ I °ÚÈÏÏȘ...
- Page 7 Fjärrkontrolldisplay Дисплей на дистанционния регулатор A Aktuell tid/timertid B Central kontrollindikator C Indikator för timer AV D Timerlägesindikator E Driftlägesdisplay: KYLNING, TORKNING, AUTO, FLÄKT, VÄRMNING F Funktionslägesindikator G Förinställd temperatur H Strömindikator I Galler J Ventilation K Filtertecken L Givarläge M Rumstemperatur N Vinginställning O Fläktvarvtal...
- Page 8 [Fig. A] <PEFY-P-VMS1(L)-E> A: Filter : Air Flow Filter Luftstrom Filtre Flux d’air Filtro Flujo de aire Filtro Flusso d’aria Filter Luchtstroom Filtro Fluxo de Ar º›ÏÙÚÔ ƒÔ‹ ·¤Ú· Фильтр Воздушный поток Filtre Hava Ak›m› Filter Luftflöde Филтър Въздушен поток...
-
