Air-Conditioners

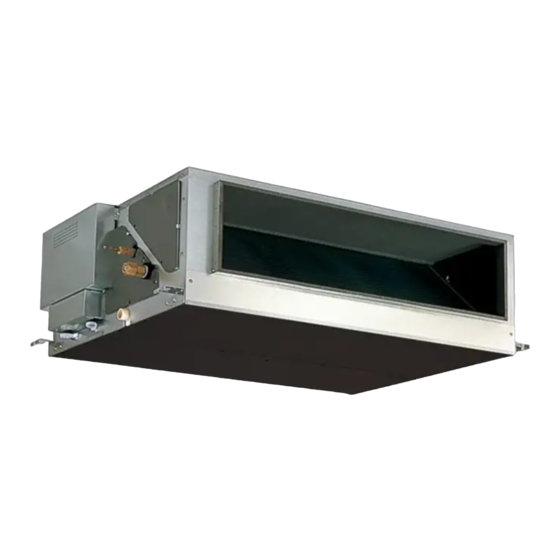

INDOOR UNIT
PEFY-P15,P20,P25,P32,P40,P50,P63 VMS1-E
PEFY-P15,P20,P25,P32,P40,P50,P63 VMS1L-E
INSTALLATION MANUAL
For safe and correct use, please read this installation manual thoroughly before installing the air-conditioner unit.
INSTALLATIONSHANDBUCH
Zum sicheren und ordnungsgemäßen Gebrauch der Klimageräte das Installationshandbuch gründlich durchlesen.
MANUEL D'INSTALLATION
Veuillez lire le manuel d'installation en entier avant d'installer ce climatiseur pour éviter tout accident et vous assurer d'une utilisation correcte.
MANUAL DE INSTALACIÓN
Para un uso seguro y correcto, lea detalladamente este manual de instalación antes de montar la unidad de aire acondicionado.
MANUALE DI INSTALLAZIONE
Per un uso sicuro e corretto, leggere attentamente questo manuale di installazione prima di installare il condizionatore d'aria.
INSTALLATIEHANDLEIDING
Voor een veilig en juist gebruik moet u deze installatiehandleiding grondig doorlezen voordat u de airconditioner installeert.
MANUAL DE INSTALAÇÃO
Para segurança e utilização correctas, leia atentamente este manual de instalação antes de instalar a unidade de ar condicionado.
ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ ΕΓΚΑΤΑΣΤΑΣΗΣ
Για ασφάλεια και σωστή χρήση, παρακαλείστε διαβάσετε προσεχτικά αυτό το εγχειρίδιο εγκατάστασης πριν αρχίσετε την εγκατάσταση της μονάδας
κλιματισμού.
РУКОВОДСТВО ПО УСТАНОВКЕ
Для осторожного и правильного использования прибора необходимо тщательно ознакомиться с данным руководством по установке до
выполнения установки кондиционера.
MONTAJ ELKİTABI
Emniyetli ve doğru biçimde nasıl kullanılacağını öğrenmek için lütfen klima cihazını monte etmeden önce bu elkitabını dikkatle okuyunuz.
PŘÍRUČKA K INSTALACI
V zájmu bezpečného a správného používání si před instalací klimatizační jednotky důkladně pročtěte tuto příručku k instalaci.
NÁVOD NA INŠTALÁCIU
Pre bezpečné a správne použitie si pred inštalovaním klimatizačnej jednotky, prosím, starostlivo prečítajte tento návod na inštaláciu.
TELEPÍTÉSI KÉZIKÖNYV
A biztonságos és helyes használathoz, kérjük, olvassa el alaposan ezt a telepítési kézikönyvet, mielőtt telepítené a légkondicionáló egységet.
PODRĘCZNIK INSTALACJI
W celu bezpiecznego i poprawnego korzystania należy przed zainstalowaniem klimatyzatora dokładnie zapoznać się z niniejszym podręcznikiem
instalacji.
PRIROČNIK ZA NAMESTITEV
Za varno in pravilno uporabo pred namestitvijo klimatske naprave skrbno preberite priročnik za namestitev.
INSTALLATIONSHANDBOK
Läs den här installationshandboken noga innan luftkonditioneringsenheten installeras, för säker och korrekt användning.
PRIRUČNIK ZA UGRADNJU
Radi sigurne i ispravne uporabe, temeljito pročitajte ovaj priručnik prije ugradnje klimatizacijskog uređaja.
РЪКОВОДСТВО ЗА МОНТАЖ
За безопасна и правилна употреба, моля, прочетете внимателно това ръководство преди монтажа на климатизатора.
MANUAL CU INSTRUCŢIUNI DE INSTALARE
Pentru o utilizare corectă şi sigură, vă rugăm să citiţi cu atenţie acest manual înainte de a instala unitatea de aer condiţionat.

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Electric CITY MULTI PEFY-P15 VMS1-E

Summary of Contents for Mitsubishi Electric CITY MULTI PEFY-P15 VMS1-E

  • Page 1 Air-Conditioners INDOOR UNIT PEFY-P15,P20,P25,P32,P40,P50,P63 VMS1-E PEFY-P15,P20,P25,P32,P40,P50,P63 VMS1L-E INSTALLATION MANUAL For safe and correct use, please read this installation manual thoroughly before installing the air-conditioner unit. INSTALLATIONSHANDBUCH Zum sicheren und ordnungsgemäßen Gebrauch der Klimageräte das Installationshandbuch gründlich durchlesen. MANUEL D’INSTALLATION Veuillez lire le manuel d’installation en entier avant d’installer ce climatiseur pour éviter tout accident et vous assurer d’une utilisation correcte. MANUAL DE INSTALACIÓN Para un uso seguro y correcto, lea detalladamente este manual de instalación antes de montar la unidad de aire acondicionado.
  • Page 2 [Fig. 3.2.1] 50~150 A Access door 1 600 mm or more B Electrical parts box 2 100 mm or more C Air inlet 3 10 mm or more D Air outlet 4 300 mm or more E Ceiling surface F Service space (viewed from the side) G Service space (viewed from the direction of arrow) (mm) Model...
  • Page 3 [Fig. 7.1.1] [Fig. 7.1.3] A Cut here B Remove brazed cap A Thermal insulation [Fig. 7.1.2] B Pull out insulation C Wrap with damp cloth D Return to original position E Ensure that there is no gap here A Cool by a wet cloth F Wrap with insulating tape [Fig.
  • Page 4 [Fig. 7.3.1] [Fig. 7.3.2] A Insert pump's end 2 to 4 cm. B Remove the water supply port. C About 2000 cc <Indoor board> D Water E Filling port F Screw A Air inlet [Fig. 8.0.1] B Air outlet C Access door D Ceiling surface E Canvas duct F Air filter...
  • Page 5 [Fig. 9.3.1] [Fig. 9.3.2] A Terminal bed box B Knockout hole A Screw holding cover (2pcs) C Remove B Cover [Fig. 9.3.3] [Fig. 9.3.4] E Use PG bushing to keep the weight of the cable and external force from being J Power source terminal bed applied to the power supply terminal connector.

  • Page 6: Table Of Contents

    - It may also be in violation of applicable laws. Describes precautions that should be observed to prevent damage to the - MITSUBISHI ELECTRIC CORPORATION cannot be held responsible for mal- unit. functions or accidents resulting from the use of the wrong type of refrigerant.

  • Page 7: Before Getting Installed

    • Use refrigerant piping made of C1220 (Cu-DHP) phosphorus deoxidized 1.4. Before getting installed (moved) - elec- copper as specified in the JIS H3300 “Copper and copper alloy seam- trical work less pipes and tubes”. In addition, be sure that the inner and outer surfaces of the pipes are clean and free of hazardous sulphur, oxides, dust/dirt, shaving particles, oils, moisture, or any other contaminant.

  • Page 8: Install The Indoor Unit On A Ceiling Strong Enough To Sustain Its Weight

    • Do not install unit at a site where fire detector is located at the supply air 3.2. Securing installation and service side. (Fire detector may operate erroneously due to the heated air supplied space during heating operation.) • When special chemical product may scatter around such as site chemical • Select the optimum direction of supply airflow according to the configuration plants and hospitals, full investigation is required before installing unit.

  • Page 9: Refrigerant Pipe And Drain Pipe Specifications

    6.1. Refrigerant pipe and drain pipe specifications Model R410A R407C or R22 Item 15·20·25·32·40·50 15·20·25·32·40 50·63* Refrigerant pipe Liquid pipe ø 6.35 ø 9.52 ø 6.35 ø 9.52 (Brazing connection) Gas pipe ø 12.7 ø 15.88 ø 12.7 ø 15.88 Drain pipe O.D.

  • Page 10: Confirming Drain Discharge

    [Fig. 7.2.2] (P.3) * only on the PEFY-P·VMS1-E model 7.3. Confirming drain discharge A Indoor unit u Make sure that the drain-up mechanism operates normally for dis- B Insulation pipe (long) (accessory) charge and that there is no water leakage from the connections. C Tie band (accessory) • Be sure to confirm the above in a period of heating operation.

  • Page 11: Power Supply Wiring

    <Table 1> System configuration For a single-refrigerant system For a multi-refrigerant system Transmission cable length Less than 120 m More than 120 m Regardless of length Building, clinic, hospital or communica- tions station without noise supposedly Facility example Residence or independent generated from inverter equipment, pri- All facilities (for noise judgment)

  • Page 12: Connecting Remote Controller, Indoor And Outdoor Transmission Cables

    9.2. Connecting remote controller, indoor Notes: • Do not pinch the cables or wires when attaching the terminal bed box and outdoor transmission cables cover. Doing so may cause a risk of disconnection. • When accommodating the terminal bed box, make sure that the con- • Connect indoor unit TB5 and outdoor unit TB3.

  • Page 13: Electrical Characteristics

    9.8. Electrical characteristics Symbols : MCA : Max. Circuit Amps ( = 1.25 x FLA) FLA : Full Load Amps IFM : Indoor Fan Motor Output : Fan motor rated output Power supply PEFY-P-VMS1-E Volts / Hz Range +-10% MCA(A) (50 / 60Hz) Output(kW) FLA(A) (50 / 60Hz) PEFY-P15VMS1-E...
  • Page 14 Please be sure to put the contact address/telephone number on this manual before handing it to the customer. HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN Authorized representative in EU: MITSUBISHI ELECTRIC EUROPE B.V. HARMAN HOUSE, 1 GEORGE STREET, UXBRIDGE, MIDDLESEX UB8 1QQ, U.K. KB79H130H07...
