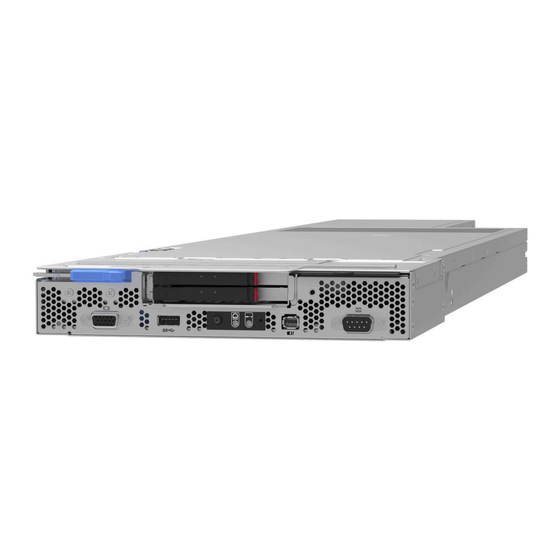

Page 1 ThinkSystem SD530 V3 User Guide Machine Type: 7DD3, 7DDA...
Page 2 Before using this information and the product it supports, be sure to read and understand the safety information and the safety instructions, which are available at: https://pubs.lenovo.com/safety_documentation/ In addition, be sure that you are familiar with the terms and conditions of the Lenovo warranty for your server, which can be found at: http://datacentersupport.lenovo.com/warrantylookup First Edition (March 2024) ©...
Page 3: Table Of Contents
System package contents ... Chapter 6. Internal cable routing . . . 173 Identify the system and access the Lenovo Identifying connectors ... . 173 XClarity Controller .
Page 4 Chapter 7. System configuration . . . 183 Memory problems ... . 221 Set the network connection for the Lenovo XClarity Monitor and video problems ..222 Controller .
Page 7: Safety
Vor der Installation dieses Produkts die Sicherheitshinweise lesen. Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza. Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet. Antes de instalar este produto, leia as Informações sobre Segurança. © Copyright Lenovo 2024...
Page 8: Safety Inspection Checklist
1 & IEC 60950-1, the standard for Safety of Electronic Equipment within the Field of Audio/Video, Information Technology and Communication Technology. Lenovo assumes you are qualified in the servicing of equipment and trained in recognizing hazards energy levels in products. Access to the equipment is by the use of a tool, lock and key, or other means of security, and is controlled by the authority responsible for the location.
Page 9 Click Power ➙ Power Cables to see all line cords. • Make sure that the insulation is not frayed or worn. 3. Check for any obvious non-Lenovo alterations. Use good judgment as to the safety of any non-Lenovo alterations.
Page 10 ThinkSystem SD530 V3 User Guide viii...
Page 11: Chapter 1. Introduction
Chapter 1. Introduction Lenovo ThinkSystem SD530 V3 (Types 7DD3 and 7DDA) is a dense and economical two-socket node in a 1U rack form factor. Combining the efficiency and density of blades with the value and simplicity of rack-based servers, SD530 V3 delivers a cost-efficient scaleout platform that is thermally designed to deliver maximum performance in the smallest footprint.
Page 12 The Lenovo XClarity Controller consolidates multiple management functions in a single chip on the server system board. Some of the features that are unique to the Lenovo XClarity Controller are enhanced performance, higher-resolution remote video, and expanded security options.
Page 13: Tech Tips
The node provides a QR code on the system service label, which is on the node top cover, that you can scan using a QR code reader and scanner with a mobile device to get quick access to the Lenovo Service Information website.
Page 14 The list of current advisories is available at the following site: https://datacentersupport.lenovo.com/product_security/home ThinkSystem SD530 V3 User Guide...
Page 15: Specifications
Specifications Summary of the features and specifications of the chassis and node. Depending on the model, some features might not be available, or some specifications might not apply. Refer to the below table for specifications categories and the content of each category. Node technical Node mechanical Environmental...
Page 16: Chassis Specifications
Note: For the supported nodes for the D3 chassis, see “Chassis front view” on page Node technical specifications Summary of the technical specifications of the node. Depending on the model, some features might not be available, or some specifications might not apply. ThinkSystem SD530 V3 User Guide...
Page 17 • Supports UPI v2.0 links at higher width (x96) and speed: up to 12.8, 14.4, 16 GT/s • Thermal Design Power (TDP): up to 350 watts For a list of supported processors, see: https://serverproven.lenovo.com Memory Memory “Memory module installation rules and order” on page 45 for detailed information about memory configuration and setup.
Page 18 – PCIe expansion slot can support up to 75 watt PCIe adapter. • OCP module – One OCP module slot Graphics processing unit (GPU) Graphics processing unit (GPU) • Up to one 75-watt low-profile GPU For a list of supported GPUs, see: https://serverproven.lenovo.com ThinkSystem SD530 V3 User Guide...
Page 19 Integrated functions and I/O connectors Integrated functions • Lenovo XClarity Controller (XCC), which provides service processor control and monitoring functions, video controller, and remote keyboard, video, mouse, and remote drive capabilities. • One XCC system management port to connect to a systems-management network. This RJ-45 connector is dedicated to the Lenovo XClarity Controller functions and runs at 10/100/1000 Mbps speed.
Page 20: Node Mechanical Specifications
“Deploy the operating system” on page 191. 　 Node mechanical specifications Summary of the mechanical specifications of the ThinkSystem SD530 V3 node. Depending on the model, some features might not be available, or some specifications might not apply. Dimension ThinkSystem SD530 V3 node •...
Page 21: Environmental Specifications
Lenovo recommends that you consult with qualified experts in this field to determine whether you are in compliance with the applicable regulations.
Page 22 TDP RDIMMs – Up to two M.2 drives – Standard heat sink – One PCIe Ethernet adapter – One OCP module with 2 ports – Up to eight 96 GB RDIMMs – One GPU adapter ThinkSystem SD530 V3 User Guide...
Page 23 Table 3. Configurations with one processor, under 35°C (continued) Processor configuration Conditionally supported Commonly supported components components – One OCP module • Keep the ambient temperature to 30°C or lower with the following system configuration: Table 4. Configurations with one processor, under 30°C Processor configuration Conditionally supported Commonly supported...
Page 24 – One OCP module Environment Environment ThinkSystem SD530 V3 complies with ASHRAE Class A2 specifications. System performance may be impacted when operating temperature is outside AHSRAE A2 specification. Depending on the hardware configuration, SD530 V3 also complies with ASHRAE Class H1 specification. System performance may be impacted when operating temperature is outside ASHRAE H1 specification.
Page 25 If Lenovo determines that the levels of particulates or gases in your environment have caused damage to the device, Lenovo may condition provision of repair or replacement of devices or parts on implementation of appropriate remedial measures to mitigate such environmental contamination.
Page 26 ThinkSystem SD530 V3 User Guide...
Page 27: Management Options
• Mobile application • Redfish API Usage and downloads https://pubs.lenovo.com/lxcc-overview/ Application that reports the XCC events to local OS system log. Interface • CLI application Lenovo XCC Logger Utility Usage and downloads • https://pubs.lenovo.com/lxcc-logger-linux/ • https://pubs.lenovo.com/lxcc-logger-windows/ Centralized interface for multi-server management.
Page 28 Important: Lenovo XClarity Provisioning Manager (LXPM) supported version varies by product. All versions of Lenovo XClarity Provisioning Manager are referred to as Lenovo XClarity Provisioning Manager and LXPM in this document, unless specified otherwise. To see the LXPM version supported by your server, go to https:// pubs.lenovo.com/lxpm-overview/...
Page 29 1. Most options can be updated through the Lenovo tools. Some options, such as GPU firmware or Omni- Path firmware require the use of supplier tools. 2. The server UEFI settings for option ROM must be set to Auto or UEFI to update firmware using Lenovo XClarity Administrator, Lenovo XClarity Essentials, or Lenovo XClarity Controller.
Page 30 ThinkSystem SD530 V3 User Guide...
Page 31: Chapter 2. Hardware Components
Node tray 2 　 Node front view The following illustrations show the controls and connectors in the front view of the ThinkSystem SD530 V3 node. Depending on the specific configuration, some of the components or connectors might not be supported.
Page 32 Figure 2. Front view of the ThinkSystem SD530 V3 node Table 9. Components in the front view of the ThinkSystem SD530 V3 node E3.S drive bay External diagnostic handset connector Drive activity LED Front operator panel buttons and LEDs USB 3.2 Gen 1 (5 Gbps) connector...
Page 33: Rear View
　 USB 3.2 Gen 1 (5 Gbps) connector Connect a USB device, such as a mouse, keyboard, or other devices, to this connector. 　 VGA connector Connect a monitor to this connector. Note: The maximum video resolution is 1920 x 1200 at 60 Hz. 　...
Page 34: Node Rear View
207. Node rear view The following illustrations show the controls and connectors on the rear of the ThinkSystem SD530 V3 node. Depending on the specific configuration, some of the components or connectors might not be supported. Figure 4. Rear view Table 11.
Page 35 In this mode, the USB port is always solely connected to Lenovo XClarity Controller. • Shared mode: owned by BMC In this mode, connection to the USB port is shared by the server and Lenovo XClarity Controller, while the port is switched to Lenovo XClarity Controller.
Page 36: Top View
“XCC system management port LEDs” on page 210 Top view This following illustration provides information on the top view of the ThinkSystem SD530 V3 node. Note: Depending on the specific configuration, the hardware might look slightly different from the illustrations in this section.
Page 37 Notes: • The firmware of the chassis midplane can be updated via Lenovo XClarity Controller (XCC) and Lenovo XClarity Essentials OneCLI (LXCE OneCLI). Only the caretaker node can perform this update.
Page 38: System-Board Layout
MicroSD card socket Fan 2 connector Serial connector Backplane power connector External diagnostic handset connector Fan 3 connector USB connector PCIe riser power connector Rear I/O signal connector Fan 4 connector VGA connector P12V AUX power connector ThinkSystem SD530 V3 User Guide...
Page 39: System-Board Switches
Important: 1. Before you change any switch settings or move any jumpers, turn off the server; then, disconnect all power cords and external cables. Review the following information: • https://pubs.lenovo.com/safety_documentation/ • “Installation Guidelines” on page 41 • “Handling static-sensitive devices” on page 43 •...
Page 40: System Leds And Diagnostics Display
Normal (default) presence System LEDs and diagnostics display The following section provides information on available system LEDs and diagnostics display. For more information, refer to “Troubleshooting by system LEDs and diagnostics display” on page 205. ThinkSystem SD530 V3 User Guide...
Page 41: Chapter 3. Parts List
Tier 1 CRU at your request with no service agreement, you will be charged for the installation. • T2: Tier 2 customer replaceable unit (CRU). You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
Page 42 Chassis rear shipping brackets (left and right) Node tray front filler Chassis front EIA brackets (left and right) Node components Figure 11. Node components Description Type Description Type Top cover Processor OCP 3.0 module MicroSD card ThinkSystem SD530 V3 User Guide...
Page 43: Power Cords
Several power cords are available, depending on the country and region where the server is installed. To view the power cords that are available for the server: 1. Go to: http://dcsc.lenovo.com/#/ 2. Click Preconfigured Model or Configure to order. 3. Enter the machine type and model for your server to display the configurator page.
Page 44 ThinkSystem SD530 V3 User Guide...
Page 45: Chapter 4. Unboxing And Setup
They might be required to receive warranty service. Identify the system and access the Lenovo XClarity Controller This section contains instruction on how to identify the system and where to find the Lenovo XClarity Controller access information.
Page 46 Lenovo XClarity Controller network access label In addition, the Lenovo XClarity Controller network access label for the node can be found on the pull-out information tag located at the front of the node. This pull-out information tag also shows the bay numbers of the hot-swap drives.
Page 47: System Setup Checklist
Figure 13. Lenovo XClarity Controller network access label on the pull-out information tab Service Label and QR code In addition, the System Service Label is located on the inside surface of the node cover, providing a quick response (QR) code for mobile access to service information. You can scan the QR code with a mobile device using a QR code reader application and get quick access to the Service Information web page.
Page 48 • You can press the power button. • The node can restart automatically after a power interruption. • The node can respond to remote power-on requests sent to the Lenovo XClarity Controller. Note: You can access the management processor interface to configure the system without powering on the system.
Page 49 2. Update the firmware for the system, if necessary. 3. Configure the firmware for the system. The following information is available for RAID configuration: • https://lenovopress.lenovo.com/lp0578-lenovo-raid-introduction • https://lenovopress.lenovo.com/lp0579-lenovo-raid-management-tools-and-resources 4. Install the operating system. 5. Back up the system configuration. 6. Install the applications and programs for which the system is intended to be used.
Page 50 ThinkSystem SD530 V3 User Guide...
Page 51: Chapter 5. Hardware Replacement Procedures
• Do not attempt to lift an object that might be too heavy for you. If you have to lift a heavy object, read the following precautions carefully: – Make sure that you can stand steadily without slipping. – Distribute the weight of the object equally between your feet. © Copyright Lenovo 2024...
Page 52: Safety Inspection Checklist
1 & IEC 60950-1, the standard for Safety of Electronic Equipment within the Field of Audio/Video, Information Technology and Communication Technology. Lenovo assumes you are qualified in the servicing of equipment and trained in recognizing hazards energy levels in products. Access to the equipment is by the use of a tool, lock and key, or other means of security, and is controlled by the authority responsible for the location.
Page 53: System Reliability Guidelines
Click Power ➙ Power Cables to see all line cords. • Make sure that the insulation is not frayed or worn. 3. Check for any obvious non-Lenovo alterations. Use good judgment as to the safety of any non-Lenovo alterations.
Page 54 • When handling a device, carefully hold it by the edges or the frame. • Do not touch solder joints, pins, or exposed circuitry. • Keep the device from others’ reach to prevent possible damages. ThinkSystem SD530 V3 User Guide...
Page 55: Memory Module Installation Rules And Order
For information on the types of memory module supported by this server, see “Memory” section in “Node technical specifications” on page Information about optimizing memory performance and configuring memory is available at the Lenovo Press website: https://lenovopress.lenovo.com/servers/options/memory In addition, you can take advantage of a memory configurator, which is available at the following site: https://dcsc.lenovo.com/#/memory_configuration...
Page 56 • When a processor is installed, each of the DIMM slots connected to the processor must be installed with a DIMM or DIMM filler. – DIMM slots 1-8 are connected to processor 1 – DIMM slots 9-16 are connected to processor 2 ThinkSystem SD530 V3 User Guide...
Page 57: Dram Dimms Installation Order
• All the installed memory modules must be of the same type. Notes: • System hang on POST may occur on a server operating in this configuration. In this case, contact Lenovo service to replace the failed DIMM for proper operation.
Page 58 Table 19. Independent mode memory population sequence for one processor Total DIMMs Processor 1 Note: * When there are two or four DIMMs installed per processor, 24 GB or 48 GB DIMMs are not supported. ThinkSystem SD530 V3 User Guide...
Page 59 With two processors The following tables show the DIMM population sequence for independent memory mode when two processors are installed. Table 20. Independent mode memory population sequence for two processors Total DIMMs Processor 1 Total DIMMs Processor 2 Note: * When there are two or four DIMMs installed per processor, 24 GB or 48 GB DIMMs are not supported. Chapter 5 Hardware replacement procedures...
Page 60 With two processors The following table shows the DIMM population sequence for memory mirroring mode when two processors are installed. Table 22. Memory mirroring with two processors Total DIMMs Processor 1 8†‡ Total DIMMs Processor 2 16†‡ ThinkSystem SD530 V3 User Guide...
Page 61: Power On And Power Off The Node
“Power off the node” on page Power off the node The node remains in a standby state when it is connected to a power source, allowing the Lenovo XClarity Controller to respond to remote power-on requests. To completely power off the node (power status LED off), you must disconnect all power cables.
Page 62: Chassis Replacement
Remove the screws that secure the rear bracket. Push the bracket toward the rear of the rack; then, remove the bracket from the rack and the chassis. Repeat the above steps to remove the other rear shipping bracket. ThinkSystem SD530 V3 User Guide...
Page 63 Figure 16. Removal of the shipping brackets If any nodes are installed in the chassis, power off all the nodes and disconnect all external cables from the nodes; then, remove the nodes from the chassis (see “Power off the node” on page 51 “Remove a node from the chassis”...
Page 64: Install The Chassis To The Rack
Install the chassis to the rack Follow instructions in this section to install the chassis to the rack. About this task To avoid potential danger, make sure to read and follow the safety information. R006 ThinkSystem SD530 V3 User Guide...
Page 65 • To install the rails into a rack, follow the instructions below: https://pubs.lenovo.com/st650-v2/thinksystem_l_shaped_rail_kit.pdf After the rails are installed successfully, complete the following steps to install the chassis to the rack. CAUTION: Use safe practices when lifting the chassis.
Page 66: Replace Components In The Chassis
Remove the EIA brackets from the chassis Follow instructions in this section to remove the EIA brackets from the chassis. About this task To avoid potential danger, make sure to read and follow the safety information. Attention: ThinkSystem SD530 V3 User Guide...
Page 67 • Read “Installation Guidelines” on page 41 “Safety inspection checklist” on page 42 to make sure that you work safely. Procedure Step 1. Make preparations for this task. Power off all the nodes (see “Power off the node” on page 51);...
Page 68: Hot-Swap Power Supply Replacement
Follow instructions in this section to remove or install a hot-swap power supply unit (PSU). Remove a hot-swap power supply Follow instructions in this section to remove a power supply unit (PSU). About this task To avoid potential danger, make sure to read and follow the safety information. S001 ThinkSystem SD530 V3 User Guide...
Page 69 DANGER Electrical current from power, telephone, and communication cables is hazardous. To avoid a shock hazard: • Connect all power cords to a properly wired and grounded electrical outlet/source. • Connect any equipment that will be attached to this product to properly wired outlets/sources. •...
Page 70 • For PSU slots 2 and 3, the PSU filler must be installed with the latch downward. For PSU slot 1, the filler must be installed with the latch upward. ThinkSystem SD530 V3 User Guide...
Page 71 Figure 23. Installation of a PSU filler 2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Install a hot-swap power supply Follow instructions in this section to install a power supply unit (PSU).
Page 72 Avoid mixing power supply units of different wattages or vendors in one chassis. If a PSU filler is installed in the PSU slot, remove it. Press and hold the latch on the PSU filler. Pull the filler out of the PSU slot. ThinkSystem SD530 V3 User Guide...
Page 73 Figure 24. Removal of a PSU filler If more than one power supply units are to be installed, start with the lowest available number of PSU slot. Step 2. Insert the hot-swap power supply into the slot until the release latch clicks into place. Important: •...
Page 74: Psu Cage And Chassis Midplane
Follow instructions in this section to remove or install the PSU cage and the chassis midplane. Remove the PSU cage Follow instructions in this section to remove the PSU cage. About this task To avoid potential danger, make sure to read and follow the safety information. S001 ThinkSystem SD530 V3 User Guide...
Page 75 DANGER Electrical current from power, telephone, and communication cables is hazardous. To avoid a shock hazard: • Connect all power cords to a properly wired and grounded electrical outlet/source. • Connect any equipment that will be attached to this product to properly wired outlets/sources. •...
Page 76 Figure 26. Removal of the PSU cage Step 3. Carefully lay the PSU cage on a flat, static-protective surface. After this task is completed 1. Install a replacement unit (see “Install a PSU cage” on page 70). ThinkSystem SD530 V3 User Guide...
Page 77 2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Remove the chassis midplane Follow instructions in this section to remove the chassis midplane. About this task To avoid potential danger, make sure to read and follow the safety information.
Page 78 Install the chassis midplane Follow instructions in this section to install the chassis midplane. About this task To avoid potential danger, make sure to read and follow the safety information. S002 ThinkSystem SD530 V3 User Guide...
Page 79 Notes: • The firmware of the chassis midplane can be updated via Lenovo XClarity Controller (XCC) and Lenovo XClarity Essentials OneCLI (LXCE OneCLI). Only the caretaker node can perform this update. • By default, the caretaker node is automatically selected by the PSoC firmware on the chassis midplane, unless otherwise designated.
Page 80 “Complete the parts replacement” on page 171). Install a PSU cage Follow instructions in this section to install a PSU cage. About this task To avoid potential danger, make sure to read and follow the safety information. ThinkSystem SD530 V3 User Guide...
Page 81 S001 DANGER Electrical current from power, telephone, and communication cables is hazardous. To avoid a shock hazard: • Connect all power cords to a properly wired and grounded electrical outlet/source. • Connect any equipment that will be attached to this product to properly wired outlets/sources. •...
Page 82: Node Component Replacement
Remove a node from the chassis Follow instructions in this section to remove a SD530 V3 node from the D3 Chassis. About this task To avoid potential danger, make sure to read and follow the safety information. R006 ThinkSystem SD530 V3 User Guide...
Page 83 CAUTION: Do not place any object on top of a rack-mounted device unless that rack-mounted device is intended for use as a shelf. Attention: • Read “Installation Guidelines” on page 41 “Safety inspection checklist” on page 42 to make sure that you work safely.
Page 84 Important: For proper cooling, each node tray must be installed with either a node or node tray fillers before the nodes in the chassis are powered on. ThinkSystem SD530 V3 User Guide...
Page 85 Figure 32. Installation of a front node tray filler Figure 33. Installation of a rear node tray filler 2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Install a node to the chassis Follow instructions in this section to install a SD530 V3 node into the D3 Chassis.
Page 86 Step 1. Make preparations for this task. If node tray fillers are installed, remove them from the chassis. Press and hold on the latch of the filler. Pull the filler out of the node tray. ThinkSystem SD530 V3 User Guide...
Page 87 Figure 34. Removal of a front node tray filler Figure 35. Removal of a rear node tray filler Step 2. Install the node into the chassis. Make sure that the front handle on the node is in the fully open position; then, slide the node into the node tray until it stops.
Page 88 – In the left tray (seen from the front), the node must be installed right-side up. – In the right tray (seen from the front), the node must be installed upside down. Figure 36. Node installation to a left tray ThinkSystem SD530 V3 User Guide...
Page 89 5. If the node access over local console is not available, refer to the following sections in the XCC documentation compatible with your node at https://pubs.lenovo.com/lxcc-overview/ a. Access Lenovo XClarity Controller web interface (see “Accessing the XClarity Controller web interface” section). Chapter 5...
Page 90: Cmos Battery (Cr2032) Replacement
S004 CAUTION: When replacing the lithium battery, use only Lenovo specified part number or an equivalent type of battery recommended by the manufacturer. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.
Page 91 • Read “Installation Guidelines” on page 41 “Safety inspection checklist” on page 42 to make sure that you work safely. • Make sure to read the following notes carefully before replacing the CMOS battery in the node. – Do not make CMOS battery in contact with any metal surface during the replacement. Any contact with a metal surface, such as the node and chassis side, can cause damages to the battery.
Page 92 S004 CAUTION: When replacing the lithium battery, use only Lenovo specified part number or an equivalent type of battery recommended by the manufacturer. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.
Page 93 CAUTION: The battery is a lithium ion battery. To avoid possible explosion, do not burn the battery. Exchange it only with the approved part. Recycle or discard the battery as instructed by local regulations. Attention: • Read “Installation Guidelines” on page 41 “Safety inspection checklist”...
Page 94: Drive Cage Assembly Replacement
About this task To avoid potential danger, make sure to read and follow the safety information. Attention: Read “Installation Guidelines” on page 41 “Safety inspection checklist” on page 42 to make sure that you work safely. ThinkSystem SD530 V3 User Guide...
Page 95 Procedure Step 1. Make preparations for this task. Power off the node (see “Power off the node” on page 51); then, disconnect all external cables from the node. Remove the node from the chassis (see “Remove a node from the chassis” on page 72);...
Page 96 Step 2. Remove the drive backplane from the drive cage. Remove the two screws that secure the backplane. Lift the backplane to pull it out of the drive cage. Figure 43. Removal of the drive backplane ThinkSystem SD530 V3 User Guide...
Page 97 After this task is completed 1. Install a replacement unit (see “Install a drive backplane” on page 87). 2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Install a drive backplane Follow instructions in this section to install a drive backplane.
Page 98 “Install a drive backplane” on page 87). Step 2. Install the drive cage assembly to the node. Lower the cage into the node until all the screw holes are aligned. Tighten the seven screws to secure the cage. ThinkSystem SD530 V3 User Guide...
Page 99: Fan Replacement
Figure 45. Installation of the drive cage assembly After this task is completed 1. Make sure that all the required cables are routed and connected correctly; then, reinstall the top cover (see “Install the top cover” on page 170). 2. Reinstall the node into the chassis (see “Install a node to the chassis”...
Page 100 Install a fan Follow instructions in this section to install a fan. About this task To avoid potential danger, make sure to read and follow the safety information. ThinkSystem SD530 V3 User Guide...
Page 101: Gpu Air Duct Replacement
Attention: • Read “Installation Guidelines” on page 41 “Safety inspection checklist” on page 42 to make sure that you work safely. • Touch the static-protective package that contains the component to any unpainted metal surface on the node and chassis; then, take the component out of the package and place it on a static-protective surface.
Page 102 “Install a GPU air duct” on page 93). 2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. ThinkSystem SD530 V3 User Guide...
Page 103 Install a GPU air duct Follow instructions in this section to install a GPU air duct. About this task To avoid potential danger, make sure to read and follow the safety information. Attention: • Read “Installation Guidelines” on page 41 “Safety inspection checklist”...
Page 104: Hot-Swap Drive Replacement
• Make sure to have the drive bay fillers readily available if some drive bays will be left empty after the removal. Procedure Step 1. Remove the E3.S drive cage cover. Loosen the thumbscrew on the drive cage cover. Pull the drive cage cover out of the node. ThinkSystem SD530 V3 User Guide...
Page 105 Figure 50. E3.S drive cage cover removal Step 2. Remove the E3.S hot-swap drive. Slide the latch to unlock the drive handle. Rotate the drive handle to the open position. Grasp the handle and slide the drive out of the drive bay. Chapter 5 Hardware replacement procedures...
Page 106 “Install a hot-swap drive” on page Step 4. Reinstall the E3.S drive cage cover back to the node. Insert the drive cage cover to the slot. Close the drive cage cover. Tighten the thumbscrew on the drive cage cover. ThinkSystem SD530 V3 User Guide...
Page 107 Figure 52. E3.S drive cage cover installation After this task is completed If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Install a hot-swap drive Follow instructions in this section to install a hot-swap drive.
Page 108 Make sure that the drive handle is in the open position. Then, align the drive with the guide rails in the bay and gently slide the drive into the bay until it stops. Rotate the drive handle to the fully closed position until the handle latch clicks. ThinkSystem SD530 V3 User Guide...
Page 109 Figure 54. E3.S hot-swap drive installation Step 4. If you have additional drives to install, do so now; if any of the drive bays is left empty, fill it with a drive bay filler. Step 5. Check the drive status LED to verify that the drive is operating correctly (see “Drive LEDs”...
Page 110: M.2 Drive Replacement
Procedure Step 1. Make preparations for this task. Power off the node (see “Power off the node” on page 51); then, disconnect all external cables from the node. ThinkSystem SD530 V3 User Guide...
Page 111 Remove the node from the chassis (see “Remove a node from the chassis” on page 72); then, carefully lay the node on a flat, static-protective surface, orienting the node with the front toward you. Notes: • When removing the node, note the node tray number and make sure to install the node in the same tray from which it was removed.
Page 112 Locate the correct keyhole into which the retainer should be installed; then, insert the retainer into the keyhole, orienting at the unlocked position. Rotate the retainer by 90 degrees to the locked position. ThinkSystem SD530 V3 User Guide...
Page 113 Figure 58. Adjustment of an M.2 drive retainer 　 After this task is completed 1. Install the required M.2 drive (see “Install an M.2 drive” on page 103). 2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
Page 114 (see “Install a hot-swap power supply” on page 61 “Power on the node” on page 51.) 5. Proceed to complete the parts replacement (see “Complete the parts replacement” on page 171). ThinkSystem SD530 V3 User Guide...
Page 115: Memory Module Replacement
Memory module replacement Follow instructions in this section to remove or install a memory module. Remove a memory module Follow instructions in this section to remove a memory module. About this task To avoid potential danger, make sure to read and follow the safety information. Attention: •...
Page 116 Attention: To avoid breaking the retaining clips or damaging the DIMM connectors, handle the retaining clips gently. Open the retaining clip at each end of the memory module slot. Carefully hold both ends of the memory module and lift it out of the slot. ThinkSystem SD530 V3 User Guide...
Page 117 Figure 62. Removal of a memory module 　 After this task is completed 1. Install a replacement unit or filler (see “Install a memory module” on page 107) . 2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
Page 118 Locate the required memory module slot on the system board. Notes: • Remove or install memory modules for one processor at a time. • Make sure to observe the installation rules and sequence order in “Memory module installation rules and order” on page ThinkSystem SD530 V3 User Guide...
Page 119 Figure 63. Memory modules and processors layout Step 2. Touch the static-protective package that contains the memory module to any unpainted surface on the outside of the node. Then, take the memory module out of the package and place it on a static- protective surface.
Page 120: Microsd Card Replacement
Follow instructions in this section to remove or install a MicroSD card from or to the system board. Remove the MicroSD card Follow instructions in this section to remove the MicroSD card. About this task To avoid potential danger, make sure to read and follow the safety information. ThinkSystem SD530 V3 User Guide...
Page 121 Attention: Read “Installation Guidelines” on page 41 “Safety inspection checklist” on page 42 to make sure that you work safely. Procedure Step 1. Make preparations for this task. Power off the node (see “Power off the node” on page 51); then, disconnect all external cables from the node.
Page 122 Procedure Step 1. Locate the MicroSD socket on the system board. Figure 67. Location of the MicroSD socket Step 2. Install the MicroSD card to the system board. Place the MicroSD card into the socket. ThinkSystem SD530 V3 User Guide...
Page 123: Ocp Module Replacement
Close the socket lid. Slide the socket lid to the lock position. Figure 68. Installation of a MicroSD card After this task is completed 1. Reconnect all the required cables to the drive backplane; then, reinstall the drive cage assembly to the node (see “E3.S drive backplane cable routing”...
Page 124 • Firmware and driver download: You might need to update the firmware or driver after replacing a component. – Go to https://datacentersupport.lenovo.com/products/servers/thinksystem/sd530v3/7dd3/downloads/ driver-list to see the latest firmware and driver updates for your server. ThinkSystem SD530 V3 User Guide...
Page 125: Pcie Riser Assembly And Adapter
– Go to “Update the firmware” on page 185 for more information on firmware updating tools. • To avoid throttling, make sure to adopt passive Direct Attach cables when network adapters with 100GbE or higher speed are installed. Procedure Step 1. If an OCP filler has been installed, remove it from the OCP slot.
Page 126 Loosen the captive screw that secures the PCIe riser assembly to the node. Carefully hold the PCIe riser assembly by its edges and lift it out of the node. Disconnect the PCIe riser power cable from the riser. ThinkSystem SD530 V3 User Guide...
Page 127 Figure 71. Removal of the PCIe riser assembly Step 3. If necessary, disconnect all the PCIe riser cables from the system board (see “PCIe riser cable routing” on page 177); then, lay the PCIe riser assembly on a flat, static-protective surface. After this task is completed 1.
Page 128 Remove the node from the chassis (see “Remove a node from the chassis” on page 72); then, carefully lay the node on a flat, static-protective surface, orienting the node with the front toward you. ThinkSystem SD530 V3 User Guide...
Page 129 Notes: • When removing the node, note the node tray number and make sure to install the node in the same tray from which it was removed. Reinstalling the node into a different tray requires the node to be reconfigured. •...
Page 130 Install the PCIe adapter to the PCIe slot. Align the adapter with the PCIe connector; then, carefully press the adapter straight into the connector until it is securely seated. Tighten the screw to secure the adapter. ThinkSystem SD530 V3 User Guide...
Page 131 Figure 75. Installation of a PCIe adapter After this task is completed 1. If necessary, reinstall the PCIe riser assembly to the node and reconnect the required PCIe cables to the system board (see “Install a PCIe riser assembly” on page 121 Chapter 6 “Internal cable routing”...
Page 132 Align the edges of the PCIe riser assembly with the edges of the node; then, place the PCIe riser assembly into place until it is securely seated. Tighten the captive screw to secure the PCIe riser assembly to the node. ThinkSystem SD530 V3 User Guide...
Page 133: Power Bus Bar Replacement
Figure 77. Installation of the PCIe riser assembly After this task is completed 1. If necessary, reinstall the GPU air duct (see “Install a GPU air duct” on page 93). 2. Make sure that all the required cables are routed and connected correctly; then, reinstall the top cover (see “Install the top cover”...
Page 134 Remove the power bus bar. Remove the main PDB screw from the power bus bar. Remove the main system board screw from the power bus bar. Lift the power bus bar out of the node. ThinkSystem SD530 V3 User Guide...
Page 135 Figure 79. Removal of the power bus bar After this task is completed 1. Install a replacement unit (see “Install a power bus bar” on page 125). 2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
Page 136 Tighten the main PDB screw to secure the power bus bar to the power distribution board. Figure 80. Installation of the power bus bar Step 2. Tighten the six outer screws to secure the power bus bar. ThinkSystem SD530 V3 User Guide...
Page 137: Power Distribution Board Replacement
Figure 81. Installation of the power bus bar outer screws After this task is completed 1. If necessary, reinstall the PCIe riser assembly to the node and reconnect the required PCIe cables to the system board (see “Install a PCIe riser assembly” on page 121 Chapter 6 “Internal cable routing”...
Page 138 Remove the five screws that secure the power distribution board to the node. Slightly pull the power distribution board toward the front of the node; then, lift it out of the node. Figure 82. Removal of the power distribution board ThinkSystem SD530 V3 User Guide...
Page 139 After this task is completed 1. Install a replacement unit (see “Install a power distribution board” on page 129.) 2. If you are instructed to return the component or optional device, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Install a power distribution board Follow instructions in this section to install a power distribution board.
Page 140: Processor And Heat Sink Replacement
Follow instructions in this section to remove or install a processor and heat sink module (PHM). Important: This task must be operated by trained technicians. Attention: Before reusing a processor or heat sink, make sure to use Lenovo proven alcohol cleaning pad and thermal grease.
Page 141 About this task To avoid potential danger, make sure to read and follow the safety information. Attention: • Read “Installation Guidelines” on page 41 “Safety inspection checklist” on page 42 to make sure that you work safely. • To transfer Intel ®...
Page 142 Figure 85. PHM location for one-processor configuration For two-processor configuration, remove the 1U standard heat sink that is installed on the front of the node, or the 1U performance heat sink that is installed on the rear of the node. ThinkSystem SD530 V3 User Guide...
Page 143 Figure 86. PHM location for two-processor configuration Step 2. Remove the PHM from the system board. Important: • Do not touch the contacts on the processor contacts. Contaminants on the processor contacts, such as oil from your skin, can cause connection failures. •...
Page 144 Figure 87. Removal of the 1U Standard PHM Figure 88. Removal of the 1U Performance PHM from Processor 1 Figure 89. Removal of the 1U Performance PHM from Processor 2 ThinkSystem SD530 V3 User Guide...
Page 145 Step 3. Remove the heat sink support bracket if necessary. Loosen the two screws that secure the support bracket. Hold the support bracket and remove it from the system board. Figure 90. Heat sink support bracket replacement 　 After this task is completed 1.
Page 146 Separate the processor carrier from the heat sink. Release the retaining clips from the heat sink. Lift the carrier from the heat sink. Wipe the thermal grease from the bottom of the heat sink with an alcohol cleaning pad. ThinkSystem SD530 V3 User Guide...
Page 147 Figure 92. Separating a processor carrier the from heat sink Note: The processor carrier will be discarded and replaced with a new one. After you finish 1. Install the PHM (see “Install a processor and heat sink” on page 137). 2.
Page 148 Make sure to install heat sink based on processor’s configurations: One-processor configuration Two-processor configuration • Processor 1: Standard heat sink • Processor 1: Standard heat sink 185-watt or lower • Processor 2: N/A • Processor 2: Performance heat sink ThinkSystem SD530 V3 User Guide...
Page 149 • Processor 1: Performance heat • Processor 1: Standard heat sink Greater than 185-watt, less or equal sink • Processor 2: Performance heat to 205-watt • Processor 2: N/A sink • Processor 1: Performance heat • Processor 1: N/A Greater than 205-watt sink •...
Page 150 Press the processor and secure the sides under the clips on the carrier. Note: To prevent the processor from falling out of the carrier, keep the processor-contact side up and hold the processor-carrier assembly by the sides of the carrier. ThinkSystem SD530 V3 User Guide...
Page 151 Figure 94. Installation of the processor carrier Step 3. Apply the thermal grease. • If you are replacing the heat sink and reusing the processor, a new heat sink comes with thermal grease and you do not need to apply new thermal grease. Note: To ensure the best performance, check the manufacturing date on the new heat sink and make sure it does not exceed two years.
Page 152 Install the heat sink onto the processor-carrier. Press the carrier into place until the clips at all four corners engage. Visually inspect to make sure that there is no gap between the processor carrier and the heat sink. ThinkSystem SD530 V3 User Guide...
Page 153 Figure 96. Assembling the PHM with processor in shipping tray Step 5. Install the heat sink support bracket to the system board if performance heat sink is to be installed. Lower the heat sink support bracket onto the system board. Tighten the two screws to secure the heat sink support bracket.
Page 154 Note: For reference, the torque required for the screws to be fully tightened/removed is 10+/- 2.0 lbf-in, 1.1+/- 0.2 N-m. Attention: To prevent damage to components, make sure to follow the indicated tightening/ loosening sequence. ThinkSystem SD530 V3 User Guide...
Page 155 Figure 98. PHM location for one-processor configuration Figure 99. Installation of a 1U Performance PHM for one-processor configuration Figure 100. Installation of a 1U Standard PHM for one-processor configuration Chapter 5 Hardware replacement procedures...
Page 156 Note: For reference, the torque required for the screws to be fully tightened/removed is 10+/- 2.0 lbf-in, 1.1+/- 0.2 N-m. Attention: To prevent damage to components, make sure to follow the indicated tightening/ loosening sequence. Figure 101. PHM location for two-processor configuration ThinkSystem SD530 V3 User Guide...
Page 157 Figure 102. Installation of a 1U Standard PHM for two-processor configuration Figure 103. Installation of a 1U Performance PHM for two-processor configuration After this task is completed 1. Make sure that all the required cables are routed and connected correctly; then, reinstall the top cover (see “Install the top cover”...
Page 158: Rear I/O Module Replacement
Disconnect the cables from the rear I/O module. Loosen the screw that secures the grounding cable; then, remove the grounding cable from the rear I/O module. Disconnect the rear I/O cable from the rear I/O module. ThinkSystem SD530 V3 User Guide...
Page 159 Figure 104. Removal of the rear I/O cable and grounding cable Step 3. Remove the rear I/O module. Remove the three screws from the rear I/O module as illustrated. Slightly pull the rear I/O module toward the front of the node; then, lift it out of the node. Figure 105.
Page 160 Step 2. Reconnect the cables to the rear I/O module. Route and connect the cable between the rear I/O module and the system board (see “Rear I/O and OCP module cable routing” on page 179). ThinkSystem SD530 V3 User Guide...
Page 161: System Board Assembly Replacement
Secure the grounding cable onto the rear I/O module standoff with a screw as illustrated. Figure 107. Installation of the rear I/O cable and grounding cable After this task is completed 1. If necessary, reinstall the PCIe riser assembly to the node and reconnect the required PCIe cables to the system board (see “Install a PCIe riser assembly”...
Page 162 Remove the firmware and RoT security module from the system board. Loosen the two screws that secure the firmware and RoT security module on the system board. Lift the firmware and RoT security module away from the system board. ThinkSystem SD530 V3 User Guide...
Page 163 Root of Trust Security Module). About this task Important: This task must be operated by trained technicians that are certified by Lenovo Service. Do no attempt to remove or install it without proper training and qualification. (Lenovo trained technician only) After replacing the firmware and RoT security module, update the UEFI firmware to the specific version supported by the server.
Page 164 “E3.S drive backplane cable routing” on page 176 “Install a drive cage assembly” on page 88). 2. Make sure that all the required cables are routed and connected correctly; then, reinstall the top cover (see “Install the top cover” on page 170). ThinkSystem SD530 V3 User Guide...
Page 165 Follow instructions in this section to remove the system board. Important: • This task must be operated by trained technicians that are certified by Lenovo Service. Do no attempt to remove or install it without proper training and qualification. • When replacing the system board, always update the server with the latest firmware or restore the pre- existing firmware.
Page 166 “Rear I/O and OCP module cable routing” on page 179). Step 2. Remove the heat sink support bracket. Loosen the two screws that secure the support bracket. Hold the support bracket and remove it from the system board. ThinkSystem SD530 V3 User Guide...
Page 167 Figure 112. Heat sink support bracket replacement Step 3. Disconnect all the cables from the system board. When disconnecting the cables, make a list of each cable and record the connectors the cables are connected to, and use the record as a cabling checklist after installing the new system board.
Page 168 Step 6. Remove all the screws from the system board. Important: When removing the system board from the node, avoid touching the connectors on the system board. Do not damage any surrounding components inside the node. ThinkSystem SD530 V3 User Guide...
Page 169 Figure 116. Removal of the screws Step 7. Remove the system board from the node. Carefully tilt and hold the rear edge of the system board; then, pivot the system board at an angle to disengage it. Gently slide the system board toward the rear of the node; then, carefully lift the system board out of the node.
Page 170 Follow instructions in this section to install a system board. About this task Important: This task must be operated by trained technicians that are certified by Lenovo Service. Do no attempt to remove or install it without proper training and qualification.
Page 171 Note: Make sure that the standoffs are securely seated in the holes of the system board. Figure 118. Installation of the system board Step 2. Tighten all the system-board screws on the front of the node and on the system board. Figure 119.
Page 172 Figure 120. Installation of the screws on the system board Step 3. Reinstall the cable ducts as illustrated. Figure 121. Cable duct replacement (one processor configuration) ThinkSystem SD530 V3 User Guide...
Page 173 Figure 122. Cable duct replacement (two processor configuration) Step 4. Reinstall the heat sink support bracket to the system board if performance heat sink is to be installed. Figure 123. Heat sink support bracket replacement Chapter 5 Hardware replacement procedures...
Page 174 22. Update the system and device firmware. See “Update the firmware” on page 185. Note: (Lenovo trained technician only) If you have replaced the firmware and RoT security module, update the firmware to the specific version supported by the server. See https://...
Page 175 Using Lenovo XClarity Provisioning Manager Steps: 1. Start the server and press the key according to the on-screen instructions. The Lenovo XClarity Provisioning Manager interface is displayed by default. 2. Choose System Summary. The “System Summary” tab page is displayed.
Page 176 OneCli.exe config set TrustedComputingGroup.HideTPMfromOS "Yes" --imm <userid>:<password>@<ip_address> --override where: • <userid>:<password> are the credentials used to access the BMC (Lenovo XClarity Controller interface) of your server. The default user ID is USERID, and the default password is PASSW0RD (zero, not an uppercase o) •...
Page 177 Follow the procedure below to see the TPM firmware version: From Lenovo XClarity Provisioning Manager 1. Start the server and press the key specified in the on-screen instructions to display the Lenovo XClarity Provisioning Manager interface. (For more information, see the “Startup” section in the LXPM documentation compatible with your server at https://pubs.lenovo.com/lxpm-overview/...
Page 178: Top Cover Replacement
To enable UEFI Secure Boot from Lenovo XClarity Provisioning Manager: 1. Start the server and press the key specified in the on-screen instructions to display the Lenovo XClarity Provisioning Manager interface. (For more information, see the “Startup” section in the LXPM documentation compatible with your server at https://pubs.lenovo.com/lxpm-overview/...
Page 179 • Service label is located on the inside of the top cover (see “Identify the system and access the Lenovo XClarity Controller” on page 35). • For proper cooling and air flow, install the top cover before powering on the node.
Page 180 Step 2. Check and make sure that the button on the side of the top cover is in locked position. ThinkSystem SD530 V3 User Guide...
Page 181: Complete The Parts Replacement
4. Make sure that the required power supply units are installed and power cords are connected; then, power on the node (see “Install a hot-swap power supply” on page 61 “Power on the node” on page 51.) 5. Update the system configuration. • Download and install the latest device drivers: http://datacentersupport.lenovo.com Chapter 5 Hardware replacement procedures...
Page 182 • Update the UEFI configuration. See https://pubs.lenovo.com/uefi-overview/ • Reconfigure the disk arrays if you have installed or removed a hot-swap drive or a RAID adapter. See for the LXPM documentation compatible with your system. https://pubs.lenovo.com/lxpm-overview/ ThinkSystem SD530 V3 User Guide...
Page 183: Chapter 6. Internal Cable Routing
Failing to release them before removing the cables will damage the cable sockets on the system board, which are fragile. Any damage to the cable sockets might require replacing the system board. Identifying connectors See this section to locate and identify the connectors on the electric boards. © Copyright Lenovo 2024...
Page 184: System-Board Connectors For Cable Routing
See this section to locate and identify the connectors on the drive backplane. E3.S drive backplane See this section to locate the connectors on the drive backplane. Figure 127. E3.S drive backplane connectors Table 24. Drive backplane connectors NVMe 0-1 Backplane power connector ThinkSystem SD530 V3 User Guide...
Page 185: Pcie Riser Connectors
PCIe riser connectors See this section to locate and identify the connectors on the PCIe riser card. Figure 128. PCIe riser card connectors Table 25. Gen 5 HH riser card connectors PCIe x16 (Gen5) slot PCIe riser power connector Power distribution board connectors See this section to locate and identify the connectors on the power distribution board.
Page 186: E3.S Drive Backplane Cable Routing
NVMe 0-1 MCIO x8 to MCIO x8 (315 mm) 　 Fan cable routing Follow instructions in this section to route the cables for the fan. Notes: ↔ ↔ ↔ ↔ • Connections between connectors; , ... ThinkSystem SD530 V3 User Guide...
Page 187: Pcie Riser Cable Routing
• When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips. • Manage redundant fan cables as shown in the illustration. Figure 131. Fan cable routing From (fan) To (system board) Cable length Fan 1 cable Fan 1 connector...
Page 188 To (PCIe riser) Cable PCIe riser power connector Power 2x8 to Power 2x4 (310 mm) Power connector PCIe riser slot 1 connector (Gen5) PCIe riser to MCIO x16 (340 mm) PCIe riser wired cable 　 ThinkSystem SD530 V3 User Guide...
Page 189: Power Distribution Board Cable Routing
Power distribution board cable routing Follow instructions in this section to route the cables for the power distribution board. Notes: ↔ ↔ ↔ ↔ • Connections between connectors; , ... • When routing the cables, make sure that all cables are routed appropriately through the corresponding cable guides and cable clips.
Page 190 Low-profile SlimSAS x8 to low-profile Rear I/O signal connector rear I/O module) SlimSAS x8 (915 mm) Note: When connecting the rear I/O cable to the rear I/O module, make sure to secure the attached grounding cable with a screw. ThinkSystem SD530 V3 User Guide...
Page 191 Figure 136. Installation of the rear I/O cable and grounding cable Chapter 6 Internal cable routing...
Page 192 ThinkSystem SD530 V3 User Guide...
Page 193: Chapter 7. System Configuration
The following methods are available to set the network connection for the Lenovo XClarity Controller if you are not using DHCP: • If a monitor is attached to the server, you can use Lenovo XClarity Provisioning Manager to set the network connection.
Page 194: Set Usb Port For Lenovo Xclarity Controller
ID button. To connect using the Lenovo XClarity Administrator Mobile app: 1. Connect the USB cable of your mobile device to the Lenovo XClarity Controller USB connector on the server. 2. On your mobile device, enable USB tethering.
Page 195: Update The Firmware
Enterprise Server (SLES) operating system distributions. Machine-type-specific firmware-only Update Bundles (Service Packs) are also available. Firmware updating tools See the following table to determine the best Lenovo tool to use for installing and setting up the firmware: Chapter 7 System configuration...
Page 196 √ √ Lenovo XClarity devices (BoMC (BoMC Essentials Out-of- applica- applica- Bootable Media band tion) tion) Creator (BoMC) Off- Target In-band All I/O √ √ √ Lenovo XClarity devices Administrator Out-of- (LXCA) band Off- Target ThinkSystem SD530 V3 User Guide...
Page 197 4. Bare Metal Update (BMU) only. • Lenovo XClarity Provisioning Manager From Lenovo XClarity Provisioning Manager, you can update the Lenovo XClarity Controller firmware, the UEFI firmware, and the Lenovo XClarity Provisioning Manager software. Note: By default, the Lenovo XClarity Provisioning Manager Graphical User Interface is displayed when you start the server and press the key specified in the on-screen instructions.
Page 198 • Lenovo XClarity Controller If you need to install a specific update, you can use the Lenovo XClarity Controller interface for a specific server. Notes: – To perform an in-band update through Windows or Linux, the operating system driver must be installed and the Ethernet-over-USB (sometimes called LAN over USB) interface must be enabled.
Page 199: Configure The Firmware
Several options are available to install and set up the firmware for the server. Important: Lenovo does not recommend setting option ROMs to Legacy, but you can conduct this setting if necessary. Note that this setting prevents UEFI drivers for the slot devices from loading, which may cause negative side effects to Lenovo software, such as LXCA, OneCLI, and XCC.
Page 200: Memory Module Configuration
You can configure the management processor for the server through the Lenovo XClarity Controller Web interface, the command-line interface, or Redfish API. For information about configuring the server using Lenovo XClarity Controller, see: “Configuring the Server” section in the XCC documentation compatible with your server at https:// pubs.lenovo.com/lxcc-overview/...
Page 201: Deploy The Operating System
An introduction to RAID is available at the following Lenovo Press website: https://lenovopress.lenovo.com/lp0578-lenovo-raid-introduction Detailed information about RAID management tools and resources is available at the following Lenovo Press website: https://lenovopress.lenovo.com/lp0579-lenovo-raid-management-tools-and-resources Intel VROC Enabling Intel VROC Before setting up RAID for NVMe drives, follow the below steps to enable VROC: 1.
Page 202: Back Up The Server Configuration
Available tools: – Lenovo XClarity Administrator https://pubs.lenovo.com/lxca/compute_node_image_deployment – Lenovo XClarity Essentials OneCLI https://pubs.lenovo.com/lxce-onecli/onecli_r_uxspi_proxy_tool – Lenovo XClarity Integrator deployment pack for SCCM (for Windows operating system only) https://pubs.lenovo.com/lxci-deploypack-sccm/dpsccm_c_endtoend_deploy_scenario • Single-server Available tools: – Lenovo XClarity Provisioning Manager “OS Installation” section in the LXPM documentation compatible with your server at https:// pubs.lenovo.com/lxpm-overview/...
Page 203: Enable Intel On Demand
Note: All processors in a system must be installed with identical Intel On Demand feature. Installation tool Intel On Demand can be installed via Lenovo XClarity Controller (XCC) and Lenovo XClarity Essentials OneCLI (LXCE OneCLI). After confirming that your processor supports Intel On Demand, you also need to make sure the XCC and LXCE OneCLI installed in your system supports installing Intel On Demand.
Page 204 Authorization Code to acquire the Activation Key. https://fod.lenovo.com/lkms 5. In the website, input Machine Type, Machine serial number, and PPIN. 6. The website will generate the Activation Key. Download the Activation Key. ThinkSystem SD530 V3 User Guide...
Page 205 198. The State Report represents the current configuration state of the Intel On Demand capable processors. Lenovo accepts State Reports from customers to calibrate the current state of the Intel On Demand capable processors. 10. To see the features installed in a processor, see “Checking the Intel On Demand features installed in a...
Page 206 4. In the response JSON object, the ProcessorId field shows the ProtectedIdentificationNumber field, which is the PPIN info of the requested CPU. For example: "ProcessorId":{ "ProtectedIdentificationNumber":"1234567890xxxyyy" Reading PPIN via LXCE OneCLI Input the following command: ThinkSystem SD530 V3 User Guide...
Page 207 Install Intel On Demand features to the processor with the Activation Key downloaded from the https:// via XCC Web GUI, XCC REST API or LXCE OneCLI. fod.lenovo.com/lkms Use XCC Web GUI to install Intel On Demand 1. Open XCC Web GUI, go to BMC Configuration ➙ License ➙ On Demand Capabilities for Intel CPU ➙...
Page 208 OneCli.exe fod install --keyfile <key_file> If successfully installed, the response will show: Successfully install key Call Lenovo support if the response shows the following: Failed to install key Acquiring and uploading Intel On Demand State Report After completing enabling or transferring Intel On Demand, acquire and upload the State Report via XCC Web GUI, XCC REST API, and LXCE OneCLI.
Page 209 "Actions": { "Oem": { "#LenovoLicense.ExportStateReport": { "title": "ExportStateReport", "target": "/redfish/v1/LicenseService/Licenses/CPUX_OnDemandCapability/Actions/Oem/LenovoLicense.ExportStateReport" In the following example, the response of the target field is the CPU 1 State Report API. Copy the CPU 1 State Report API. "Actions": { "Oem": { "#LenovoLicense.ExportStateReport": { "title": "ExportStateReport", "target": "/redfish/v1/LicenseService/Licenses/CPU1_OnDemandCapability/Actions/Oem/LenovoLicense.ExportStateReport"...
Page 210 1. Use the GET method with the following Request URL to retrieve Intel On Demand features installed on CPU X, where X is the CPU numbering: GET https://bmc_ip/redfish/v1/LicenseService/Licenses/CPUX_OnDemandCapability For example, to retrieve Intel On Demand features installed on CPU 1, see the following: ThinkSystem SD530 V3 User Guide...
Page 211 GET https://bmc_ip/redfish/v1/LicenseService/Licenses/CPU1_OnDemandCapability 2. In the response JSON object, the FeatureList field contains the Intel On Demand features installed in this processor. "Oem": { "Lenovo":{ "FeatureList":[] "@odata.type":"" Use LXCE OneCLI to check the Intel On Demand features installed in a processor 1.
Page 212: Enable Intel On Demand Troubleshooting
The activation key format is invalid Check if you have uploaded the correct Activation Key file. If the error persists, contact Lenovo support. Invalid processor PPIN in Activation key Contact Lenovo support. The license was installed in the processor already You have already installed this activation key.
Page 213: Chapter 8. Problem Determination
An alert is a message or other indication that signals an event or an impending event. Alerts are generated by the Lenovo XClarity Controller or by UEFI in the servers. These alerts are stored in the Lenovo XClarity Controller Event Log. If the server is managed by the Chassis Management Module 2 or by the Lenovo XClarity Administrator, alerts are automatically forwarded to those management applications.
Page 214 Lenovo XClarity Controller event log The Lenovo XClarity Controller monitors the physical state of the server and its components using sensors that measure internal physical variables such as temperature, power-supply voltages, fan speeds, and component status. The Lenovo XClarity Controller provides various interfaces to systems management software and to system administrators and users to enable remote management and control of a server.
Page 215: Troubleshooting By System Leds And Diagnostics
“Viewing Event Logs” section in the XCC documentation compatible with your server at https:// pubs.lenovo.com/lxcc-overview/ Troubleshooting by system LEDs and diagnostics display See the following section for information on available system LEDs and diagnostics display. Drive LEDs This topic provides information on drive LEDs.
Page 216 Use this system ID LED to visually locate the server. The LED can be changed to on, blinking, or off. You can use the Lenovo XClarity Controller or a remote management program to change the state of the system ID LED to assist in visually locating the server among other servers.
Page 217: Power Supply Led
Power supply LED This topic provides information about various power supply LED status and corresponding action suggestions. • The following minimal configuration is required for the node to start: – One processor in socket 1 – One memory module in DIMM slot 4 –...
Page 218: System-Board Leds
System-board LEDs The following illustrations show the light-emitting diodes (LEDs) on the system board. Press the power button to light the LEDs on the system board when the power source has been removed from the server. ThinkSystem SD530 V3 User Guide...
Page 219 Table 31. System-board LEDs description and actions • System power LED (yellow) Off: No power supply is properly installed, or the LED itself has failed. Flashing rapidly (four times per second): The node is turned off and is not ready to be turned on. The power button is disabled.
Page 220: Xcc System Management Port Leds
The External Diagnostics Handset is an external device that is connected to the server with a cable, and it allows quick access to system information such as errors, system status, firmware, network, and health information. ThinkSystem SD530 V3 User Guide...
Page 221 Location of the External Diagnostics Handset Location Callouts The External Diagnostics Handset is connected to the External Diagnostics Handset server with an external cable. Magnetic bottom With this component, the diagnostic handset can be attached to the top or side of the rack with hands spared for service tasks.
Page 222 Press the select button to select from the options in the menu. Option flow diagram The LCD panel displays various system information. Navigate through the options with the scroll keys. Depending on the model, the options and entries on the LCD display might be different. ThinkSystem SD530 V3 User Guide...
Page 223 Full menu list Following is the list of available options. Switch between an option and the subordinate information entries with the select button, and switch among options or information entries with the scroll buttons. Depending on the model, the options and entries on the LCD display might be different. Chapter 8 Problem determination...
Page 224 • Possible sources of the error CPU 1 Status: Configuration Error System VPD Information Sub Menu Example Machine Type: xxxx • Machine type and serial number Serial Num: xxxxxx • Universal Unique ID (UUID) Universal Unique ID: xxxxxxxxxxxxxxxxxxxxxxxxxxxx ThinkSystem SD530 V3 User Guide...
Page 225 System Firmware Sub Menu Example XCC Primary XCC Primary (Active) • Firmware level (status) Build: DVI399T • Build ID Version: 4.07 • Version number Date: 2020-04-07 • Release date XCC Backup XCC Backup (Active) • Firmware level (status) Build: D8BT05I •...
Page 226 • Set UEFI Memory Test This will request the BMC to reboot itself. • Request Virtual Reseat Hold √ for 3 seconds • Modify XCC Static IPv4 Address/Net mask/Gateway • Modify System Name • Generate/Download FFDC Service Data ThinkSystem SD530 V3 User Guide...
Page 227: General Problem Determination Procedures
• Any external devices. • Surge-suppressor device (on the system). • Printer, mouse, and non-Lenovo devices. • Each adapter. • Hard disk drives. • Memory modules until you reach the minimum configuration that is supported for the system.
Page 228: Resolving Suspected Ethernet Controller Problems
Make sure that the device drivers on the client and server are using the same protocol. If the Ethernet controller still cannot connect to the network but the hardware appears to be working, the network administrator must investigate other possible causes of the error. ThinkSystem SD530 V3 User Guide...
Page 229: Troubleshooting By Symptom
1. Check the event log of the application that is managing the server and follow the suggested actions to resolve any event codes. • If you are managing the server from the Lenovo XClarity Administrator, begin with the Lenovo XClarity Administrator event log.
Page 230: Keyboard, Mouse, Or Usb-Device Problems
203 for information about viewing the event log. If you are using Linux base operating system, then capture all logs back to Lenovo support for further investigation. Keyboard, mouse, or USB-device problems Use this information to solve problems related to a keyboard, mouse, KVM switch or USB-device problems.
Page 231: Memory Problems
3. If you are using a USB hub, disconnect the USB device from the hub and connect it directly to the server. Memory problems See this section to resolve issues related to memory. Common memory problems • “Multiple memory modules in a channel identified as failing” on page 221 •...
Page 232: Monitor And Video Problems
1. If the server is attached to a KVM switch, bypass the KVM switch to eliminate it as a possible cause of the problem: connect the monitor cable directly to the correct connector on the rear of the server. ThinkSystem SD530 V3 User Guide...
Page 233: Network Problems
To use the management controller remote presence function, remove the optional video adapter. 3. If the server is installed with the graphical adapters while turning on the server, the Lenovo logo is displayed on the screen after approximately 3 minutes. This is normal operation while the system loads.
Page 234: Observable Problems
If the system hangs during the UEFI boot process with the message UEFI: DXE INIT on the display, make sure that Option ROMs were not configured with a setting of Legacy. You can remotely view the current settings for Option ROMs by running the following command using the Lenovo XClarity Essentials OneCLI: onecli config show EnableDisableAdapterOptionROMSupport --bmc xcc_userid:xcc_password@xcc_ipaddress...
Page 235 You can view processor details from system setup. To determine if the processor is supported for the server, see https://serverproven.lenovo.com 3. (Trained technician only) Make sure that processor 1 is seated correctly 4. (Trained technician only) Remove processor 2 and restart the server.
Page 236 Complete the following steps until the problem is solved. 1. An unusual smell might be coming from newly installed equipment. 2. If the problem remains, contact Lenovo Support. Server seems to be running hot Complete the following steps until the problem is solved.
Page 237: Optional-Device Problems
• “Insufficient PCIe resources are detected” on page 227 • “A Lenovo optional device that was just installed does not work” on page 227 • “A Lenovo optional device that worked previously does not work now” on page 227 Insufficient PCIe resources are detected If you see an error message stating “Insufficient PCI Resources Detected,”...
Page 238: Power On And Power Off Problems
4. Make sure that: • The power cords are correctly connected to the server and to a working electrical outlet. • The type of memory that is installed is correct and the installation rules are met. ThinkSystem SD530 V3 User Guide...
Page 239: Power Problems
8. Implement the minimum configuration (one processor and one DIMM) to check whether any specific components lock the power permission. 9. Collect the failure information by capturing the system logs and provide it to Lenovo support. 10. See “Power supply LED” on page 207.
Page 240: Serial-Device Problems
The system goes directly to the POST event viewer when it is turned on. 1. Check the light path diagnostics LEDs and the Lenovo XClarity Controller event log, and resolve any errors that have occurred. 2. Make sure that the system supports all the processors and that the processors match in speed and cache size.
Page 241: Storage Drive Problems
1. Verify that the drive is supported for the server. See for a list of https://serverproven.lenovo.com supported drives. 2. Make sure that the drive is seated in the drive bay properly and that there is no physical damage to the drive connectors.
Page 242 ThinkSystem SD530 V3 User Guide...
Page 243: Appendix A. Hardware Disassembling For Recycle
11. If the GPU air duct is installed in the node, remove it (see “Remove the GPU air duct” on page 91). 12. Disconnect all the fan cables from the system board; then, remove all the fans from the fan cage (see “Remove a fan” on page 89). © Copyright Lenovo 2024...
Page 244: Disassemble The Chassis For Recycle
Step 7. Remove the left and right EIA brackets from the chassis (see “Remove the EIA brackets from the chassis ” on page 56). After disassembling the chassis, recycle the units in compliance with local regulations. ThinkSystem SD530 V3 User Guide...
Page 245: Appendix B. Getting Help And Technical Assistance
Appendix B. Getting help and technical assistance If you need help, service, or technical assistance or just want more information about Lenovo products, you will find a wide variety of sources available from Lenovo to assist you. On the World Wide Web, up-to-date information about Lenovo systems, optional devices, services, and support are available at: http://datacentersupport.lenovo.com...
Page 246: Collecting Service Data
Collecting service data To clearly identify the root cause of a server issue or at the request of Lenovo Support, you might need collect service data that can be used for further analysis. Service data includes information such as event logs and hardware inventory.
Page 247: Contacting Support
Support when certain serviceable events occur in Lenovo XClarity Administrator and the managed endpoints. You can choose to send diagnostic files to Lenovo Support using Call Home or to another service provider using SFTP. You can also manually collect diagnostic files, open a problem record, and send diagnostic files to the Lenovo Support.
Page 248 ThinkSystem SD530 V3 User Guide...
Page 249: Appendix C. Documents And Supports
• UEFI Manual – UEFI setting introduction Support websites This section provides driver and firmware downloads and support resources. Support and downloads • Drivers and Software download website for ThinkSystem SD530 V3 – https://datacentersupport.lenovo.com/products/servers/thinksystem/sd530v3/7dd3/downloads/driver-list • Lenovo Data Center Forum –...
Page 250 – https://serverproven.lenovo.com • Operating System Installation Instructions – https://pubs.lenovo.com/thinksystem#os-installation • Submit an eTicket (service request) – https://support.lenovo.com/servicerequest • Subscribe to Lenovo Data Center Group product notifications (Stay up to date on firmware updates) – https://datacentersupport.lenovo.com/solutions/ht509500 ThinkSystem SD530 V3 User Guide...
Page 251: Appendix D. Notices
Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.
Page 252: Trademarks
(TBW). A device that has exceeded this limit might fail to respond to system-generated commands or might be incapable of being written to. Lenovo is not responsible for replacement of a device that has exceeded its maximum guaranteed number of program/erase cycles, as documented in the Official Published Specifications for the device.
Page 253: Taiwan Region Bsmi Rohs Declaration
Taiwan Region BSMI RoHS declaration Taiwan import and export contact information Contacts are available for Taiwan import and export information. Appendix D. Notices...
Page 254 ThinkSystem SD530 V3 User Guide...

Lenovo ThinkSystem SD530 V3 User Manual

Chapter 1. Introduction

Chapter 2. Hardware Components

Chapter 3. Parts List

Chapter 4. Unboxing and Setup

Chapter 5. Hardware Replacement Procedures

Chapter 6. Internal Cable Routing

Chapter 7. System Configuration

Chapter 8. Problem Determination

Appendix A. Hardware Disassembling for Recycle

Appendix B. Getting Help and Technical Assistance

Appendix C. Documents and Supports

Appendix D. Notices

Quick Links

Troubleshooting

Related Manuals for Lenovo ThinkSystem SD530 V3

Summary of Contents for Lenovo ThinkSystem SD530 V3

Table of Contents
