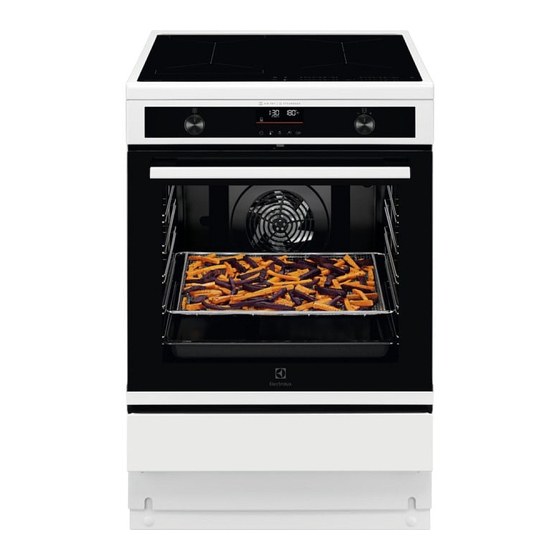

  • Page 1 EN User Manual | Cooker LKI6489NOW LKI6489NOX...

  • Page 2: Table Of Contents

    Welcome to Electrolux! Thank you for choosing our appliance. Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................5 3. INSTALLATION....................8 4. PRODUCT DESCRIPTION................9 5.
  • Page 3 be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use.
  • Page 4 • Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid. • CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

  • Page 5: Safety Instructions

    • Use only the food sensor (core temperature sensor) recommended for this appliance. • Be careful when you touch the storage drawer. It can get hot. • To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
  • Page 6 • If the mains socket is loose, do not • Use only accessories recommended for connect the mains plug. this appliance by the manufacturer. • Do not pull the mains cable to disconnect WARNING! the appliance. Always pull the mains plug. •...
  • Page 7 • Do not activate the cooking zones with • Before carrying out a Pyrolitic self- empty cookware or without cookware. cleaning function or the First Use function • Cookware made of cast iron, aluminium or please remove from the oven cavity: with a damaged bottom can cause –...

  • Page 8: Installation

    2.6 Internal lighting • Use original spare parts only. 2.8 Disposal WARNING! Risk of electric shock. WARNING! • Concerning the lamp(s) inside this product Risk of injury or suffocation. and spare part lamps sold separately: • Contact your municipal authority for These lamps are intended to withstand information on how to dispose of the extreme physical conditions in household...

  • Page 9: Product Description

    3.3 Anti-tilt protection CAUTION! Install the anti-tilt protection to prevent the appliance from falling under incorrect loads. The anti-tilt protection only works when the appliance is put in a correct area. Your appliance has the symbols shown on the pictures (if applicable) to remind you about the installation of the anti-tilt protection.

  • Page 10: Before First Use

    4.2 Hob overview Induction cooking zone Control Panel 4.3 Accessories To fry food with less oil or without baking paper. • Wire shelf • Core temperature sensor For cookware, cake tins, roasts. To measure how far the food is cooked. •...

  • Page 11: Hob - Daily Use

    7. Turn off the oven and let it cool down. Make sure that the airflow in the room is Accessories can become hotter than usual. sufficient. The oven can emit an odour and smoke. 6. HOB - DAILY USE WARNING! Refer to Safety chapters.
  • Page 12 6.2 Heat setting displays Display Description The cooking zone is deactivated. The cooking zone operates. Pause operates. Automatic Heat Up operates. PowerBoost operates. There is a malfunction. + digit OptiHeat Control (3 step Residual heat indicator): continue cooking / keep warm / resid‐ ual heat.
  • Page 13 • you use incorrect cookware. The symbol To activate the function: touch . To set or comes on and the cooking zone change the heat setting touch one of the deactivates automatically after 2 minutes. control sensors. • you do not deactivate a cooking zone or To deactivate the function: touch .
  • Page 14 To activate the function: touch of the To activate the function: touch . Touch timer to set the time (00 - 99 minutes). When of the timer to set the time. When the indicator of the cooking zone starts to the time comes to an end, the sound flash slowly the time counts down.
  • Page 15 To deactivate the function: activate the hob Operating the function automatically To operate the function automatically set the with . Do not set any heat setting. Touch automatic mode to H1 – H6. The hob is for 4 seconds. comes on. Deactivate originally set to H5.
  • Page 16 • The function activates when the total electricity load in the appliance is exceeded. When you finish cooking and deactivate • The function sets the last selected zone to the hob, the hood fan may still operate the selected power and reduces the power for a certain period of time.

  • Page 17: Hob - Hints And Tips

    7. HOB - HINTS AND TIPS 7.2 Minimum cookware diameter WARNING! Refer to Safety chapters. Cooking Cookware diam‐ Power (W) zone eter (mm) 7.1 Cookware Left rear 125 - 210 2300/3200 Right rear 125 - 210 2300/3200 For induction cooking zones a strong Right front 125 - 210 2300/3200...

  • Page 18: Hob - Care And Cleaning

    Heat setting Use to: Time Hints (min) Keep cooked food warm. as neces‐ Put a lid on the cookware. sary 1 - 3 Hollandaise sauce; melt: butter, choco‐ 5 - 25 Mix from time to time. late, gelatine. 2 - 3 Solidify: fluffy omelettes, baked eggs.

  • Page 19: Oven - Daily Use

    abrasive detergent. After cleaning, wipe • Remove shiny metallic discoloration: the hob dry with a soft cloth. use a solution of water with vinegar and clean the glass surface with a cloth. 9. OVEN - DAILY USE WARNING! Refer to Safety chapters. 9.1 Control panel Control panel sensor fields Timer...
  • Page 20 Position Default Setting Setting Options hour Time of Day set Time of Day Display Brightness 1-2-3-4-5 Key Tones 1-beep/2-click/3-none Buzzer Volume 1-2-3-4 Food Sensor 1-alarm+STOP/2-alarm Uptimer ON-OFF Light ON-OFF Fast Heat Up ON-OFF Cleaning Reminder ON-OFF Demo Mode Demo Mode- only for the demon‐ stration Software Version Software version display...
  • Page 21 Symbol Oven function Application Frozen Foods To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy. Moist Fan Baking This function was used to comply with the energy efficiency class and eco design (according to EU 65/2014 and EU 66/2014). Tests according to: IEC/EN 60350-1 .
  • Page 22 9.8 Lock 3. Turn the function knob: Steam Bake 4. Turn the temperature knob to set a temperature. 5. Put food in the appliance and close the The door locks when this function is oven door. activated. CAUTION! This function prevents an accidental Do not refill the cavity embossment change of the oven function.
  • Page 23 9.11 Using the Core temperature WARNING! sensor Be careful when you remove the tip and The core temperature sensor measures the plug of the core temperature sensor. The core temperature inside of food. When the core temperature sensor is hot. There is food reaches the set temperature, the a risk of burns.

  • Page 24: Oven - Clock Functions

    • All accessories have small indentations at the top of the right and left side to increase safety. The indentations are also anti-tip devices. • The high rim around the shelf is a device which prevents cookware from slipping. 10. OVEN - CLOCK FUNCTIONS 10.1 Clock functions 10.3 Setting: Minute Minder 1.

  • Page 25: How To Set: Assisted Cooking

    3. The display shows: the time of day 8. Press START . 9. The timer starts counting down at a set 4. Turn the knob for the temperature to set start time. the start time. 10. When the time ends, press and turn 5.
  • Page 26 Dish Weight Shelf level / Accessory Duration time Roast Beef, rare ~ 85 min Roast Beef, me‐ 2; baking tray 1 - 1,5 kg; 4 - 5 ~ 95 min dium Fry the meat for a few minutes on a hot pan. In‐ cm thick pieces sert to the oven.
  • Page 27 Dish Weight Shelf level / Accessory Duration time Spare Ribs 2 - 3 kg; use 120 min 3; deep pan raw, 2 - 3 cm Turn the meat after half of the cooking time. thin spare ribs Lamb Lamb leg with 1,5 - 2 kg;...
  • Page 28 Dish Weight Shelf level / Accessory Duration time Fish fillet 40 min 3; casserole dish on wire shelf Sweet baking / desserts Cheesecake 100 min 28 cm springform tin on wire shelf Apple cake 60 min 2; baking tray Apple tart 55 min 26 cm springform tin on wire shelf Apple pie...

  • Page 29: Oven - Hints And Tips

    Dish Weight Shelf level / Accessory Duration time Quiche 45 min 2; baking tin on wire shelf Baguette / Cia‐ 0,8 kg 45 min 3; baking tray batta / White More time needed for white bread. bread All grain / rye / 1 kg 40 min 2;...
  • Page 30 13.5 Tips on baking Baking results Possible cause Remedy The bottom of the cake is not The shelf position is incorrect. Put the cake on a lower shelf. baked sufficiently. The cake sinks and becomes The oven temperature is too high. Next time set slightly lower oven tempera‐...
  • Page 31 Fish Food Temperature (°C) Time (min) Shelf position Fish in pouches 300 g 25 - 35 Whole fish 200 g 20 - 30 Fish fillet 300 g 30 - 35 Meat Food Temperature (°C) Time (min) Shelf position Meat in pouch 250 g 30 - 40 Meat skewers 500 g 25 - 30...
  • Page 32 The grilling area is set in centre of the shelf. 13.10 Information for test institutes Food Function Tempera‐ Time (min) Accesso‐ Shelf po‐ ture (°C) ries sition Small cakes (20 small Conventional 20 - 30 Tray cakes per tray) Small cakes (20 small Hot Air 20 - 35 Tray...

  • Page 33: Oven - Care And Cleaning

    14. OVEN - CARE AND CLEANING WARNING! Refer to Safety chapters. 14.1 Notes on cleaning Clean the front of the appliance only with a microfibre cloth with warm water and a mild de‐ tergent. Use a cleaning solution to clean metal surfaces. Clean stains with a mild detergent.
  • Page 34 1. Pull the front of the shelf support away WARNING! from the side wall. There is a risk of burns. Do not start the Pyrolysis if you did not fully close the oven door. In some models, the display shows "C3" when this error occurs.
  • Page 35 14.9 Replacing the lamp 2. Move the slider until you hear a click. 3. Close the door until the slider locks. 4. Remove the door. WARNING! To remove the door, pull the door Risk of electric shock. outwards first from one side, and then the The lamp can be hot.

  • Page 36: Troubleshooting

    WARNING! Do not keep flammable items such as cleaning materials, plastic bags, oven gloves, paper, cleaning products, aerosols, plastic items) in the drawer. When you use the oven, the drawer can become hot. There is a risk of fire. The drawer below the oven can be removed for cleaning.
  • Page 37 Problem Possible cause Remedy The hob deactivates. You put something on the sensor Remove the object from the sensor field. field Residual heat indicator does not The zone is not hot because it oper‐ If the zone operated sufficiently long come on.

  • Page 38: Energy Efficiency

    Do not remove the rating plate from the appliance cavity. 16. ENERGY EFFICIENCY 16.1 Product Information according to EU Ecodesign Regulations for hob Model identification LKI6489NOW LKI6489NOX Type of hob Hob inside Freestanding Cooker Number of cooking zones Heating technology...
  • Page 39 • If it is possible, always put the lids on the cookware. 16.3 Product Information and Product Information Sheet according to EU Ecodesign and Energy Labelling Regulations for ovens Supplier's name Electrolux LKI6489NOW 947941508 Model identification LKI6489NOX 947941510 Energy Efficiency Index 81.4 Energy efficiency class Energy consumption with a standard load, conventional mode 0.98 kWh/cycle...

  • Page 40: Environmental Concerns

    Help protect the environment and human health by recycling waste of electrical and Electrolux Appliances AB - Contact Address: electronic appliances. Do not dispose of Al. Powstancow Slaskich 26, 30-570 Krakow, appliances marked with the symbol...
  • Page 44 867363698-C-392023...
