Sealey PH10 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY
CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. CONTENTS
section 2. General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
section 2.1 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
section 2.2. technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
section 3. safety/operational Instructions. . . . . . . . . . . . . . . . . . .2.
section 4. Maintenance/Examination/Inspection. . . . . . . . . . . . . .2.
section 5. Assembly and storage. . . . . . . . . . . . . . . . . . . . . . . . . .3.
section 6. owner's & operator's responsibilities . . . . . . . . . . . . .3.
section 7. Declaration of conformity. . . . . . . . . . . . . . . . . . . . . . .3.
section 8. Parts List/Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.
2. GENERAL
2.1 Identification
supplier: sealey Power Products,
Kempson Way,
suffolk Business Park,
Bury st Edmunds,
suffolk, IP32 7Ar.
Model no: PH10
2.2 Technical Data
Rated Capacity
safe Working Load (sWL) 1t (tested to 50% overload).
Working Load Limit (WLL) 1t (tested to 50% overload).
Lifting cap. in Position 1: . . . . . . . . . . . . . . 1000kg
Lifting cap. in Position 2: . . . . . . . . . . . . . . 750kg
Lifting cap. in Position 3: . . . . . . . . . . . . . . 500kg
Lifting cap. in Position 4: . . . . . . . . . . . . . . 250kg
Maximum Lift Ht. at Minimum Jib Extn: . . . 1855mm
Maximum Lift Ht. at Maximum Jib Extn: . . . 1990mm
Length of Jib Position 1: . . . . . . . . . . . . . . . 893mm
Length of Jib Position 2: . . . . . . . . . . . . . . . 983mm
Length of Jib Position 3: . . . . . . . . . . . . . . . 1073mm
Length of Jib Position 4: . . . . . . . . . . . . . . . 1163mm
a) Design capability: test Load 50% overload.
b) for a description of in-service and out-of-service conditions see
section 3 safety, section 4 Maintenance and section 6.
c) the crane is fitted with a bypass valve that will prevent the ram
from over extending.
d) for applications see section 3 safety.
e) for control system, see fig.1 for release valve and pump handle
assy. usage is explained in section 3.2 operation.
f) for ground condition requirements, see section 3 safety.
g) for information on parts and materials requiring specialised
repair techniques see section 4 Maintenance.
InstructIons for:

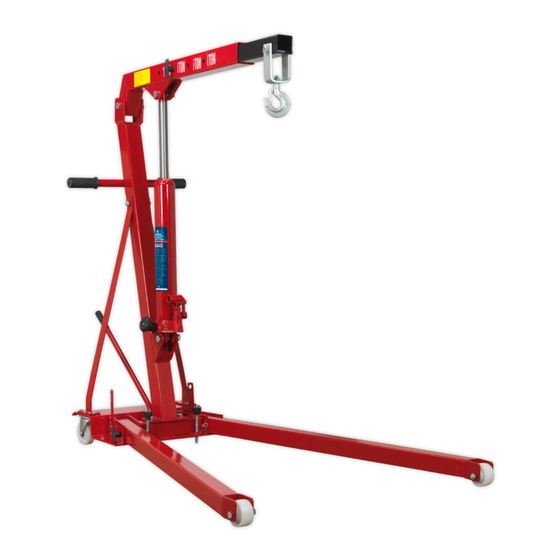

POWERCRANE FOLDING CRANE
PH10
Model:
Page No.
Height of frame:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147mm
Length of frame: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1518mm
overall Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1550mm
Maximum Width of frame: . . . . . . . . . . . . . . . . . . . . . . . . .962mm
Width Inside frame: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .862mm
Distance between centres of rear Wheels: . . . . . . . . . . . 685mm
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80kg
fig.1
PuMP HAnDLE AssY.
rELEAsE VALVE
Page 1
250kg Max.
500kg Max.
750kg Max.
1000kg Max.
1520mm
PH10 - (3) - 061207
