Sealey PH30 Instructions

thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEaSE rEaD tHESE INStrUctIoNS carEFULLY. NotE tHE SaFE oPEratIoNaL rEQUIrEMENtS, WarNINGS & caUtIoNS. USE tHE ProDUct
corrEctLY aND WItH carE For tHE PUrPoSE For WHIcH It IS INtENDED. FaILUrE to Do So MaY caUSE DaMaGE aND/or PErSoNaL INJUrY aND WILL
INVaLIDatE tHE WarraNtY. KEEP tHESE INStrUctIoNS SaFE For FUtUrE USE.
refer to Wear
instruction safety
manual footwear
1. coNtENtS
section 2. General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 1
section 2.1 Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 1
section 2.2. technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 1
section 3. safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 2
section 4. Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 2
section 5. operating Instructions . . . . . . . . . . . . . . . . . . . . . . .page 3
section 6. Maintenance/Inspection/Examination . . . . . . . . . . .page 3
section 7. owner's & operator's responsibilities. . . . . . . . . . .page 3
section 8. Declaration of conformity . . . . . . . . . . . . . . . . . . . .page 4
section 9. Parts List and Diagram . . . . . . . . . . . . . . . . . . . . . .page 5
2. GENEraL
2.1. Identification
supplier: sealey Power Products,
Kempson Way,
suffolk Business Park,
Bury st Edmunds,
suffolk, IP32 7Ar.
Model no: PH30
2.2. technical Data.
rated capacity
Working Load Limit (WLL) 3tonne (tested to 50% overload).
Lifting capacity:
Position 1: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3000kg
Position 2: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2000kg
Position 3: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1500kg
Position 4: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1000kg
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154kg
3. SaFEtY
3.1. SaFEtY
Keep crane, lifting slings, support and beams in good working order and condition. follow the inspection requirements as
3
described in section 6, Maintenance. Take immediate action to repair or replace damaged parts by contacting your supplier.
Ensure that all accessory lifting devices are suitably certified. If crane is damaged, remove from service immediately.
Ensure the surface on which the crane is used is level, firm and capable of supporting the weight of the crane with
3
maximum load - we recommend concrete. Never use the crane on tarmacadam or other soft surfaces, as the crane may sink in.
Keep children and unauthorised persons away from the working area.
3
Keep working area clean and tidy, free from unrelated materials and ensure that there is adequate lighting.
3
Ensure that load does not exceed the maximum lifting capacity of the crane. overloading the crane is dangerous. Where
3
appropriate, use only the lifting points recommended by the manufacturer of the item to be lifted, e.g. vehicle engine.
Before lifting the load ensure that the crane jib is in the lowest practical position, that there are no obstacles which may snag
3
the load whilst it is being lifted and that the area above the jib is clear.
to avoid injury, be fully aware of your own and other persons locations in relation to the lifting, and lowering, of the load.
3
Keep a sound footing and balance, and ensure the floor is not slippery, and wear non-slip footwear.
3
Ensure jib extension locking pin and 'r' pin are in position before lifting.
3
Ensure the centre of gravity always remains inside the crane base.
3
Do Not harness the load at an angle or use any attachments not verified as fit for purpose.
7
Do Not allow the load to swing during lifting.
7
Do Not allow the load to drop suddenly. Lower load with care, ensuring that you are fully aware of the condition of the surface onto
7
which the load is to be placed.
Do Not load crane beyond its rated capacity for each specified jib extension position as indicated in section 2 page 1.
7
the capacity of the crane reduces as the jib is extended.
Do Not position any part of your body beneath the load.
7
Do Not use the crane to move or transport a load other than for repositioning (see 5.2.f). the crane is a lifting device only.
7
© Jack sealey Limited
InstructIons for

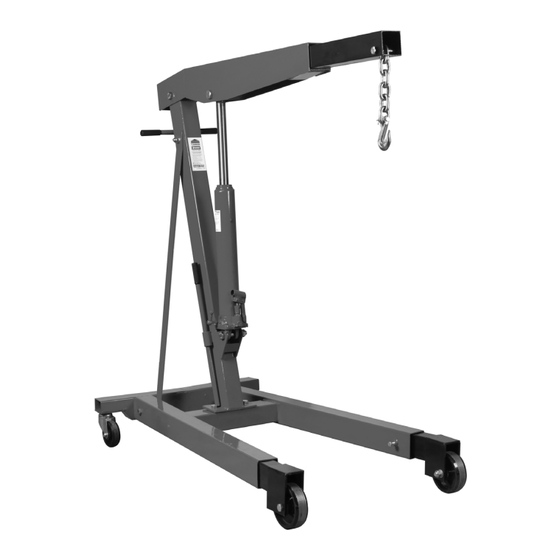

ENGINE craNE 3toNNE
MoDEL no
Wear
protective
gloves
Original Language Version
:
PH30
:
page 1
PH30 Issue: 4 - 16/09/16
