- Page 1 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM Version number:V1.0.0 C7-MINI SW-A SW-B MONITOR POWER MINI MENU EXIT MONITOR ！ PRODUCT MANUAL Please read the manual before use www.microzone.cn...

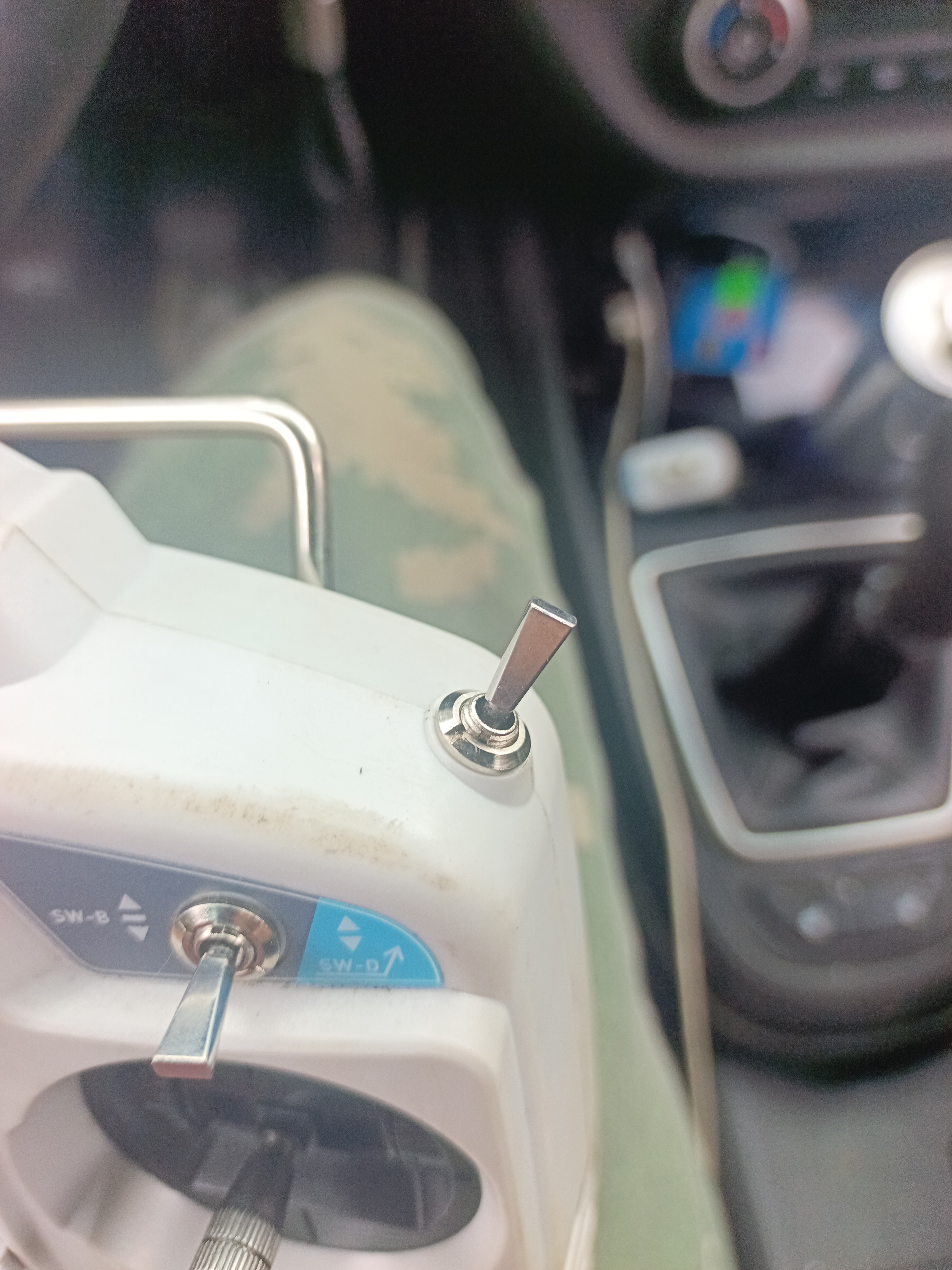

- Page 2 Menu key / OK key Up button Exit button Down button Channel Monitoring Lock button Power Switch Battery compartment Audio Interface For use with computers and analog devices The dongle can be used with a computer and an analog dongle. www.microzone.cn...
- Page 3 (S)signal (+)positive 7 PWM signal electrode (-)negative 1 external voltage input electrode 1 SBUS signal (-)negative External electrode voltage input www.microzone.cn...

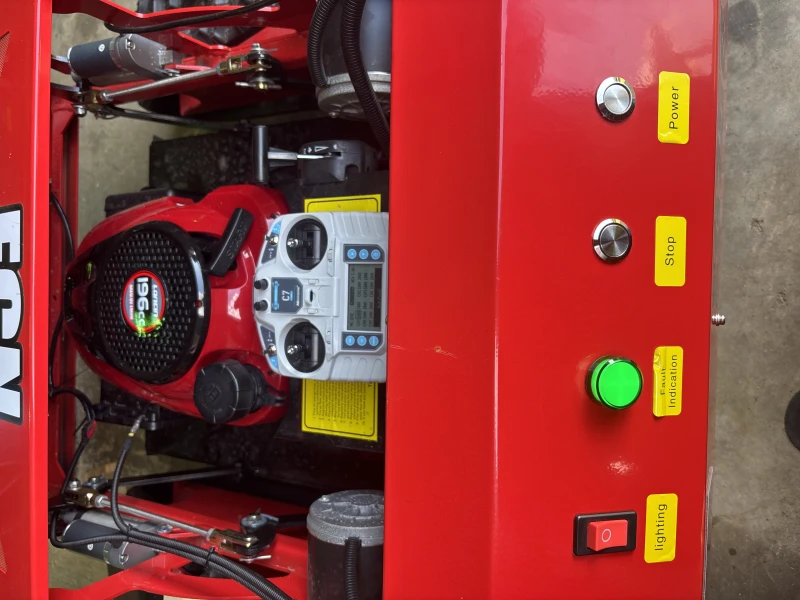

- Page 4 2.4GHz FHSS DIGITAL PROPORTIONAL R/CSYSTEM REMOTE CONTROL SPECIFICATIONS AND PARAMETERS Model C7-MINI Color Off-white Display color Black and white 128*64 Language Chinese/English Number of channels Fixed-wing/Car/Boat/Multi-axis/Lawn mower/ Applications Intelligent agricultural machinery Control range >800m Frequency range 2401 - 2478MHz Rocker dynamic range...
- Page 5 DC:4.5-6V Voltage return Support SBUS signal Support Frequency pairing mode Contact to frequency Recovery performance Fast signal recovery Runaway protection settings Support Remote control support C7-MINI/8B-MINI/Classic-10 Antenna type External dual antenna Antenna length 150mm Size 46*25*1（ 4 mm） Weight www.microzone.cn...
-
Page 6: Detailed Description
This DC port is not a charging port,Cannot charge, only available External connection to simulator teaching Power usage This DC port is not a charging port,Cannot charge, only available External connection to simulator teaching Power usage www.microzone.cn... - Page 7 Suggestions for safe shutdown: To ensure the safety of the aircraft model and oneself, after the aircraft model motor stops running, first turn off the power supply of the model, and then turn it off again Turn off the transmitter power. www.microzone.cn...
- Page 8 2; Upper right fine adjustment switch, left mode corresponds to channel 2, right modeEquation corresponds to channel 3; As shown in the following figure. Left hand mode Left hand mode Right hand mode Right hand mode www.microzone.cn...
- Page 9 Receiver Type Model Voltage Receiver supply voltage Model Type Key Lock Fine tuning values Channel monitoring: Press <MONITOR> key to enter channel monitoring, channel monitoring can see the information of channels 1-8, and then press<MONITOR> key to exit channel monitoring. www.microzone.cn...
- Page 10 <DOWN> key to select the corresponding option, and then press <MENU> key to enter. To select the receiver: Press <UP> key or <DOWN> key to select the corresponding option, press <MENU> key to finish. www.microzone.cn...
- Page 11 Press <UP> or <DOWN> to select the corresponding option, and then press the <MENU> button and press the <UP> or <DOWN> button to adjust the runaway protection value, and then press the <MENU> again or press the <EXIT> button 2 times to complete the adjustment. www.microzone.cn...
- Page 12 <YES> and press the <MENU> key to finish. Model setting: Press <MENU> on the main screen, press <UP> or <DOWN> to select Model Setup, then press <MENU> to enter Model Setup. Fixed wing, multi-axis model settings Car and boat model settings www.microzone.cn...
- Page 13 CH1/CH2 mixed control: channel 1 and channel 2 mixed control; CH2/CH4 mixed control: channel 2 and channel 4 mixed control. Multi-axis hybrid control: Combined with the D/R switch, it allows the aircraft to switch between three and six attitudes. www.microzone.cn...
- Page 14 (Fig. 1), and when the blackened rectangle icon is on the right, toggling the rocker from left to right will cause the servo to swing from right to left (Fig. 2). ① ② www.microzone.cn...
- Page 15 flight scenarios to help beginners gradually improve their flying skills in a safe and controlled environment; Press <UP> key or <DOWN> key to select <ON>, press <MENU> key to finish, then toggle the coach function switch, the coach function indicator light flashes for on, long light for off. www.microzone.cn...
-
Page 16: Standard Configuration List
Read this guide and follow the instructions. 11.The remote control and receiver required for our company's 2.4G wireless transmission system are used in pairs, while other company products cannot be connected to our company's products The product is of great value. www.microzone.cn...
