Installing the Device
2.3.2 Mounting the Device to a Panel
2.
2.3.2

Mounting the Device to a Panel

For panel installations, the RUGGEDCOM RS950G can be ordered with mounting
brackets that mount to the top and bottom of the chassis.
To mount the device to a panel, do the following:
1.
2.
3.
4.
10
DIN Rail Mounting Bracket
2
Figure 2.1 DIN Rail Mounting
Slide the device into position.
Remove the bracket mounting screws from the top and bottom of the chassis.
Install the mounting brackets to the top and bottom of the chassis using the
bracket mounting screws. Make sure the screws are hand-tightened.
Place the device against the panel and align the mounting brackets with the
mounting holes.
1 1
Bracket Mounting Screw
1
#6 Screw
2
Mounting Bracket
3

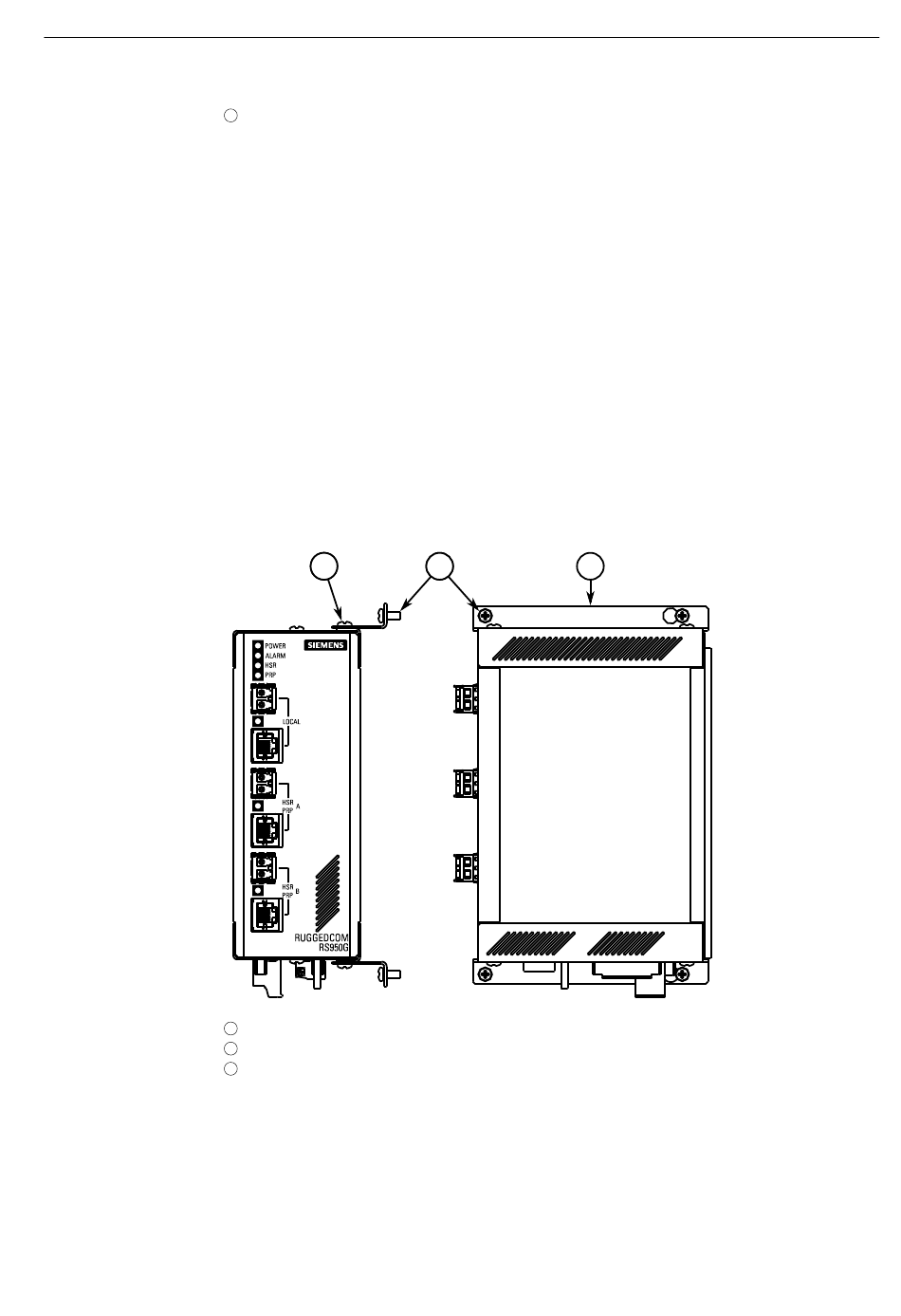

Figure 2.2 Panel Mounting
Using #6 screws of sufficient length (not provided), secure the mounting
brackets to the panel. Use wall anchors (not provided) where required.
1 2 3
