2.3.2 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RS920W can be equipped with panel
adapters on the top and bottom of the chassis. The adapters allow the device to be
attached to a panel using screws.
To mount the device to a panel, do the following:
1.
2.
RUGGEDCOM RS920W
Equipment Manual, 11/2023, C79000-G8976-1033-12
1
DIN Rail
1
DIN Rail Adapter
2

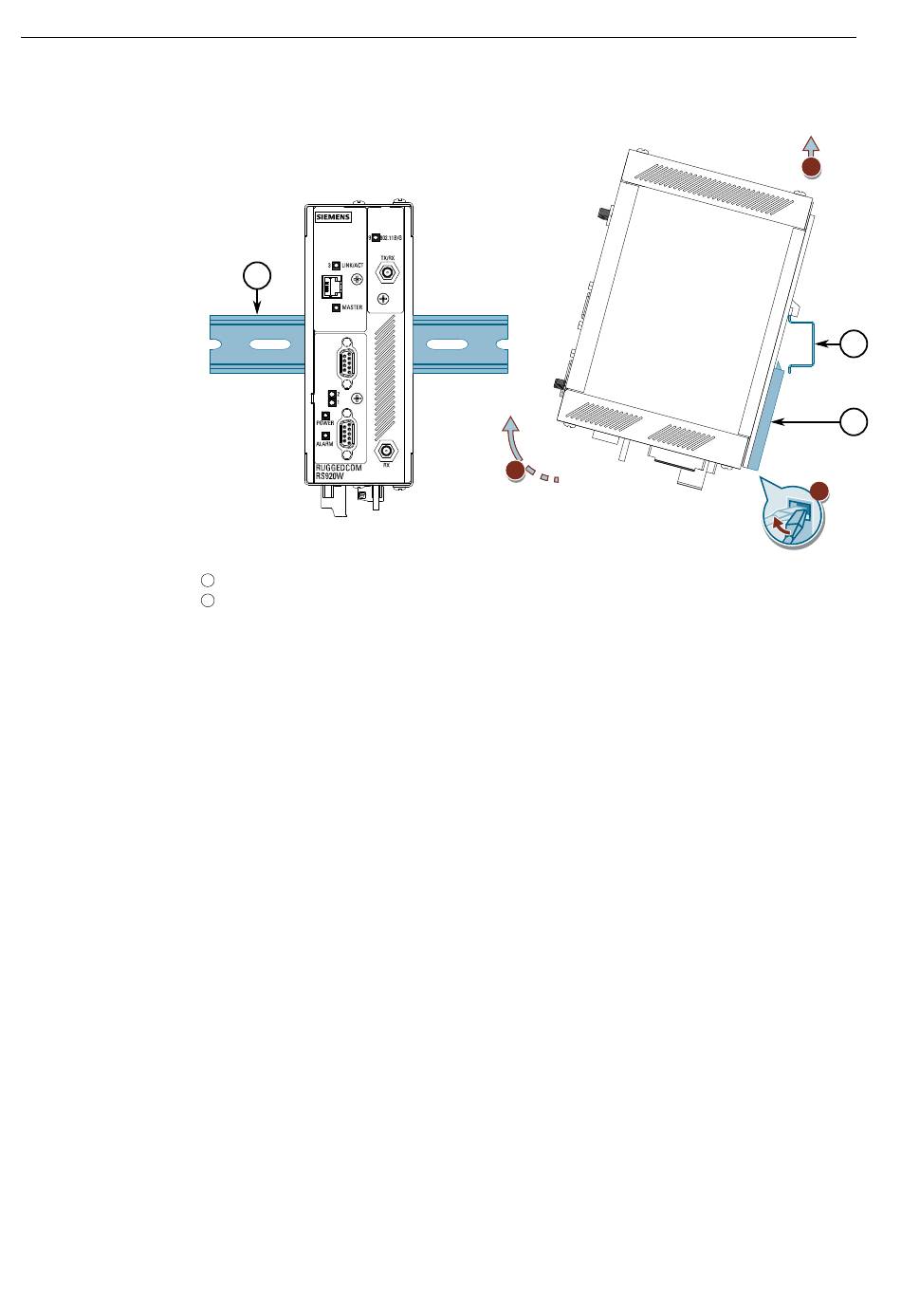

Figure 2.2 Removing the Device from a DIN Rail
Swing the bottom of the device away from the DIN rail.
Lift the device off the DIN rail.
Prepare mounting holes in the panel where the device is to be installed.
Place the device against the panel and align the adapters with the mounting
holes.
