Sealey SA600 Instructions

Original Date: 010700
Issue Date: 010700
Version No: 0
Date Modified: N/A
Item Part No Description
1 SA600/01 MOTOR HOUSING ASSEMBLY
2 SA600/02 THROTTLE VALVE SEAT
3 SA600/03 THROTTLE VALVE
4 SA600/04 THROTTLE VALVE SPRING
5 SA600/05 EXHAUST DEFLECTOR
6 SA600/06 AIR STRAINER
7 SA600/07 GREASE FITTING
8 SA600/08 REVERSE VALVE BUSHING SEAL
9 SA600/09 REVERSE VALVE
10 SA600/10 STEEL BALL
11 SA600/11 SPRING
12 SA600/12 REVERSE VALVE KNOB
13 SA600/13 REVERSE VALVE KNOB SCREW
14 SA600/14 TRIGGER
15 SA600/15 VALVE PIN
16 SA600/16 END PLATE GASKET
17 SA600/17 REAR ROTOR BEARING RETAINER
18 SA600/18 REAR ROTOR BEARING
19 SA600/19 REAR END PLATE
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date. proof of which will be required for any claim. INFORMATION: Call us for a copy of our latest catalogue
and promotions on 01284 757525 and leave your full name and address including your postcode.
Sole UK Distributor, Sealey Group, Bury St. Edmunds, Suffolk.
01284 757500
Item Part No Description
20 SA600/20 ROTOR
21 SA600/21 CYLINDER
22 SA600/22 ROTOR BLADE
23 SA600/23 CYLINDER DOWL
24 SA600/24 FRONT END PLATE
25 SA600/25 FRONT ROTOR BEARING
26 SA600/26 HAMMER FRAME REAR WASHER
27 SA600/27 HAMMER CASE GASKET
28 SA600/28 HAMMER FRAME
29 SA600/29 HAMMER
30 SA600/30 HAMMER PIN
31 SA600/31 ANVIL `
32 SA600/32 HAMMER CASE BUSHING
33 SA600/33 HAMMER CASE
34 SA600/34 HAMMER CASE CAP SCREW
35 SA600/35 RETAINER O-RING
36 SA600/36 SOCKET RETAINER
37 SA600/37 REVERSE VALVE BUSHING
01284 703534
E-mail: sales@sealey.co.uk

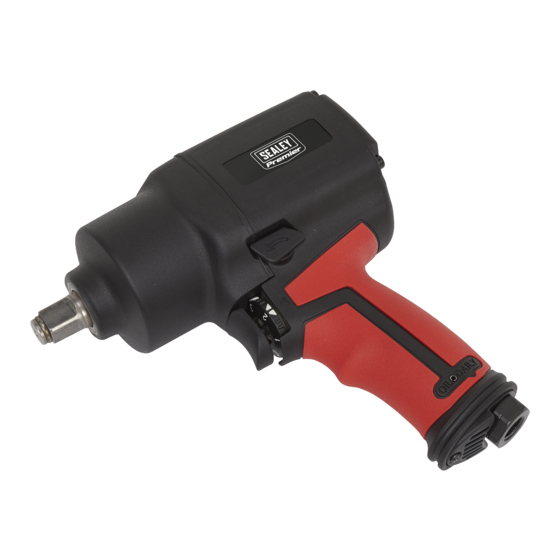

INSTRUCTIONS FOR
3/8” AIR IMPACT WRENCH
Models:
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
3 Follow all workshop safety rules, regulations, and conditions when using wrench.
p WARNING! Disconnect from air supply before changing accessories or servicing.
3 Maintain the wrench in good condition and replace any damaged or worn parts. Use
genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
p WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
3 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
3 Only use impact sockets which are specifically designed for use with an impact wrench.
3 Wear approved safety eye/face shield, ear defenders, and hand protection.
p WARNING! Due to the possible presence of asbestos dust from brake linings, when working
around vehicle brake systems we recommend you wear suitable respiratory protection
3 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
3 Keep children and non essential persons away from the working area.
7 DO NOT use the wrench for a task it is not designed to perform.
p WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
7 DO NOT use wrench unless you have been instructed in its use by a qualified person.
7 DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
7 DO NOT operate wrench if you are tired, under the influence of alcohol, drugs or intoxicating medication.
7 DO NOT carry wrench with your finger on the power trigger in order to avoid unintentional starting.
7 DO NOT direct air from the air hose at yourself or others.
3 When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATIONS
One of the most powerful 3/8" Impact wrenches on the market. Unique design jumbo hammer
mechanism is up to 20% stronger than existing types. Air motor features quality bearings, steel
end plates and carefully finished components to ensure smooth running and maximum power.
Handle exhaust for quiet operation. Combination forward/reverse & speed selector.
Drive size . . . . . . . . . . . . . . . . . .3/8”
Working Max torque . . . .180/220ft/lb
Ultimate Torque . . . . . . . . . . .230ft/lb
Air consumption . . . . . . . . . . . 2.5cfm
SA600
Operating pressure . . . . .90psi
Air inlet size . . . . . . . .1/4” BSP
Weight . . . . . . . . . . . . . . 1.4kg
SA600 - 0016 - (2) -240700
