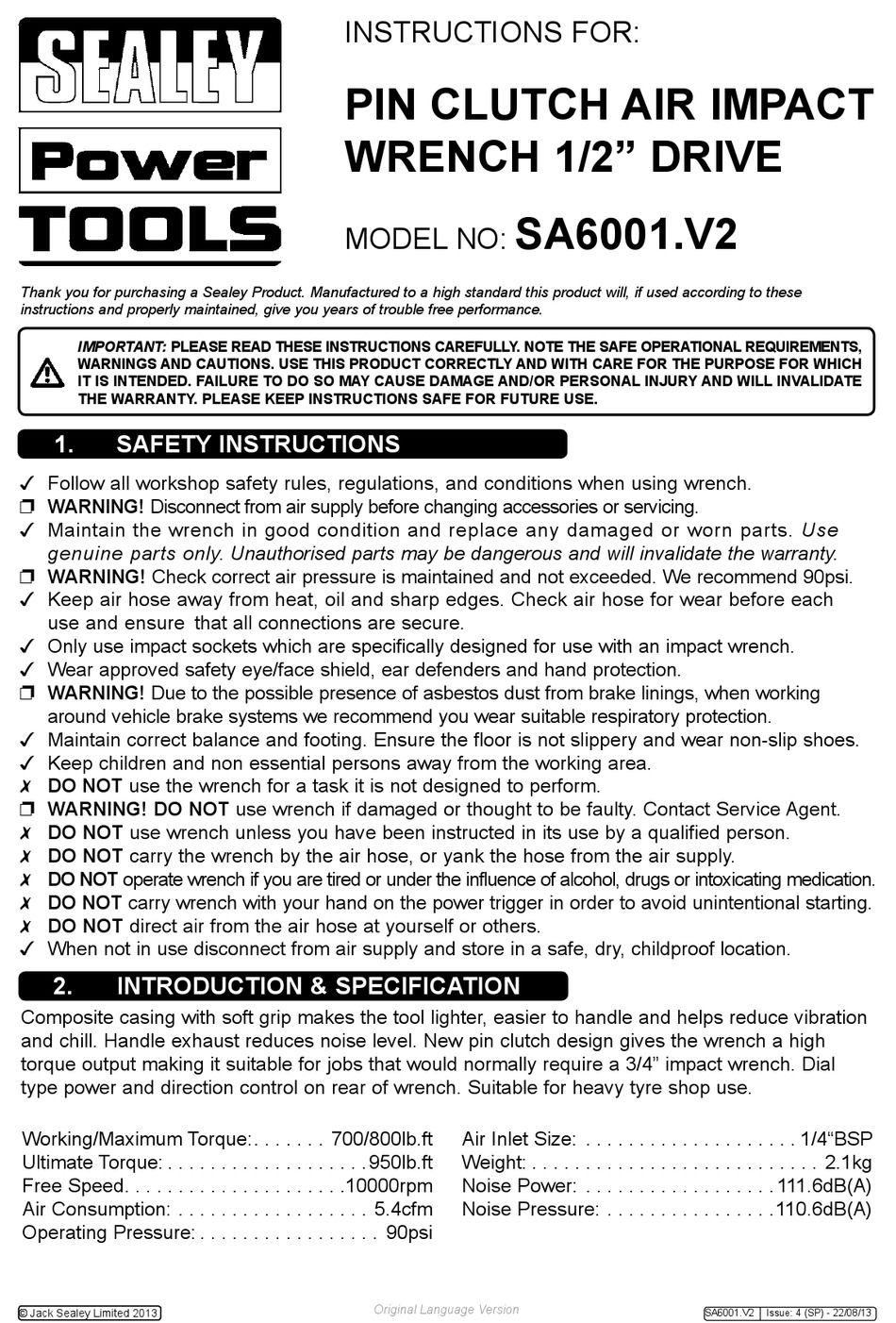

Sealey SA6001.V2 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these
instructions and properly maintained, give you years of trouble free performance.
IMPORTANT: PLease reaD tHese instructions carefuLLy. note tHe safe oPerationaL reQuireMents,
WarninGs anD cautions. use tHis ProDuct correctLy anD WitH care for tHe PurPose for WHicH
it is intenDeD. faiLure to Do so May cause DaMaGe anD/or PersonaL inJury anD WiLL inVaLiDate
tHe Warranty. PLease KeeP instructions safe for future use.
1. safety instructions
 Follow all workshop safety rules, regulations, and conditions when using wrench.
 WarninG! Disconnect from air supply before changing accessories or servicing.
 Maintain the wrench in good condition and replace any damaged or worn parts. Use
genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 WarninG! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
 Only use impact sockets which are specifically designed for use with an impact wrench.
 Wear approved safety eye/face shield, ear defenders and hand protection.
 WarninG! Due to the possible presence of asbestos dust from brake linings, when working
around vehicle brake systems we recommend you wear suitable respiratory protection.
 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
 Keep children and non essential persons away from the working area.
 Do not use the wrench for a task it is not designed to perform.
 WarninG! Do not use wrench if damaged or thought to be faulty. Contact Service Agent.
 Do not use wrench unless you have been instructed in its use by a qualified person.
 Do not carry the wrench by the air hose, or yank the hose from the air supply.
 Do not operate wrench if you are tired or under the influence of alcohol, drugs or intoxicating medication.
 Do not carry wrench with your hand on the power trigger in order to avoid unintentional starting.
 Do not direct air from the air hose at yourself or others.
 When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. introDuction & sPecification

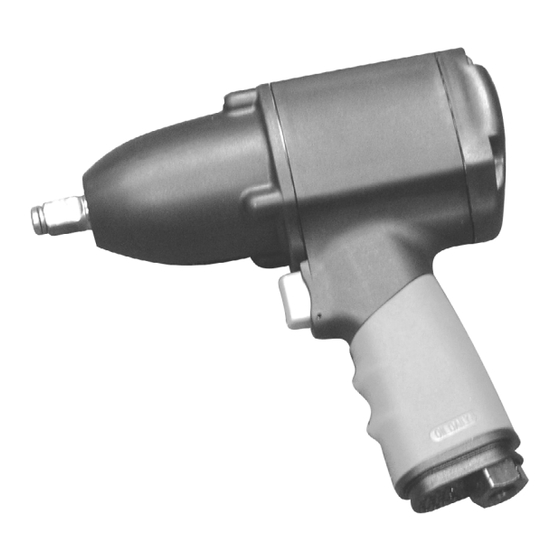

Composite casing with soft grip makes the tool lighter, easier to handle and helps reduce vibration
and chill. Handle exhaust reduces noise level. New pin clutch design gives the wrench a high
torque output making it suitable for jobs that would normally require a 3/4" impact wrench. Dial
type power and direction control on rear of wrench. Suitable for heavy tyre shop use.
Working/Maximum torque:. . . . . . . 700/800lb.ft
ultimate torque: . . . . . . . . . . . . . . . . . . . 950lb.ft
Free Speed. . . . . . . . . . . . . . . . . . . . .10000rpm
Air Consumption: . . . . . . . . . . . . . . . . . . 5.4cfm
Operating Pressure: . . . . . . . . . . . . . . . . . 90psi
© Jack Sealey limited 2013
iNStruCtiONS FOr:
Pin cLutcH air iMPact
WrencH 1/2" DriVe
MODEl NO:
Air inlet Size: . . . . . . . . . . . . . . . . . . . . 1/4"BSP
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.1kg
Noise Power: . . . . . . . . . . . . . . . . . . 111.6dB(A)
Noise Pressure: . . . . . . . . . . . . . . . .110.6dB(A)
Original Language Version
sa6001.V2
SA6001.V2 issue: 4 (SP) - 22/08/13
