Sealey SA6007 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
 Follow all workshop safety rules, regulations and conditions when using wrench.
 WARNING! Disconnect from air supply before changing accessories or servicing.
 Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
dangerous and will invalidate the warranty.
 WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are
secure.
 Only use impact sockets which are specifically designed for use with an impact wrench.
 Wear approved safety eye/face shield, ear defenders and hand protection.
 WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we recommend
you wear suitable respiratory protection.
 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
 Keep children and non essential persons away from the working area.
 DO NOT use the wrench for a task it is not designed to perform.
 WARNING! DO NOT use wrench if damaged or thought to be faulty. Contact Service Agent.
 DO NOT use wrench unless you have been instructed in its use by a qualified person.
 DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
 DO NOT operate wrench if you are tired or under the influence of alcohol, drugs or intoxicating medication.
 DO NOT carry wrench with your hand on the power trigger in order to avoid unintentional starting.
 DO NOT direct air from the air hose at yourself or others.
 When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION
Twin hammer design gives the wrench a high torque output making it suitable for jobs that would normally require a 3/4" impact wrench. Features
spring mounted rota blades, providing constant power and extended life. Fingertip control of power and direction via lever on rear of wrench.
Handle exhaust with built in silencer to help reduce noise levels and limits circulation of brake dust on wheel applications. Suitable for heavy duty
use in professional garage.
3. SPECIFICATIONS
Model no:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SA6007
Drive: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2"sq.
Working torque: . . . . . . . . . . . . . . . . . . .800lb.ft (1084Nm)
Maximum torque: . . . . . . . . . . . . . . . . .1000lb.ft (1355Nm)
Ultimate torque: . . . . . . . . . . . . . . . . . .1320lb.ft (1789Nm)
Free speed: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9000rpm
Air consumption:. . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5cfm
4. PREPARATION

WARNING! Ensure the air supply is clean and does not exceed specification while operating the wrench. Too high an air pressure and/or
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1 AIR SUPPLY
4.1.1 Ensure wrench air valve (or trigger) is in the "off" position before connecting to the air supply.
4.1.2 You will require an air pressure of 90psi, and an air flow according to specification.
4.1.3 Drain the compressor air tank daily. Water in the air line will damage the wrench.
4.1.4 Clean compressor air inlet filter weekly. Recommended hook-up procedure is shown in fig.1.
4.1.5 Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4" I.D. and fittings must have the same inside dimensions.
4.1.6 Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
4.2 COUPLINGS
Vibration may cause failure if a quick change coupling is connected directly to the wrench. To overcome this, connect a leader hose to
the wrench. A quick change coupling may then be used to connect the leader hose to the air line recoil hose. See fig.1 & 2.
© Jack Sealey Limited

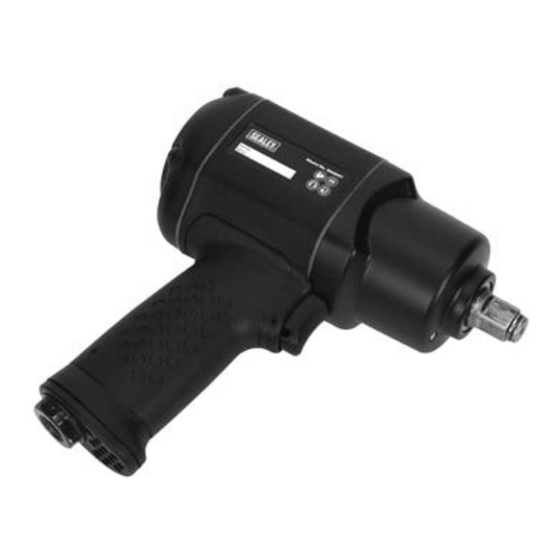

INSTRUCTIONS FOR:
AIR IMPACT WRENCH 1/2"SQ DRIVE TWIN
HAMMER
MODEL No:
Wear ear Wear a Mask Wear Protective
protection
Operating pressure: . . . . . . . . . . . . . . . . . . . . . . . . . .90psi
Inlet size: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.6kg
Noise power/pressure: . . . . . . . . . . . . . . . . 98.9/87.9dB(A)
Vibration/uncertainty: . . . . . . . . . . . . . . . . . . 14.23/1.9m/s²
Original Language Version
SA6007
Gloves
SA6007 Issue: 1 - 04/07/17
