Fully Integrated Freezer User Manual FSE1630u - FSE1654IU EN / 57 0193 0000 / AO...
Page 2
Please read these instructions first before using your appliance Thank you for choosing a Blomberg appliance. Please take some time to read this user manual before using your appliance, to ensure you know how to safely operate the controls and functions.
CONTENTS 1 Your refrigerator 4 Before operating 5 Using your refrigerator 2 Warnings Temperature setting button ....22 For models with water dispenser ..6 Storing the frozen food ....22 Electrical Requirements .....6 Defrosting ........22 Warning! This Appliance Must Be Earthed ..........7 LED indicators and control panel ..23 Energy Saving Tips ......7 How to Freeze Fresh Foods ...24...

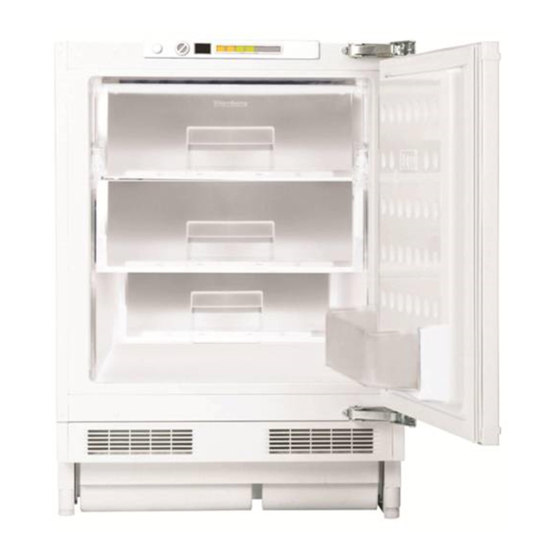

Your refrigerator Congratulations on your choice of a BLOMBERG quality Appliance which has been designed to give you service for many years. 1. Fast freeze compartment 2. Frozen food compartments Figures that take place in this instruction manual are schematic and may not correspond exactly with your product.
• Do not dispose of the cable. appliance on a fire. At • Failure to observe these BLOMBERG, the care and instructions may invalidate your protection of our environment right to free service during the is an ongoing commitment.
If you do not made mains lead which can only know how to check your water be obtained from a BLOMBERG pressure, ask for the help of a Authorised Service Agent. professional plumber.
Connect the brown (Live) Warning! This Appliance wire to the terminal in the plug Must Be Earthed marked ‘L’ or coloured red. If the fitted moulded plug is not With alternative plugs a 13 A suitable for your socket, then the fuse must be fitted either in the plug should be cut off and an plug or adaptor or in the main...
Compliance with WEEE Package information Directive and Disposing of Packaging materials of the the Waste Product: product manufactured Thisproduct complies from recyclable materials with WEEE accordance with our National Directive (2012/19/ Environment Regulations. Do EU). This product not dispose of the packaging bears a classification materials together...
Installation Please remember that the and the wall in order to allow the air manufacturer shall not be held liable if circulation. (The illustrated figure is the information given in the instruction only an example and does not match manual is not observed. exactly with your product.) 3.
Disposing of the packaging Placing and Installation packing materials If the entrance door of the room dangerous for children. Keep the where the refrigerator will be packing materials out of the reach installed is not wide enough for the of children or dispose of them by refrigerator to pass through, then call classifying them in accordance with the the authorised service to have them...
Important Important: Care must be taken“ while cleaning / carrying the appliance Installation Instructions to avoid touching the bottom of the condenser metal wires at the back of theappliance as you might injure your 1. To avoid a hazard due to instability fingers and hands.
Page 12
30 mm To avoid any loss in performance, air suction channels should not be obstructed. (140 cm2) Minimum distance between the wall and the appliance must be at least 30 mm. 30 mm 40 mm 40 mm Wall Appliance...
Reversing The Doors Follow the step by step instructions and the diagram below. Numbers in brackets refer to diagrams. 1. Switch off at the socket outlet and pull out the mains plug. 2. Remove all food, loose items and fittings from inside the appliance and door shelves.
Installation Instructions - Detailed Step By Step A (mm) 813 - 863 mm B (mm) 820 - 870 mm C (mm) 100 - 150 mm NOTE 1) Height of the product can be adjusted by the help of adjustable feet (front and back) to fit the furniture niche height (B).
Page 18
E = 3 mm is recommended. Top view 40 + A Front view min. 4 mm Note: 1. These dimensions are valid for products,which are hinged on right hand side. 2. When door opening direction is reversed, mirror image of this instruction should be considered.
Before operating Final Check Before you start using the freezer check that: 1. The feet have been adjusted and the product is level. 2. The interior is dry and air can circulate freely at the rear. 3. Clean the interior as recommended under "CLEANING AND CARE."...
Using your refrigerator Temperature setting button Defrosting The interior temperature of your Defrost twice a year or when a frost refrigerator changes for the following layer of around 7 mm (1/4") has formed. reasons; To start defrosting procedure turn the •...
LED indicators and control In this case, your refrigerator operates panel continuously. Press the button again when the food LED indicators in the front section of you would like to fast freeze comes to your refrigerator are intended to help the desired temperature and the orange you in monitoring the operation of your LED will turn off.
How to Freeze Fresh Foods Packaging paper, parchment paper,cellophane (gelatin paper), • Foods to be frozen must be divided garbage bag, used bags and shopping into portions according to a size to bags. be consumed, and frozen in separate packages. In this way, all the food •...
Recommendations for Foods not suitable for freezing: Preservation of • Yoghurt, sour milk, cream, mayonnaise, leaved salad, red radish, Frozen Foods grapes, all fruits (such as apple, pears • While purchasing your frozen foods, and peaches). make sure that they are frozen at •...
CAUTION: • Never put acidic beverages in glass bottles and cans into your freezer due to the risk of explosion. • If there is moisture and abnormal swelling in the packaging of frozen foods, it is likely that they were previously stored in an improper storage condition and their contents deteriorated.
Page 27
Longest storage Meat and Fish Preparation time (month) Steak By cutting them 2 cm thick and placing foil between them or 6 – 8 wrapping tightly with stretch Roast By packing the pieces of meat in a refrigerator bag or wrapping 6 –...
Page 28
Longest Fruits and storage Preparation Vegetables time (month) String bean and Pole By shock boiling for 3 minutes after washing and cutting into small pieces 10 - 13 bean Green pea By shock boiling for 2 minutes after shelling and washing 10-12 Cabbage By shock boiling for 1-2 minute(s) after cleaning...
Maintenance and cleaning • We recommend that you switch off • Check door seals regularly to ensure the appliance at the socket outlet they are clean and free from food and pull out the mains plug before particles.. cleaning. • Never : •...
Do's and Don'ts Do- Wrap frozen food when you buy Do- Clean your appliance regularly it and put it in to the freezer as soon as (See “Cleaning and Care”) possible. Do- Keep raw meat and poultry below Do- Defrost food in the fridge cooked food and dairy products.
Page 31
Problem Solvıng Don’t- Freeze fizzy drinks. Don’t- Try to keep frozen food which If the appliance does not operate has thawed, it should be eaten within when switched on, check whether: 24 hours or cooked and refrozen. • The plug is inserted properly in the Don’t- Remove items from the freezer socket and that the power supply is with wet hands.
Page 32
• Repairs to the product required as a result of faulty materials, defective components or manufacturing defects. • Functional replacement parts to repair a product. • The costs of a Blomberg Approved Engineer to carry out the repair. What is not covered? • Transit and delivery damage.
Page 33
This guarantee is limited to the cost of repairing the product. To the extent permitted by law, the Manufacturer does not accept and will not be held liable for any financial loss incurred in connection with the failure of any product to operate in accordance with the expected standards.
Page 34
Does Blomberg offer replacements? This is a repair-only guarantee. On occasion, the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair. Where a replacement is offered, this would normally be an identical model but when this is not possible, a model of similar specification will be provided.
Page 35
This guarantee is provided by Beko plc. Beko House, 1 Greenhill Crescent, Watford, Hertfordshire. WD18 8QU. Beko plc is registered in England and Wales with company registration number 02415578. HOW TO OBTAIN SERVICE FOR YOUR APPLIANCE Please keep your purchase receipt or other proof of purchase details in a safe place;...
Page 36
Please have your Model number and Serial number available when you call us, as you may be required to input your serial number into your telephone keypad during your call. UK Mainland & Northern Ireland: 0333 207 9870 Landline or mobile calls to 0333 numbers cost no more than calls to geographic numbers 01 or 02, and are charged at the basic rate.
Page 37
Therefore, please be advised that repairs by professional repairers (who are not .authorized by Blomberg) shall void the guarantee Self-Repair Self-repair can be done by the end-user with regard to the following spare parts: door handles,door hinges, trays, baskets and door gaskets (an updated list is also available in support.blombergappliances.com as...
Page 38
Blomberg, and will void the warranty of the product. Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers.
