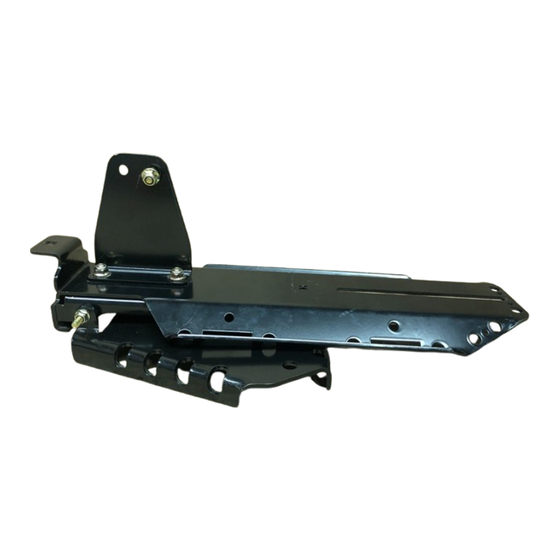

Universal Mount Kit
Titan
Model No. 136-9046
This product contains a chemical or chemicals known to the State of California
Safety
Safety and Instructional
Decals
Safety decals and instructions are
easily visible to the operator and are
located near any area of potential
danger. Replace any decal that is
damaged or lost.
1. Warning—do not step; no riders.
1. Maximum weight is 11 kg (25 lb)
© 2017—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
HD Series Riding Mower
Proposition 65 Warning
to cause cancer, birth defects, or reproductive harm.
136-1672
136-1680
Register at www.Toro.com.
WARNING
CALIFORNIA
decal136-1672
decal136-1680
Form No. 3417-288 Rev A
Installation Instructions
Original Instructions (EN)
All Rights Reserved *3417-288* A
Printed in the USA
Advertisement
Table of Contents
Related Manuals for Toro 136-9046
Summary of Contents for Toro 136-9046
- Page 1 Form No. 3417-288 Rev A Universal Mount Kit Titan ® HD Series Riding Mower Model No. 136-9046 Installation Instructions WARNING CALIFORNIA Proposition 65 Warning This product contains a chemical or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
-
Page 2: Installation
Installation Loose Parts Use the chart below to verify that all parts have been shipped. Description Qty. – No parts required Prepare the machine. Upper mount Main bracket Top bracket Lower support bracket Welded support bracket Carriage bolt (5/16 x 7/8 inch) Install the kit. -
Page 3: Assembling The Kit
Assembling the Kit Assemble the kit as shown in Figure 2. Ensure to loosely install the upper mount to the main bracket; refer to Figure 3 to determine which hole to use in the upper mount. Note: Do not overtighten the bolt (1/4 x 4-1/4 inches) and nut (1/4 inch); the hinge bracket must pivot freely. Note: Install the lower support bracket only if you are mounting the kit in front of the rear tires. -
Page 4: Mounting Locations
g037081 Figure 3 1. Use this hole if you are mounting the kit in front of the left, 3. Use this hole if you are mounting the kit in front of the right, rear tire. rear tire. 2. Use this hole if you are mounting the kit in any location behind the rear tires. - Page 5 Mounting the Kit in Front of the Rear Tires For 2017 and Older Machines Secure the mount assembly to the console cover using 2 bolts (5/16 x 1 inch) and 2 nuts (5/16 inch) as shown in Figure 5 Figure Tighten the fasteners securing the upper mount to the main bracket.
- Page 6 Mounting the Kit in Front of the Rear Tires For 2018 and Newer Machines Secure the mount assembly to the console cover using 2 bolts (5/16 x 1 inch) and 2 nuts (5/16 inch) as shown in Figure 5 Figure Tighten the fasteners securing the upper mount to the main bracket.
- Page 7 g225568 Figure 9 Mounting the kit to the right side of the machine Secure the lower support bracket to the inner support bracket under the console cover using 1 bolt (5/16 x 7/8 inch) and 1 nut (5/16 inch) as shown in Figure Note: You will not use the bottom hole in the main bracket or lower support bracket.
- Page 8 Mounting the Kit to the Side of the Engine Guard Secure the mount assembly to the side upper guard using 2 bolts (5/16 x 1 inch) and 2 nuts (5/16 inch) as shown in Figure 11 Figure Tighten the fasteners securing the upper mount to the main bracket. Secure the bottom of the main bracket to the engine guard using 1 carriage bolt (5/16 x 7/8 inch) and 1 nut (5/16 inch) as shown in Figure 11...
- Page 9 Mounting the Kit to the Rear Engine Guard Secure the mount assembly to the rear upper guard using 2 bolts (5/16 x 1 inch) and 2 nuts (5/16 inch) as shown in Figure 13 Figure Tighten the fasteners securing the upper mount to the main bracket. Secure the bottom of the main bracket to the rear engine guard using 1 carriage bolt (5/16 x 7/8 inch) and 1 nut (5/16 inch) as shown in Figure 13...
-
Page 10: Operation
1. Add a front-weight kit when 2 or more accessory-mount kits are installed at these positions. Operation Mounting Attachments Use only Toro-approved attachments and accessories. The maximum capacity is 11.3 kg (25 lb). Use the top bracket and hinge bracket for mounting attachments or accessories; secure them using the holes in the mounting brackets. - Page 11 Securing the Hinge Bracket Raise the hinge bracket. Loosen the knob and lower the top bracket, inserting the tab into the notch in the hinge bracket (Figure 17). Tighten the knob. g037423 Figure 17 1. Tab in top bracket 2. Notch in hinge bracket...
