Alternator Kit
Workman
Model No. 133-0575
This product contains a chemical or chemicals known to the State of California to
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
3
4
5
6
7
8
9
© 2016—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
HDX-Auto Utility Vehicle
Proposition 65 Warning
cause cancer, birth defects, or reproductive harm.
Description
No parts required
No parts required
No parts required
Alternator pulley

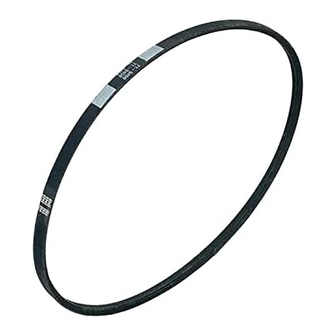

Alternator belt
Hex socket flat head screw (M8 x 20
mm)
No parts required
Alternator-bracket template
Alternator bracket
Alternator
Spacer
Hex-head screw (3/8 x 2-3/4 inches)
Flat washer (7/16 inch)
Flange nut (3/8 inch)
Hex-head flange screw (M8 x 20 mm)
Hex-head flange screw (1/4 x 3/4 inch)
Flange nut (1/4 inch)
No parts required
Alternator wire harness
Register at www.Toro.com.
WARNING
CALIFORNIA
Qty.
–
–
–
1
1
2
–
1
1
1
1
1
1
1
1
6
6
–
1
Form No. 3399-376 Rev A
Installation Instructions
Use
Prepare the machine.
Disconnect the hydraulic pump and
remove the coupler assembly.
Remove the adapter plate.
Install the alternator pulley and belt.
Install the coupler assembly.
Drill holes for the alternator bracket.
Install the alternator.
Connect the hydraulic pump.
Connect the kit and engine wire
harnesses to the alternator.
Original Instructions (EN)
All Rights Reserved *3399-376* A
Printed in the USA
Advertisement
Related Manuals for Toro 133-0575
Summary of Contents for Toro 133-0575
- Page 1 Form No. 3399-376 Rev A Alternator Kit Workman ® HDX-Auto Utility Vehicle Model No. 133-0575 Installation Instructions WARNING CALIFORNIA Proposition 65 Warning This product contains a chemical or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
-
Page 2: Preparing The Machine
Procedure Description Qty. – No parts required Connect the battery. – No parts required Test the alternator. Note: Determine the left and right sides of the machine from the normal operating position. 2. Remove the 4 bolts and nuts from the hydraulic pump (Figure Preparing the Machine No Parts Required... - Page 3 Installing the Alternator Pulley and Belt Parts needed for this procedure: Alternator pulley Figure 4 Alternator belt Hex socket flat head screw (M8 x 20 mm) 1. Bolt 3. Coupler assembly 2. Washer Procedure 6. Remove the coupler assembly. 1. Install the alternator belt onto the alternator pulley (Figure Removing the Adapter Plate No Parts Required...
- Page 4 Drilling Holes for the Alternator Bracket Parts needed for this procedure: Alternator-bracket template Figure 7 Procedure 1. Alternator pulley 2. Hex socket flat head screws (M8 x 20 mm) Using the alternator-bracket template, drill 2 holes (5/16 inch) into the hydraulic-pump bracket (Figure 3.
-
Page 5: Installing The Alternator
Installing the Alternator Parts needed for this procedure: Alternator bracket Alternator Spacer Hex-head screw (3/8 x 2-3/4 inches) Flat washer (7/16 inch) Flange nut (3/8 inch) Hex-head flange screw (M8 x 20 mm) Hex-head flange screw (1/4 x 3/4 inch) Flange nut (1/4 inch) Procedure 1. - Page 6 Figure 11 Figure 13 1. Hex-head screw (3/8 x 4. Spacer 2-3/4 inches) 1. Hole in the alternator 3. Hex-head flange screw (M8 x 20 mm) 2. Flat washer (7/16 inch) 5. Flange nut (3/8 inch) 2. Slot in the alternator 3.
- Page 7 Connecting the Hydraulic Pump No Parts Required Procedure 1. Install the hydraulic pump with the 4 bolts and nuts removed in 2 Disconnecting the Hydraulic Pump and Removing the Coupler Assembly (page 2. Tighten the 2 set screws on the hydraulic-pump hub (Figure Connecting the Kit and Figure 15...
-
Page 8: Connecting The Battery
Connecting the Battery No Parts Required Procedure Connect the negative battery cable; refer to your Operator’s Manual. Testing the Alternator No Parts Required Procedure 1. Shut off the engine and check the battery voltage. 2. Start the engine and check the battery voltage. Note: After starting the engine, the voltage should be 13.5 to 14.5 V.
