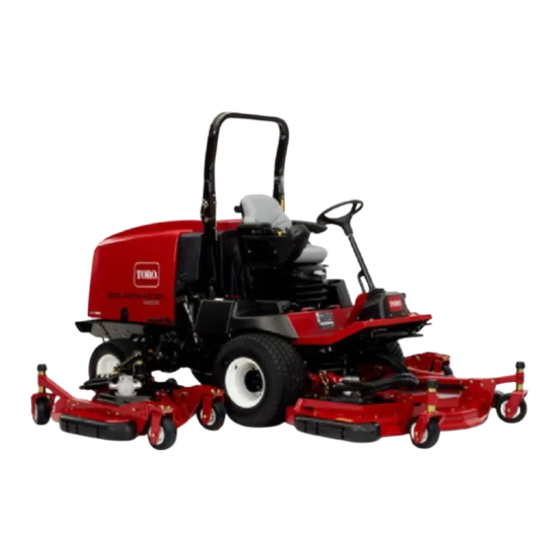

Toro Groundsmaster 4000 Series Installation Instructions

Hide thumbs Also See for Groundsmaster 4000 Series:
1
2
3
4

Advertisement

Quick Links

Download this manual
Wing Mount Kit
Groundsmaster
Model No. 137-5580
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
No parts required
Deck mount
Plate
Spring pin
Spacer
Bolt (3/4 x 4-1/2 inches)
Locknut (3/4 inch)
Cable tie
Determine the left and right sides of the machine from
the normal operating position.
Preparing the Machine
1.
Park the machine on a level surface.
2.
Disengage the power takeoff and lower the
attachments.
3.
Engage the parking brake.
4.
Shut off the engine and remove the key.
5.
Wait for all movement to stop.
6.
Allow machine components to cool.
© 2021—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
4000 Series Rotary Mower
Qty.
–
Prepare the machine.
1
1
1
2
Install the kit.
1
1
1
Register at www.Toro.com.
Form No. 3422-333 Rev A
Installation Instructions
Use
*3422-333*
Original Instructions (EN)
Printed in the USA
All Rights Reserved

Advertisement

loading

Related Manuals for Toro Groundsmaster 4000 Series

Summary of Contents for Toro Groundsmaster 4000 Series

  • Page 1 Engage the parking brake. Shut off the engine and remove the key. Wait for all movement to stop. Allow machine components to cool. *3422-333* © 2021—The Toro® Company Original Instructions (EN) Register at www.Toro.com. 8111 Lyndale Avenue South Printed in the USA...
  • Page 2 Installing the Deck Mount Remove the snap rings on both sides of the U-joint as shown in Figure Remove the caps under the snap rings. This can be done by adding more grease into the U-joint. Remove the existing long bolt (Figure Remove the plate and rubber cushion (Figure...
  • Page 3 Install the U-joint caps and secure them with the previously removed snap rings (Figure Install the hydraulic cylinder to the deck mount with a bolt (3/4 x 4-1/2 inches), locknut (3/4 inch), and spacers (Figure 3); torque to 136 N∙m (100 ft-lb).
