ABB TTF300 Operating Instruction

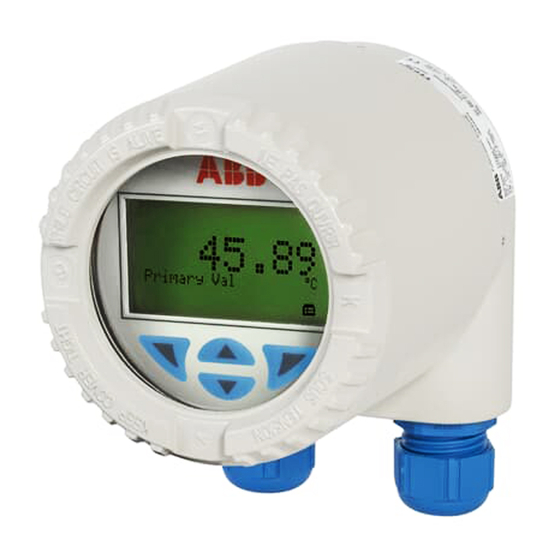

Field-mount temperature transmitter
Hide thumbs Also See for TTF300:
Table of Contents

Advertisement

Quick Links

Download this manual
—
A B B M E A S U R E M E N T & A N A L Y T I C S | O P E R A T I N G I N S T R U C T I O N | O I / T T F 3 0 0 - E N R E V . I
TTF300
Field-mount temperature transmitter
—
Introduction
TTF300
The TTF300 is available with the HART,
PROFIBUS PA and FOUNDATION Fieldbus
communication protocols.
The TTF300 has global approvals for explosion
protection up to Zone 0.
The TTF300 implements various NAMUR
recommendations, including NE 89 and NE 107.
Safety-relevant applications up to SIL 3
(redundant) are supported in accordance with
IEC 61508.
Temperature transmitter for all
communications protocols.
Redundancy thanks to two inputs.
Measurement made easy
Additional Information
Additional documentation on TTF300 is available for
download free of charge at
www.abb.com/temperature.
Alternatively simply scan this code:
