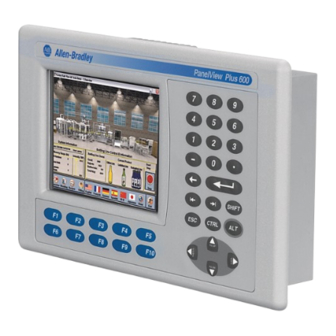

Rockwell Automation Allen-Bradley PanelView Plus 2711P User Manual

Rockwell Automation Allen-Bradley PanelView Plus 2711P User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
Original Instructions
PanelView Plus Terminals
Catalog Number 2711P (400, 600, 700, 1000, 1250, 1500 Terminals)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Allen-Bradley PanelView Plus 2711P and is the answer not in the manual?

Questions and answers

Related Manuals for Rockwell Automation Allen-Bradley PanelView Plus 2711P

Summary of Contents for Rockwell Automation Allen-Bradley PanelView Plus 2711P

  • Page 1 User Manual Original Instructions PanelView Plus Terminals Catalog Number 2711P (400, 600, 700, 1000, 1250, 1500 Terminals)
  • Page 2 If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
  • Page 3 Configure Network Information ....... 70 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 4 USB Ports ........... 168 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 5 Agency Certifications......... 226 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 6 ............. 237 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 7  Windows CE .NET operating system preloaded with Terminal Services and Internet Explorer  PanelView Plus CE Accessory CD with utilities and software development kit for C++  Microsoft Windows CE license agreement Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 8 To receive software updates (software serial number required) and firmware Software and Firmware upgrades for your terminal: Upgrades  call your local Rockwell Automation sales office or distributor.  access the Product Compatibility and Download Center at http://www.rockwellautomation.com/rockwellautomation/support/pcdc .page. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 9  Windows CE.NET operating system provides these programs: – File viewers for MS Office: Excel, Word, PowerPoint – PDF file viewer – WordPad text editor – WebServer application – FTP server – Support for the .NET compact framework Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 10  CompactFlash card slot supports Type 1 CompactFlash cards  USB port for attaching mouse, keyboard, printer, bar code scanner, and other devices  Same panel cutouts as the PanelView Standard 550 terminals Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 11 Base Unit with RS-232, Ethernet Port, and Modular Communications Interface Power Input, AC or DC Interface for Communication Module CompactFlash Slot Base-configured Unit with RS-232, USB, Ethernet Port, and Network Interface for Communication Module. USB Port Ethernet Port RS-232 Port Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 12 The communication module installs easily on the back of the unit. Communication Module Power Options The base-configured unit of the PanelView Plus 400 and 600 terminals is available with either AC (85…264V) or DC (18…30V) power input providing application flexibility. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 13 The touch screen may be operated with a finger, gloved finger, or plastic IMPORTANT stylus device with a minimum tip radius of 1.3 mm (0.051 in.) to prevent damage to the touch screen. Using any other object or tool may damage the touch screen. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 14 1.3 mm (0.051 in.) to prevent damage to the touch screen. Using any other object or tool may damage the touch screen or keypad. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 15  CompactFlash card slot supports Type 1 CompactFlash cards  USB ports provide connections for keyboard, mouse, and printer  Field replaceable bezels  Same panel cutouts as the PanelView Standard and PanelView Enhanced terminals  Standard or CE logic module Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 16  serial RS-232 port for file transfers, printing, and logic controller communications.  two USB ports for attaching mouse, keyboard, or printer.  card slot for Type I CompactFlash cards.  battery-backed real-time clock. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 17  DH+/DH-485  ControlNet The communication module installs easily on top of the logic module on the back of the unit. Communication Module Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 18 1250 high-bright, touch display module is available for outdoor installations. Plus the 1250 and 1500 touch displays offer an integral antiglare overlay. All displays have common features and firmware providing for easy migration to a larger display. Field-replaceable bezels are also available. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 19 The touch screen may be operated with a finger, gloved finger, or plastic IMPORTANT stylus device with a minimum tip radius of 1.3 mm (0.051 in.) to prevent damage to the touch screen. Using any other object or tool may damage the touch screen. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 20 0…9, ., -, Backspace, Enter, Left and Right tab, Shift, Esc, Ctrl, Alt keys. Navigation Keys Use the arrow keys to move cursor in lists and select objects. Alt+arrow key activates home, end, page up, page down functions. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 21 1250 touch color display 2711P-RDT12AG 1250 touch color display with antiglare overlay 2711P-RDT12CK Conformal-coated 1250 touch color display 2711P-RDT12H 1250 high-bright touch color display 2711P-RDB12C 1250 keypad and touch color display 2711P-RDK15C 1500 keypad color display Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 22 CE logic module with 256 MB flash/256 MB RAM, DC input 2711P-RP7A CE logic module with 256 MB flash/256 MB RAM, AC input, marine certified 2711P-RP7D CE logic module with 256 MB, isolated DC input, marine certified Compatible with ViewPoint Software. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 23 Internal CompactFlash for Standard Logic Modules 2711P-RW1 64 MB CompactFlash with FactoryTalk View ME software 2711P-RW2 128 MB CompactFlash with FactoryTalk View ME software 2711P-RW3 256 MB CompactFlash with FactoryTalk View ME software Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 24 Replacement color backlight for 1000 series B display modules 2711P-RL12C Replacement color backlight for 1250 series A and B display modules 2711P-RL12C2 Replacement color backlight for 1250 series C display modules 2711P-RL15C Replacement color backlight for 1500 series B display modules Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 25 Adapts a PanelView Plus 600 keypad terminal to a PanelView Standard 600 keypad cutout 2711P-RAK7 Adapts a PanelView Plus 700 keypad terminal to a PanelView Standard 900 keypad cutout 2711P-RAT7 Adapts a PanelView Plus 700 touch terminal to a PanelView Standard 900 touch cutout Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 26 1747-AIC DH-485 isolated link coupler for use with DH-485 communication modules (2711P-RN3, 2711P-RN6) Remote AC Power Supply (700 to 1500 only) Cat. No. Description 1606-XLE120E DIN-rail power supply, AC-to-DC, 85…265V AC, 47…63 Hz Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 27 2711P-RUL25 Firmware upgrade license kit with 25 PanelView Plus firmware licenses. 2711P-RUL50 Firmware upgrade license kit with 50 PanelView Plus firmware licenses. Also includes certificate of authenticity, end user license agreement, installation instructions. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 28 Chapter 1 Overview Notes: Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 29 III, Division 2 wiring methods of Articles 501, 502 or 503, as appropriate, of the National Electrical Code and/or in accordance with Section 18-1J2 of the Canadian Electrical Code, and in accordance with the authority having jurisdiction. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 30 15 μH Selected nonincendive field wiring apparatus must have nonincendive circuit parameters conforming with Table 2. Table 2 - Required Circuit Parameters for the USB Peripheral Device    cable  cable Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 31 Maximum allowed inductance of the USB peripheral device and its associated cable. The sum of L of the USB peripheral device and L of the associated cable shall be less than cable L or equal to L . (L cable Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 32 Ultraviolet radiation from the sun causes all plastics to fade or yellow and become brittle over time. Using an antiglare overlay, cat. no. 2711P-RGT12, will protect the front of the terminal from direct exposure to UV radiation and greatly increase its field life. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 33 Mount the terminal vertically to minimize solar loading on the display. Do not mount the terminal in a sloped enclosure if it will be exposed to direct sunlight. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 34 1250 Keypad or Keypad and Touch 257 (10.11) 390 (15.35) 1250 Touch and 1250 High-bright Touch 257 (10.11) 338 (13.29) 1500 Keypad or Keypad and Touch 305 (12.00) 419 (16.50) 1500 Touch 305 (12.00) 391 (15.40) Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 35 If installing the terminal in an existing 550 panel cutout, align the terminal with the center of the cutout for best gasket sealing. 6. Insert all mounting levers into the mounting slots on the terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 36 4.19…4.75 mm (0.165…0.187 in.) Follow instructions to provide a proper seal and to prevent ATTENTION potential damage to the product. Rockwell Automation assumes no responsibility for water or chemical damage to the terminal or other equipment within the enclosure because of improper installation.
  • Page 37 3. Install the legend strips before installing the terminal if you are using keypad legend strips on keypad terminals. Be careful not to pinch the legend strip during installation. 4. Place the terminal in the panel cutout. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 38 Tighten the mounting clips to the specified torque to provide a ATTENTION proper seal and to prevent damage to the product. Allen-Bradley assumes no responsibility for water or chemical damage to the product or other equipment within the enclosure because of improper installation. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 39 Installation Chapter 2 Product dimensions for each terminal are in mm (in.). Product Dimensions PanelView Plus 400 Dimensions 400 Keypad or Keypad/Touch Terminal (6.0) 185 (7.28) (2.35) (3.54) 71 (2.81) 154 (6.08) Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 40 268 (10.47) 154 (6.08) 600 Touch Terminal 71 (2.81) 154 (6.08) 185 (7.28) The depth dimensions are shown for:  base-configured unit (display module and logic module).  base-configured unit with communication module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 41 55 (2.18) Display to Logic Module b 83 (3.27) Display to Communication Module (7.04) (9.68) The depth dimensions are shown for:  base-configured unit (display module and logic module).  base-configured unit with communication module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 42 55 (2.18) Display to Logic Module b 83 (3.27) Display to Communication Module (9.7) The depth dimensions are shown for:  base-configured unit (display module and logic module).  base-configured unit with communication module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 43 74 (2.90) Display to Logic Module b 101 (3.99) Display to Communication Module (14.30) 1250 High-bright The depth dimensions are shown for:  base-configured unit (display module and logic module).  base-configured unit with communication module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 44 65 (2.55) Display to Logic Module (12.97) b 93 (3.65) Display to Communication Module (18.46) 1500 Touch Screen Terminal a 65 (2.55) Display to Logic Module b 93 (3.65) Display to Communication Module (12.97) (16.37) Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 45 Electrical Code published by the National Fire Protection Association. For more information, refer to Wiring and Grounding Guidelines for PanelView Plus Devices, publication 2711P-TD001. You can locate this publication in the literature library at this website http://literature.rockwellautomation.com. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 46 Follows these steps to remove the terminal block in the PanelView 400 and 600 terminals. 1. Insert the tip of small, flat-blade, screwdriver into the terminal block access slot. 2. Gently pry the terminal block away from terminal to release the locking mechanism Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 47  Series A to D, DC logic modules use a 3-position terminal block.  Series E or later, DC logic modules use a 2-position terminal block.  All logic modules with an AC power input use a 3-position terminal block. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 48 Terminal Block Follow these steps to install the terminal block. 1. Reattach the terminal block to the connector until seated. 2. Tighten the two screws that secure the terminal block to the connector. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 49 Cu 90 °C (194 °F) 22…16 AWG 22…14 AWG series A to D or solid (2…3 lb•in) 700 to 1500 logic module 0.56 Nm (5 lb•in) series E and later Two-wire max. per terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 50 Multiple AC Power Supplies to Power Multiple DC Terminals AC/DC Power Supply AC/DC Power Supply (1606-XLE120E ) (1606-XLE120E ) Circuitry Circuitry PanelView Plus PanelView Plus Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 51 Symbol Wire Type Wire Gauge Terminal Screw Torque 14…12 AWG 400 and 600 0.45…0.56 Nm (4…5 lb•in) Stranded or solid Cu 90 °C (194 °F) 14…10 AWG 1.13…1.36 Nm (10…12 lb•in) 700 to1500 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 52 The PanelView Plus terminals have isolated and nonisolated communication ports. Refer to Communication Port Isolation on page for details. For more information, refer to Wiring and Grounding Guidelines for IMPORTANT PanelView Plus Devices, publication 2711P-TD001. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 53 DC - 2-position Terminal Block (Series E or later Logic Modules) Functional Earth to Ground Bus Earth/Ground to Ground Bus – DC - DC + 4. Apply 24V DC power to the terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 54 On 700 to 1500 devices, you must connect both protective earth and IMPORTANT functional earth to ground. The functional earth terminal requires a minimum wire gauge. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 55 The functional earth and protective earth connections to ground are ATTENTION mandatory. The functional earth is required for Electromagnetic Compliance (EMC) with the European Union (EU) EMC directive for CE-mark conformance. The protective earth/ground connection is required for safety and regulatory compliance. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 56 Use the reset switch to restart a terminal without having to disconnect and Reset the Terminals reapply power. After a reset, the terminal performs a series of startup tests and then either:  runs the .MER application loaded in the terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 57 Use a nonconductive object to press the reset or default switch. Do not use ATTENTION a conducting object such as a paper clip or you may damage the terminal. Do not use the tip of a pencil; graphite may damage the terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 58 Chapter 3 Power Connections Notes: Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 59 On PanelView Plus CE devices, you can enter Configuration mode from the Start menu or the desktop.  Select Start>Programs>Rockwell Software>FactoryTalk View>FactoryTalkView ME Station.  Select the FactoryTalk View ME Station icon on the desktop. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 60 Plus CE devices depends on whether you defined shortcut paths in the Windows Startup folder. On other PanelView Plus devices, the action on startup depends on configured startup options. Exit (F8) Exits Configuration mode. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 61 Accepts modified values and returns to previous screen. [F7] Cancels the current operation without saving any Cancel changes. [F8] Moves highlight up or down a list. Selects a highlighted screen or item from a list. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 62  On a keypad terminal, use the arrow keys on the keypad to select a key.  If a mouse is attached, click a key. 2. Press the Select button to copy the character to the display area. 3. Press Enter when done to exit the input panel. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 63 If you select Yes, any changes to the device addresses or driver properties in the RSLinx Communications screen will be lost. The name of the currently loaded application will appear at the top of the main configuration screen. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 64 Displays power, temperature, battery and memory details for the terminal. Also shows the firmware number for FactoryTalk View ME software and technical support information. Time/Date/Regional Settings Sets the date, time, language, and numeric format used by the terminal and applications. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 65 If you plan on using KEPServer Enterprise and serial communication, you must specify which COM port to use. To access the KEPServer Serial Port ID screen, select Terminal Settings>Networks and Communications>KEPServer Serial Port ID’s. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 66 4. Select the property you want to modify, then press the Edit button. 5. Modify the setting and then press the Enter button. You return to the previous screen with the newly entered data. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 67 Field Description Valid Values MacID Unique address of the terminal on the DeviceNet 0…63 network. Baud Rate The communication rate at which the DeviceNet 125 Kbps (default) driver communicates. 250 Kbps 500 Kbps Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 68 Use Auto Config Automatically or manually configures the baud rate, Yes (auto configure) parity, and error checking parameters. No (manual configure) Com Port Communication port used on the terminal. 1 (COM1) 2 (COM2) Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 69 4. Use the Input Panel to modify the address and then press the Enter button. You return to the previous screen with the new address. 5. Press OK. Modified settings do not take effect until the terminal is restarted. IMPORTANT Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 70 A through Z, 0…9, or - (hyphen) Device Description Provides a description of the terminal. 50 characters max Check with your network administrator to determine a valid device name. 4. Press OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 71 3. Press the DHCP button to enable or disable DHCP assignment of addresses. 4. Press the IP address, Subnet Mask, and Gateway buttons, then enter the appropriate information. 5. Press OK when done. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 72 000. The range of values for the last three sets of decimal numbers is 0…255. Subnet Mask Address must be identical to the server subnet mask. xxx.xxx.xxx.xxx Gateway Optional Gateway address. xxx.xxx.xxx.xxx Mac ID Read-only field. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 73 The address of the secondary DNS resolver. xxx.xxx.xxx.xxx Primary WINS The address of the primary WINS resolver. xxx.xxx.xxx.xxx Secondary WINS The address of the secondary WINS resolver. xxx.xxx.xxx.xxx 3. Press OK when done. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 74 Terminal Settings>Diagnostic Setup from the main screen. The screen shows a tree view of diagnostic nodes. To access the Remote Log Setup or Message Routing, select the node and then the Edit button. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 75 The list shows the On/Off status of each message type. Use the On/Off button to turn a message type on or off. A message type is enabled if it has a checked box. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 76 3. Select a file from the list. 4. Press the Delete button. 5. Select Yes or No when asked if you want to delete the selected application or font file from the storage location. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 77  External Storage 1 - the external CompactFlash card loaded in the card slot of the terminal.  External Storage 2 - for future use. 3. Select a file from the storage location. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 78 If the file exists, you will receive a warning and will be asked if you want to overwrite the existing application. 7. Select Yes or No. FactoryTalk View ME software looks for .MER files in the \Rockwell Software\RSViewME\Runtime folder and font files in the \Rockwell Software\RSViewME\Fonts\ folder. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 79 Adjust the Display Contrast You can view or modify the display contrast for PanelView 400 and 600 grayscale terminals. Displays are shipped with the contrast level set at 50%, which is the optimum setting. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 80 The terminal screen saver activates after an idle period using a specific intensity. You can adjust the idle timeout and intensity, disable the screen saver, and enable or disable the screen saver bitmap. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 81  Press OK to return to the previous. 5. Press OK to exit and return to the terminal settings. Enable or Disable the Screen Cursor The terminal has a screen cursor that you can enable or disable. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 82 Chapter 4 Configuration Mode 1. Select Terminal Settings>Display>Cursor. 2. Press the Enable Cursor button to enable or disable the cursor. 3. Press OK to exit and return to Terminal Settings. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 83 Close Edit Link Delete Link Close [F8] [F2] [F1] [F8] Edits the link by letting you add the linked file to a Deletes linked font font loaded on the terminal. file (if any). Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 84 3. Press the Repeat Delay button to select the amount of time that elapses per second before a key is repeated. Values are device dependent. Unsupported values are dimmed. 4. Press OK when done. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 85 You can set and test the sensitivity for both the speed and physical distance between mouse clicks. The process is identical to setting the double-tap sensitivity for the touch screen. To set the mouse sensitivity, select Terminal Settings>Input Devices>Mouse. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 86 Tap the screen to register saved data. Wait for 30 seconds to cancel saved data and keep the current settings. 3. Tap the screen to save the data or wait 30 seconds to cancel the saved data, retaining the current settings. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 87 You can enable or disable the cursor on terminals with a touch screen. Disabling the cursor will not disable the mouse. 1. Select Terminal Settings>Input Devices>Touch Screen>Cursor. 2. Press the Enable Cursor button to enable or disable the cursor. 3. Press OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 88 3. Double-tap the Test button to test the sensitivity of touch-screen presses. If you double-tap the test button with the time set using the Set button, the Test button will reverse its foreground and background colors. 4. Press OK when done. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 89 Advanced Settings Accesses additional settings. 3. Press the Advanced button to access additional settings. The advanced settings for printing displays are:  print orientation (portrait or landscape).  draft mode (enable or disable). Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 90  If the queue has 15 messages after 48 hours, the 15 messages are printed after the set timeout period. 4. Press OK when done. 5. Press OK to return to Terminal Settings. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 91 Disable FactoryTalk View ME Station Software on Startup 1. Select Terminal Settings>Startup Options>FactoryTalk View ME Station Startup. 2. Press the On Startup button until Do not start FactoryTalk View ME is selected. 3. Press OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 92 Any changes to device addresses or driver properties in RSLinx communication will be lost. 6. Press OK to return to the previous screen. 7. Press OK to return to Terminal Settings. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 93 The files are deleted from the system default location.  Select No to retain all log files. 5. Press OK twice to return to Terminal Settings. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 94 Example: "Storage Card\Rockwell Software\RSViewME\MERuntime.exe" If you copy the FactoryTalk View ME Station shortcut from the desktop to the Windows Startup folder (\Storage Card\Windows\Startup), FactoryTalk View ME Station software will automatically run on startup. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 95 If the application specified in the Run dialog or the Startup folder does not exist or is corrupted, the main FactoryTalk View ME Configuration Mode screen will open and display the following message: Unable to load application Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 96 Path to MERuntime.exe, followed by a space, followed by the path to the .MER, followed by /r/d/o Example: "Storage Card\Rockwell\Software\RSViewME\MERuntime.exe" "Storage Card\Rockwell\Software\RSViewME\Runtime\MYAPP.MER" /r/d/o Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 97  Use the up and down cursor buttons to highlight a test.  Press the On/Off button to select a test. A checked box means the test is selected to run. Press the button again to clear the check box. 3. Press OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 98 3. Press the Enable Extended Diagnostics button to enable or disable extended diagnostics on startup.  Select Yes to enable extended diagnostics.  Select No to disable extended diagnostics. 4. Press OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 99 2. Select an event and then press the More Details button to display system event log details for that event. 3. Press the Clear All button to clear all system event logs. 4. Press OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 100 Battery is missing or bad. Replace the battery. For the 400 and 600 terminals, the Battery Voltage indicates the battery IMPORTANT state only and the Processor Temperature shows the temperature of the display. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 101 These settings are not retained after a power cycle. The settings IMPORTANT return to the defaults. 4. Press OK to return to previous screen. 5. Press OK to return to terminal settings. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 102 Chapter 4 Configuration Mode You can display the firmware number of FactoryTalk View ME Station software Display FactoryTalk View ME and the Rockwell Automation technical support number. Station Information 1. Select Terminal Settings>System>Information>About FactoryTalk View ME Station. x.xx.xx.x 2. Press the Technical Support button, if desired.
  • Page 103 The current year in a four-digit format. 1980…2099 Month The current month. 1…12 The current day. The day of the month is validated 0…31 based on the month. 3. Press OK when done. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 104 Field Description Valid Values Hour The current hour in 24-hour format. 0…23 Minute The current minute in 24-hour format. 0…59 Seconds The current second in 24-hour format. 0…59 3. Press OK when done. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 105 Daylight savings changes are not permanently applied until you close the Time Zone screen. 4. Press the Use Daylight Savings Button to select Yes or No. 5. Click OK when done. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 106 The selected language will appear at the bottom of the Regional Settings screen. Change the Decimal Separator for Numeric Formats You can change the decimal separator used in numerics for the current language. The default decimal separator is a period. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 107 1. Select Terminal Settings>Time/Date/Regional Settings>Regional Settings>Numeric Format. The field shows the default decimal separator. The field will accept a separator up to three characters. 2. Enter up to three characters for the new separator. 3. Click OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 108 Characters to indicate PM. If the time format is set to PM (default) h:mm:ss tt or hh:mm:ss tt, you can modify the PM 12 character max symbol. Separator Characters that separate fields in time format. : (default) 3 character max 3. Click OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 109 - or / depending on short date format. 3 character max 2. Press the Format button to select an available format. 3. Press the Separator button to change the field separator for the date elements. 4. Click OK when done. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 110 MMMM, yyyy 01 January, 2003 dd is two-digit day of month with leading zero MMMM is name of month yyyy is four-digit year 3. Click OK when done. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 111 Windows operating systems require hundreds of megabytes of storage space. The PanelView Plus CE terminal has an x86-based processor to maximize the consistency between Windows 2000/XP and Windows CE .NET applications. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 112 User interface to the system much like a desktop computer Remote Desktop Connection Services for thin client applications included on the PanelView Plus CE Accessory CD (formerly Terminal Server Client) WordPad Text editor PDF Viewer Reader for Adobe Acrobat PDF files Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 113 The PanelView Plus CE terminal has a keypad, touch screen, or input panel for operator input. In addition, an external keyboard or mouse can be connected to one of the USB ports of the terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 114 Selects the next control in a dialog. Tab or Ctrl+Tab Opens the next tab in a tabbed dialog. Closes a dialog without saving changes. Arrow keys Selects controls or items from a list in a dialog. Activates menus. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 115 Desktop to open the Windows Explorer program. The Windows Explorer web browser lets you browse and manipulate the PanelView Plus CE files and folders. The Edit menu lets you move files from one location to another by using the Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 116 Some PanelView Plus CE software applications may support printing. To print from these applications, select the File>Print command. A PCL compatible printer must be connected to the USB or Ethernet port on the PanelView Plus CE terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 117 (saved even after a reset or power cycle). Only programs and files loaded in the \Storage Card folder are permanently WARNING saved to flash memory. All other folders or files existing in RAM are lost when power is cycled. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 118 1.0, are supported to enable a wide variety of USB-based storage devices such as hard drives, floppy disks, CD-ROM drives and ATA flash readers. Up to 10 devices are supported, concurrently. DVD drives are not supported. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 119 Provides information on the battery condition of the terminal and other power management features. Regional Settings Sets the clock, date and language, and configures formats for numbers, currency, time, date, and regional settings. Remove Programs Removes programs installed on your terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 120 When done, click OK. Identification and Notes The Identification tab defines optional user information for your PanelView Plus CE terminal. Use the Notes tab if it is necessary to document additional information. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 121 Plus CE terminal and a computer, see Chapter Serial Connect is the default, pre-configured ActiveSync connection. Configure Ethernet Connection Follow these steps to configure an Ethernet network connection. 1. Select the Network and Dial-up Connections application. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 122 The PC Connection dialog lets you select and enable a configured connection between your PanelView Plus CE terminal and another computer. The current connection is listed at the bottom of the tab. To change the connection to Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 123 Change. A dialog will open letting you select another configured computer. Click OK when done to activate change. Adjusting the PC connection named Serial_Connect may result in an WARNING inability to connect with your desktop computer via ActiveSync software. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 124 You may have to do this if the terminal is not responding to your taps. Click Recalibrate. Touch the center of the target as it moves around the screen. When the target returns to its initial position, the calibration is complete. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 125 Long and Short. Tap the field at the bottom of the dialog and then hold down a key to test the new settings. When done performing operations, remember to click OK in the title bar to activate settings. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 126 Multi-Key/Hold-Off Lockout The Multi-Key/Hold-Off tab restricts multiple or simultaneous key presses on the PanelView Plus CE terminal and specifies a hold-off delay between presses of the same key. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 127 The Input Panel dialog sets properties for the soft Keyboard input panel. Use the Options button to select Large or Small keys, and other soft key options. Click OK after making any changes. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 128 The Background tab lets you select an image to use for the PanelView Plus CE desktop and whether the image should be tiled. Appearance The Appearance tab let you change the color scheme of your desktop. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 129 \Storage Card folder and then use the Browse button to select the image. You can disable the screen saver bitmap by selecting (None) from the Image pull-down list. Cursor Use the Cursor tab to enable or disable the visible screen cursor. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 130 The tests will run each time you reset or cycle power to the terminal until you disable Extended Diagnostics. Setting a low iteration count will also decrease the start up time. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 131 To enable a test, check the checkbox; to disable a test, uncheck the checkbox. Click Clear All if you want to clear all checkboxes. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 132 The Battery tab on the Power dialog shows the status of the internal battery in the terminal. Replace the battery in the terminal, when the Battery State is Low or Very Low. For the PanelView Plus CE terminal, you can ignore the other tabs. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 133 Move the slider to the left to increase the allocation for program memory. The memory allocations are automatically adjusted as you move the slider. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 134 The device description is optional but useful if you want to further describe a specific terminal. PanelView Plus CE Rockwell Automation 2711P CE Copyrights The Copyright tab provides copyright information for your PanelView Plus CE terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 135 When done performing operations, remember to click OK in the title bar to activate settings. Language The Language tab selects a language that is installed on the PanelView Plus CE terminal. Languages are installed as a part of the operating system. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 136 The Number tab configures how negative and positive numbers will appear for the selected language. The appearance of the current formats is shown for both positive and negative numbers. These samples are updated as you make changes. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 137 The Certificates dialog manages digital certificates used by some applications for establishing trust and secure communications. Certificates are signed and issued by certificate authorities and are valid for a prescribed period of time. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 138 Do not try to alter the internal CompactFlash storage device that is WARNING displayed under Storage Info as DSK1: IDE Hard Disk Drive. You may not be able to reboot the terminal if modifying the internal CompactFlash partitions. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 139 Be careful when touching any of the exposed electronic components to ATTENTION prevent damage from electrostatic discharge (ESD). Work in a static free environment and wear a properly grounded ESD wristband. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 140 Series A logic modules are compatible with series B Compact Flash cards. When upgrading from FactoryTalk View ME software, version 3.0 to 3.10 or later, the Firmware Upgrade Kit is required. Series F and later logic modules work with PanelView Plus and PanelView Plus CE CompactFlash cards. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 141 5. Locate the RAM module on the circuit board, pull the metal retaining clips away from the module, and slide out the module. CompactFlash Card Retaining Screw RAM Module Retaining Clips 6. Insert the new RAM module at a 45° angle and snap down. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 142 3. Position the logic module over the back of the display module until the two connectors on the bottom of the logic module align with the connectors on the display module. Captive Screw 4. Push down on the logic module until firmly seated. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 143 Chapter 6 5. Tighten the six captive screws that secure the logic module to the display module to a torque of 0.58 Nm 5…7 lb•in). Logic Module Captive screws on top and bottom. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 144  remove the RAM and internal CompactFlash from the logic module.  insert the RAM and internal CompactFlash in the new logic module. 8. Install the new logic module. 9. Attach the communication module, if necessary. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 145 To prevent ESD between the modules, allow the communication module to touch the logic module before making connection. Communication Module Connector Logic Module Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 146 PanelView Plus 400 and 600 Terminals Follow these steps to install a communication module. 1. Disconnect power from the terminal. 2. Set the terminal, display side down, on a clean, flat, stable surface. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 147 4. Position the communication module over back of the terminal so that the connector on bottom of communication module align with the connector on the base unit. Tighten this screw first. Captive Screws Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 148 2. Disconnect the communication cables from the module. 3. Loosen the three screws that secure the communication module to the terminal. 4. Carefully lift the communication module away from the terminal and set aside. 5. Install the new communication module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 149 4. Loosen the six captive screws that attach the logic module to the display module. Logic Module Captive screws on top and bottom 5. Carefully lift the logic module from the terminal. 6. Set the display module aside. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 150 9. Tighten the six captive screws that secure the logic module to the display module to a torque of 0.58 Nm 5…7 lb•in). 10. Attach the communication module (if necessary) and tighten the four screws to a torque of 0.58 Nm (5…7 lb•in). Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 151 Guidelines for Handling Lithium Batteries, publication AG-5.4. Replace the battery only with the indicated catalog number. Do not dispose of battery in a fire or incinerator. Dispose of used batteries in accordance with local regulations. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 152 Remove battery by lifting up the edge indicated by arrow. 7. Remove the battery by lifting up the side of the battery. 8. Insert the new battery. Use only replacement battery 2711P-RY2032. IMPORTANT Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 153 Wear a properly grounded ESD wristband before touching ATTENTION any of the electronic components in the logic module. 3. On touch-screen only terminals, remove the two screws that secure the small metal plate to the back of the display module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 154 4. Disconnect the touch screen connector. Plate Touch Screen Connector 5. Remove the screws from the back of the display module. The number of screws varies for each terminal type. Display Module Bezel 6. Remove the sealing gasket. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 155 4. Attach the touch screen connector. 5. Replace the sealing gasket. 6. Attach the screws that secure the display module to the bezel and tighten to a torque of 1.35…1.58 Nm (12…14 lb•in). Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 156 3. Remove the four screws that secure the display bracket for the 700 series C display. 4. Remove the four screws that secure the LCD display for all other displays. 5. Lift the LCD display and detach the display connector from the circuit board. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 157 6. Detach the backlight connectors from the circuit board. The 1250 has one or two backlight connectors depending on the series of the display. The 1500 has four backlight connectors. Backlight Connector 1250 1500 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 158 – The two backlights for the 1250 series A and B displays are each secured with two screws. The single backlight for the 1250 series C displays is secured with one screw. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 159 Attach the display bracket then secure the display in the bracket for the 700 series C display. b. Attach the four screws for all othe displays. Tighten the screws and torque to 0.58 Nm (5…7 lb•in). 12. Replace the display module bezel. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 160 Follow these steps to replace the F1 through F10 function key legends. 1. From the rear of the unit, pull the legend strips out from the slots on the lower side of the terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 161 3. Pull the legend inserts out from the slots on the bezel. 4. Slide the new legend strips into the same slots until only the end tab is visible. 5. Replace the display module bezel. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 162 The location of the button varies depending on the series of the logic module. The PanelView Plus 400 and 600 terminals do not have an eject button. Secure edge of card with fingers and pull card away from slot. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 163 (EMI). Grounding minimizes noise from EMI and is a safety measure in electrical installations. For more information on grounding recommendations, refer to the National Electrical Code published by the National Fire Protection. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 164 For CE compliance, use the 1761-NET-AIC or 1747-AIC module for cable lengths longer than 30 m (98 ft). EtherNet/IP direct connection from the terminal to an SLC 5/05 controller requires an Ethernet switch or the 2711P-CBL-EX04 crossover cable. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 165 For a direct connection between the terminal and the controller use the 2711P-CBL-EX04 crossover cable. The AIC+ module is recommended for isolation purposes when the terminal and controller are not on same power supply. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 166 For CE compliance, use the 1761-NET-AIC or 1747-AIC module for cable lengths longer than 30 m (98 ft). Use serial port on the PanelView Plus terminal with an AIC+ module for a DH-485 network solution. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 167 ControlNet 2711P-RN15C Isolated NAP port is nonisolated. 700 to 1500 Modular Communication Port Isolation Communication Port Module Isolation DH-485 2711P-RN6 Isolated 2711P-RN6 Isolated Remote I/O 2711P-RN6 Isolated DeviceNet 2711P-RN10H Isolated ControlNet 2711P-RN15S Isolated Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 168 If a USB hub is connected to the terminal, an externally powered USB hub is recommended. Before attaching devices to a USB hub, check that the power adapter is connected and powered on. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 169 An electrical arc could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 170 25-pin 9-pin Modem 9-pin Modem FG (Frame Ground) TD (Transmit Data) RD (Receive Data) RTS (Request to Send) CTS (Clear to Send) SG (Signal Ground) DSR (Data Set Ready) DTR (Data Terminal Ready) Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 171 1 NC RXD (Data Receive) TXD (Data Transmit) 4 NC 6 (pulled high to +12V) 9 NC Upload/Download Cable without Hardware Handshaking PanelView Plus Printer Computer Port Port (DCE) (DTE) 9-pin male 9-pin 25-pin Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 172 Use point-to-point, 10/100 Base-T cables with cross over pin-outs, such as 2711P-CBL-EX04, when connecting the Ethernet port on the terminal directly to a logic controller’s Ethernet port or a computer 10/100 Base-T port. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 173 SNMP (Simple Network Management Protocol) is used for internal network management and is not supported. Ports 137 and 138 are normally open to support the NetBIOS protocol used by Windows CE.NET similar to other Microsoft and IBM network operating systems. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 174 When using the DH-485 module, catalog number 2711P-RN3, with IMPORTANT PanelView Plus 400 and 600 terminals, the cable length must not exceed 30 m (98 ft) to comply with CE requirements. For longer cable lengths, use the 1761-NET-AIC or 1747-AIC module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 175 At least one but not all adapters in the scanlist are not responding. Solid green All adapters in the scanlist are responding. Blinking red None of the adapters in the scanlist are responding. Solid red Failed selftest. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 176 To this Terminal Shield/Drain Non-jacketed Terminal 2 - Shield Blue Blue Terminal 3 - (Common) White/Orange White with Orange Stripe Terminal 4 - (Data B) Orange with White Stripe Terminal 5 - (Data A) Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 177 This section shows connections between a 400 and 600 terminal with a DH-485 communication module and an SLC or ControlLogix controller through the AIC+ module. PanelView Plus 400 or 600 AIC + with DH-485 Module 1784-CP14 Cable 1761-CBL-PM002 Cable RS-232 To ControlLogix or SLC Controller Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 178 DH+ Port on Communication Module Terminating Resistor  82  terminating resistor for Belden 230.4 Kbps Clear 1 Shield SH 2  150  terminating resistor for To Controller Blue 3 57.6 Kbps and 115.2 Kbps Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 179 Remote I/0 Port on Communication Module Terminating Resistor  82  terminating resistor for 230.4 Kbps  150  terminating resistor for 57.6 Kbps and Belden 115.2 Kbps Clear 1 Shield SH 2 To Controller Blue 3 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 180  PLC-5/20C, PLC-5/40C, PLC-5/60C, PLC-5/80C Minimum Requirements The software and firmware must be installed on the development computer and the PanelView Plus terminal to configure and communicate with an Allen-Bradley controller on a ControlNet network. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 181 RX_L Cable Connectors RX_H Channel A No Connection Signal Common LED B Shell Earth/Ground Network Access Port (NAP) LED A RJ-45 connector for temporarily connecting programming terminals to devices on a ControlNet network Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 182 Coax tool kit 1786-CTK Segment terminators 1786-XT BNC connectors 1786-BNC, -BNCJ, -BNCP, -BNCJ1 Do not connect to a network using both the redundant cable BNC connector IMPORTANT and the Network Access Port (NAP). Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 183 It also provides a control architecture that supports multiple processors. The DeviceNet network is a trunk/drop or bus-based network that supports up to 64 nodes and operates at 125, 250, or 500 Kbps. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 184 Version 4.0 or later Version 4.0 or later DeviceNet Module 2711P-RN10H 2711P-RN10C DeviceNet Connections 2711P-RN10C DeviceNet Module for 400 and 600 Terminals I/O Status Indicator MOD Status Indicator NET Status Indicator White Shield Blue Black Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 185 Inputs active One or more inputs are active and producing data, and no inputs are faulted. Outputs idle One or more outputs are idle, and no outputs Flashing green are active or faulted. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 186 One or more inputs has an unrecoverable fault. The flash rate of the LED is approximately 1 flash per second. The LED should be on for approximately 0.5 seconds and off for approximately 0.5 seconds. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 187 Device is in self test. Refer to the DeviceNet Specification, Volume II, Identity Object. The flash rate of the LED is approximately 1 flash per second. The LED should be on for approximately 0.5 seconds and off for approximately 0.5 seconds. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 188 This can result in timeout errors and possible loss of data. If timeouts occur, consider changing the connection type for some of the Change-of-State connections to Cyclic or Polled. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 189  ActiveSync software, version 3.7 or later, installed on computer. You can download ActiveSync from the http://www.microsoft.com web site.  2711-NC13 or 2706-NC13 serial cable for connecting the PanelView Plus CE terminal to the computer with ActiveSync installed. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 190 5. Press the Next button and then the Finish button. Terminate Connection on PanelView Plus CE Terminals 1. Click the ActiveSync connection utility on the taskbar. The Connection Status dialog box should appear. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 191  upgrade firmware in a terminal that is connected to your desktop computer using a Serial, Ethernet, or Network connection via RSLinx Enterprise software (for supported protocols). The FUW is available in FactoryTalk View Studio software or with the Firmware Upgrade Kit. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 192 CompactFlash files (folder on the hard drive or physical location of the CompactFlash card, for example, E:\).  From the Existing terminal list, select the type of terminal you are upgrading, then press Next. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 193 5. Select the appropriate KEPServer drivers and press Next. If no KEPServer drivers are needed, just press Next. If the selected FUP file does not support the KEPServer drivers, this dialog box will not appear. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 194 Do not remove the CompactFlash card while the upgrade is in process. IMPORTANT If other terminals exist on the same Ethernet network, the following error may display: Error registering name on network (may be duplicate). Change in system Control Panel and try again. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 195  Ethernet connection requires that you enter the terminal’s IP Address.  Network connection requires RSLinx Enterprise software where you select the terminal on an existing network. Both the Serial and Ethernet connection requires the File Transfer Utility running on the terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 196 Upgrade Firmware This section shows how to upgrade firmware in a terminal using a Network connection via Ethernet communications. 1. Start the Firmware Upgrade Wizard by selecting Start>Rockwell Software>FactoryTalk View Enterprise>Firmware Upgrade Wizard. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 197 4. Locate the terminal on your Ethernet network via its IP address. Skip to step 6 if you found the terminal. If you do not see the terminal, right-click the Ethernet driver and add the device to the browse tree. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 198 5. Double-click EthernetIP Devices and select the appropriate terminal and click OK. 6. Enter the IP address for the terminal and click OK. 7. Select the terminal to be upgraded and click OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 199 10. Select the appropriate KEPServer drivers and click Next. If no KEPServer drivers are needed, just click Next. If the selected FUP file does not support the KEPServer drivers, this dialog box will not appear. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 200 Ignore this error. It will be corrected during the upgrade. Press OK to acknowledge error and wait for terminal to reset. If a USB mouse is available, you can acknowledge the error by selecting OK. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 201 15. Replace the .MER files that you backed up before starting the upgrade or download the new .MER files to the terminal. 16. Load the .MER file and run the project. You can configure your application to start automatically on power cycle under Startup Options. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 202 LocalOSUpdate <Pathname and Filename> Example: LocalOSUpdate “\Storage card2\NewOS.BIN” The terminal automatically reboots with the new operating system. 4. Verify the new operating system is loaded using the system application in the control panel. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 203 For a serial ActiveSync connection at 19.2 Kbps, the download time can be 30 minutes. When the download is complete, you will see the number of files copied or deleted. 5. Restart the PanelView Plus CE terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 204 5. When satisfied with the selections, click Install/Remove. When the operation is complete, you will see a message box reporting the number of files installed (or removed). 6. Restart the PanelView Plus CE terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 205  Restart in safe mode The terminals have two status indicators to isolate operating problems. Status Indicators  COMM indicator (green) for communication  FAULT indicator (red) for hardware faults  COMM and FAULT Indicators Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 206 For the 700 to 1500 terminals, replace the display module. For the 400 or 600 terminals, replace the terminal. Blinking red indicates a recoverable error. Solid red indicates a nonrecoverable or fatal error. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 207 Check the system event log for errors or unexpected reboots.  Enter Configuration mode and select Terminal Settings>System Event Log.  For PanelView Plus CE terminals, you can also open the Hardware Monitor control application and select the Event Log tab. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 208 Restart the terminal. The serial port test requires a loopback connector with these connections. DB9 Connector (female) Extended diagnostics are performed at every startup until disabled. A failure will momentarily halt startup and display an error message. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 209 Disables internal file system integrity check. Contact technical support. The status number and message displays only on the 700 to 1500 terminals. The status number and message displays only on the 400 and 600 terminals. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 210 Display 27 Decompress System (400 and 600 only) Jump to OS Display 28 Starting System Perform final system check (700 to 1500 only) Display 29 System Checkor Display 29.1 System Check (if skipping check) Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 211 The error number and message displays only on the 400 and 600 terminals. The error number and message displays only on the 700 to 1500 terminals. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 212 700 to 1500 display module or the 400 to 600 terminal. The display may not have a touch screen. Check the catalog number of the unit. Verify that your terminal has a touch screen by looking at the label on the terminal. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 213  Press Ctrl+Esc simultaneously to open the Start menu, cursor to run, type numbers and viewable characters into the Run dialog. If you are unable to resolve the problem, replace the 700 to 1500 display module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 214 Refer to Appendix B for a list of valid USB devices that are compatible with the terminal. You can also check the Knowledgebase at http://support.rockwellautomation.com for a list of compatible USB devices. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 215  Check the multi-homed devices (CE terminals only). Multi-homed (more than one Ethernet node) devices have the same issues as those above but with more potential for confusion and ambiguity. Keep the Network connections as simple as possible. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 216 The file system on PanelView Plus CE terminals is checked at startup and errors File System Errors are reported in a message box. Record the error information and always elect to correct the problem. Typically, the message box will reappear until the error is corrected. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 217 Terminal Settings>System Event Log in Configuration mode. Look for error conditions or reasons for unexpected reboots.  Check the configuration settings in the PanelView Plus CE control panel applications or terminal Configuration mode. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 218  This dialog appears if the internal CompactFlash in the PanelView Plus logic module is corrupt. This is a fatal error. After clicking OK, you will be asked to power off the terminal and insert a valid 2711P-RW internal CompactFlash card. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 219 \Startup folder.  Depending on the state of the system, the touch screen may be calibrated at startup.  All custom key configurations (mappings) generated by the Keypad Configuration Utility (KCU) are ignored. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 220 FactoryTalk View ME software. Safe mode indicates that the terminal passes all startup self tests and can successfully launch the operating system. Safe mode is not a diagnostic function for the FactoryTalk View ME application. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 221 400 and 600 terminals. Backlight Assembly Disposal The backlight assembly of 600 to 1500 terminals contains mercury. At the ATTENTION end of its life, this equipment should be collected separately from any unsorted municipal waste. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 222 5. Locate the yellow battery on the logic board. 6. Remove the battery. Retaining tabs Battery For information on battery replacement or removal for 700 to 1500 terminals, Replace the Battery page 151. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 223 400 and 600 85 BTU/hr 700 to 1500 240 BTU/hr Relative humidity 5…95% without condensation Altitude, operating 2000 m (6561 ft) Shock, operating 15 g at 11 ms Shock, nonoperating 30 g at 11 ms Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 224 800 x 600 1500 1024 x 768 Luminance (typical) 400 grayscale 120 cd/m Nits 400 color 200 cd/m Nits 300 cd/m Nits 700 to 1500 300 cd/m Nits 1250 high-bright 1000 cd/m Nits Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 225 330 x 469 x 65 mm (12.97 x 18.46 x 2.55 in.) 1500 touch 330 x 416 x 65 mm (12.97 x 16.37 x 2.55 in.) Add approximately 95 g (0.21 lb) for communication module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 226 See the Product Certification link on http://ab.com for declarations of conformity, certificates, and other certification details. Applies only to the 1250 high-bright display module. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 227 USB Keyboard/Mouse Rockwell Automation Cat. No. 6189-KBDEPC1U USB Mouse Logitec Optical Mouse - M-BJ58 Microsoft Intellimouse D58-00026 Atek USB Mouse VersaView (Rockwell Automation) USB Mouse USB Hub Belkin USB 4-Port Hub - ESU021 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 228 Chapter B Compatible USB Devices Notes: Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 229 The following True Type fonts are included on the PanelView Plus CE PanelView Plus CE Accessories CD: Accessories CD  Times New Roman.ttf  Symbol.ttf  Wingdings.ttf This CD is not supplied with PanelView Plus terminals. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 230 Available Fonts for Terminal Applications Additional fonts are available on the Machine Edition Fonts CD. This CD is Machine Edition Fonts CD available from your local distributor by requesting View-SP006. For additional information, refer to the Rockwell Automation Knowledgebase at http://support.rockwellautomation.com. Available Fonts Fonts...
  • Page 231 MS Gothic & P Gothic & UI Gothic (Subset 1_80) msgothic_1_80.ttc 5,438,776 MS Gothic & P Gothic & UI Gothic (Subset 1_90) msgothic_1_90.ttc 6,408,352 MS Gothic & P Gothic (Subset 30) msgothic30.ttc 4,197,524 MS Gothic & P Gothic (Subset 30_1_19) msgothic30_1_19.ttc 3,304,056 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 232 Gulim & GulimChe (Choose 1) Gulim & GulimChe (Subset 1_30) gulim_1_30.ttc 3,010,268 Gulim & GulimChe (Subset 1_40) gulim_1_40.ttc 4,683,896 Gulim & GulimChe (Subset 1_50) gulim_1_50.ttc 7,128,756 Gulim & GulimChe (Subset 1_60) gulim_1_60.ttc 9,360,100 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 233 RS + VK_F5 LS + VK_F6 RS + VK_F6 LS + VK_F7 RS + VK_F7 LS + VK_F8 RS + VK_F8 LS + VK_F9 RS + VK_F9 LS + VK_F10 RS + VK_F10 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 234 The following table provides the Windows virtual-key code mapping for the Alt, Control, and Shift keys on the PanelView Plus CE terminal. Alt, Control, and Shift Key Mapping Keyboard Equivalent Virtual Key Mapping Control VK_LCONTROL Shift VK_LSHIFT VK_LMENU Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 235 (IGMP version 2) as described in RFC 1112 and RFC 2236. Security requires a comprehensive application of policies and technology, and an awareness of security needs and potential vulnerabilities. You may also want to consult with Rockwell GMS Network Services for additional assistance. Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 236 Chapter E Security Considerations Notes: Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 237 DHPlus accessing 59 cables 164 loading application 63 network connections 178 running application 64 port connectors 174 terminal settings 64 status indicators 175 diagnostics in control panel 130 in RSView 74 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 238 400/600 USB port 30 features 16 high-bright display 18 installing and replacing 142 IGMP Protocol 173 maintenance input devices battery 151 input panel 127 keyboard 125 keypad 126 mouse 85 touch screen 124 input panel 62 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 239 99 information 133 print setup for alarms 89 for diagnostic messages 89 for displays 89 product components 21 terminal information 100 protective-earth connection 56 RAM 24 installing and replacing 141 registry settings 117 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 240 116 command bar 115 compiling applications 111 finding files 116 operating system 111 pre-loaded programs 112 printing 116 start menu and taskbar 115 using 113 wiring and safety guidelines 45 Rockwell Automation Publication 2711P-UM001K-EN-P - February 2020...
  • Page 242 Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page. Allen-Bradley, FactoryTalk View, FactoryTalk View ME, FactoryTalk ViewPoint, FactoryTalk View Studio, PanelView Plus, Rockwell Automation, Rockwell Software, RSLinx Enterprise, and TechConnect are trademarks of Rockwell Automation, Inc.
