Converter Module
Mitsubishi
General-Purpose PROGRAMMABLE LOGIC CONTROLLER
Thank you for purchasing the Mitsubishi general-purpose
programmable logic controller MELSEC-Q Series
Prior to use, please read this manual thoroughly and
familiarize yourself with the product.
Mitsubishi Programmable
Logic Controller
2005 MITSUBISHI ELECTRIC CORPORATION
Digital-Analog
MODEL
MODEL
CODE
IB(NA)-0800321-A(0508)MEE
User's Manual
(Hardware)
Q62DAN
Q64DAN
Q68DAVN
Q68DAIN
Q-D/A-N-U-H/W
13JP80
Advertisement
Table of Contents
Related Manuals for Mitsubishi Electric Q64DAN
Summary of Contents for Mitsubishi Electric Q64DAN
- Page 1 Thank you for purchasing the Mitsubishi general-purpose programmable logic controller MELSEC-Q Series Prior to use, please read this manual thoroughly and familiarize yourself with the product. MODEL Q-D/A-N-U-H/W MODEL 13JP80 CODE Mitsubishi Programmable Logic Controller IB(NA)-0800321-A(0508)MEE 2005 MITSUBISHI ELECTRIC CORPORATION...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS (Read these precautions before using.) When using Mitsubishi equipment, thoroughly read this manual and the associated manuals introduced in the manual. Also pay careful attention to safety and handle the module properly. These precautions apply only to Mitsubishi equipment. Refer to the user’s manual of the CPU module to use for a description of the PLC system safety precautions. - Page 3 [INSTALLATION PRECAUTIONS] CAUTION Use the PLC in an environment that meets the general specifications given in the User's Manual of the CPU module being used. Using this PLC in an environment outside the range of the general specifications may cause electric shock, fire, malfunction, and damage to or deterioration of the product.
-
Page 4: Revisions
This manual confers no industrial property rights or any rights of any other kind, nor dose it confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any problems involving industrial property rights which may occur as a result of using the contents noted in this manual. -
Page 5: Table Of Contents
Referring to this list, please request the necessary manuals. Detailed Manual Manual Number Manual Name (Model Code) Digital-Analog Converter Module User's Manual Q62DAN/Q64DAN/Q68DAVN/Q68DAIN/Q62DA/ SH-080054 Q64DA/Q68DAV/Q68DAI/GX Configurator-DA (13JR02) (SW2D5C-QDAU-E) Conformance to the EMC Directive/Low Voltage Directive When incorporating the Mitsubishi PLC into other machinery or equipment and keeping compliance with the EMC and low voltage directives, refer to Chapter 3, "EMC Directives and Low Voltage Directives"... -
Page 6: Overview
• the Q68DAVN type D/A converter module (hereafter Q68DAVN) • the Q68DAIN type D/A converter module (hereafter Q68DAIN) In this manual, the Q62DAN, Q64DAN, Q68DAVN and Q68DAIN are referred to as D/A converter modules. After unpacking, confirm that the following products are enclosed. -
Page 7: Specifications
The specifications for the D/A converter module are shown in the following table. For general specifications, refer to the operation manual for the CPU module being used. Model name Q62DAN Q64DAN Q68DAVN Q68DAIN Item Number of analog output 2 points... - Page 8 Model name Q62DAN Q64DAN Q68DAVN Q68DAIN Item Between the I/O terminal and PLC power supply : Photocoupler isolation Insulation method Between output channels : No isolation Between external supply power and analog output : Transformer isolation Dielectric withstand Between the I/O terminal and PLC power supply :...
-

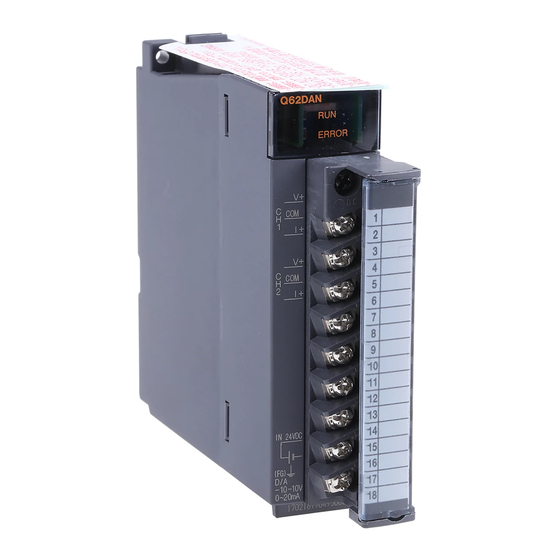

Page 9: Part Names
3. Part Names This section explains the names of the components for the D/A conversion module. Signal name Terminal number Q62DAN Q64DAN Q6 DAN ERROR Vacant Vacant Vacant Vacant Vacant Vacant Vacant Vacant Vacant Vacant IN 24VDC Vacant (FG) Vacant... - Page 10 Number Name Description RUN LED Displays the operating status of the D/A converter module. : Normal operation Flashing : During offset/gain setting mode : 5V power supply interrupted or watch dog timer error ERROR LED Displays the error status of the D/A converter module.
-
Page 11: Handling Precautions
4. Handling Precautions (1) Do not drop the module or cause it to receive strong impact. (2) Tighten the terminal screws for the module to the specified torque shown below. Insufficient tightening torque could result in shorts, failures or malfunction. Screw location Tightening torque Module mounting screw (M3 screw) -
Page 12: External Wiring
5.2 External wiring (1) For Q62DAN and Q64DAN (a) For voltage output Motor drive module, etc. 1 k Ω conversion 1 M Ω +15 V +24 V 24 V DC DC/DC Filter converter --15V (b) For current output Motor drive module, etc. - Page 13 (2) For Q68DAVN Motor drive module, etc. 1 k Ω conversion 1 M Ω +15 V +24 V 24 V DC DC/DC Filter converter --15 V (3) For Q68DAIN Motor drive module, etc. 0 Ω conversion 600 Ω +15V +24V 24 V DC DC/DC Filter...
-
Page 14: Switch Setting For Intelligent Functional Module
0 to 5 V (CH5 to CH8) Switch 2 – 10 to 10 V User range setting CH8CH7CH6CH5 HOLD/CLEAR function setting For Q62DAN and Q64DAN : CLEAR 1 to F (numeric value other than 0 CH4CH3CH2CH1 : HOLD Switch 3... - Page 15 1 to 5 V. • Q68DAIN....0 (2) For Q62DAN and Q64DAN, leave the switch2 vacant. (3) For Q68DAVN and Q68DAIN, the switch 3 will set in binary. Setting will be easy if the input format is changed to binary number.
-
Page 16: External Dimensions
6. External Dimensions (1) Q62DAN Q62DAN ERROR 90 (3.54) 112 (4.41) 27.4 (1.08) Unit: mm (in.) (2) Q64DAN Q64DAN ERROR 90 (3.54) 112 (4.41) 27.4 (1.08) Unit: mm (in.) - Page 17 (3) Q68DAVN Q68DAVN ERROR M3 screw (accessory) M3 screw (accessory) 63 (2.48) FG terminal L-Shaped metal fitting (accessory) 71.5 (2.81) 90 (3.54) 27.4 (1.08) 112 (4.41) Unit: mm (in.) (4) Q68DAIN Q68DAIN ERROR CO M CO M CO M CO M CO M CO M CO M...
