Wells F676 Operation Manual

Standard fryers
Hide thumbs Also See for F676:

Advertisement

Quick Links

Download this manual
Model F556
Model F856
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
307590
p/n 2M-
Rev. B
WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
fax: 314-781-2714
www.wellsbloomfield.com

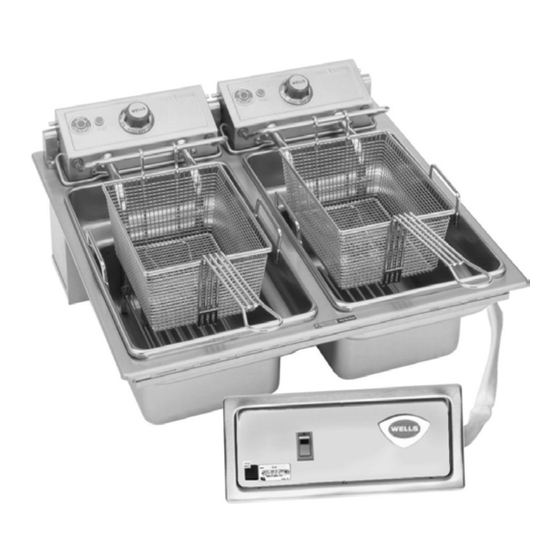

OPERATION MANUAL
STANDARD
FRYERS
BUILT-IN
MODELS
F556
F676
F856
Includes
INSTALLATION
USE & CARE
M311
303
11
0926

Advertisement

loading
Need help?

Need help?

Do you have a question about the F676 and is the answer not in the manual?

Questions and answers

Related Manuals for Wells F676

Summary of Contents for Wells F676

  • Page 1 Additional manuals are available from your WELLS DEALER. THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation or maintenance of this equipment.
  • Page 2 Seller’s obligation under this warranty is limited to the warranted against defects in materials and workmanship repair of defects without charge by a Wells Bloomfield for a period of one year from the date of original installation factory authorized service agency or one of its sub-service or 18 months from the date of shipment from our factory, agencies.
  • Page 3 PARTS & SERVICE CUSTOMER SERVICE DATA INTRODUCTION Thank You for purchasing this Wells Bloomfield appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life.
  • Page 4 FEATURES & OPERATING CONTROLS BASKET HEATING ELEMENTS (ELEMENT HEAD SHOWN RAISED) BASKET SUPPORT ROD ELEMENT HEAD FRYPOT SUPPORT ROD HANDLES FRYPOT CONTROL PANEL (F856 ONLY) POWER SWITCH (F-856 ONLY) IL1938, Rev. A, M303 Fig. 1 Built-In Fryer Features & Operating Controls F-856 Shown - Others are Similar Except as Noted...
  • Page 5 PRECAUTIONS AND GENERAL INFORMATION DANGER: BURN HAZARD Contact with hot oil will cause severe burns. Always wear protective clothing and heat resistant gloves when operating the fryer or filtering the oil. WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel.
  • Page 6 AGENCY LISTING INFORMATION This appliance conforms to NSF Standard 4 for sanitation only if installed in accordance with the supplied Installation Instructions. STD 4 This appliance is Underwriters Laboratory recognized ( ). Since this appliance is only a single component of a complete installation, the finished installation of this unit requires additional evaluations to Underwriters Laboratory standards.
  • Page 7 30 amps. F676 and F856 fryers are shipped from the factory wired for three CAUTION: phase. Conversion to single phase must be performed in the field by ELECTRIC the electrician.
  • Page 8 2. Fill the FRYPOT with commercial-grade liquid shortening to the MIN OIL line. Capacity: 15 pounds (F556), or 30 pounds (F676 and F856). IMPORTANT: DO NOT overfill the frypot. Cold oil will expand as it heats. Adding too much oil will allow the frypot to overflow during operation.
  • Page 9 CLEANING INSTRUCTIONS DANGER: BURN HAZARD Contact with hot oil will cause severe burns. Allow the fryer to cool before cleaning. Always wear protective clothing and heat resistant gloves when cleaning the fryer. PREPARATION Turn temperature control to OFF CAUTION: Allow fryer to cool completely before cleaning ELECTRIC Disconnect fryer from electric power before SHOCK HAZARD...
  • Page 10 DISPOSAL OF USED OIL DANGER: BURN HAZARD Contact with hot oil will cause severe burns. Allow the fryer to cool before cleaning. Always wear protective clothing and heat resistant gloves when handling hot oil. PREPARATION CAUTION: Turn temperature control to OFF Allow fryer to cool completely before draining BURN HAZARD FREQUENCY...
  • Page 11 Set to desired temperature Fryer will not heat desired temperature Hi-limit safety tripped Clean element , reset hi-limit Contact Wells Authorized Service Agency Damaged internal component for repairs Temperature control thermostat thermobulb contaminated with Clean element Fryer will not maintain...
  • Page 12 MAINTENANCE Periodic cleaning is PERIODIC CLEANING necessary to remove Add 1/2 cup of granulated dishwasher detergent to frypot. Fill with water carbonization from the to the MAX OIL line. elements and frypot. Lower the element into the frypot and set the control knob to 225ºF Frypot may be cleaned by Boil the mixture for five minutes.
  • Page 13 NOTES...
  • Page 14 WIRING DIAGRAM...
  • Page 16 EXPLODED VIEW: F556 IL1939, Rev. A, PL303 Model: F-556 Single Head Built-In Standard Fryer...
  • Page 17 PARTS LIST: F556 F556 SINGLE-HEAD BUILT-IN STANDARD FRYER Item No Part No Description 2R-35511 KNOB CONTROLS ASSY 2T-30133 THERMO CTROL W/SCREWS 2C-30157 CLIP CAPILLARY 2C-49689 CLAMP BULBSS F49RT F58RT 2B-43688 BASKET WIRE TWIN 2B-43689 BASKET WIRE SINGLE 2N-42842UL ELEM 208V 5750W FRYER 2N-42866UL ELEM 240V 5750W 2C-33890...
  • Page 18 EXPLODED VIEW: F676 FRY HEAD COMPONENTS NOTE: Fryer has two identical fryer heads. One only is shown. HEAD ASSY, COMPLETE, F-676 IL1940, Rev. B, PL303 Model: F-676 Dual-Head Built-In Standard Fryer - Fry Head Components...
  • Page 19 EXPLODED VIEW: F676 CABINET COMPONENTS IL1941, Rev. B, PL303 Model: F-676 Dual-Head Built-In Standard Fryer - Cabinet Components...
  • Page 20 PARTS LIST: F676 F676 DUAL-HEAD BUILT-IN STANDARD FRYER Item No Part No Description WS-62899 HEAD ASSY 208V WS-62900 HEAD ASSY 240V WS-54066 THERMO KNOB OFF POS BOTTOM 2T-30133 THERMO CTROL W/SCREWS 2C-30157 CLIP CAPILLARY 2C-43665 CLAMP THERMO BULB 2N-42891UL ELEM 208V 4600W...
  • Page 21 EXPLODED VIEW: F856 FRY HEAD COMPONENTS NOTE: Fryer has two identical HEAD ASSY, COMPLETE, F-856 fryer heads. One only is shown. IL1942, Rev. A, PL303 Model: F-856 Dual-Head Built-In Standard Fryer - Fry Head Components...
  • Page 22 EXPLODED VIEW: F856 CABINET COMPONENTS IL1943, Rev. A, PL303 Model: F-856 Dual-Head Built-In Standard Fryer - Cabinet Components...
  • Page 23 PARTS LIST: F856 F856 DUAL-HEAD BUILT-IN STANDARD FRYER Item No Part No Description WS-62903 208V HEAD ASSY WS-62904 240V 2R-35511 KNOB CONTROL ASSY WS-55510 THERMO CTRL FRYER 2C-30157 CLIP CAPILLARY 2C-49689 CLAMP BULB SS 2N-42842UL ELEM 208V 5750W 208V 2N-42866UL ELEM 240V 5750W 240V 2N-42317UL...
  • Page 24 NOTES...
  • Page 25 2D-301344 service, or to order factory CRUMB CRADLE WS-20690 authorized replacement parts, COVER, FRYPOT E7-34421 contact your Wells authorized service agency, or call: Wells Bloomfield, LLC 10 Sunnen Drive St. Louis, MO 63301 Service Parts Dept. phone: (314) 678-6314 fax:...
  • Page 26 WELLS BLOOMFIELD, LLC 10 Sunnen Dr., St. Louis, MO 63143 telephone: 314-678-6314 fax: 314-781-2714 www.wellsbloomfield.com...
