QUICK START GUIDE
1.
OK LED indicates the highest LED priority. Priority 1 is highest.
2.
Each Circuit LED indicates the Condition of its Circuit, independently of the other Circuits.
3.
Internal Shelf Comm Fault is the loss of communication between the alarm card and 1 or more modules.
Possible causes: module removal and module internal failure. Replace the module or removed and replaced the
Alarm Card to clear the alarm.
Information: Circuit ON/OFF and Load Detection
Circuit ON: Output is powered unless over loaded (power exceeds 100VA). Overloads are retested every 4 sec.
Circuit OFF: Output is unpowered.
Circuit Load Detection: Circuits are scanned for loads upon module power up and upon manual scan.
Circuits with loads are turned ON, circuits without loads are turned OFF.
Circuit ON/OFF status is only set by scans and Manual Circuit ON/OFF actions. The last action determines the
ON/OFF state of each circuit. The only automatic change in circuit ON/OFF status occurs upon module power up.
Information: Manual Module Operations
Manually Scan Circuit Loads: Press and release the Button - no interruption of power to ON circuits.
Manual Circuit ON/OFF:
1.
Press and hold the Button to enter the manual mode hold until the OK LED turns OFF and back
ON (2 seconds)
1.
Tap the Button repeatedly until the desired Circuit LED blinks
2.
Press and hold the Button to toggle the circuit ON/OFF hold
until the OK LED turns OFF and back ON (2 seconds)
3.
Repeat from step 2 to operate another circuit
4.
Automatic operation is restored after a few seconds of Button Inactivity
The OK LED is turned OFF when the button is pressed. It returns to ON when the button is
released or after the button is held for 2 seconds.
Information: Fault Detection
Circuit ON: Output is powered unless over loaded (power exceeds 100VA). Overloads are retested every 4 sec.
Circuit OFF: Output is unpowered.
Circuit Load Detection: Circuits are scanned for loads upon module power up and upon manual scan.
Circuits with loads are turned ON, circuits without loads are turned OFF.
Circuit ON/OFF status is only set by scans and Manual Circuit ON/OFF actions. The last action determines the
ON/OFF state of each circuit. The only automatic change in circuit ON/OFF status occurs upon module power up.
Information: 8 port Module Compatibility
Shelf
150028529
150036912
Page 5
© 2021 ABB. All rights reserved.
8 port Module Compatibility
Module
150027362
150037261

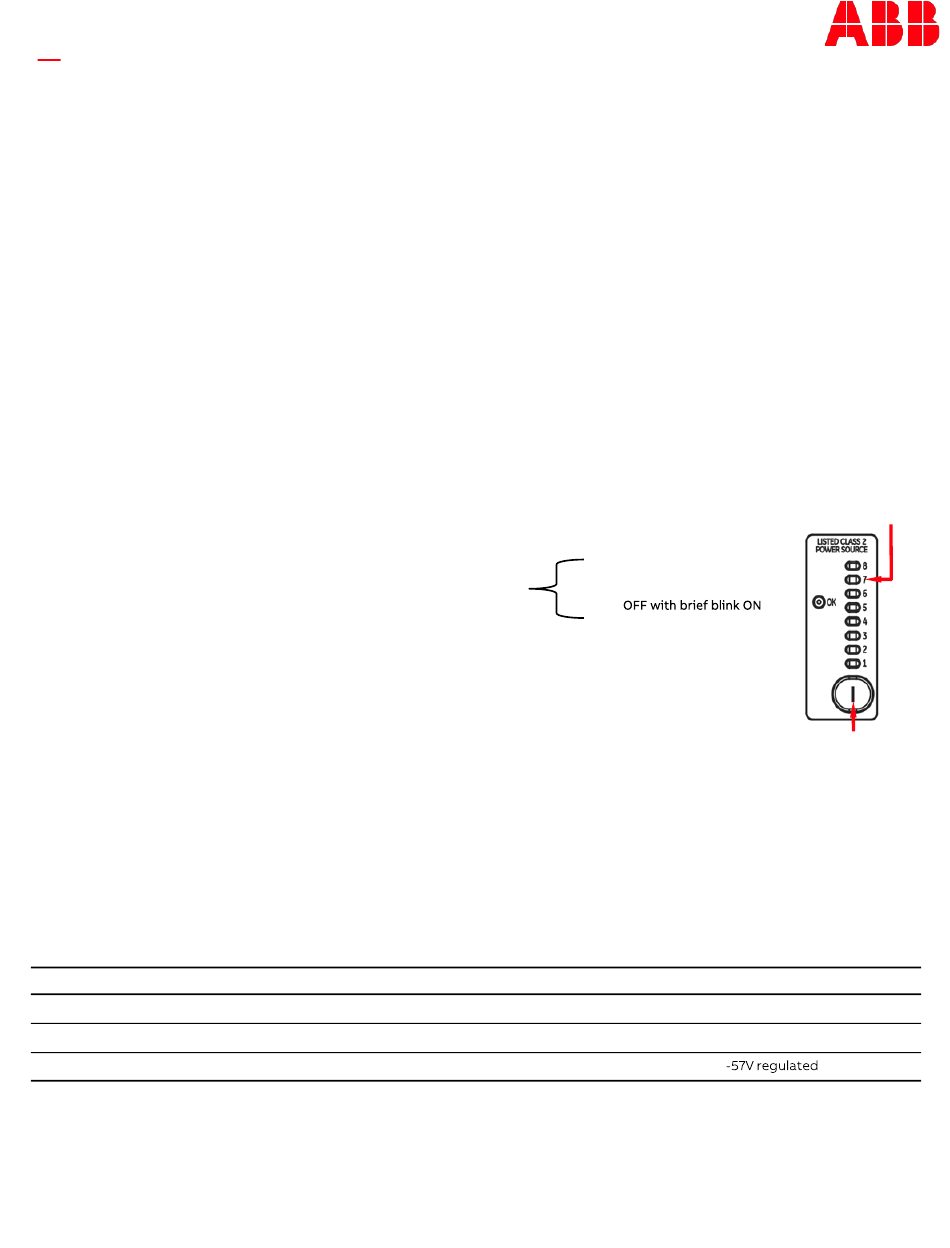

Circuit
LED Blink Pattern
ON
ON with brief blink OFF
OFF
-48V unregulated
Circuit LEDs
Button
Output
