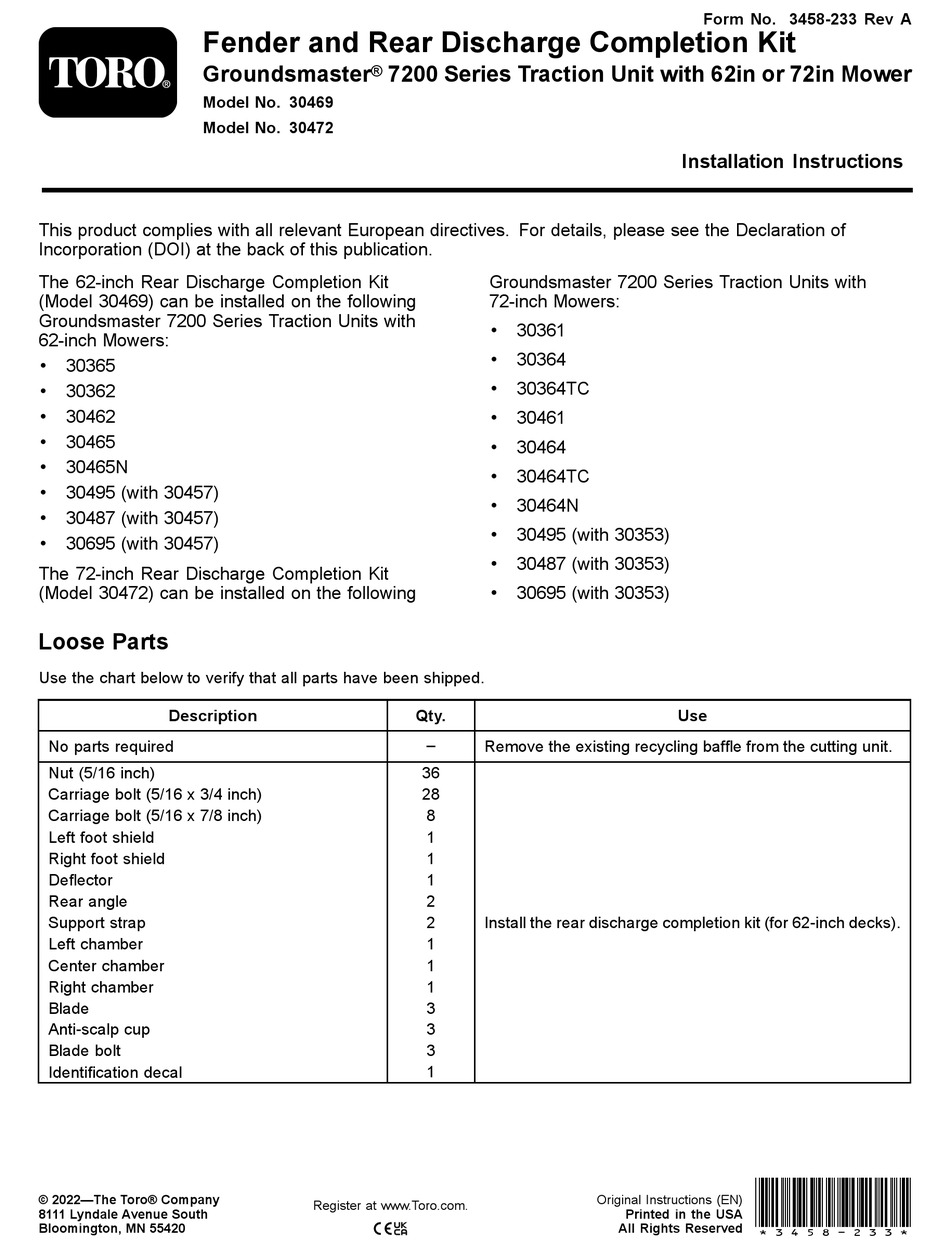

Fender and Rear Discharge Completion Kit
Groundsmaster
Model No. 30469
Model No. 30472
This product complies with all relevant European directives. For details, please see the Declaration of
Incorporation (DOI) at the back of this publication.
The 62-inch Rear Discharge Completion Kit
(Model 30469) can be installed on the following
Groundsmaster 7200 Series Traction Units with
62-inch Mowers:
•
30365
•
30362
•
30462
•
30465
•
30465N
•
30495 (with 30457)
•
30487 (with 30457)
•
30695 (with 30457)
The 72-inch Rear Discharge Completion Kit
(Model 30472) can be installed on the following
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
No parts required
Nut (5/16 inch)
Carriage bolt (5/16 x 3/4 inch)
Carriage bolt (5/16 x 7/8 inch)
Left foot shield
Right foot shield
Deflector
Rear angle
Support strap
Left chamber
Center chamber
Right chamber
Blade
Anti-scalp cup
Blade bolt
Identification decal
© 2022—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
7200 Series Traction Unit with 62in or 72in Mower
Groundsmaster 7200 Series Traction Units with
72-inch Mowers:
•
•
•
•
•
•
•
•
•
•
Qty.
–
Remove the existing recycling baffle from the cutting unit.
36
28
8
1
1
1
2
2
Install the rear discharge completion kit (for 62-inch decks).
1
1
1
3
3
3
1
Register at www.Toro.com.
Installation Instructions
30361
30364
30364TC
30461
30464
30464TC
30464N
30495 (with 30353)
30487 (with 30353)
30695 (with 30353)
Use
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Form No. 3458-233 Rev A
*3458-233*
Advertisement
Table of Contents
Related Manuals for Toro 30365
Summary of Contents for Toro 30365
- Page 1 Install the rear discharge completion kit (for 62-inch decks). Left chamber Center chamber Right chamber Blade Anti-scalp cup Blade bolt Identification decal *3458-233* © 2022—The Toro® Company Original Instructions (EN) Register at www.Toro.com. 8111 Lyndale Avenue South Printed in the USA Bloomington, MN 55420 All Rights Reserved...
-
Page 2: Table Of Contents
Description Qty. Nut (5/16 inch) Carriage bolt (5/16 x 3/4 inch) Carriage bolt (5/16 x 7/8 inch) Left foot shield Right foot shield Deflector Rear angle Support strap Left chamber Installing the rear discharge completion kit (for 72-inch decks). Center chamber Right chamber Left deflector Washer... - Page 3 Removing the Existing Recycling Baffles from the Cutting Unit DANGER If you raise the machine using only a jack to support it while you work under the mower deck, the jack could tip, causing the mower deck to fall, crushing you or bystanders. Always secure the machine with at least 2 jack stands when you have the mower deck raised.
- Page 4 Installing the Rear Discharge Completion 62-Inch Decks Only Loosely mount the new chambers to the underside of the mower deck with 12 carriage bolts (5/16 x 3/4 inch) and 12 nuts (5/16 inch). Note: Each chamber should have 4 sets of nuts and bolts.
-
Page 5: Right Foot Shield
g029609 Figure 5 1. Left foot shield 2. Right foot shield Mount the left foot shield to the top and side of g014978 Figure 7 the mower deck with 3 carriage bolts (5/16 x 3/4 inch) and 3 nuts (5/16 inch) as shown in Figure 1. -
Page 6: Deflector
Installing the Rear Discharge Completion Kit (for 72-inch Decks) 72-Inch Decks Only Loosely mount the new chambers to the underside of the mower deck with 12 carriage bolts (5/16 x 3/4 inch) carriage bolts and 12 nuts (5/16 inch). Note: Each chamber will have 4 sets of nuts and bolts. -
Page 7: Washer
g029613 Figure 11 1. Support strap g029614 Figure 13 1. Nut 4. Washer Tighten all fasteners. 2. Left foot shield 5. Capscrew Mount the right foot shield to the top and side 3. Deflector 6. Carriage bolt of the mower deck with 4 carriage bolts (5/16 x 3/4 inch) carriage bolts and 4 nuts (5/16 inch) as shown in Figure... -
Page 8: Fender Mount
Remove the bolt securing the hose clamp to the frame channel on the right side of the machine (Figure 17). g029559 Figure 17 1. Hose clamp 2. Bolt Insert the bottom of the hose clamp through the slot in the top of the fender mount (Figure 18). -
Page 9: Right Fender
Use the frame mount as a template to locate Using the newly drilled holes, secure the and mark the other 2 fender mounting holes in fender mount to the frame channel with 2 the frame channel (Figure 19). thread-forming screws (5/16 x 5/8 inch) as shown in Figure g029561... -
Page 10: Left Fender
Installing the Left Fender Loosely mount the bracket on the top of the left fender to the fuel-tank bracket with 2 bolts (3/8 Disconnect the cable from the negative terminal x 3/4 inch) and 2 nuts (3/8 inch) as shown in of the battery. - Page 11 Install the drive wheels. Tighten the lug nuts to 102 to 115 N-m (75 to 85 ft-lb). Remove the jack stands and lower the machine. Note: Verify that the tires do not rub on the fenders when you drive the machine.
- Page 12 Notes:...
- Page 13 Notes:...
- Page 14 Notes:...
- Page 15 The method of transmission shall be electronic transmittal. This machinery shall not be put into service until incorporated into approved Toro models as indicated on the associated Declaration of Conformity and in accordance with all instructions, whereby it can be declared in conformity with all relevant Directives.
- Page 16 The method of transmission shall be electronic transmittal. This machinery shall not be put into service until incorporated into approved Toro models as indicated on the associated Declaration of Conformity and in accordance with all instructions, whereby it can be declared in conformity with all relevant Directives.
