c. Make sure the top of the IPC is positioned at the top of the Backplate (static latches on
top). For Backplate orientation, refer to page 14.
d. Align the IPC's four mounting screws with the mounting holes in the Backplate.

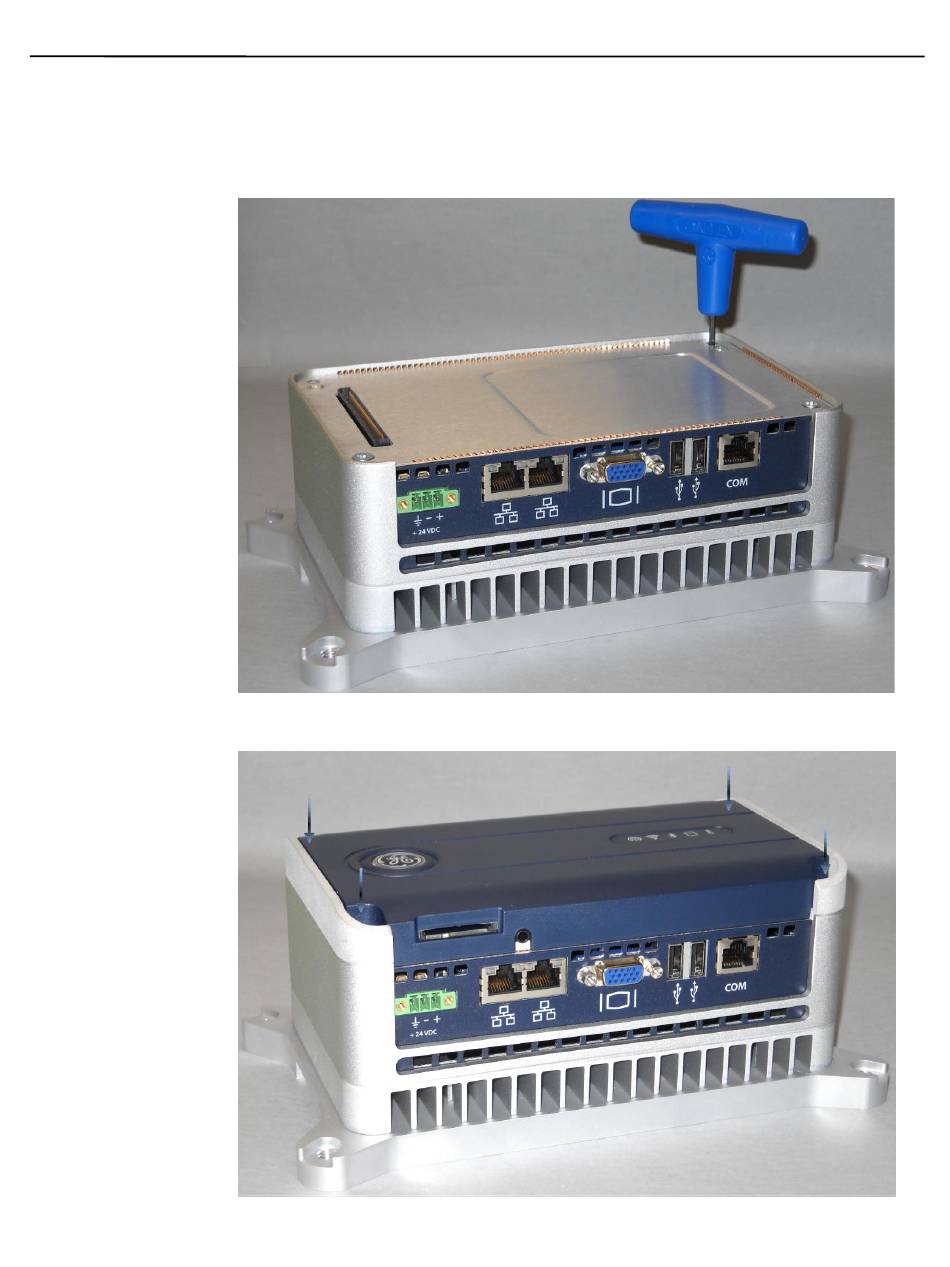

e. Using the hex driver, tighten the mounting screws.
f. Replace the front panel on the IPC and use the screwdriver to hand-tighten the four
captive screws to secure it.
