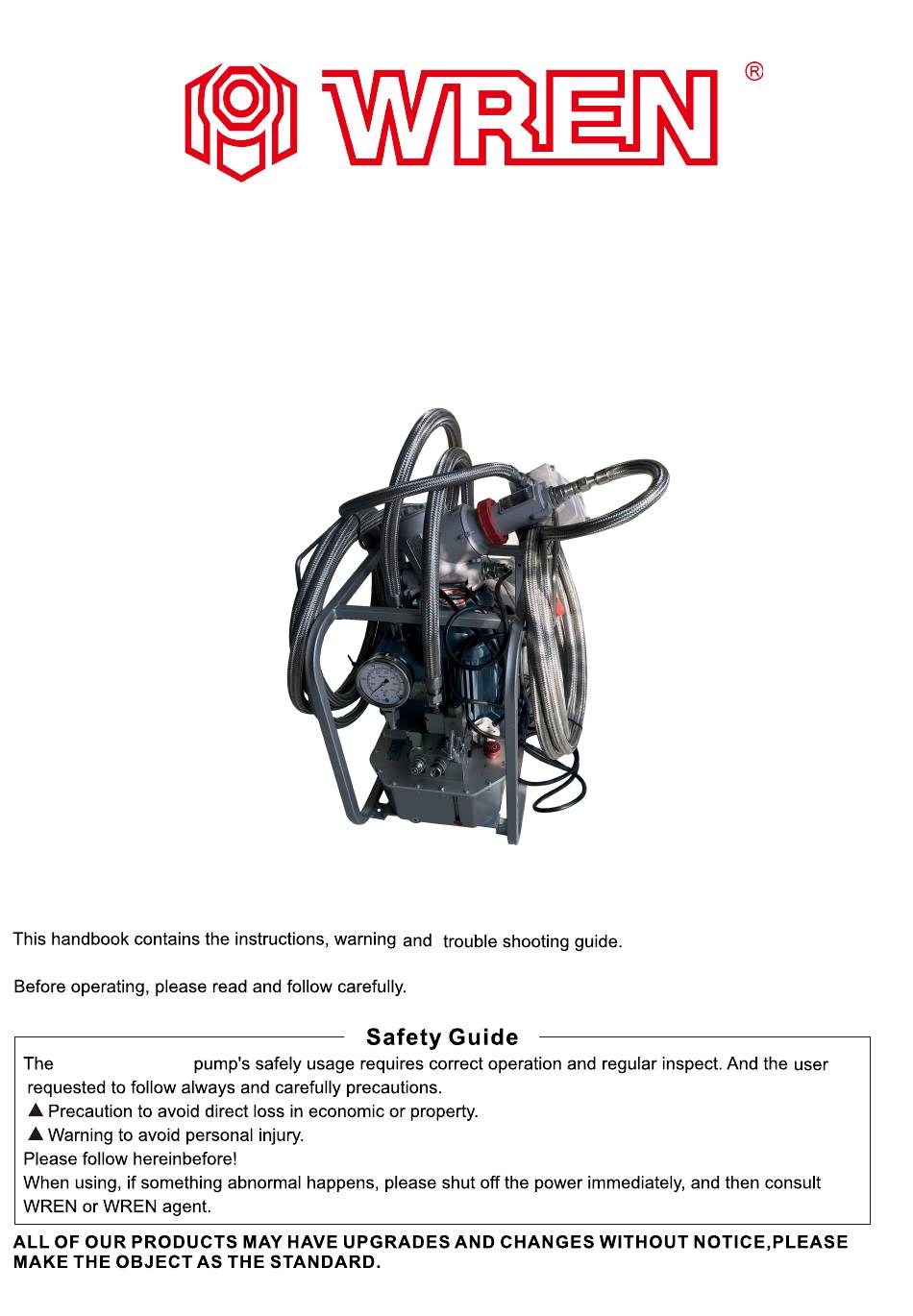

- Page 1 KLW4010 EX Operation And Maintenance Manual Of KLW4010 Explosion-proof Hydraulic Pump Explosion-proof...
- Page 2 8.Do not start the pump without oil in tank. 9.Please do not change any part of the pump; if it must be changed, please inform WREN or Wren's agent for help. Without allowance of WREN or its agent, any refit of it will be out of our warranty Range.
- Page 3 6. Radiator: to exclude the heat, ensure the operating time and life of the pump. 7. Oil level measurer: it can help us know the oil level, when the oil less than the1/3 of total, please Fill the especial oil for hydraulic tools of WREN. 8. Release oil port: G1/4.
- Page 4 E X T E R N A L D I M E N S I O N A N D D E S C R I P T I ON OF PA RT S Item Description Item Description Electrical control system Pump Head Assembly Motor Oil pipe Assembly...
- Page 5 690×520×476cm 1 EX with ,And cover on the dust cap.
- Page 6 1.Ready: 1.1 Explosion-proof pump is designed for hydraulic torque wrench. There is a 2-way, 4-position solenoid operated direction control valve on the pump, port A is high pressure point, it can export the oil at the high pressure, and port B is low pressure point which can output the oil at the low pressure.
- Page 7 PART LIST FORVALVE SYSTEM ITEM ITEM DESCRIPTION DESCRIPTION Valve Block Gauge Fitting Assembly Female Coupler O-Ring Male Coupler Gauge Fitting Reversing Valve Assembly Gauge Fitting Reversing Valve Plug Screw Retaining Ring Check Valve Assembly O-Ring 11.1 Check Valve Retaining Ring 11.2 Retaining Ring O-Ring...
- Page 8 PART LIST FOR PUMP HEAD Description ITEM Seal gasket Bearing ２ １ Bearing pole ３ Pump head ４ １ ５ １ Release valve Relief Valve 1/set ５-1 Retaining ring 1/set O-ring 1/set O-ring 1/set Safety valve Unilateralism valve 1/set Check Valve Retaining ring 1/set O-ring...
- Page 9 TROUBLE SHOOTING GUIDE OF HYDRAULIC PUMP Mal function Reason for caused malfunction Solution Confirm if the power meets pump’s Un-suitable power source need The pump can not be started The power is not connected Check the power The coupler is not connected Re-install properly No oil in the tank...
- Page 10 HYDRAULIC PRINCIPLE 700Bar 700Bar 1000Bar...
- Page 11 D R A W IN G F O R E L E C T R IC A L E L E M E N T HZ electrical configuration table: ITEM Name Model Remark Warom BXMD81 300*350*280 Explosion-proof control box Warom BZC8050 Explosion-proof button box Warom...
- Page 12 Noise/Vibration And Transport information 1、Hydraulic pump noise declaration 1).Hydraulic pump noise value: ≤ 70db 2、Hydraulic pump transport information. 1). Handle with care. 2).The shipment should be vertical upward, as shown in the figure 9-1. FIG 9-1 3).Product handling, generally using portable, car handling and lifting and moving, as shown in the figure 9-2.
- Page 13 Warning Plate Warning plate is shown in table 1 Meaning Affixed Position warning table The Equipment For Saft Operation, Enclosure Please Read WARNIN TO AVOID POSSIBLE SERIOUS PERSONAL INJURY OR DEATH PLEASE READ ALL INSTRUCTIONS. WARNING AND CAUTIONS CAREFULLY. A CAUTION is used to indicate correct operating or mal- ntenance procedures and practices to prevent damage to, or destruction of equipement or other property.
