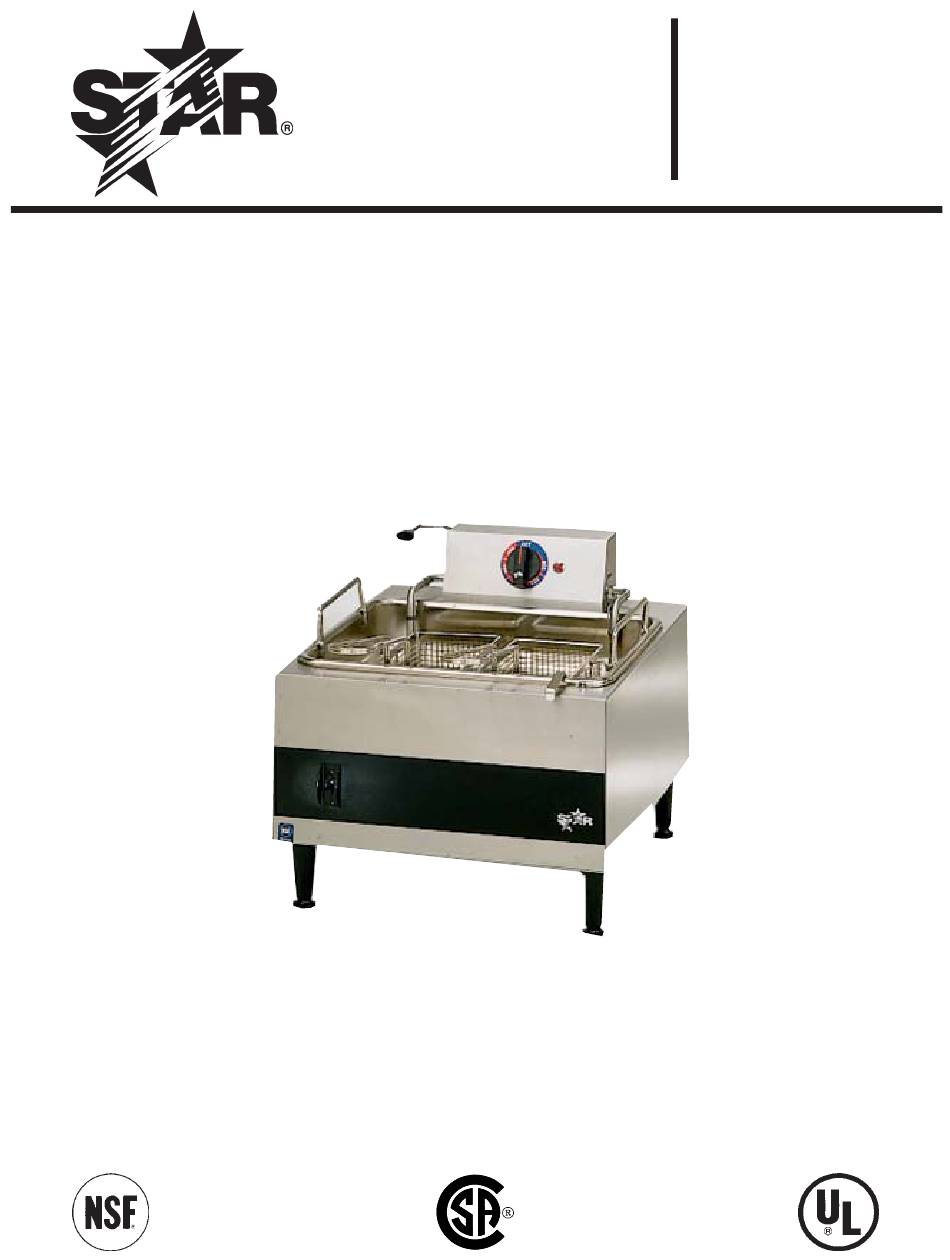

- Page 1 Star Manufacturing Installation International Inc. Operating 10 Sunnen Drive St. Louis, MO 63143 Instructions Phone: (314) 781-2777 Fax: (314) 781-3636 2M-Z1423 Rev. E 2/19/04 DEEP FAT FRYER MODEL 301HLSMA...
-
Page 2: Safety Symbol
Contact your local authorized service agent for service or required maintenance. Refer to the authorized service center listing provided with the unit. The Star Service Help Desk (1-800-807-9054) is available during normal business hours to answer any questions that may arise. Please have your model number and serial number for... -
Page 3: General Installation Data
POWER SUPPLY WARNING: Improper installation, The Model 301HLSMA is wired at the factory for adjustment, alteration, service or maintenance operation on a single phase power supply 208/240V, can cause property damage, injury or death. 60 Hz. - Page 4 CONTROLS NOTE: Baskets should be allowed to drain after frying 1. ON/OFF TWO-POLE SWITCH - Located on the cycle. The kettle handles serve as basket hangers. front panel is a two-pole switch which turns power on or off. IDLING 2. THERMOSTAT CONTROL - Located on the During idle periods turn thermostat control to Control Housing, this control allows you to select approximately 200°...
- Page 5 CAUTIONS FOR ALL DEEP FAT FRYERS NEVER LEAVE AN OPERATING FRYER UNATTENDED REMEMBER HOT OIL IS DANGEROUS - RESPECT IT! Hot oil is dangerous - Severe burns can Be sure your energy supply is installed result when hot oil contacts the skin. properly and in accordance with the lo- cal and national codes.
- Page 6 CARE OF FAT In three to six months you may spend as much for fat as A number of commercial devices and materials are avail- you paid for your kettle. So fat is an item you want to able to aid in eliminating fat impurities. There are sev- know all about;...
- Page 7 HANDY FRYING CHART TIME IN FOOD COATING PROCEDURE TEMP MINUTES POTATOES Standard French Fries Cut in uniform pieces 1/2” Blanch Only square the long way 3-1/2 Brown Only 3-1/2 Long Branch Cut in uniform pieces 3/4” square the long way 7-10 Julienne (shoe string) Cut in uniform pieces 1/8”...
-
Page 10: Parts List
PARTS LIST 2/19/04 Rev. E EFFECTIVE 301HLSMA Star-Max Electric Counter Fryer MODEL Number Part Number Number Unit Description 2R-Y5092 BLACK PLASTIC LEGS 2M-Z6222 FACEPLATE (For the Superior Model order part 2M-Z6377) 2E-Y5166 CIRCUIT BREAKER 2D-301007 KETTLE ASSEMBLY E3-Y7254 PANEL-BACK 2C-2555...
