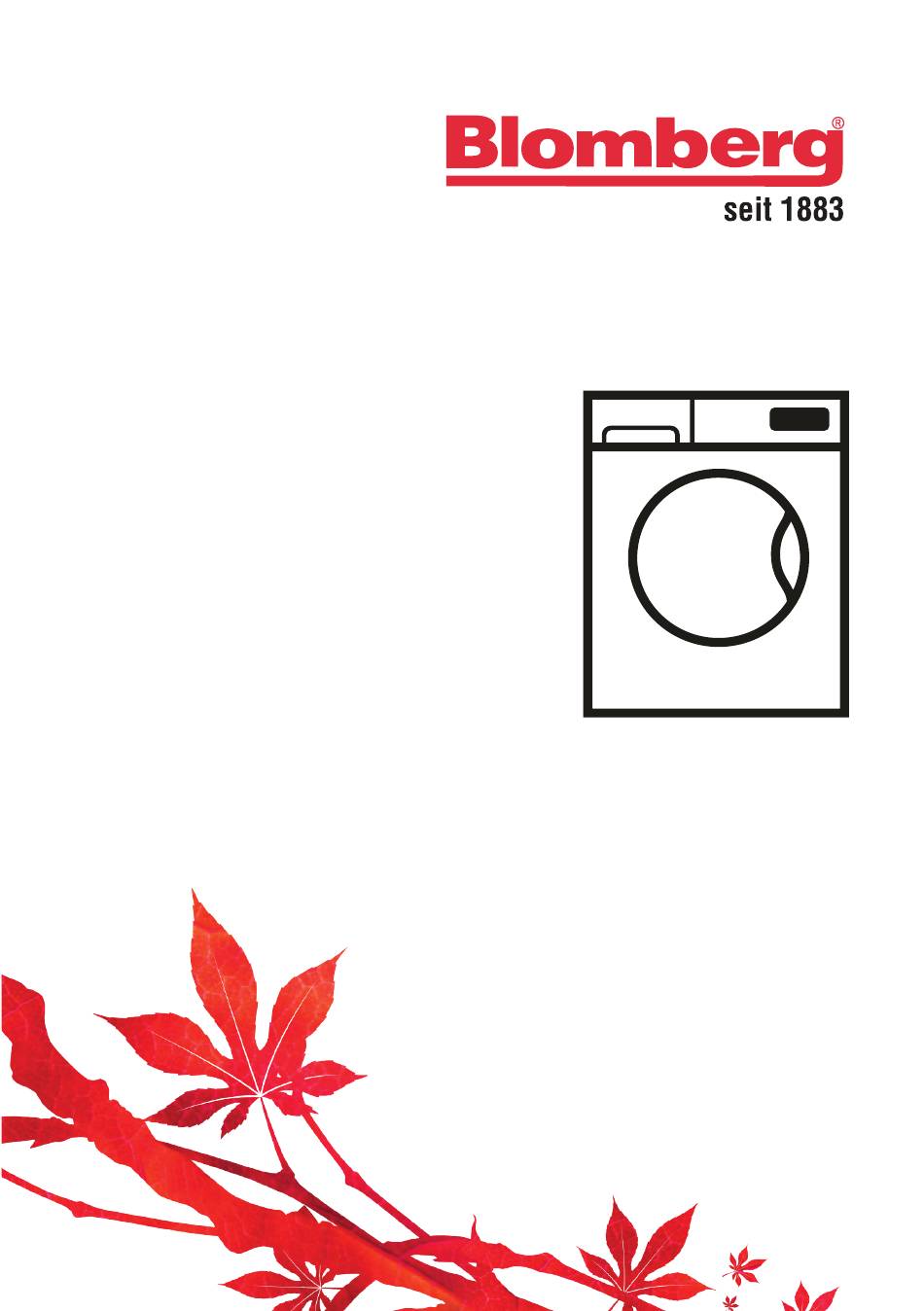

- Page 1 Washing Machine User manual LWF29441W...
- Page 2 Please read this user manual first! Dear Customer, Thank you for preferring a Blomberg product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 General safety instructions 1.1 Life and property safety ---------------------------------------------------------------------------5 1.2 Children's safety -----------------------------------------------------------------------------------6 1.3 Electrical safety ------------------------------------------------------------------------------------7 1.4 Hot surface safety ---------------------------------------------------------------------------------7 2 Important instructions for the environment 2.1 Compliance with WEEE Directive ------------------------------------------------------------------8 2.2 Package information ------------------------------------------------------------------------------8 3 Intended use 4 Your product 4.1 Overview -------------------------------------------------------------------------------------------9... - Page 4 TABLE OF CONTENTS 4.6 Operating the product ----------------------------------------------------------------------------24 4.6.1 Control panel ----------------------------------------------------------------------------------------------24 4.6.2 Programme and consumption table ---------------------------------------------------------------------25 4.6.3 Programme selection ------------------------------------------------------------------------------------27 4.6.4 Programmes ---------------------------------------------------------------------------------------------27 4.6.5 Temperature selection -----------------------------------------------------------------------------------29 4.6.6 Spin speed selection -------------------------------------------------------------------------------------29 4.6.7 Auxiliary function selection ------------------------------------------------------------------------------30 4.6.8 End Time --------------------------------------------------------------------------------------------------31 4.6.9 Starting the programme ---------------------------------------------------------------------------------32 4.6.10 Loading door lock ---------------------------------------------------------------------------------------32 4.6.11 Changing the selections after programme has started -----------------------------------------------32...
-
Page 5: General Safety Instructions
General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device. -
Page 6: Children's Safety
1.2 Children's safety This product can be used by children who are at the age of 8 and over and the people whose physical, sensory or mental skills are not fully developed or who do not have necessary required experience and knowledge as long as they are supervised or trained about the safe use of the product and its risks. -
Page 7: Electrical Safety
1.3 Electrical safety If the product has a failure, it should not be operated unless it is repaired by an Authorised Service Agent. Risk of electric shock! This product is designed to resume operating in the event of powering on after a power interruption. If you wish to cancel the programme, see "Cancelling the programme"... -
Page 8: Important Instructions For The Environment
Important instructions for the environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 9: Your Product
Your product 4.1 Overview 1- Power cable 2- Top panel 3- Control panel 4- Drain hose 5- Loading door 6- Filter cap 7- Adjustable feet 8- Detergent drawer 9 / EN Washing Machine /User’s Manual... -
Page 10: Package Contents
4.2 Package Contents 9- Power cable 10- Drain hose 11- Transportation safety bolts* 12- Mains water inlet hose (One of the following filter types is used for the mains hose connection.) a- Electronic water shut-off b- Mechanical water shut-off c- Standard 13- Liquid detergent container** 14- User Manual 15- Blind plug***... -
Page 11: Technical Specifications
4.3 Technical specifications Complying Commission Delegated Regulation (EU) No 1061/2010 Supplier name or trademark Blomberg Model name LWF29441W Rated capacity (kg) Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) A+++ Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) 0,940 Energy consumption of the standard 60°C cotton programme at partial load (kWh) -
Page 12: Installation
4.4 Installation • Preparation of the location and electrical, tap water and waste water installations at the place of installation is the customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. • The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. • Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety. 4.4.1 Appropriate installation location • Place the product on a hard and level floor. Do not put it onto a carpet with high pile or other similar surfaces. -
Page 13: Removing Packaging Reinforcement
4.4.2 Removing packaging reinforcement Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement that is attached to the ribbon. Do not attempt this operation alone, get help. 4.4.3 Removing the transportation locks Loose all bolts with an appropriate wrench until they turn freely. Remove the transport safety bolts by rocking them slightly. -
Page 14: Connecting The Water Supply
4.4.4 Connecting the water supply The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have 10 – 80 litres of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if the water pressure is higher. CAUTION: Models with a single water inlet should not be connected to the hot water tap. In such a case the laundry will get damaged or the product will switch to protection mode and will not operate. -
Page 15: Adjusting The Feet
laundry may come out excessively wet. Therefore, follow the heights described in the figure. • To prevent the waste water going back into the machine again and to ensure easy drainage, do not immerse the end of the hose into the waste water or do not insert it into the drain for more than 15 cm. If it is too long, cut it short. • The end of the hose should not be bent, it should not be stepped on and the hose must not be pinched between the drain and the machine. -
Page 16: Electrical Connection
Loosen the lock nuts on the feet by hand. Adjust the feet until the product stands in a stable and balanced way. 3. Tighten all lock nuts by hand again. 4.4.7 Electrical connection Connect the product to a grounded outlet protected by a 13 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations. -
Page 17: Initial Use
Important Fitting a different plug As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals on your plug, proceed as follows: Connect the green - yellow or green (earth) wire to the terminal in the plug marked ‘E’... -
Page 18: Preparation
4.5 Preparation 4.5.1 Sorting the laundry * Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. * Always obey the instructions given on the garment tags. LAUNDRY WASH SYMBOLS Symbols for washing on machine WASH Maximum... -
Page 19: Preparing Laundry For Washing
4.5.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwiring, belt buckles or metal buttons will damage the product. Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case. • Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out and brush. Such objects may damage the product especially the glass door or cause noise problem. -
Page 20: Loading The Laundry
4.5.4 Loading the laundry 1. Open the laundry cover. 2. Put the laundry items into the product in a loose manner. 3. Push and close the loading cover until you hear the locking sound. Ensure that no items are caught in the door. The loading door is locked while a programme is running. The door can only be opened a while after the programme comes to an end. - Page 21 Choosing the detergent type Detergent type to be used depends on the fabric type and colour. • Use different detergents for coloured and white laundry. • Wash your delicate clothes only with special detergents (liquid detergent, wool shampoo, etc.) used solely for delicate clothes. • When washing dark coloured clothes and quilts, it is recommended to use liquid detergent. • Wash woollens with special detergent made specifically for woollens. CAUTION: Use only detergents manufactured specifically for washing machines. CAUTION: Do not use Powdered Soap.
- Page 22 Using gel and tablet detergent • If the gel detergent thickness is fluidal and your product does not contain a special liquid detergent cup, put the gel detergent into the main wash detergent compartment during first water intake. If your product contains a liquid detergent cup, fill the detergent into this cup before starting the programme. • If the gel detergent thickness is not fluidal or in the shape of capsule liquid tablet, put it directly into the drum before washing.
-
Page 23: Tips For Efficient Washing
4.5.7 Tips for efficient washing Clothes Delicates/ Light Colours and Black/Dark Colours woollens/ whites Colours Silks (Recommended (Recommended (Recommended (Recommended temperature temperature temperature range temperature range range based on range based on based on soiling level: based on soiling level: soiling level: cold soiling level: cold 40-90 o C) -
Page 24: Operating The Product
4.6 Operating the product 4.6.1 Control panel 21 22 17 - Programme selection knob 18 - Temperature indicator 19 - Spin speed indicator 20 - Duration information display 21 - Child lock enabled indicator 22 - End Time Setting button 23 - Door lock enabled indicator 24 - Programme Follow-up indicator 25 - On / Off button... -
Page 25: Programme And Consumption Table
4.6.2 Programme and consumption table Auxiliary functions Selectable temperature range Programme (°C) °C 60** 0,94 1400 Cold-60 Cottons Eco 60** 44,5 0,81 1400 Cold-60 40** 44,5 0,81 1400 Cold-60 2,50 1400 • • • Cold-90 Cottons 1,90 1400 • • •... - Page 26 The auxiliary functions in the table may vary according to the model of your product. Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.
-
Page 27: Programme Selection
4.6.3 Programme selection 1 Determine the programme suitable for the type, quantity and soiling level of the laundry in accordance with the "4.6.2 Programme and consumption table". Programmes are limited with the highest spin speed appropriate for that particular type of fabric. - Page 28 “The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of machine washable wool products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M13985.” “In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.” • Hand Wash Use to wash your woollen/delicate clothes that bear “not machine-washable” tags and for which hand wash is recommended.
-
Page 29: Temperature Selection
• Bedding Use this programme to wash your fiber duvets that bear "machine washable" tag. Check that you have loaded the duvet correctly in order not to damage the machine and the duvet. Remove the duvet cover before loading the duvet into the machine. Fold the duvet into two and load it into the machine. -
Page 30: Auxiliary Function Selection
Then, depending on the model of the product, "Rinse Hold" and "No Spin" options appear on the display. See "4.6.7 Auxiliary function selection" section for explanations of these options. Rinse Hold If you are not going to unload your clothes immediately after the programme completes, you can use rinse hold function to keep your laundry in the final rinsing water in order to prevent them from getting wrinkled when there is no water in the product. -
Page 31: End Time
Some functions cannot be selected together. If a second auxiliary function conflicting with the first one is selected before starting the product, the function selected first will be cancelled and the second auxiliary function selection will remain active. For example, if you want to select Quick Wash after you have selected the Additional Water, Additional Water will be cancelled and Quick Wash will remain active. -
Page 32: Starting The Programme
Adjusting the end time If you want to cancel End Time function, press On / Off button to turn off and on the product. Do not use liquid detergents when you activate End Time function! There is the risk of staining of the clothes. -
Page 33: Child Lock
2. Wait until the Loading Door can be opened. 3. Open the Loading Door and add or take out the laundry. 4. Close the Loading Door. 5. Make changes in auxiliary functions, temperature and speed settings if necessary. 6. Press the Start / Pause button to operate the product. 4.6.12 Child Lock Use Child Lock function to prevent children from tampering with the product. -
Page 34: Maintenance And Cleaning
4.7 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.7.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. -
Page 35: Cleaning The Body And Control Panel
After every wash make sure that no foreign substance is left in the drum. If the holes on the door bellow shown in the figure are blocked, open the holes using a toothpick. Foreign metal substances will cause rust stains in the drum. Clean the stains on the drum surface by using cleaning agents for stainless steel. -
Page 36: Draining Remaining Water And Cleaning The Pump Filter
4.7.5 Draining remaining water and cleaning the pump filter The filter system in your product prevents solid items such as buttons, coins and fabric fibres clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend. If the product fails to drain water inside it, the pump filter is clogged. - Page 37 If the product has an emergency water draining hose, in order to drain the water: Pull the emergency draining hose out from its seat Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end of the hose.
-
Page 38: Troubleshooting
Troubleshooting Problem Reason Solution Programme does not start • *Press the Start / Pause / Cancel Start / Pause / Cancel button was not pressed. button. after closing the door Programme cannot be • Press and hold On / Off button for The product may have switched to self protection 3 seconds to reset the product to mode due to a supply problem (line voltage, water... - Page 39 Problem Reason Solution Loading door cannot be The cover lock is activated due to the water level • Drain the water by running the Pump or Spin programme. inside the product. opened. • Wait until the programme completes. Product is heating up the water or it is at the spinning cycle.
- Page 40 Problem Reason Solution Product does not switch to There might be unbalanced load in the product. • Automatic unbalanced load detection system might be activated due to the spinning step. (*) unbalanced distribution of the laundry in the product. • Check the filter and the draining hose. The product will not spin if water is not drained completely.
- Page 41 Problem Reason Solution Washing performance is Regular drum cleaning is not applied. • Clean the drum regularly. For this procedure, please see "4.7.2 Cleaning poor: Oily stains appeared the loading door and the drum". on the laundry. (**) Washing performance • Leave the detergent drawer as well Odours and bacteria layers are formed on the as the loading door of the product ajar drum as a result of continuous washing at lower...
- Page 42 Problem Reason Solution Laundry does not smell like Detergent is put in the wrong compartment. • If detergent is put in the prewash compartment although prewash the softener. (**) cycle is not selected, the product can take this detergent during rinsing or softener step.
- Page 43 Problem Reason Solution Foam is overflowing from Too much detergent is used. • Mix 1 tablespoonful softener and ½ l water and pour into the main the detergent drawer. wash compartment of the detergent drawer. • Put detergent into the product suitable for the programmes and maximum loads indicated in the “4.6.2 Programme and consumption table”.
- Page 44 Accidental damage, misuse or abuse of a product. An attempted repair of a product by anyone other than a Blomberg Approved Engineer (the “Engineer”). Installation or use of a product where such installation or use fails to meet the requirements contained in this guarantee or the User Instructions Booklet.
- Page 45 Optional extras, where available (i.e. extendable feet) are supplied on a chargeable basis only. Does Blomberg offer replacements? This is a repair-only guarantee. On occasion the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair. Where a replacement is offered, this would normally be an identical model, but when this is not possible, a model of similar specification will be provided.
- Page 46 Will there be any charge for the repairs? It is your responsibility to provide evidence to the Engineer that your product is covered by this guarantee with a proof of purchase. The Manufacturer reserves the right to charge for the reasonable cost of any service call if: You cannot provide evidence that your product is covered by this guarantee.
- Page 47 Should you experience any difficulty in obtaining service contact the Blomberg Customer Helpline on Tel: 0333 207 9870 or e-mail: customerservice@support.Blomberguk.com...
- Page 48 www.blomberginternational.com info@blomberginternational.com Document Number 6 26-1 2 26 6 2 2 1 02 419-...
