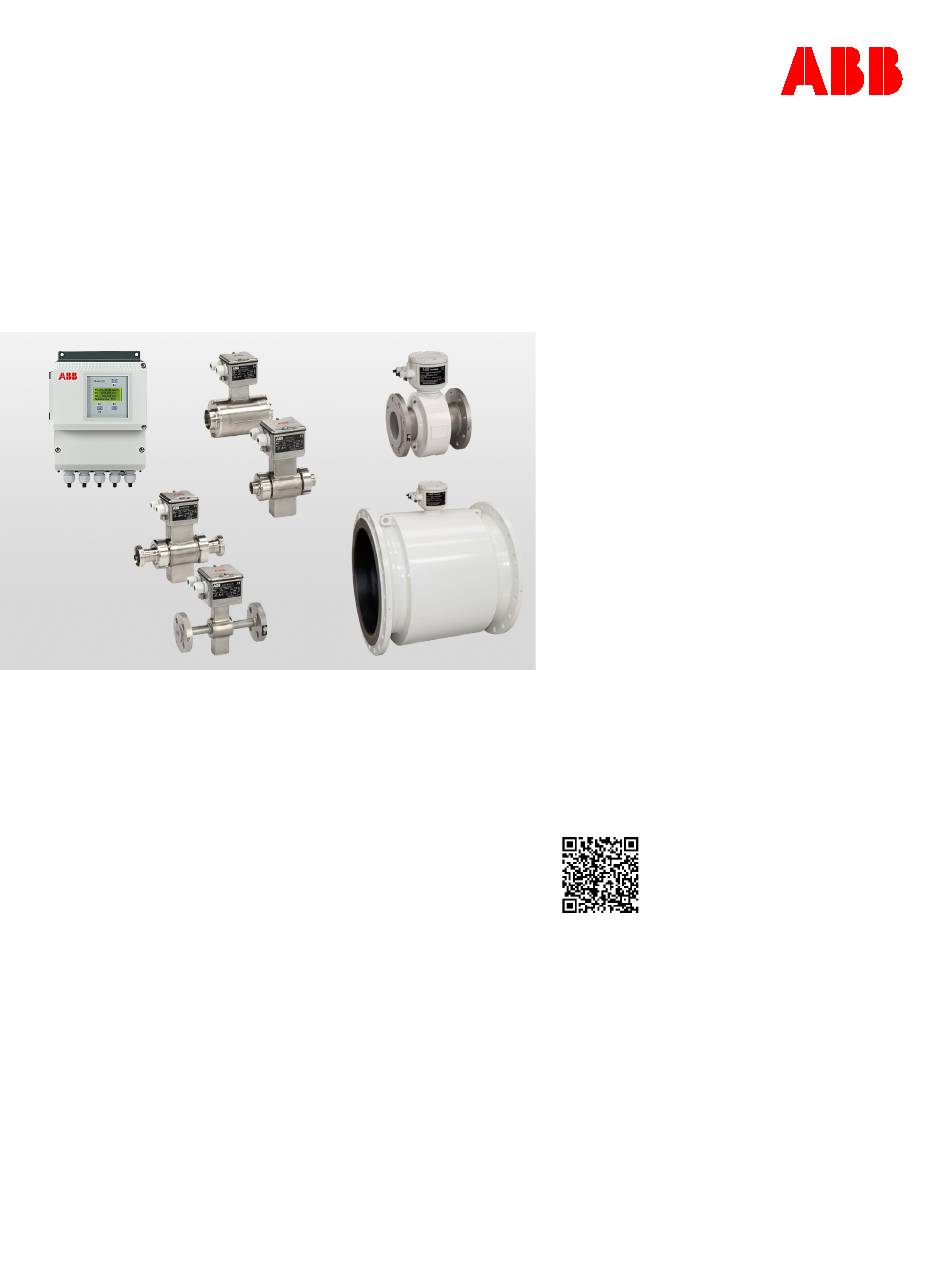

A B B M E A S U R E M E N T & A N A L Y T I C S | O P E R A T I N G I N S T R U C T I O N | O I / F S M 4 0 0 0 - E N R E V . E
FSM4000
Electromagnetic flowmeter
Introduction
FSM4000-SE41F
FSM4000-SE21
The FSM4000 is a robust flowmeter for high
FSM4000-SE21F
FSM4000-S4
process requirements. It masters critical
applications and conserves valuable resources
with highly accurate measurement of process
parameters in a wide range of sectors.
The design of the flowmeter allows for a wide
range of sector-specific liner materials,
electrodes and nominal diameters in accordance
with respective needs. The high-performance
transmitter is easy to use and offers a highly
stable signal output. Maximum measuring
accuracy in applications with high cellulose or
high solids content, pulsating flows and other
applications with disruptions.
Valid for software versions C.10
and higher
Measurement made easy
Additional Information
Additional documentation on FSM4000 is available
for download free of charge at www.abb.com/flow.
Alternatively simply scan this code:

Advertisement

Table of Contents
loading

Summary of Contents for ABB FSM4000

  • Page 1 Measurement made easy — Introduction Additional Information FSM4000-SE41F FSM4000-SE21 The FSM4000 is a robust flowmeter for high Additional documentation on FSM4000 is available FSM4000-SE21F FSM4000-S4 process requirements. It masters critical for download free of charge at www.abb.com/flow. applications and conserves valuable resources...
  • Page 2: Table Of Contents

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Table of contents Safety ................4 Torque information ..............21 General information and instructions ........4 Flange and wafer type devices, model SE41F / SE21F / Warnings ..................4 SE21W ................... 21 Intended use ................5 Variable process connections model SE21 ....
  • Page 3 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Commissioning ............46 13 Specification ............125 Safety instructions ..............46 Measuring accuracy ............. 125 Checks before commissioning ........... 46 Reference conditionsin accordance with EN 29104 . 125 Commissioning............... 47 Maximum measuring error ..........125 Power Supply Power-Up ...........
  • Page 4: Safety

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 1 Safety Warnings General information and instructions The warnings in these instructions are structured as follows: These instructions are an important part of the product and must be retained for future reference. DANGER...
  • Page 5: Intended Use

    The indications on the name plate must be observed • Before use of corrosive or abrasive measuring media, the operator must clarify the level of resistance of wetted parts. ABB will gladly support you in the selection, but cannot accept any liability in doing so.
  • Page 6: Cyber Security Disclaimer

    No. 4528, Kangxin Highway, Pudong New District ABB and its affiliates are not liable for damages and/or losses Shanghai, 201319, related to such security breaches, any unauthorized access, P.R.
  • Page 7: Design And Function

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 2 Design and function Overview Housing material Alu. Housing, Series 4000 Stainless Steel Housing, Series 2000 Fixed Flange Fixed Flange Wafer type Variable Connections 1) Welded spud 3) Pipe fitting 2) Tri-clamp 4) Male thread...
  • Page 8 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 2 Design and function … Overview Approvals Model number SE41F SE21F SE21W SE21_* Hygienic and sterile — CIP/SIP capable 3A, CIP/SIP capable requirements Pressure Equipment Directive Conformity assessment in accordance with category III, fluid group 1 97/23/EC CRN (Canadian Reg.
  • Page 9: Measuring Principle

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Measuring principle Design Measurements performed by the electromagnetic flowmeter are An electromagnetic flowmeter system consists of a flowmeter based on Faraday’s law of induction. A voltage is generated in a sensor and a transmitter. The flowmeter sensor (model SE41F, conductor when it moves through a magnetic field.
  • Page 10: Product Identification

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 3 Product identification Position of the name plate / factory plate Name plate Note The factory tag or name plate can be found in the following The name plates displayed are examples. The device...
  • Page 11: Factory Tag

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Factory tag Pressure equipment outside the scope of the Pressure The factory plate is on the flowmeter in addition to the name Equipment Directive plate. Depending on the nominal diameter of the flowmeter (>...
  • Page 12: Transport And Storage

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 4 Transport and storage Inspection Check the devices immediately after unpacking for possible damage that may have occurred from improper transport. Details of any damage that has occurred in transit must be recorded on the transport documents.
  • Page 13: Storing The Device

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Storing the device Bear the following points in mind when storing devices: • Store the device in its original packaging in a dry and dust-free location. • Observe the permitted ambient conditions for transport and storage.
  • Page 14: Installation

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 5 Installation Safety instructions Installation conditions WARNING General The following points must be observed during installation: Risk of injury due to process conditions. • The flow direction must correspond to the marking, if...
  • Page 15: Brackets

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Brackets Flow direction NOTICE Potential damage to the device! Improper support for the device may result in a deformed housing and damage to internal magnetic coils. • Place the supports at the edge of the sensor housing (see arrows in Figure 10).
  • Page 16: Mounting Position

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 5 Installation … Installation conditions Mounting position Sensor insulation 1 Insulation Figure 14: Insulation of the flowmeter sensor In the high temperature design, the flowmeter sensor can be Figure 13: Mounting position completely thermally insulated.
  • Page 17: Inlet And Outlet Sections

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Inlet and outlet sections Free inlet or outlet Figure 16: Free inflow and outflow For a free outflow, do not install flowmeter at the highest point of the piping or on its outflow side, since the...
  • Page 18: Mounting With Pipe Vibration

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 5 Installation … Installation conditions Mounting with pipe vibration Installation in piping with larger nominal diameter 1 Reducer Figure 19: Using reducers Determine the resulting pressure loss when using reducers: 1. Determine diameter ratios d/D.
  • Page 19: Installation In 3A Compliant Installations

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Installing the sensor Installation in 3A compliant installations NOTICE Damage to the device Damage to the device due to improper assembly. • The use of graphite with the flange or process connection gaskets is prohibited. This is because, in some instances, an electrically conductive coating may form on the inside of the meter tube.
  • Page 20 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 5 Installation … Installing the sensor 4. Use the appropriate screws for the holes in accordance with Torque information on page 21. 5. Slightly grease the threaded nuts. 6. Tighten the nuts in a crosswise manner as shown in the figure.
  • Page 21: Torque Information

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Torque information Flange and wafer type devices, model SE41F / SE21F / SE21W Nominal diameter DN Nominal pressure Max. tightening torque [Nm] Hard/soft rubber lining PTFE, PFA, ETFE lining Steel flange Stainless steel flange...
  • Page 22 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 5 Installation … Torque information Nominal diameter DN Nominal pressure Max. tightening torque [Nm] Inch Hard/soft rubber lining PTFE, PFA, ETFE lining Steel flange Stainless steel flange Steel flange Stainless steel flange 2”...
  • Page 23 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Nominal diameter DN Nominal pressure Max. tightening torque [Nm] Inch Hard/soft rubber lining PTFE, PFA, ETFE lining Steel flange Stainless steel flange Steel flange Stainless steel flange 10” PN10 23.54 27.31 86.06 89.17 PN16 88.48...
  • Page 24: Variable Process Connections Model Se21

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 5 Installation … Torque information Nominal diameter DN Nominal pressure Max. tightening torque [Nm] Inch Hard/soft rubber lining ETFE lining Steel flange Stainless steel flange Steel flange Stainless steel flange 32” PN10 391.7...
  • Page 25: Nominal Diameter, Nominal Pressure, Measuring Range

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Nominal diameter, nominal pressure, measuring range Nominal diameter Standard Min. flow velocity measuring range Max. flow velocity measuring range pressure rating 0 to 0.5 m/s 0 to 10 m/s ¹⁄₁₀ up to l/min 0.0529...
  • Page 26: Grounding

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 5 Installation Grounding General information on grounding Metal pipe with fixed flanges Observe the following items when grounding the device: • Use the supplied green/yellow cable as a grounding wire. • Connect the ground screw for the sensor (on flange and transmitter housing) to the station ground.
  • Page 27: Metal Pipe With Loose Flanges

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Metal pipe with loose flanges Non-metallic pipes or pipes with insulating liner Flange design Wafer type design Figure 24: Grounding connections Flange design Wafer type design Figure 25: Grounding connections 1. Solder the threaded nuts M6 to the piping.
  • Page 28: Stainless Steel Sensor Model Se21

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 6 Electrical connections … 5 Installation Safety instructions … Grounding WARNING Stainless steel sensor model SE21 Risk of injury due to live parts. Improper work on the electrical connections can result in electric shock.
  • Page 29: Preparing And Routing The Signal And Magnetic Coil Cable

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Preparing and routing the signal and magnetic coil cable Preparing for sensor model SE21, SE21F Cut to length and terminate both cables as shown. Note Use wire end sleeves. Signal cable D173D025U01 Magnet coil cable D173D147U01...
  • Page 30: Preparing For Sensor Model Se41F

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 6 Electrical connections … Preparing and routing the signal and magnetic coil cable Preparing for sensor model SE41F Cut to length and terminate both cables as shown. Note Use wire end sleeves.
  • Page 31: Routing The Signal And Magnetic Coil Cable

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Routing the signal and magnetic coil cable Observe the following points when routing cables: • The signal and magnetic coil cable carries a voltage signal of only a few millivolts and therefore must be routed the shortest distance possible.
  • Page 32: Connecting The Sensor

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 6 Electrical connections Connecting the sensor Connecting the signal and magnet coil cables The flowmeter sensor is connected to the transmitter via the signal / magnet coil cables (part no. D173D025U01 / D173D147U01). The coils of the flowmeter sensor are supplied with a field voltage by the transmitter over terminals M1/M3.
  • Page 33: Connection With Ip Rating Ip 68

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Connection with IP rating IP 68 Potting the terminal box on-site CAUTION Danger to health! The two-component potting compound is toxic – observe all relevant safety measures! Comply with the safety data sheet of the two-component potting compound before preparations are started.
  • Page 34: Connecting The Transmitter

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 6 Electrical connections … Connection with IP rating IP 68 Connecting the transmitter Connecting the power supply The line voltage and power consumption are indicated on the name plate for the transmitter. The wire cross-section for the power supply must meet the requirements for the main fuse (VDE 0100).
  • Page 35: Connecting The Signal And Magnet Coil Cables

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Connecting the signal and magnet coil cables Note The power supply of the FSM4000 with preamplifier is connected via -U and +U, instead of 1S and 2S. If the flow indicator shows the incorrect flow direction after successful commissioning of the measuring system, e.g., reverse instead of...
  • Page 36: Terminal Assignment

    White shielded 2 x 1 mm2 CE type 227 TEC 74 o Shielded signal cable: ABB order no. D173D147U01, 10 m included in shipment, standard ABB order no. D173D025U01, 10 m included in delivery 7 Power supply Low voltage: 100 ... 230 V AC, terminals L, N, Extra-low voltage: 20.4 ...26.4 V AC;...
  • Page 37: With Preamplifier Dn 3 To Dn 1000 (¹⁄₁₀ To 40")

    White shielded 2 x 1 mm2 CE type 227 TEC 74 o Shielded signal cable:: ABB order no. D173D025U01, ABB order no. D173D147U01, 10 m included in shipment, standard 10 m included in delivery 7 Power supply p with preamplifier (always at DN 3 to DN 8 [¹⁄₁₀ to ⁵⁄₁₆”]) Low voltage: 100 to 230 V AC, terminals L, N, Extra-low voltage: 20.4 to 26.4 V AC;...
  • Page 38: Dn 3 To Dn 1000 (¹⁄₁₀ To 40") With Profibus Pa / Foundation Fieldbus

    2 x 1 mm2 CE type 227 TEC 74 p With preamplifier (always at DN 1 to DN 8 [¹⁄₁₀ to ⁵⁄₁₆”]) ABB order no. D173D147U01, 10 m included in shipment, standard Figure 36: Electrical connection transmitter S4 with PROFIBUS PA / FOUNDATION Fieldbus...
  • Page 39 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Note • We recommend that shielded output cables be used with the shields connected to the functional ground at one end. • If the sensor is equipped with a preamplifier for low conductivity or in nominal diameter range of DN 1 to DN 8 (¹⁄₁₀ to ⁵⁄₁₆”), the...
  • Page 40: Retrofit For Model 10D1422: Dn 3 To Dn 1000 (¹⁄₁₀ To 40"); Model 10Di1425 And 10Ds3111A-E: Dn 500 To Dn 1000 (20 To 40")

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 6 Electrical connections … Terminal assignment Retrofit for model 10D1422: DN 3 to DN 1000 (¹⁄₁₀ to 40”); model 10DI1425 and 10DS3111A-E: DN 500 to DN 1000 (20 to 40”) S4 transmitter (wall mount housing)
  • Page 41: Digital Communication

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Digital communication HART® protocol PROFIBUS PA protocol The device is registered with the HART Communication The interface conforms to Profile 3.0 (PROFIBUS standard, Foundation. EN 50170, DIN 19245 [PRO91]). Note Note The HART® protocol is an unsecured protocol, as such the The PROFIBUS PA®...
  • Page 42: Foundation Fieldbus® (Ff)

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 6 Electrical connections … Digital communication Bus address FOUNDATION Fieldbus® (FF) In the case of devices with a PROFIBUS PA interface, check the Note bus address prior to commissioning. If no specifications exist to The FOUNDATION Fieldbus®...
  • Page 43: Connection Examples For Peripherals (Incl. Hart)

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Connection examples for peripherals (incl. HART) Bus address Current output The bus address is automatically assigned or can be set in the system manually. Addresses are detected using a unique combination of manufacturer ID, device ID, and device serial number.
  • Page 44: Switch Input

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 6 Electrical connections … Connection examples for peripherals (incl. HART) Switch input Pulse output Active pulse output internal external Pulse output, passive, optocoupler Figure 43: Switch input for external totalizer reset and external zero return...
  • Page 45: Profibus Pa® / Foundation Fieldbus

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E PROFIBUS PA® / FOUNDATION Fieldbus® Connection via M12 plug (for PROFIBUS PA only) internal external 1 PROFIBUS PA 2 FOUNDATION Fieldbus Pin assignment (front view showing pin insert and pins) Figure 45: Digital communication PROFIBUS PA / FOUNDATION Fieldbus PA−...
  • Page 46: Commissioning

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 7 Commissioning Safety instructions Checks before commissioning The following points must be checked before commissioning: CAUTION • The power supply must be switched off. Risk of burns due to hot measuring media •...
  • Page 47: Commissioning

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Commissioning Note Power Supply Power-Up If a transmitter is ordered for an older model sensor (see model After switching on the power supply, the sensor data in the number), an external FRAM is already connected to the external FRAM is compared with the data saved internally.
  • Page 48: Device Configuration

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 7 Commissioning … Commissioning Device configuration 6. System zero point (menu item ‘Syst.-Adjust‘) The device can be factory calibrated to customer specifications When commissioning an older model flowmeter sensor or upon request. If no customer information is available, the device checking the system, you can set the system zero point on is delivered with factory settings.
  • Page 49: Easy Set-Up, For Uncomplicated Parameterization

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Easy Set-up, for uncomplicated parameterization The Easy Set-up function enables users to configure the transmitter for quick and convenient startup. For further setup options, see Parameter descriptions on page 57. Figure 50: Easy Set-up function...
  • Page 50: Commissioning Of Profibus Pa® Devices

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 7 Commissioning Commissioning of PROFIBUS PA® devices Note Example for local address setup The PROFIBUS PA® protocol is an unsecured protocol, as such (DIP switch 8 = On) the intended application should be assessed to ensure that these protocols are suitable before implementation.
  • Page 51: Information On Voltage/Current Consumption

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E System integration Behavior with power supply powered-up After the power supply has been powered-up, DIP switch 8 is Use of PROFIBUS PA profile B, B3.0 ensures interoperability and polled: interchangeability of units. Interoperability means that devices...
  • Page 52: Commissioning Of Foundation Fieldbus® Devices

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 7 Commissioning Commissioning of FOUNDATION FIELDBUS® devices Assigning of DIP switches For devices with a FOUNDATION Fieldbus, the settings of the DIP • DIP switch 1: switch must be checked prior to commissioning.
  • Page 53: Operation

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 8 Operation Safety instructions Display options CAUTION After switching on the power supply, the current process information for the measuring point is displayed. Risk of burns due to hot measuring media → In the first line of the display, the current flow direction ( F for ←...
  • Page 54: Data Entry

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Display options Data entry Error condition In the event of an error, an error or warning message is displayed in the 4th display line. Flow rate > 103 % This message is displayed alternatively in plain text and with the relevant error or warning number.
  • Page 55: Initiating The Enter Function When Using The Magnet Stick For Operation

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Initiating the ENTER function when using the magnet stick for operation The ENTER function is initiated when the DATA/ENTER sensor is activated for longer than 3 seconds. The display flashes to indicate that the function is active.
  • Page 56: Entering Data In Short Form

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Data entry Entering data in short form Task Input Display information → V98.14 % Starting point for ‘Process information’ → V12.000 m Open menu. The required C/CE arbitrary parameter appears Search ‘Prog.
  • Page 57: Parameter Descriptions

    ‘Specialist’: Specialist menu with all menu items accessible by the customer. Prog. level specialists “Service”: Additional service menus can be displayed by entering the correct service code number (for ABB Service personnel only). Prog. level Service Service code? Prog. level Prog.
  • Page 58 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu Language The EASY SETUP function allows you to configure the measuring Unit Qmax system in an easy manner for operation. Menus are displayed in...
  • Page 59 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Flow direction Supply/Return When the flow direction ‘Forward/reverse flow’ is selected, the flow Forward/reverse flow Forward direction is indicated in the display with ‘→ V’ for forward and ‘← R’...
  • Page 60 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu This menu does not appear for the PROFIBUS PA or FOUNDATION fieldbus. Prog. Unit Unit name Text entry Four character name for the user programmable unit.
  • Page 61 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu This menu does not appear with an excitation frequency of 50 Hz or 70 Hz. Only for old (legacy) sensors. Data 60 Hz Channel View only Adjustment value for channel can be monitored to check the -123 µs...
  • Page 62 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu This menu does not appear with an excitation frequency of 50 Hz or 60 Hz. Only for SE41F and SE21 transmitters.
  • Page 63 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu This menu does not appear for the PROFIBUS or FOUNDATION fieldbus. Data Iout Adjust Iout 4 mA View only Display adjustment value for transmitter for the current output at 4.0 mA.
  • Page 64 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Nominal diameter View only Display the flowmeter sensor size. Not displayed, if no flowmeter 1 mm 1/25 in sensor type is selected (flowmeter sensor type = none).
  • Page 65 10D1422. Meter factor View only Displayed only if flowmeter sensor 10D1462/72 is selected Order no. View only Display the ABB order number for the flowmeter sensor. ‘-----------------------’ Submenu Option available only Menu required for older sensors only. with ‘Older sensor’...
  • Page 66 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Qmax DN View only Display the max. possible flow range. Automatically selected based on size. 50 m Qmax Numerical entry Flow range end value for forward and reverse flow. Flow range 50 m end value configurable from 0.5 ...
  • Page 67 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark DLR Mode Standard Selection of operating mode for empty tube detection. • Standard: Factory adjustment to water, appropriate for most Standard New adjustment measuring media. • New adjustment: Start new adjustment to the current medium.
  • Page 68 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Switching threshold Numerical entry Menu visible when ‘New adjustment‘ is selected in the ‘DLR Mode’ parameter. Switching threshold for turning off the ‘Empty pipe’...
  • Page 69 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu Select each different line displayed for the process indicators in Display this submenu. You can also adapt the contrast of the display to local conditions by pressing the arrow keys.
  • Page 70 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Display 1st line TB VolFlow Value. Displays the value for Volume_Flow TB VolFlow Value (Transducer block Index 17). TB VolFlow Status. Displays the status of Volume_Flow...
  • Page 71 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Display 1st line FB TOT1 Total. Displays the total value for the totalizer block. The displayed unit is UNIT_TOTAL. TBT → Value FB TOT1 Status. Displays the current mode of the particular block and the status of the output variables (Total.
  • Page 72 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Display 1st line Displays the value or status of the totalizer (TB Fourth_Value, TB TotalDiffValue Index 31). Display 1st line Displays the value or status of the Out parameter for the TB AI1 Out.
  • Page 73 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Display 1st line Displays the value or status of the parameter Trk_Val for the PID Trk_Value function block PID. Display 1st line The status is displayed in plain text format, the substatus in TB VolF GOOD0 numeric form after the status.
  • Page 74 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu Alarm Min. alarm Numerical entry Range limit for the Min. Alarm 0% – Max. Alarm of configured 0% – Max. Alarm measuring range.
  • Page 75 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Totalizer → F Numerical entry Display or input the forward totalizer value. 0.0 kg/h 0 ... 9999999 Overflow ← R Read only Overflow totalizer max. 65535. 1 overflow = pulse totalizer 9,999,999 units.
  • Page 76 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Iout high Alarm Numerical entry Set the current output value during High Alarm condition. If error 3 (flow rate > 103 %) occurs, ‘High Alarm’ is always signaled. No 21.80 mA...
  • Page 77 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu Progr. Input/output Switch input No function The contact input function is not displayed for PROFIBUS PA or Totalizer reset FOUNDATION Fieldbus. No function Ext. cut-off Selection of the function for switch input terminals 81/82.
  • Page 78 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu Identifier Curr. Variant Read only Displays the pulse output and communication configuration for Active pulse without the shipped model. HART...
  • Page 79 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark HART TAG User-defined text Unique identifier for unit using HART TAG number. Max. 8- character TAG number (PCKASCII string). Only capital letters are ‘HART TAG’ recognized, no special characters can be used.
  • Page 80 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark PA Address Numeric entry 2. PROFIBUS PA communication 0 - 125 Only available if PROFIBUS PA version was ordered. Display of the slave address. Factory setting 126 (valid addresses 0 - 125).
  • Page 81 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark AI Channel Channel setting for AI block. When setting the channel, the unit TB Flow Value for the channel is also copied to the AI block (from OUT_SCALE.
  • Page 82 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Dip Switch Hardware switch. IdentNo Selector There is a 10-position DIP switch in the transmitter. It can be accessed after opening the cover of the housing. The switch position is displayed on the device in the data link submenu.
  • Page 83 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Note Submenu Function test Once the self-test function is initiated, the transmitter no longer operates in online mode, i.e., the outputs no longer track the flowrate. Memory Test Test the memory.
  • Page 84 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Simulation Mode On/Off function for Simulation mode. Before operation with flow, a flowrate can be simulated. The output values correspond to the simulated flowrate entered. The information ** Q Simulation** is displayed in the lower line of the display.
  • Page 85 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu In this menu you can set minimum and maximum values for each measurement value. Depending on the selected Alarm Settings configuration, you can select for no message, a warning, or an error message to be displayed, if the value falls below or exceeds this threshold.
  • Page 86 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu Set the time-out limits and alarm behavior for values over or under the coil resistance. Alarm Coil Resist Notice: To correctly display the coil resistance or coil temperature, an adjustment is required or the cable length must be entered.
  • Page 87 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu Set the time-out limits and alarm behavior for values over or Alarm Coil Temp under the coil temperature. Notice: To correctly display the coil resistance or coil temperature, an adjustment is required or the cable length must be entered.
  • Page 88 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu Set the time-out limits and alarm behavior for values over or Alarm E1 Voltage under the electrode AC voltage for electrode E1.
  • Page 89 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu Set the time-out limits and alarm behavior for values over or Alarm Elec Bal under the electrode balance. The electrode balance is calculated as the ratio between the electrode AC voltages E1/E2.
  • Page 90 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu Set the time-out limits and alarm behavior for values over or Alarm SNR under the signal-to-noise ratio. Min. value 0 ... 100 Lower range limit for alarm.
  • Page 91 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu Sets the status of all alarms to ‘Off’ and the alarms to the Alarm Factory Set default values. Accept Yes, exit via C/CE Yes → Enter Submenu Wired-on.
  • Page 92 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu Preselect the diagnostic measurement values that you want to display and manage in the Fingerprint data. Fingerprint Submenu Assign the rate for Fprt1. The display line for the process Fprt1 indicator is assigned in the submenu.
  • Page 93 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu Import the current data set in a Fingerprint. Transfer As Product1 Copies the current data set in the Fingerprint ‘as Product1’. Accept Yes, exit via C/CE Yes →...
  • Page 94 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark Submenu Enter the length of the signal cable. Notice: Information must be entered to calculate the coil CabLength resistance / coil temperature.
  • Page 95 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Submenu / parameter Value range Remark Submenu Status Error register After calling up the error register, the error register text is displayed with the number of pending errors. Press ENTER Amount: 1 again to display the pending errors with error number and text.
  • Page 96 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Parameter descriptions Submenu / parameter Value range Remark WMx ---------- WMi ---------- ConWarn ----- ----- ConErr--------- Submenu Syst. Adjust Start System Zero Manual Check zero, if necessary (when adapting an older flowmeter Autom, adjustment sensor).
  • Page 97: Additional Information Regarding Use Of Enhanced Diagnostic Functions

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Additional information regarding use of enhanced diagnostic functions Additional diagnostic functions are available in combination Determining the coil DC resistance with sensors SE41F, SE21 and SE21F with nominal diameters > DN 8 and larger. The following section describes how to determine individual values.
  • Page 98 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Additional information regarding use of enhanced diagnostic functions Determining the insulation resistance for the coil Determining the coil temperature The coil temperature is a factor of the ambient and fluid temperatures.
  • Page 99 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Determining the E1 and E2 electrode AC voltage Determining the electrode balance E1 ≥ E2 → EB = E1 < E2 → EB = (-) Figure 57 Primary signal for determining the electrode balance.
  • Page 100 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Additional information regarding use of enhanced diagnostic functions Determining the signal-to-noise ratio Determining the maximum DAC value Driver 1 Signal from the sensor 2 Filtered signal Illustration58: Figure 60 Detect changes in the measuring medium, e.g., gas bubbles,...
  • Page 101: Recommended Settings For Diagnosis Limit Values

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Recommended settings for diagnosis limit values The values indicated are only intended as a rough guide and may need to be adapted in line with on-site conditions. Parameter Minimum value Maximum value Electrode voltage 1 These values depend on the flowrate, so no recommendations can be made here.
  • Page 102 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Additional information regarding use of enhanced diagnostic functions Parameter Minimum value Maximum value Accidental coil ground 10 MΩ 99.9 MΩ DAC max Design level of the flowmeter sensor Nominal diameter DN 1 to2 (1/25 to1/12”)
  • Page 103: Displaying The Diagnostic Values

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Displaying the diagnostic values Measured values A maximum of four diagnostic values can be displayed (Fprt1, Fprt2, Fprt3, Fprt4). These values are selected in the submenu Diagnosis / Fingerprint / Fprt1 - 4. In addition to the type of measured value, the desired data set should also be set. This combination of settings can be used to display all stored values.
  • Page 104 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Additional information regarding use of enhanced diagnostic functions When displaying the operating hours / log time, the ID code combines data set and type without underscore. Data set Type...
  • Page 105 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Diagnostic warning and error messages All values acquired during diagnostics or a wiring error can trigger warnings or error messages. Warnings are displayed in the 4th display line only. In case of an error, in addition to the signal in the 4th display line, the switch output (‘General alarm’...
  • Page 106: Readjusting The Coil Temperature

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Additional information regarding use of enhanced diagnostic functions Readjusting the coil temperature If a readjustment is required, make sure that the sensor and coil are relatively close to ambient temperature. You might need to allow the sensor to cool off overnight.
  • Page 107: Software History

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Software history For transmitters without communication or HART protocol Software D200S021U01 Software version Type of changes Documentation / Supplements B.10 Original software − B.11 Improve min. contrast limit. − After changing from 50 → 60 Hz the system data now displays the correct frequency.
  • Page 108: For Transmitter With Profibus Pa Communication

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … Software history For transmitter with PROFIBUS PA communication Software D200S021U02 Software version Type of changes Documentation/Supplements B.11 Original software. − B.14 Shortened Finnish texts. − Aut. Simulator detection for counter management improved; FRAM management improved.
  • Page 109: S4 Operation With Older Sensor

    A system zero adjustment must be performed with a full pipeline at standstill (0 m/s). Note If no values are listed for the reference voltage on the name plate, you can request this information from ABB Service. Please provide order number with your request. e-mail: parts-repair-goettingen@de.abb.com...
  • Page 110 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 8 Operation … S4 operation with older sensor WARNING Danger due to electric current! When the housing is open, EMC protection is impaired and there is no longer any protection against accidental contact.
  • Page 111 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Type of flowmeter sensor, Nominal diameter DN Connection board with FRAM Version Coil current supply via: Reference voltage version level voltage splitter (switch S903 must be closed) SE2_, SE4 1 to 1000 With sensor calib. value...
  • Page 112: Diagnosis / Error Messages

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 9 Diagnosis / error messages Overview of error states and alarms State / Error Flow rate Notification Current Pulse output Switch output Message with indicator with simulation output HART Collective Min Alarm Max...
  • Page 113: Error Messages During Operation And With Data Entry

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Error messages during operation and with data entry The error messages listed below include explanations of the error codes shown in the display. When entering information, the error codes 0 to 6, A, B, C, D, E, G do not appear.
  • Page 114 1) Replacing a defective FRAM. If the FRAM is defective and commissioning cannot be performed, a new FRAM can be requested from the Göttingen plant. To properly process requests, you must include the ABB order number and device number of the sensor. After installing the FRAM and switching on the power...
  • Page 115: Warning Messages During Operation

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Warning messages during operation Warning code and ID letter Priority Description Possible cause Corrective action Warning: 1 Before operation with flow, a flowrate can be Simulation mode on. After completing the simulation Q Simulation simulated.
  • Page 116 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 9 Diagnosis / error messages … Warning messages during operation Warning code and ID letter Priority Description Possible cause Corrective action Warning: 10 If the flow direction is forward, the warning is...
  • Page 117: 10 Maintenance / Repair

    Note The electronic components of the printed circuit board can be When sending the sensor for repair to the head office of ABB AG, damaged by static electricity (observe ESD guidelines). complete the return form in the appendix and include with •...
  • Page 118: Replacing The Transmitter

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 10 Maintenance / Repair Replacing the transmitter The transmitter plug-in unit can be replaced without loss of function for nominal diameters DN 3 to DN 1000. When replacing the FRAM-calibrated flowmeter sensor...
  • Page 119: Returning Devices

    Both messages can be displayed simultaneously. purposes: If this occurs, the following error is displayed: All devices delivered to ABB must be free from any hazardous • Error C – for the external FRAM, the FRAM thus must be materials (acids, alkalis, solvents, etc.).
  • Page 120: 11 Recycling And Disposal

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 11 Recycling and disposal Dismounting Disposal WARNING Note Products that are marked with the adjacent symbol Risk of injury due to process conditions. may not be disposed of as unsorted municipal waste The process conditions, for example high pressures and (domestic waste).
  • Page 121: 12 Spare Parts List

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 12 Spare parts list Note Spare parts can be ordered from ABB Service. www.abb.com/contacts Fuses for transmitter electronics WARNING Danger due to electric current! When the housing is open, EMC protection is impaired and there is no longer any protection against accidental contact.
  • Page 122: Spare Parts For Transmitter S4

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 12 Spare parts list Spare parts for transmitter S4 Field mount housing Figure 68: Field mount housing Item Designation Ordering number Transmitter (100 to 230 V AC) without HART 3KXF002961U0100 Transmitter (100 to 230 V AC) with HART...
  • Page 123: Spare Parts For Sensor

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Spare parts for sensor Terminal box stainless steel DN 3 to DN 100 Terminal box for SE21, standard Terminal box for SE21, with preamplifier Figure 69: Stainless steel terminal box Item Designation Ordering number Terminal board standard >...
  • Page 124: Terminal Box, Aluminum Dn 3 To Dn 1000

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 12 Spare parts list … Spare parts for sensor Terminal box, aluminum DN 3 to DN 1000 Figure 70: Aluminum terminal box Item Designation Ordering number Connection board, standard > DN 8...
  • Page 125: 13 Specification

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 13 Specification Sensor SE41F Note The device data sheet is available in the ABB download area at Temperature graph www.abb.com/flow. Measuring accuracy Reference conditionsin accordance with EN 29104 Measuring medium temperature 20 °C (68 °F) ±2 K Ambient temperature 20 °C (68 °F) ±2 K...
  • Page 126: Min. Permissible Pressure As A Function Of Measuring Medium Temperature

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 13 Specification … Sensor SE41F Min. permissible pressure as a function of measuring Process connection material medium temperature Parts Standard Others Liner Nominal diameter Flange Operation Operation mbar abs DN 3 to DN 15...
  • Page 127: Storage Temperature

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Storage temperature −20 to 70 °C (−4 to 158 °F) IP rating in accordance with EN 60529 IP 65/IP 67 IP 68 (option) Pipe vibration according to EN 60068-2-6 Transmitter • In the range of 10 to 55 Hz, max. deflection 0.15 mm Sensor •...
  • Page 128 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 13 Specification … Sensor SE41F JIS 10K-B2210 flange Nominal Material PS [bar] diameter 32 to 400 Stainless steel −25 to +180 °C (1¼ to 16”) (−13 to +356 °F) 32 to 400 Steel −10 to +180 °C...
  • Page 129: Sensor Se21 / Se21F

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Sensor SE21 / SE21F Minimum permissible absolute pressure Sensor material Liner Nominal diameter Liner Electrode material Electrode design Operation Operation mbar abs °C Standard Others Standard Others 3 to 100 ≤ 130 °C Hast.-C4...
  • Page 130: Storage Temperature

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 13 Specification … Sensor SE21 / SE21F Storage temperature Material loads for process connections −25 to 70 °C (-13 to 158 °F) Limits for allowable fluid temperature (TS) and allowable pressure (PS) are a function of the liner and flange material used (see the factory tag and name plate of the unit).
  • Page 131 FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E JIS B2210−10K wafer type Material load for wafer type design model SE21W Liner: PFA wafer type Nominal Material diameter DN [bar] 32 to 100 1.4404 (316 L), −40 to 130 °C (1¼ to 4”) 1.4435 (316 L),...
  • Page 132: Transmitter

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E … 13 Specification Transmitter Vibration Meas. range Any flow range whose 100% value corresponds to In accordance with IEC 60068-2-6 (03/95), grouping of devices a flow velocity between 0.5 m/s and 10 m/s can be according to table C2 for general industry applications.
  • Page 133: 14 Additional Documents

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 14 Additional documents Note All documentation, declarations of conformity, and certificates are available in ABB's download area. www.abb.com/flow Dimensions in the Datasheet Trademarks HART is a registered trademark of FieldComm Group, Austin, Texas, USA Modbus is a registered trademark of Schneider Automation Inc.
  • Page 134: 15 Appendix

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E 15 Appendix Overview of setting parameters and technical design Measuring point: TAG no.: Sensor model: Transmitter type: Order no.: Device no.: Order no.: Measuring medium temperature: Voltage supply: Lining: Electrodes: Exciter frequency: System zero point:...
  • Page 135: Return Form

    FSM4000 ELECTROMAGNETIC FLOWMETER | OI/FSM4000-EN REV. E Return form Statement on the contamination of devices and components Repair and/or maintenance work will only be performed on devices and components if a statement form has been completed and submitted. Otherwise, the device/component returned may be rejected. This statement form may only be completed and signed by authorized specialist personnel employed by the operator.
  • Page 136 We reserve the right to make technical changes or modify the contents of this document without prior notice. With regard to purchase orders, the agreed particulars shall prevail. ABB does not accept any responsibility whatsoever for potential errors or possible lack of information in this document.

Table of Contents
