- Page 1 ENGLISH ® DIGORA Optime Digital intraoral imaging plate system User Manual 208396 rev. 2...
- Page 3 SOREDEX. The original language of this manual is English. SOREDEX reserves the right to make changes in specification and features shown herein, or discontinue the product described at any time without notice or obligation.
- Page 4 ® DIGORA Optime...
-
Page 5: Table Of Contents
Table of Contents Introduction........................1 1.1 Unit with accessories .................... 1 1.2 System setup ......................2 1.3 Controls and indicators ..................3 Basic use ........................5 2.1 Imaging plate packing ................... 6 2.2 Taking and processing an image ................7 2.3 Exposure guidelines.................... - Page 6 Installation of the imaging plate system ..............33 6.1 Positioning the unit....................33 6.2 Positioning the PC/network switch ..............33 6.3 Connecting the unit to a PC / LAN ..............33 6.3.1 Direct connection method (uses the unit s/n)..................34 6.3.2 IP method (using the unit IP address)............
-
Page 7: Introduction
1 Introduction Introduction SOREDEX DIGORA Optime system is intended to be ® ® used only dentist other qualified dental professionals to process x-ray images exposed to the imaging plates from the intraoral complex of the skull. 1.1 Unit with accessories... -
Page 8: System Setup
Optional local network switch (not included) Optional workstations (WS) computers (not included) Kensington security slot for securing unit in its place For more details of installing and setting up the system see chapters Installation and Technical specification. SOREDEX 208396 rev 2... -
Page 9: Controls And Indicators
Light dim and brighten again in sequence: Unit is in standby mode (Press ON/OFF or START key OR activate from imaging software). START key Manual start selected Unit ready (Insert imaging plate press START to begin processing) 208396 rev 2 SOREDEX... - Page 10 - Imaging plate wrong way Remove protective cover round Error number Manual plate removal selected (Remove plate) Waiting for 2nd size 3 plate to make Comfort Occlusal™ 4C image (Insert 2nd size 3 OR press START to cancel) SOREDEX 208396 rev 2...
-
Page 11: Basic Use
Unpacked imaging plate has been stored in dark (not exposed to ambient light) for over 24 hours By doing this, the erasing procedure will remove any fogging collected to the imaging plate due to natural background radiation. 208396 rev 2 SOREDEX... -
Page 12: Imaging Plate Packing
2 Basic use 2.1 Imaging plate packing Note! Do the packing before the patient enters the reception room, but no more than 24 hours before. SOREDEX 208396 rev 2... -
Page 13: Taking And Processing An Image
Power on the unit. Launch the imaging application software. Select a patient. Make an exposure. Check that the ready arrow is lit in the unit. Unpack the imaging plate. Note! Ambient light harms the image information. 208396 rev 2 SOREDEX... - Page 14 Unit will not start the processing before removing the cover. Remove the cover. The image appears on the imaging application screen. Note! Process within one hour after exposure. Processed imaging plate is ready to be packed and exposed again. SOREDEX 208396 rev 2...
-
Page 15: Exposure Guidelines
2 Basic use 2.3 Exposure guidelines Recommended exposure values (s) for DC x-ray units. Exposure settings found good for F-speed (Insight) film can be used (for AC x-ray units increase exposure time by 30%). 208396 rev 2 SOREDEX... - Page 16 2 Basic use SOREDEX 208396 rev 2...
-
Page 17: Advanced Use
From the imaging application software you are using select unit Setup/Scanner page (for more instruction on how to access setup page review application software manual). 3.1.1 Status Shows the scanner type, firmware version and unit serial number. 208396 rev 2 SOREDEX... -
Page 18: Image Scanning
This results in images with less noise especially if short exposure times are used. 3.1.5 Image Processing - Noise Filtering Noise Filtering selected (recommended default), makes images smoother when they are taken at short exposure times. SOREDEX 208396 rev 2... -
Page 19: Retrieve Last Image
PC. 3.1.6 Scanner Unit Serial number Adds the unit serial number to all new images. 3.2 Settings See chapter Installation for more information on connecting the unit to a PC/LAN. 208396 rev 2 SOREDEX... -
Page 20: Workflow
• After Cover removal: after the imaging plate and protective cover have been inserted into the plate carrier, processing starts automatically when the protec- tive cover is removed. SOREDEX 208396 rev 2... -
Page 21: Touchless Operation
Not inserted at all Note! Unit turns off in manual mode if user is pressing ON/ OFF key regardless of imaging plate sensing in the plate carrier. 3.3.2 Touchless operation Note! This system does not support touchless operation. 208396 rev 2 SOREDEX... -
Page 22: Plate Eject Mode
3.4 Power options From the imaging application software you are using select unit Setup / Power options page. Standby after (seconds): Allows you to select the period of time the unit remains unused before it enters the SOREDEX 208396 rev 2... -
Page 23: Comfort Occlusal™ Projection Imaging (Not Included In Delivery)
Comfort Occlusal™ 4C projection image. Following text shortly describe how Comfort Occlusal™ 4C projection image is taken. For more information refer to instructions supplied with the Comfort Occlusal™ 4C kit. 208396 rev 2 SOREDEX... -
Page 24: Full Mouth Series (Fms) Imaging
Comfort Occlusal™ 4C projection images. 3.6 Full Mouth Series (FMS) imaging For US only. To fully support FMS template feature in imaging application SW magnetic FMS template for 18 imaging plates is available (PN0202398). SOREDEX 208396 rev 2... -
Page 25: Accessories Introduction
Accessories introduction ® Note! USE ONLY GENUINE SOREDEX ACCESSORIES to ensure the optimum clinical results, safe use of the system and long service life for the imaging plates. Note! Never use hygiene accessories more than once. 4.1 Hygiene accessories Protective covers... -
Page 26: Imaging Plates
Comfort Occlusal™ 4C, all with film-like usability. IDOT™ imaging plates (optional) have individual identification marking that appear on the images. Standard (STD) imaging plates has no identification mark on the sensitive side of the plate. SOREDEX 208396 rev 2... -
Page 27: Imaging Plate Storage Box
(250 F) or 134 °C (272 F). 4.4 Holders It is recommended to use imaging plate holders to ensure accurate patient positioning and consistently good image quality. Problems caused by manually positioning the imaging plate include: • incorrect vertical alignment • distortion 208396 rev 2 SOREDEX... -
Page 28: Occlusal Projection Imaging With Comfort Occlusal™ 4C Start-Up Kit And Accessories
Each individual wipe package has clear illustrated cleaning instructions Note! Unsuitable cleaning solutions/methods may damage or destroy the imaging plate or leave residues (from glycerol etc.) on the sensitive surface, which may appear on the im- ages. SOREDEX 208396 rev 2... -
Page 29: Imaging Plate Care
Single use only! You can bend. Do not fold or bend excessively. Touch the edges Do not touch the only. sensitive surface. Do not scratch. Do not stab. Avoid moist and Do not sink. water. 208396 rev 2 SOREDEX... -
Page 30: Imaging Plate Cleaning
Avoid dust. temperature. Avoid direct Not household sunlight and waste. UV radiation. 4.9 Imaging plate cleaning Use ONLY > 70% Ethanol Do not apply Ethanol directly on the plate. Apply Ethanol on lint free soft fabric. SOREDEX 208396 rev 2... - Page 31 4 Accessories introduction Wipe the plate gently. Wipe dry or let dry for 1 minute. Pack the plate. Note! Pack the imaging plates in advance, but no longer than 24 hours before the exposure. 208396 rev 2 SOREDEX...
- Page 32 4 Accessories introduction SOREDEX 208396 rev 2...
-
Page 33: Introduction To Imaging Plate Technique
Visible light clears the image information from the plate, so it must be protected from ambient light between exposure and processing. Even when packed properly, the image starts to fade out slightly within time. 208396 rev 2 SOREDEX... -
Page 34: Hygiene Accessories
Imaging plate is inserted together with the protective cover all the way into the plate slot. Magnet on the plate carrier grabs the imaging plate. Processing starts automatically after you remove the protective cover. Dispose protective cover after single use. SOREDEX 208396 rev 2... -
Page 35: Processing
The imaging plate is dropped out of the unit. X-ray exposures and processing are not aging the imaging plate, so it is re-usable hundreds of times. In practice, mechanical wearing limits the service life of the plate. 208396 rev 2 SOREDEX... -
Page 36: Background Radiation
Imaging plates gather radiation also during transportation from the manufacturer. Therefore it is recommended to perform initial erasing for the new plates. This means that all imaging plates should be processed once prior to use. SOREDEX 208396 rev 2... -
Page 37: Light
Ambient light is good when storing the imaging plates: it keeps the plates clean from background radiation “fogging”. Note! Ambient light is harmful for the image information on the plate between the exposure and processing. Note! UV light is harmful for the imaging plates. 208396 rev 2 SOREDEX... - Page 38 5 Introduction to imaging plate technique SOREDEX 208396 rev 2...
-
Page 39: Installation Of The Imaging Plate System
The procedure for connecting the unit to a single PC or several PCs in a local area network (LAN) is exactly the same except that every PC in the LAN needs to be given a unique ID number. 208396 rev 2 SOREDEX... -
Page 40: Direct Connection Method (Uses The Unit S/N)
PC: Install the imaging application software to be used in the PC(s). PC: Open the imaging application software and select the scanner setup window. PC: From the scanner setup window select the Settings tab to open the Scanner Connection page. SOREDEX 208396 rev 2... -
Page 41: Ip Method (Using The Unit Ip Address)
Note! The PC and the unit must be in the same subnet when setting the IP address of the unit. PC + Unit: Press and hold down the Start key on the unit and then click Send to Scanner on the settings window. 208396 rev 2 SOREDEX... -
Page 42: Multiconnect
Check the installation by starting image capture using the imaging application software. If the Use Multicon- nect was selected the Workstation identifier of the PC (1 - 4) being used appears on the unit user interface. SOREDEX 208396 rev 2... -
Page 43: Other Devices
The PC connected to the unit should not be used in the patient environment. The minimum horizontal distance between the patient and the PC is 1.5 m (4.5 ft). The minimum vertical distance between the patient and the PC is 2.5 m (6.5 ft). 208396 rev 2 SOREDEX... - Page 44 6 Installation of the imaging plate system SOREDEX 208396 rev 2...
-
Page 45: Troubleshooting
- Plate has been stored in the bag or in dark too long ■ Use dedicated imaging plate storage box to avoid these. ■ Alternatively, perform initial erasing for the plate(s) if they have been stored in dark and/or near X-ray unit. 208396 rev 2 SOREDEX... -
Page 46: Application Errors
Too long exposure time/too high X-ray dose. Too light, noisy image with decreased diagnostic value. Showing only part of the image. Showing wrong size of the image (Image smaller than imaging plate). ■ Too short exposure time / Too low X-ray dose. SOREDEX 208396 rev 2... - Page 47 Cone cut X-ray beam has exposed only part of the imaging plate surface. Image may show on different (smaller) size than the imaging plate used. ■ Check exposure procedure. ■ Use of proper holder avoids this. 208396 rev 2 SOREDEX...
- Page 48 Geometry distortion Improper patient positioning. ■ Use proper holders to avoid this. Note! Never do accurate measurements on intraoral im- ages unless having known size of reference object in the imaging plane. SOREDEX 208396 rev 2...
-
Page 49: Imaging Plate Wearing
Can be caused by moisture or improper cleaning. Clean the plate(s), ONLY >70% ETHANOL MUST BE USED. Replace if cleaning does not help. Pay attention on handling, storing and maintenance. Ensure that only the genuine hy- giene accessories are used. 208396 rev 2 SOREDEX... -

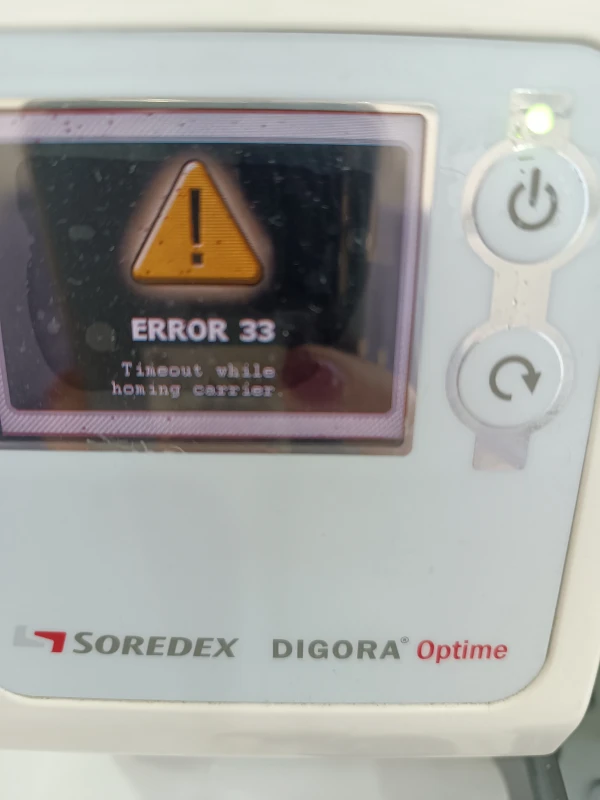

Page 50: Error Messages
/ not detect- K400 control panel error (control panel button defected / stuck) 1234 Other, see driver status window Turn power off and on to see if the unit recovers. If not, please contact local dealer or distributor. SOREDEX 208396 rev 2... -
Page 51: Other Information
Never use unfamiliar or untested cleaning agents. If you are not sure what the cleaning agent contains, DO NOT use it. If you use a spray cleaning agent DO NOT spray it directly into the unit door. 208396 rev 2 SOREDEX... -
Page 52: Disinfecting The Unit
The unit includes some or all of the following parts that are made of or include materials that non-environmentally friendly hazardous: • electronic circuit boards • electronic components • imaging plates SOREDEX 208396 rev 2... -
Page 53: Technical Specifications
USA only Federal law restricts this device to sale by or on the order of a dentist or other qualified professional. Manufacturer SOREDEX, PaloDEx Group Nahkelantie 160 (P.O. Box 20) FIN-04300 Tuusula, FINLAND Quality system In accordance with ISO13485 and ISO9001... - Page 54 +10°C - +40°C, 30 – 90 RH%, 700 – 1060 mbar -10°C – +50°C, 0 – 90 RH%, Storage / transportation environment 500 – 1080 mbar Integrated Kensington security slot for securing unit Other with Microsaver series locks. SOREDEX 208396 rev 2...
-
Page 55: System Requirements And Connections
Do not disconnect unit PSU adapter before network is operational and image has been transferred to imaging application software. For more details of the hardware requirements running the imaging application software please refer to the user manual of it. 208396 rev 2 SOREDEX... -
Page 56: Imaging Plate Specifications
Imaging plates are industrial waste and must be disposed of in accordance with local and national regulations concerning the disposal of such material. Never use damaged imaging plates. * High resolution mode image sizes are approximately half of the values in the table. SOREDEX 208396 rev 2... -
Page 57: Hygiene Bag Specifications
MYYXX). Extended storage time or exceeding the specified storage conditions may compromise the performance of the adhesive tape and/ or the plastic material from which the hygiene bags are made of. Disposal Observe relevant national requirements. 208396 rev 2 SOREDEX... -
Page 58: Electromagnetic Compatibility (Emc) Tables
CISPR 11 ly connected to the public low-voltage power supply Harmonic Not applicable network that supplies buildings used for domestic emissions purposes. IEC 61000-3-2 Voltage Complies fluctuations/ flicker emissions IEC 61000-3-3 SOREDEX 208396 rev 2... - Page 59 (50/60 Hz) of a typical location in a typical magnetic field commercial or hospital environ- IEC 61000-4-8 ment. NOTE: U is the AC mains voltage prior to application of the test level. 208396 rev 2 SOREDEX...
- Page 60 RF compliance level above, the DXR-60 should be observed to verify normal op- eration. If abnormal performance is observed, additional measures may be necessary, such as reorienting of relocating the DXR-60. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. SOREDEX 208396 rev 2...
- Page 61 NOTE 1. At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2. These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. 208396 rev 2 SOREDEX...
- Page 62 9 Technical specifications SOREDEX 208396 rev 2...
-
Page 63: Symbols And Labeling
Indoor use Dangerous voltage Laser radiation Direct current power supply unit inlet Ethernet connector CE (0537) Symbol MDD 93/42/EEC This unit is marked according to the Medical Device Directive 93/42/EEC (if the unit contains the CE mark) 208396 rev 2 SOREDEX... -
Page 64: Main Label
August 2012 CONFORMS TO UL STD 60601-1. 24 V 30 VA CERTIFIED TO CSA STD C22.2 NO 601.1. IEC 60601-1 Rx only 3155129 Manufactured by SOREDEX, PaloDEx Group Oy Nahkelantie 160, FI-04300 TUUSULA, Finland Made in Finland SOREDEX 208396 rev 2... -
Page 65: Warnings And Precautions
In order to maintain safe and correct functioning of the unit, only the power supply unit (PSU) delivered with the unit or distributed by authorized dealers. Please refer to the unit technical specifications for a list of the PSUs. 208396 rev 2 SOREDEX... - Page 66 When network is opera- tional again, image is automatically transferred to imaging application software. Do not disconnect unit PSU adapter before network is operational and image has been transferred to imaging application software. SOREDEX 208396 rev 2...
