Getting started with AC500 V3 products
Hardware AC500 V3 > Configuration for example projects
Product name
CI502-PNIO
TU508-ETH
TA524
Electrical con-
nection

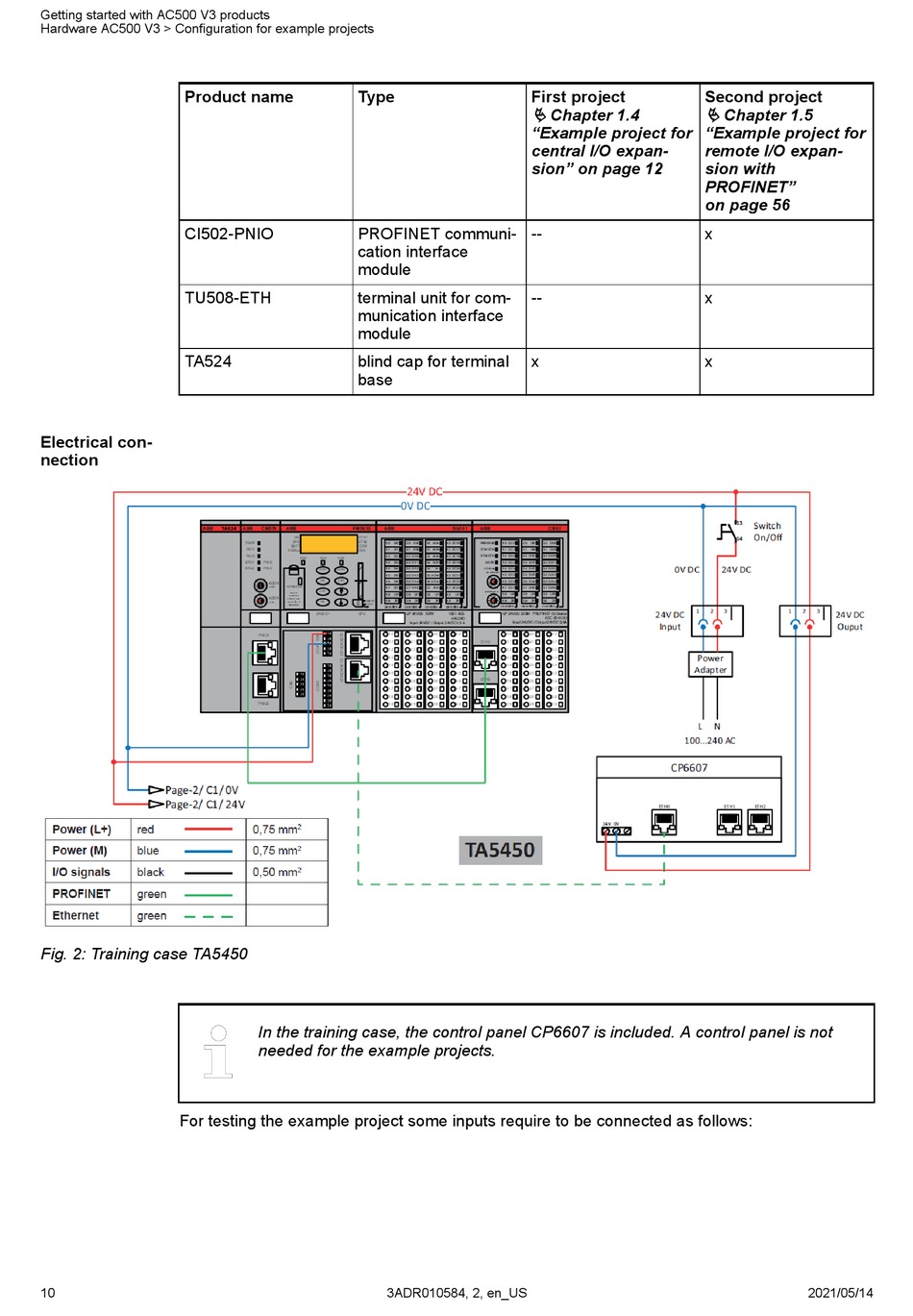

Fig. 2: Training case TA5450
For testing the example project some inputs require to be connected as follows:
10
Type
PROFINET communi-
cation interface
module
terminal unit for com-
munication interface
module
blind cap for terminal
base
In the training case, the control panel CP6607 is included. A control panel is not
needed for the example projects.
