Sealey VS0041 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained,
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
!Follow workshop Health & Safety rules, regulations and conditions when using this equipment.
" WARNING! Disconnect from air supply before changing accessories or servicing.
! Maintain the equipment in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
dangerous and will invalidate the warranty.
" WARNING! Check that correct air pressure is maintained and DOES NOT exceed 100psi.
! Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.
! Wear approved safety gloves and eye and ear protection.
! Keep VS0041 clean and in good working order for best and safest performance.
# DO NOT use the VS0041 for a task it is not designed to perform.
" WARNING! DO NOT use VS0041 if damaged or thought to be faulty. Contact your local service agent.
# DO NOT drop, throw or abuse the VS0041.
# DO NOT carry the VS0041 by the air hose, or yank the hose from the air supply.
# DO NOT operate the VS0041 if you are tired or under the influence of alcohol, drugs or intoxicating medication.
# DO NOT direct air from the air hose at yourself or others.
! Keep children and unauthorised persons away from the work area.
! When not in use disconnect from air supply and store in a safe, dry, childproof location.
" WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that
may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied by
the operator.
2. INTRODUCTION & SPECIFICATION

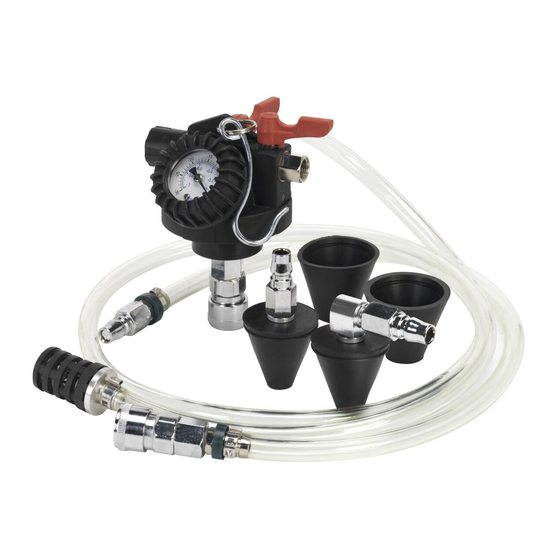

Eliminates the introduction of bubbles and air-locks into the cooling system and dramatically reduces system filling time. No more time-consuming
system bleeding. Reduces fluid waste and messy spills. Automatically conducts system leak test. Low profile design broadens application range
especially for use on MPVs where lower windscreen lip might obstruct other tools. Simple operation requires workshop air supply and does not
require fiddly interchange of vacuum and fluid hoses.
Air Pressure (max) . . . . . . . . . . . . . . 100psi (6.9 bar)
Air Pressure (min) . . . . . . . . . . . . . . . . 80psi (5.5 bar)
Air Consumption . . . . . . . . . . . . . . . . . . . . . . . 10cfm
Air Connection . . . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
Filling Hose Length . . . . . . . . . . . . . . . . . . . . 980mm
3. AIR SUPPLY
Recommended hook-up is shown in fig.2 overleaf.
3.1. Ensure that both coolant and vacuum taps are in the 'Off' position (fully to the left or right) when connecting the air supply. Fig.1 shows both
taps in the open position.
WARNING! Ensure that the air supply is clean and does not exceed 100psi. Too high an air pressure or unclean air will shorten the life
"
of the filler, due to excessive wear, and may be dangerous, causing damage and/or personal injury.
3.2. Drain the air tank daily.
3.3. Clean compressor air inlet filter weekly.
3.4. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose size should be 1/4" I.D.
and fittings must have the same internal bore.
3.5. Keep hose away from heat, oil and sharp edges. Check hose for wear and make certain that all connections are secure.
INSTRUCTIONS FOR:
COOLING SYSTEM FILLER
Model No:
give you years of trouble free performance.
fig.1
VS0041
COOLANT TAP
VACUUM TAP
VS0041 - 1 - 020707
