Summary of Contents for ring Video Doorbell 3

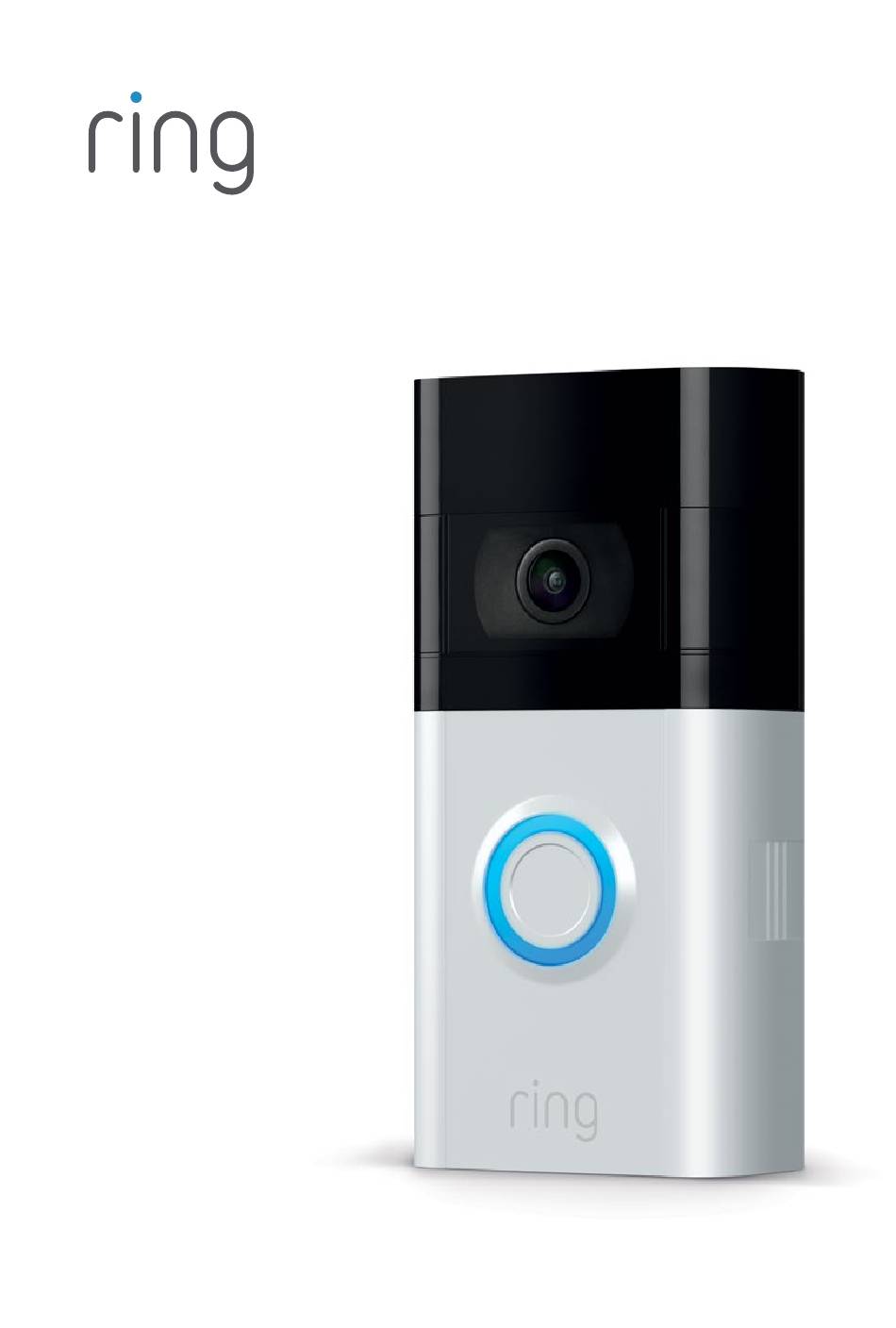

- Page 1 Video Doorbell 3...
- Page 2 1. Charge the Plug the battery in. First, fully charge the battery by plugging provided it into a power source using the provided orange cable. battery. The small light on top will glow green once fully charged. = Charged = Charging...
-
Page 3: Insert The Battery
2. Set up Insert the battery. After charging, insert the battery in the your Video bottom of your Video Doorbell until it clicks into place. Doorbell in the Ring app. - Page 4 The Ring app walks you through setting up and managing your Video Doorbell. In the Ring app, select Set Up a Device. Search for “Ring” in one of the app stores below, When prompted, select Doorbells, and or visit: ring.com/app follow the in-app instructions.
- Page 5 3. Install your Try it out! After setup, push the button on the front of Video your Video Doorbell to see video from the camera in the Ring app. Doorbell. Smile, you’re on camera!
- Page 6 Select your install height. Install Video Doorbell approximately four feet (1.20 metres) above the ground for optimal performance. If you’re connecting to existing doorbell wiring that’s higher than four feet, thus limiting where you can install your new Doorbell, use the provided wedge mount to angle your Doorbell down.
- Page 7 Device Settings > Chime Connection. and disconnect the wires. Also, consider purchasing a Ring Chime or Your Video Doorbell is Chime Pro, which allow you to hear Ring alerts compatible with doorbell from anywhere in your home. systems supplying 8-24 volts AC at 50 or 60Hz, 40VA max.
- Page 8 Steps for wiring to an existing doorbell Install the anchors. (optional) Connect the wires. (optional) If installing on stucco, brick, or concrete, Connect the wires coming out of your wall to mark 4 drill holes. Use the provided masonry the screws on the back of your drill bit to drill holes in your wall, then insert Video Doorbell.
- Page 9 Steps for wiring to an existing doorbell Attach the wire Screw it in. extensions. Feed all the wires (and the wire nuts, (optional) if you used them) into your wall and secure your Video Doorbell on the wall If you have trouble using four screws.
- Page 10 Install the Secure the faceplate. faceplate. Place one of the Lastly, insert one provided faceplates of the provided on your Video security screws into Doorbell by slotting the bottom, and it in at the top and tighten with the star- clicking it into place.
- Page 11 NZ +64 9 887 9871 For a list of all our customer support numbers, visit: ring.com/callus To review your warranty coverage, please visit www.ring.com/warranty. © 2020 Ring LLC or its affiliates. Ring and all related logos are trademarks of Ring LLC or its affiliates.
