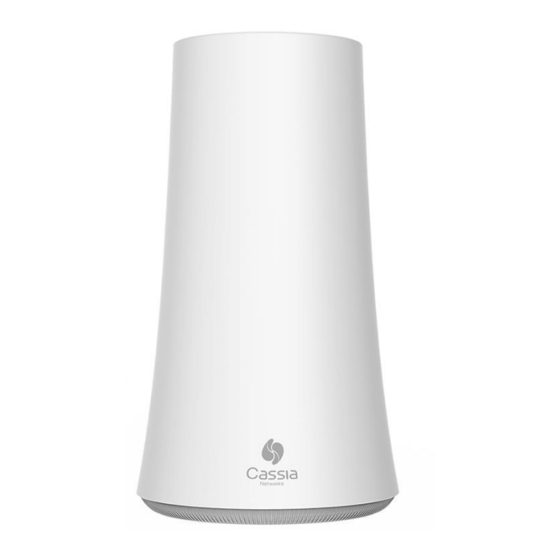

ABB Ability Cassia X1000 Installation Manual

Smart sensor bluetooth gateway
Hide thumbs Also See for Ability Cassia X1000:
Table of Contents

Advertisement

Quick Links

Download this manual
—
T EC H N IC A L D O CUM E NT
ABB Ability™ Smart Sensor Bluetooth
Gateway
Installation manual
DOCUMENT ID
9AKK107046A4620
© Copyright 2021 ABB. All rights reserved.
REV.
K
DATE
November 2021
®
LANG.
PAGE
EN
1/23

Advertisement

Table of Contents
loading

Related Manuals for ABB Ability Cassia X1000

Summary of Contents for ABB Ability Cassia X1000

  • Page 1 — T EC H N IC A L D O CUM E NT ® ABB Ability™ Smart Sensor Bluetooth Gateway Installation manual DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 1/23 © Copyright 2021 ABB. All rights reserved.

  • Page 2: Table Of Contents

    WIFI connection ......................15 USB mobile dongle connection ................... 16 Firewall configuration ....................17 Verifying the configuration ..................18 3 TROUBLESHOOTING ................. 19 DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 2/23 © Copyright 2021 ABB. All rights reserved.

  • Page 3: General

    AB B ABI LIT Y™ SM ART S ENSO R BL U ETOOTH ® G AT EWAY General The ABB Ability™ Smart Sensor gateway is used to upload the Smart Sensor data automatically to the Smart Sensor portal. The gateway needs to be configured for Internet access before it can start reading the Smart Sensors.

  • Page 4: Installation

    Smart Sensor Platform and all the existing subdomains must be whitelisted in the network for a successful communication and measurement report to the Portal. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 4/23 © Copyright 2021 ABB. All rights reserved.

  • Page 5: Recommended Location

    The recommended height for the gateway is 3-30 meters from ground level. Lower levels are also acceptable, but the gateway Bluetooth range might be shorter due to obstacles. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 5/23 © Copyright 2021 ABB. All rights reserved.
  • Page 6 If the gateway has trouble connecting to a specific Smart Sensor, it is recommended to rotate the gateway to point in that direction. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 6/23 © Copyright 2021 ABB. All rights reserved.

  • Page 7: Gateway Configuration

    As the gateway now supports two firmware versions, the UI is different between the old firmware (1.4.3) and the new firmware (2.1.0), the latter having more information about the current state of the gateway. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 7/23 © Copyright 2021 ABB. All rights reserved.
  • Page 8 AB B ABI LIT Y™ SM ART S ENSO R BLU ETOOTH ® G AT EWAY Figure 4 Cassia (Firmware 1.4.3) Status page Figure 5 Cassia (Firmware 2.1.0) Status page DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 8/23 © Copyright 2021 ABB. All rights reserved.

  • Page 9: Network Configuration - Firmware 1.4.3

    2.9 Verifying the configuration to check if the connection has been successfully set-up. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 9/23 © Copyright 2021 ABB. All rights reserved.

  • Page 10: Network Configuration - Firmware 2.1.0

    2.9 Veri- fying the configuration to check if the connection has been successfully set-up. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 10/23 © Copyright 2021 ABB. All rights reserved.
  • Page 11 AB B ABI LIT Y™ SM ART S ENSO R BLU ETOOTH ® G AT EWAY Figure 6 (Firmware 1.4.3) Basic page DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 11/23 © Copyright 2021 ABB. All rights reserved.
  • Page 12 AB B ABI LIT Y™ SM ART S ENSO R BLU ETOOTH ® G AT EWAY Figure 7 (Firmware 2.1.0) Basic page DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 12/23 © Copyright 2021 ABB. All rights reserved.

  • Page 13: Poe Connection

    Connection Priority: Wired IP Allocation: DHCP or Static (in case the IP address is given) Press Apply at the bottom of the screen. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 13/23 © Copyright 2021 ABB. All rights reserved.

  • Page 14: Lan/Ethernet Cable Connection

    Connection Priority: Wired IP Allocation: DHCP or Static (in case the IP address is given) Press Apply at the bottom of the screen. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 14/23 © Copyright 2021 ABB. All rights reserved.

  • Page 15: Wifi Connection

    Press the reset button at the bottom of the gateway for 10 seconds to reset the gateway to factory default values. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 15/23 © Copyright 2021 ABB. All rights reserved.

  • Page 16: Usb Mobile Dongle Connection

    (e.g. Check if Huawei can be used in the US) DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 16/23 © Copyright 2021 ABB. All rights reserved.

  • Page 17: Firewall Configuration

    Firewall should allow communication between the gateway and Access Controller, and gateway and Smart Sensor platform respectively (see required ports in section 2.1 Prerequisites for Installation). DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 17/23 © Copyright 2021 ABB. All rights reserved.

  • Page 18: Verifying The Configuration

    To verify TCP port open/close status select NetCat, add Address smartsen- sor.abb.com (or smartsensor.abb.com.cn in case of China), Protocol TCP, Timeout 2, Port 443 and press Start. Wait for the black screen with the result to appear below. If you receive a message containing the text “… 443 (https) open …”, the con- nection for measurement upload should work.

  • Page 19: Troubleshooting

    Check the used network firewall settings. The necessary ports need to be open for outbound communication. Check if the Router Web Security under Other tab is toggled OFF (see below). Figure 15 Router web security option DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 19/23 © Copyright 2021 ABB. All rights reserved.
  • Page 20 The fields must be completed as shown below, then click Start. It will take ~10 seconds for the result to be shown. Figure 16 SpeedTest tool DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 20/23 © Copyright 2021 ABB. All rights reserved.
  • Page 21 Basic Page. Change the mode from “AC Managed Router” to “Standalone Router”. Gateway will automatically reboot and is operational again within 30 to 60 seconds. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 21/23 © Copyright 2021 ABB. All rights reserved.
  • Page 22 Also, make sure that the address in the address bar does not contain “www.”, this could lead to the debugger not working properly and RSSI values to not be shown. DOCUMENT ID REV. DATE LANG. PAGE 9AKK107046A4620 November 2021 22/23 © Copyright 2021 ABB. All rights reserved.
  • Page 23 Debug Tool now starts to list all Bluetooth devices within its range. For all scanned devices the tool is showing the MAC address and RSSI value. Sometimes the name is not available, but it is listed if known. All ABB Smart Sensor MACs start with 50:31:AD.
