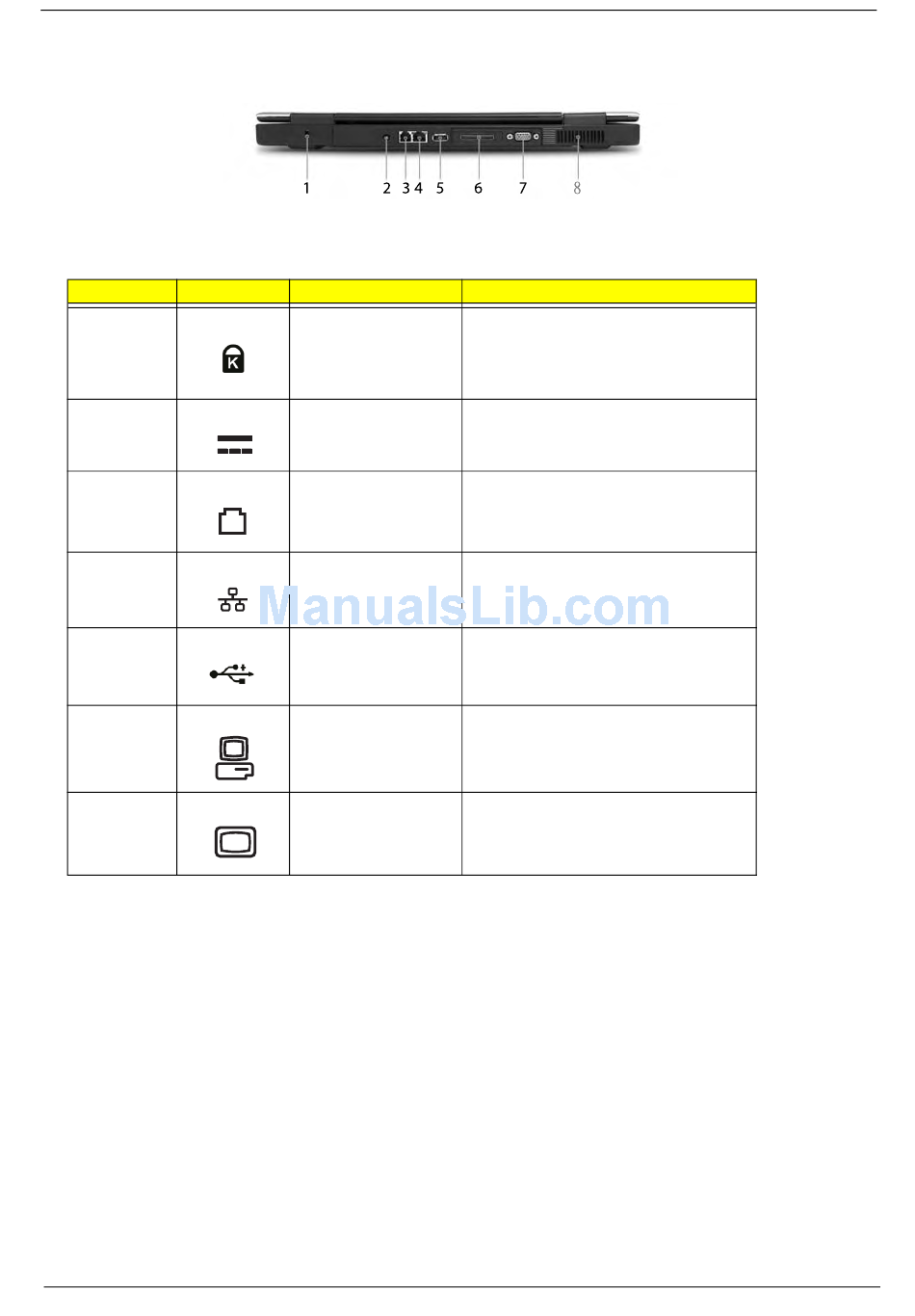

Rear Panel

#
#
1
2
3
4
5
6
7
Chapter 1
Icon Item
Icon Item
Security Keylock
Power jack
Modem jack (RJ-11)
Network jack
USB 2.0 port
124-pin Acer ezDock
connector (for
selected models)
External display port
Description
Description
Connects toa Kensington-compatible
computer security lock.
Connects to an AC adaptor.
Connects to a phone line.
Connects to an Ethernet 10/100/1000-
based network.
Connects to USB 2.0 devices (e.g., USB
mouse, USB camera).
Connects to Acer ezDock.
Connects a display device (e.g., external
monitor, LCD projector).
