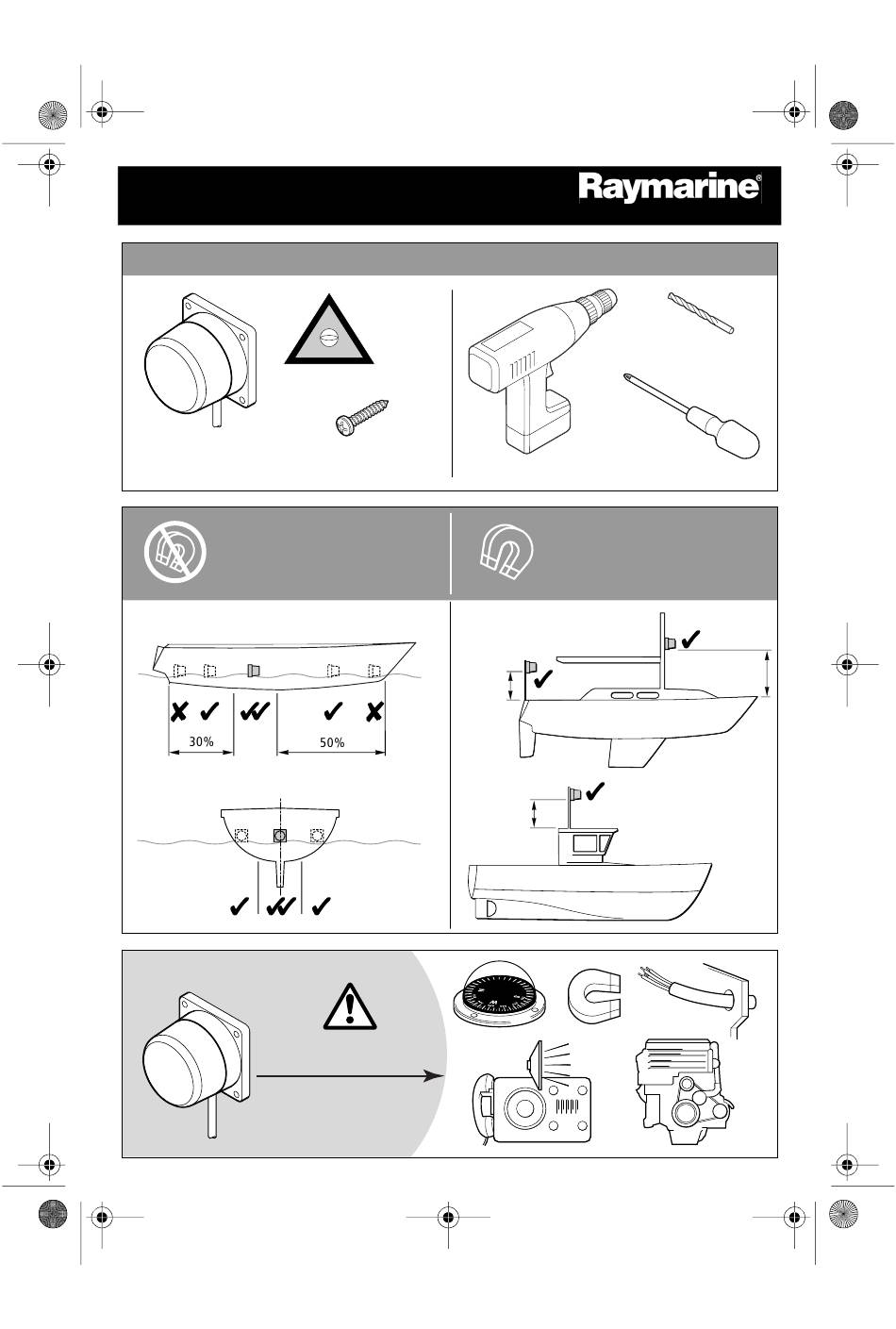

RAYMARINE FLUXGATE COMPASS
INSTALLATION GUIDE
Parts supplied
Fluxgate compass
with 8 m (26 ft) cable
Non-magnetic hulls
Coques non magnétiques
Aluminium-Rümpfe
Cascos no magnéticos
Scafi non magnetici
Min 1m (3ft 3in)
Tools Required
!
Compass
warning label
COMPASS AREA
No8 x 3/4 inch pan-head
self-tapping screws (x4)
www.raymarine.com
Power Drill
Magnetic hulls
Coques magnétiques
Stahlrümpfe
Cascos magnéticos
Scafi magnetici
1.2 m
(4 ft)
1.2 m
(4 ft)
1
3 mm (
/
inch) drill
8
Pozi-drive
screwdriver
D6268-1
1.8 m
(6 ft)
D6270-1
D6271-1
