ABB PVI-3.0-TL-OUTD Quick Installation Manual

ABB Solar inverters

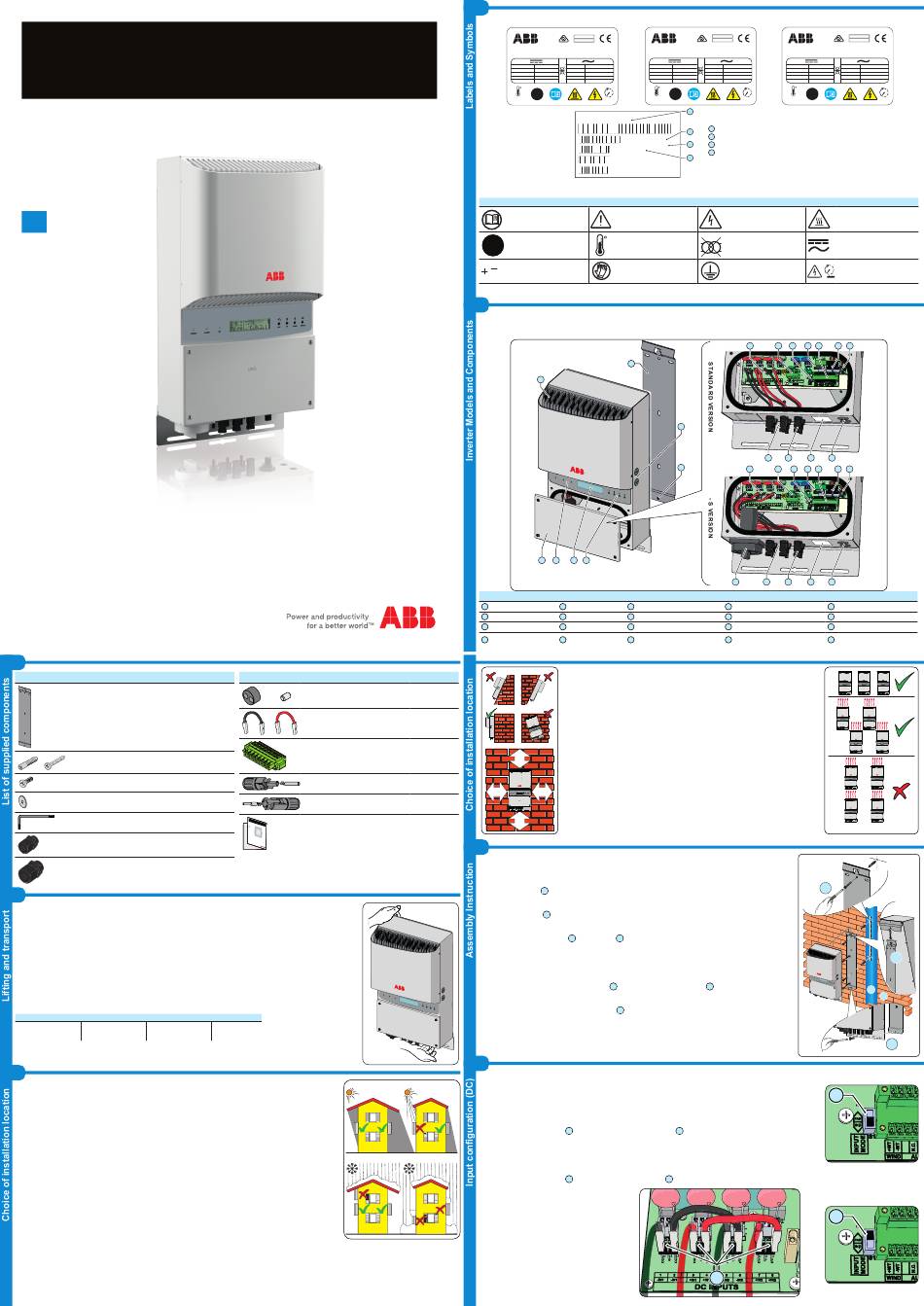

Quick Installation Guide
PVI-3.0/3.6/4.2-TL-OUTD
EN
In addition to what is explained below, the safety and installation information provided in the
installation manual must be read and followed. The technical documentation and the interface
and management software for the product are available at the website.
The device must be used in the manner described in the manual. If this is not the case the
safety devices guaranteed by the inverter might be ineffective.
3.
Available components
Bracket for wall mounting
Bolts and screws for wall mounting
M6x10 screw
D.18 Washer
L-key, TORX TX20
M20 Cable gland
M25 Cable gland
4.
Transport and handling
Transport of the equipment, especially by road, must be carried out with by suitable ways and means for protecting the
components from violent shocks, humidity, vibration, etc.
Lifting
The means used for lifting must be suitable to bear the weight of the equipment.
Unpacking and checking
The components of the packaging must be disposed on in accordance with the regulations in force in the country of
installation.
When you open the package, check that the equipment is undamaged and make sure all the components are present.
If you find any defects or damage, stop unpacking and consult the carrier, and also promptly inform the Service ABB.
Equipment weight
Model
PVI-3.0-TL-OUTD PVI-3.6-TL-OUTD PVI-4.2-TL-OUTD
PVI-3.0-TL-OUTD-S PVI-3.6-TL-OUTD-S PVI-4.2-TL-OUTD-S
5.
Environmental checks
- Consult the technical data to check the environmental parameters to be observed
- Installation of the unit in a location exposed to direct sunlight must be avoided as it may cause:
1. power limitation phenomena in the inverter (with a resulting decreased energy production by the system)
2. premature wear of the electrical/electromechanical components
3. premature wear of the mechanical components (gaskets) and of the user interface (display)
- Do not install in small closed rooms where air cannot circulate freely
- To avoid overheating, always make sure the flow of air around the inverter is not blocked
- Do not install in places where gases or flammable substances may be present
- Do not install in rooms where people live or where the prolonged presence of people or animals is expected,
because of the noise (about 50dB(A) at 1 m) that the inverter makes during operation
Installations above 2000 metres
On account of the rarefaction of the air (at high altitudes), particular conditions may occur:
- Less efficient cooling and therefore a greater likelihood of the device going into derating because of high internal
temperatures
- Reduction in the dielectric resistance of the air that, in the presence of high operating voltages (DC input), can
create electric arcs (discharges) that can reach the point of damaging the inverter
All installations at altitudes of over 2000 metres must be assessed case by case with the ABB Service
department.
Quantity Available components
Two-hole gasket for M20 signal cable
glands and cap TGM58
1
Jumpers for configuration of the
parallel input channels
Connector for the connection of the
communication and control signals
2 + 2
1
Male quick fit connectors
3
Female quick fit connectors
1
ABB solar
XXXXX XXXXX inverters XXXXX
XXXXX XXXXX XXXXX XXXX
XXXX
Technical documentations
In addition
1 The technical to what is explained documentatio
n and in this the interface the guide, safety
and management and installation software information
for the product provided available in the are installation
at the website. manual mus t be read and
followed.
1
Mass weight
17.5 Kg
1.
The labels on the inverter have the Agency marking, main technical data and identification of the equipment and manufacturer
www.abb.com/solar
SOLAR INVERTER
V 600 V
dc max
V dc MPP 90 - 580 V
V 160 - 530 V
dc, Full Power
I 2 x 10 A
dc max
I 2 x 12.5 A
sc max
IP65
-25 to +60 °C
-13 to +140 °F
The labels attached to the equipment must NOT be removed, damaged, dirtied, hidden,etc...
If the service password is requested, the field to be used is the serial number -SN: YYWWSSSSSS-
In the manual and/or in some cases on the equipment, the danger or hazard zones are indicated with signs, labels, symbols or icons.
Always refer to instruction
manual
Protection rating of
IP65
equipment
Positive pole and negative
pole of the input voltage
(DC)
2.

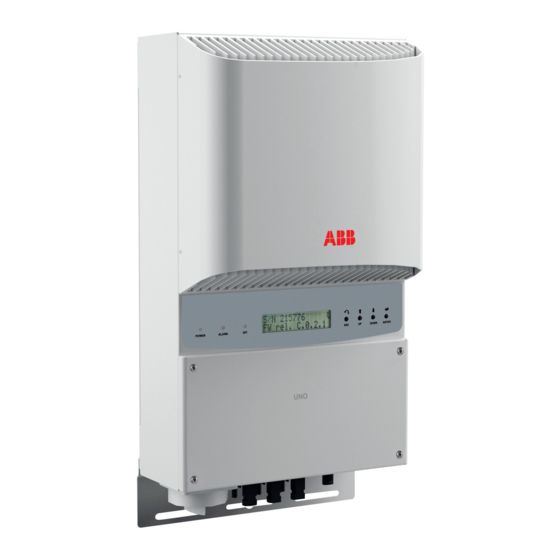

The models of inverter to which this guide refers are available in 3 power ratings: 3.0 kW, 3.6 kW and 4.2 kW.
The only difference in terms of components between the three power levels is the number of input connectors: 2 pairs in PVI-3.0/3.6-TL-OUTD models; 3 (2x MPPT1
and 1x MPPT2) pairs in PVI-4.2-TL-OUTD models. Two types are available for each model: Standard or with DC disconnect switch (Version -S).
03
POW
ER
05 06
Main components
Bracket
01
Locking screw
02
Heat sink
03
DSP Reprogramming
04
connectors
Quantity
1 + 1
2
15
2
cm
2 (3.0/3.6 kW)
3 (4.2 kW)
10cm 10cm
2 (3.0/3.6 kW)
3 (4.2 kW)
20
cm
1
6.
Wall/Pole mounting
During installation, do not place the inverter with its front facing towards the ground.
- Position the bracket so that it is perfectly level on the wall and use it as a boring template.
01
- Make the 2 holes required, using a drill with a 10 mm diameter bit. The depth of the holes should be about
70 mm. On the bracket 01 there are 5 holes with which to secure it: just 2 are enough to support the inverter if
installed on stable, robust supports.
- Secure the bracket to the wall
1). Check the stability of the bracket and if necessary use all the fixing points (5) there are on the bracket
- Hook the inverter to the bracket spring corresponding with the insertion point in the bracket on the back of
the inverter (Step 2).
- Proceed to anchor the inverter to the bracket
side (Step 3).
POWE R
ALAR
M
GFI
- Unscrew the 4 screws and open the front cover
ESC
UP
DOWN
ENTER
U N O
- Once the connections have been made, close the cover by tightening the 4 screws on the front to a
minimum tightening torque of 1.5 Nm.
7.
All versions of the inverter are equipped with two input channels (therefore with double maximum power point tracker MPPT) independent of each other,
which can however be connected in parallel using a single MPPT.
Configuration of independent channels (default configuration)
This configuration involves the use of the two input channels (MPPT) in
independent mode.
This means that the jumpers between the two channels (positive and negative)
of the DC input terminal block
located on the main board must be set to "IND".
Configuration of parallel-connected channels
This configuration uses the two input channels (MPPT) connected in parallel. This means that the jumpers between the two channels (positive and negative)
of the DC input terminal block
DIN V VDE 0126-1-1 DIN V VDE 0126-1-1
PROTECTIVE CLASS: I PROTECTIVE CLASS: I
Made in Italy
www.abb.com/solar
MODEL: MODEL:
PVI-3.0-TL-OUTD SOLAR INVERTER PVI-3.6-TL-OUTD
V 230 V 1Ø V dc max 600 V V acr 230 V 1Ø
acr
V 90 - 580 V f 50 Hz
f r 50 Hz dc MPP r
P 3000 W @ 50°C amb. V 120 - 530 V P φ 3600 W @ 55°C amb.
acr (cos φ = 1) dc, Full Power acr (cos = 1)
P 3000W @ 45°C amb. I 2 x 16 A P φ 3600W @ 50°C amb.
acr (cos φ = ±0.9) dc max acr (cos = ±0.9)
I 14.5 A I 2 x 20 A I 17.2 A(*)
ac max sc max ac max
(*): 16 A for UK G83 Version
IP65
-25 to +60 °C
5 minutes
-13 to +140 °F
01
PVI-X.X-TL-OUTD-Y
Inverter model
01
02
Inverter Part Number
02
P/N:PPPPPPPPPPP
Inverter Serial Number
04 03
SN:YYWWSSSSSS WK:WWYY
Week/Year of manufacture
04
03
WO:XXXXXXX
SO:SXXXXXXXX Q1
General warning - Important
Hazardous voltage
safety information
Without isolation
Temperature range
transformer
Always use safety clothing
Point of connection for
and/or personal safety
grounding protection
devices
01
04
02
ALA RM
GFI
ESC
UP
DOW N
ENT
ER
U N O
07 08
16
Front cover DC Input terminal block
05 09 13
LED Panel AC Output terminal block
06 10 14
Display Channel configuration switch
07 11 15
Keyboard Internal battery
08 12 16
Installation position
- Install on a wall or strong structure capable of bearing the weight of the equipment
- Install in safe, easy to reach places
- If possible, install at eye-level so that the display and status LEDs can be seen easily
- Install at a height that considers the heaviness of the equipment
- Install vertically with a maximum inclination of +/- 5°
- Choose a place with enough space around the unit to permit easy installation and
removal of the object from the mounting surfaces; comply with the indicated minimum
distances
- For a multiple installation, position the inverters side by side; if the space available does
not allow this arrangement, position the inverters in a staggered arrangement as shown
in the figure so that heat dissipation is not affected by other inverters
Final installation of the inverter must not compromise access to any disconnection
devices that may be located externally.
Please refer to the warranty terms and conditions available on the website and
evaluate any possible exclusion due to improper installation.
or to the pole with the no. 2 10 mm wall plugs supplied with it (Step
B A
by tightening the locking screw located on the lower
01 02
in order to make all the necessary connections.
05
must not be installed and the switch
09 11
must be installed and the switch located on the main board must be set to "PAR".
09 11
09
DIN V VDE 0126-1-1
PROTECTIVE CLASS: I
Made in Italy Made in Italy
www.abb.com/solar
MODEL:
SOLAR INVERTER PVI-4.2-TL-OUTD
V dc max 600 V V acr 230 V 1Ø
V 90 - 580 V f 50 Hz
dc MPP r
V 140 - 530 V P φ 4200 W @ 50°C amb.
dc, Full Power acr (cos = 1)
I 2 x 16 A P φ 4200W @ 45°C amb.
dc max acr (cos = ±0.9)
I 2 x 20 A I 20 A
sc max ac max
IP65
5 minutes -25 to +60 °C 5 minutes
-13 to +140 °F
Hot surfaces
Direct and alternating
currents, respectively
Time need to discharge
stored energy
10
09 10 11 12 13 14 15
17 18 19 20
09 10 11 12 13 14 15
17 18 19 20
Signal terminal block Input connectors (MPPT1)
17
RJ45 Connectors Input connectors (MPPT2)
18
RS485 line termination switch AC cable gland
19
DC Disconnect switch Service cable glands
20
1
2
POWER
ALARM GFI
ESC UP
DOWN ENTER
A
UNO
B
3
11
11
