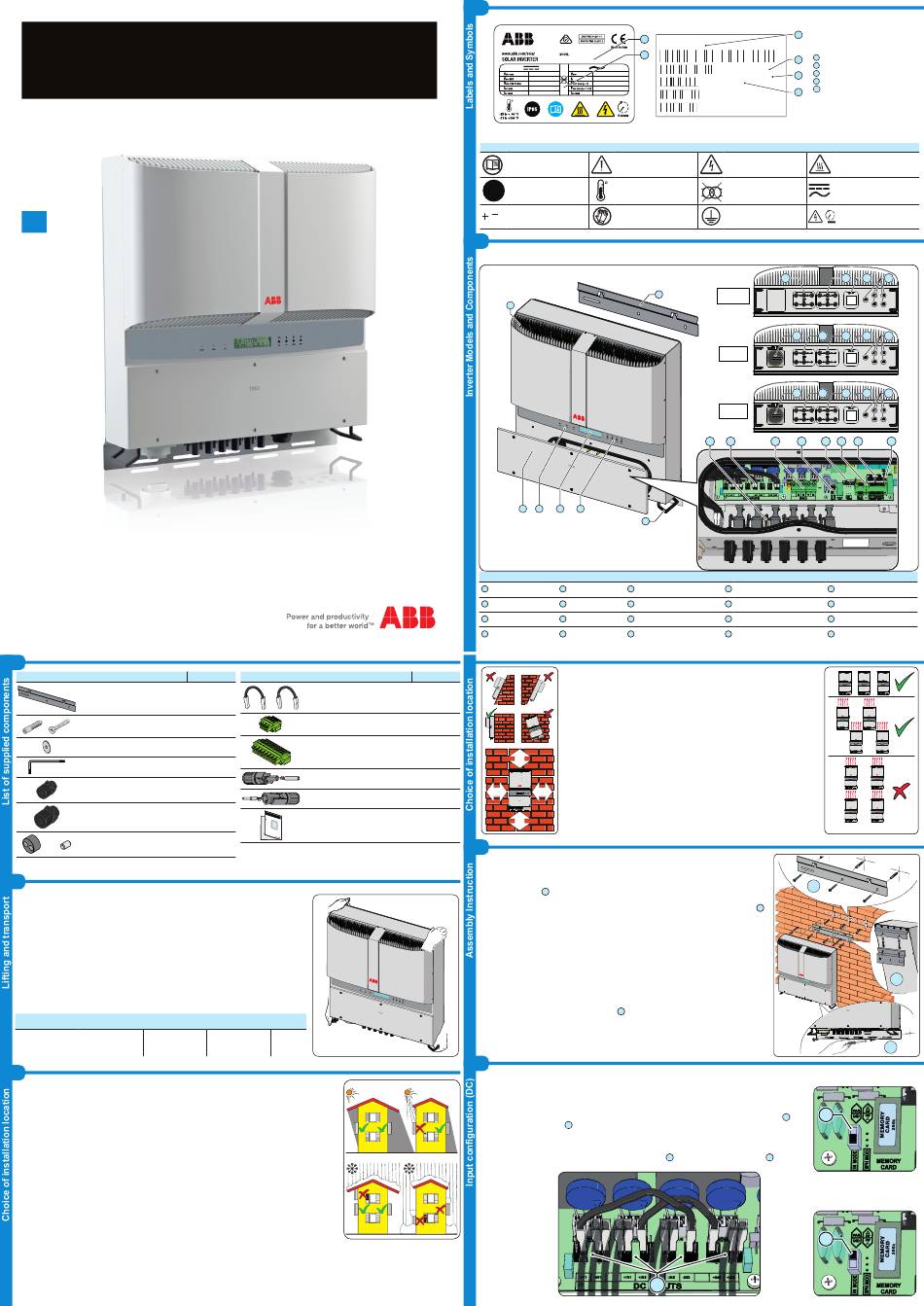

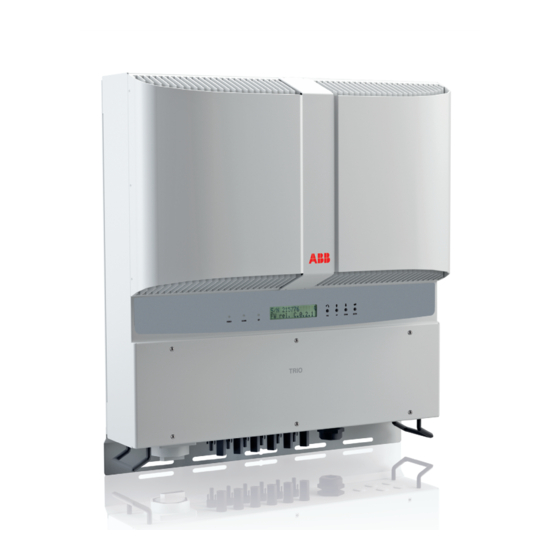

ABB PVI-6.0-TL-OUTD Quick Installation Manual

ABB Solar inverters
Quick Installation Guide
PVI-6.0/8.0/10.0/12.5-TL-OUTD
EN
In addition to what is explained below, the safety and installation information provided in the
installation manual must be read and followed. The technical documentation and the interface
and management software for the product are available at the website.
The device must be used in the manner described in the manual. If this is not the case the
safety devices guaranteed by the inverter might be ineffective.
3.
Available components
Bracket for wall mounting
Bolts and screws for wall mounting
D.18 Washer
L-key, TORX TX20
M20 Cable gland
M40 Cable gland
Two-hole gasket for M20 signal cable
glands and cap TGM58
4.
Transport and handling
Transport of the equipment, especially by road, must be carried out with by suitable ways and means for
protecting the components from violent shocks, humidity, vibration, etc.
Lifting
The means used for lifting must be suitable to bear the weight of the equipment.
Unpacking and checking
The components of the packaging must be disposed on in accordance with the regulations in force in the
country of installation.
When you open the package, check that the equipment is undamaged and make sure all the components
are present. If you find any defects or damage, stop unpacking and consult the carrier, and also promptly
inform the Service ABB.
Equipment weight
Model
PVI-6.0-TL-OUTD PVI-8.0-TL-OUTD PVI-10.0-TL-OUTD
PVI-6.0-TL-OUTD-S PVI-8.0-TL-OUTD-S PVI-10.0-TL-OUTD-S
PVI-6.0-TL-OUTD-FS PVI-8.0-TL-OUTD-FS PVI-10.0-TL-OUTD-FS
5.
Environmental checks
- Consult the technical data to check the environmental parameters to be observed
- Installation of the unit in a location exposed to direct sunlight must be avoided as it may cause:
1. power limitation phenomena in the inverter (with a resulting decreased energy production by the system)
2. premature wear of the electrical/electromechanical components
3. premature wear of the mechanical components (gaskets) and of the user interface (display)
- Do not install in small closed rooms where air cannot circulate freely
- To avoid overheating, always make sure the flow of air around the inverter is not blocked
- Do not install in places where gases or flammable substances may be present
- Do not install in rooms where people live or where the prolonged presence of people or animals is expected,
because of the noise (about 50dB(A) at 1 m) that the inverter makes during operation
Installations above 2000 metres
On account of the rarefaction of the air (at high altitudes), particular conditions may occur:
- Less efficient cooling and therefore a greater likelihood of the device going into derating because of high internal
temperatures
- Reduction in the dielectric resistance of the air that, in the presence of high operating voltages (DC input), can
create electric arcs (discharges) that can reach the point of damaging the inverter
All installations at altitudes of over 2000 metres must be assessed case by case with the ABB Service
department.
Quantity Available components
Jumpers for configuration of the
1
parallel input channels
Connector for connecting the confi-
5 + 5
gurable relay
5
Connector for the connection of the
communication and control signals
1
Male quick fit connectors
1
Female quick fit connectors
ABB
1 XXXXX inverters solar XXXXX
XXXXX XXXXX XXXXX
XXXXX XXXX XXXX
Technical documentations
The In addition technical documentation to what is explained
and the in this guide, the interface and safety and
management software installation for the information provided
product are in the available installation manual at the
website. mus read t be followed. and
1 + 1
* For PVI-6.0/8.0/10.0/12.5-TL-OUTD-S models: 4 pieces
for PVI-6.0/8.0/10.0/12.5-TL-OUTD and PVI-6.0/8.0/10.0/12.5-TL-OUTD-FS models: 6 pieces
Mass
weight
PVI-12.5-TL-OUTD
PVI-12.5-TL-OUTD-S <41.0 Kg
PVI-12.5-TL-OUTD-FS
1.
The labels on the inverter have the Agency marking, main technical data and identification of the equipment and manufacturer
PVI-X-TL-OUTD-Y
The labels attached to the equipment must NOT be removed, damaged, dirtied, hidden,etc...
If the service password is requested, the field to be used is the serial number -SN: YYWWSSSSSS-
In the manual and/or in some cases on the equipment, the danger or hazard zones are indicated with signs, labels, symbols or icons.
Always refer to instruction
manual
Protection rating of
IP65
equipment
Positive pole and negative
pole of the input voltage
(DC)
2.
The models of inverter to which this guide refers are available in 4 power ratings: 6.0 kW, 8.0 kW, 10.0 kW and 12.5 kW. Three types are available for each
model: Standard, with DC disconnect switch (Version -S) or with DC input protection fuses combined with DC disconnect switch (Version -FS).
02
03 04 05 06
Main components
Bracket Display
01 05
Heatsink Keyboard
02 06
03 Front cover 07 Handles
DC Disconnect
LED Panel
04 08
switch
Installation position
Quantity
- Install on a wall or strong structure capable of bearing the weight of the equipment
- Install in safe, easy to reach places
2 - If possible, install at eye-level so that the display and status LEDs can be seen easily
- Install at a height that considers the heaviness of the equipment
- Install vertically with a maximum inclination of +/- 5°
- Choose a place with enough space around the unit to permit easy installation and
2
removal of the object from the mounting surfaces; comply with the indicated minimum
distances
- For a multiple installation, position the inverters side by side; if the space available does
2
not allow this arrangement, position the inverters in a staggered arrangement as shown
15
cm
in the figure so that heat dissipation is not affected by other inverters
Final installation of the inverter must not compromise access to any disconnection
*
devices that may be located externally.
10cm 10cm
Please refer to the warranty terms and conditions available on the website and
*
evaluate any possible exclusion due to improper installation.
20
cm
1
6.
Wall mounting
During installation, do not place the inverter with its front facing towards the ground.
- Position the bracket so that it is perfectly level on the wall and use it as a boring template.
01
- Drill the 3 holes required using a drill with 10mm bit. The holes must be about 70mm deep. On bracket
there are 3 fastening holes.
- Fix the bracket to the wall with the 3 wall anchors, 10mm in diameter, supplied. (Step 1).
- Hook the inverter to the bracket springs in correspondence with the insertion points in the bracket on
the back of the inverter (Step 2).
- Drill 2 holes in correspondence with the slots on the inverter lower bracket, using a drill with a 10 mm
diameter bit. The holes must be approximately 70 mm deep.
- Anchor the lower part of the inverter using No. 2 plugs with a diameter of 10 mm, supplied (Step 3).
- Unscrew the 6 screws and open the front cover
- Once the connections have been made, close the cover by tightening the 6 screws on the front to a
minimum tightening torque of 1.5 Nm.
7.
All versions of the inverter are equipped with two input channels (therefore with double maximum power point tracker MPPT) independent of each other,
which can however be connected in parallel using a single MPPT.
Configuration of independent channels (default configuration)
This configuration involves the use of the two input channels (MPPT) in independent mode.
This means that the jumpers between the two channels (positive and negative) of the DC input terminal block
not be installed and the switch located on the main board must be set to "IND".
16
Configuration of parallel-connected channels
This configuration uses the two input channels (MPPT) connected in parallel. This means that the jumpers between the
two channels (positive and negative) of the DC input terminal block
the main board must be set to "PAR".
01
PVI-X-TL-OUTD-Y
05
P/N:PPPPPPPPPPP
SN:YYWWSSSSSS WK:WWYY
WO:XXXXXXX
SO:SXXXXXXXX Q1
General warning - Important
Hazardous voltage
safety information
Without isolation
Temperature range
transformer
Always use safety clothing
Point of connection for
and/or personal safety
grounding protection
devices
09
STANDARD
01
VERSION
-S
VERSION
-FS
VERSION
13 14 15
07
Input connectors (MPPT1) fuse board (*only version -FS)
09 13
Input connectors (MPPT2) DC Input terminal block
10 14
11 AC cable gland 15 AC Output terminal block
Service cable glands Channel configuration switch
12 16
01
03 in order to make all the necessary connections.
14
must be installed and the switch located on
14 16
14
01
Inverter model
01
02
Inverter Part Number
02
Inverter Serial Number
03
04
Week/Year of manufacture
04
Main technical data
05
03
Hot surfaces
Direct and alternating
currents, respectively
Time need to discharge
stored energy
10
10 11 12
08 09 10 11 12
08 09 10 11 12
16 17 18 19 20
Internal battery
17
Signal terminal block
18
19 RJ45 Connectors
RS485 line termination
20
switch
1
2
3
16
must
16
