Toro STX-38 Cleaning Manual

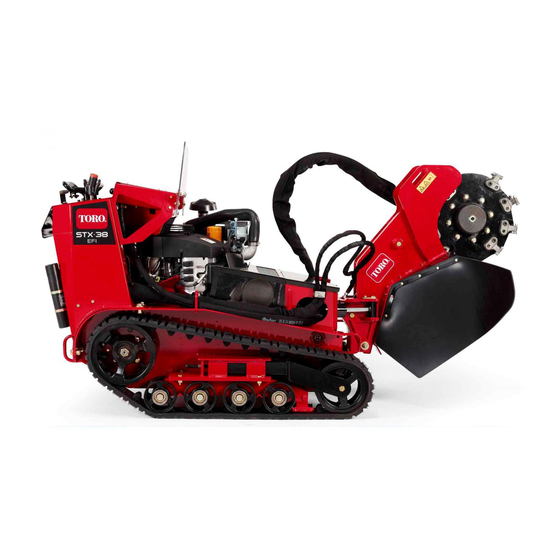

STX-38 Stump Grinder
Model No. 23212—Serial No. 313000001 and Up
Model No. 23214—Serial No. 314000001 and Up
Maintenance
Pre-Maintenance Procedures
Important:
The fasteners on the covers of this machine are designed to remain on the cover after
removal. Loosen all fasteners on each cover a few turns so that the cover is loose but still attached,
then go back and loosen them until the cover comes free. This prevents you from accidentally stripping
the bolts free of the retainers.
Removing the Front Cover
Important:
The fasteners on the covers of this machine are designed to remain on the cover after
removal. Loosen all fasteners on each cover a few turns so that the cover is loose but still attached,
then go back and loosen them until the cover comes free. This prevents you from accidentally stripping
the bolts free of the retainers.
1. Park the machine on a level surface, engage the parking brake, and lower the hydraulic lift.
2. Shut off the engine, remove the key, and allow the engine to cool.
WARNING
If the machine has been running, both the cover and the muffler under the cover will be
hot and can cause severe burns if you touch them.
Allow the machine to cool before removing the cover.
3. Loosen the 2 bolts securing the front cover to the machine
1. Cover
