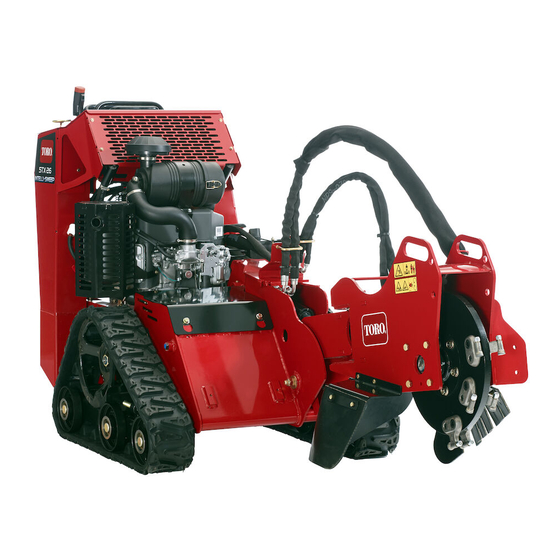

Toro STX-26 Service Bulletin

Stump grinder
Hide thumbs Also See for STX-26:

Advertisement

Quick Links

MANDATORY REWORK
REWORK: STX-26 Incorrect Joystick Wire Orientation
PRODUCT:
UNITS AFFECTED:
SUBJECT:
CORRECTION:
WARRANTY:
PARTS:
Routing
Svc Mgr
Initials
2012, STX-26 Stump Grinder
Model Number(s):
23210
23210G
The wire protruding from the joystick may come in contact with the
control panel and damage the wire. The wire was installed incorrectly
on the joystick assembly.
Rotate the wires in the joystick assembly to face forward. The
customer letter along with the rework instructions are attached.
MANDATORY REWORK
Labor Allowance: 0.3 hrs
SRT # 670-RP-01
Damage Code: 80
None
Tech 1
Tech 2
Tech 3
SERVICE BULLETIN
SITEWORK SYSTEMS
SWS # 66
November 21, 2012
Serial Number(s):
312000001 – 312000427
312000001 – 312000121
Tech 4
Tech 5
Parts Mgr
Sales Mgr
Warranty Mgr

Advertisement

loading

Summary of Contents for Toro STX-26

  • Page 1 SERVICE BULLETIN SITEWORK SYSTEMS MANDATORY REWORK SWS # 66 November 21, 2012 REWORK: STX-26 Incorrect Joystick Wire Orientation PRODUCT: 2012, STX-26 Stump Grinder UNITS AFFECTED: Model Number(s): Serial Number(s): 312000001 – 312000427 23210 312000001 – 312000121 23210G SUBJECT: The wire protruding from the joystick may come in contact with the control panel and damage the wire.
  • Page 2 November 2012 Dear Toro Customer: The wire on the joystick handle on your STX-26 Stump Grinder was installed facing the side instead of forward. Our records indicate you may have one or more of the affected Stump Grinders. PRODUCT: 2012 STX-26 Stump Grinder...
  • Page 3 STX-26 JOYSTICK INSTRUCTIONS 1. Remove the button boot from the joystick lever (Fig. 4. Carefully remove the rear handle half (Fig. 04). 01). Fig. 04 DSCN-4419a Fig. 01 DSCN-4410a 5. Carefully remove the front handle half from the 2. Remove the actuator button from the joystick lever square post and reinstall it with the lever facing the (Fig.
  • Page 4 STX-26 JOYSTICK INSTRUCTIONS 7. Install the actuator button (Fig. 07). 10. Tighten the nut (Fig. 10). Fig. 07 DSCN-4431a Fig. 10 DSCN-4435 8. Install the button boot to the joystick lever (Fig. 08). Fig. 08 DSCN-4432 9. Loosen the nut and rotate the joystick handle so the lever faces forward (Fig.
