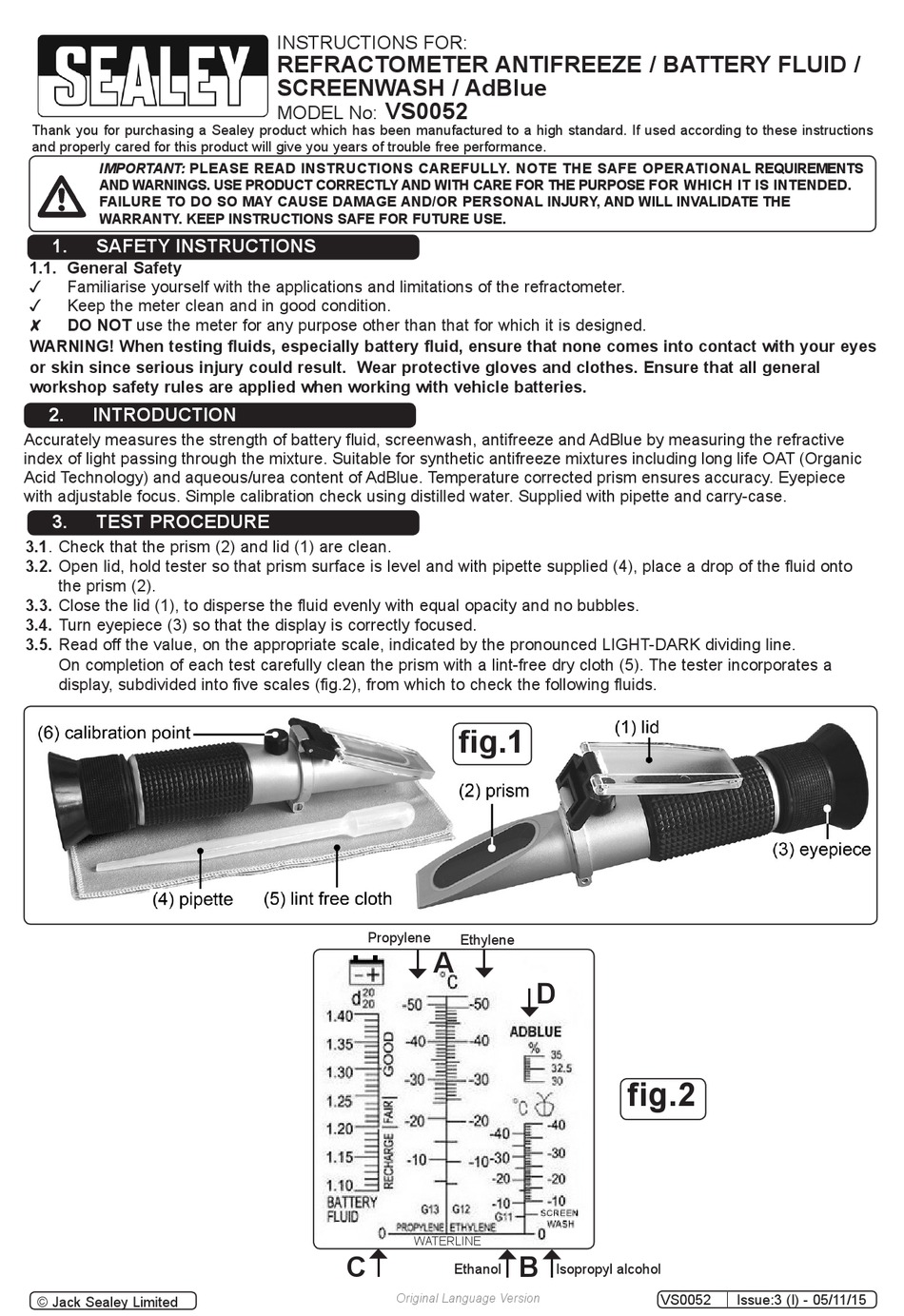

Sealey VS0052 Instructions

Thank you for purchasing a Sealey product which has been manufactured to a high standard. If used according to these instructions
and properly cared for this product will give you years of trouble free performance.
IMPORTANT: PLEASE READ INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS
AND WARNINGS. USE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE
WARRANTY. KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1. General Safety
Familiarise yourself with the applications and limitations of the refractometer.

Keep the meter clean and in good condition.

DO NOT use the meter for any purpose other than that for which it is designed.

WARNING! When testing fluids, especially battery fluid, ensure that none comes into contact with your eyes
or skin since serious injury could result. Wear protective gloves and clothes. Ensure that all general
workshop safety rules are applied when working with vehicle batteries.
2. INTRODUCTION
Accurately measures the strength of battery fluid, screenwash, antifreeze and AdBlue by measuring the refractive
index of light passing through the mixture. Suitable for synthetic antifreeze mixtures including long life OAT (Organic
Acid Technology) and aqueous/urea content of AdBlue. Temperature corrected prism ensures accuracy. Eyepiece
with adjustable focus. Simple calibration check using distilled water. Supplied with pipette and carry-case.
3. TEST PROCEDURE
3.1. Check that the prism (2) and lid (1) are clean.
3.2. Open lid, hold tester so that prism surface is level and with pipette supplied (4), place a drop of the fluid onto
the prism (2).
3.3. Close the lid (1), to disperse the fluid evenly with equal opacity and no bubbles.
3.4. Turn eyepiece (3) so that the display is correctly focused.
3.5. Read off the value, on the appropriate scale, indicated by the pronounced LIGHT-DARK dividing line.
On completion of each test carefully clean the prism with a lint-free dry cloth (5). The tester incorporates a
display, subdivided into five scales (fig.2), from which to check the following fluids.
© Jack Sealey Limited
INSTRUCTIONS FOR:
REFRACTOMETER ANTIFREEZE / BATTERY FLUID /
SCREENWASH / AdBlue
VS0052
MODEL No:
Propylene
A
WATERLINE
C
Original Language Version
fig.1
Ethylene
D
B
Ethanol Isopropyl alcohol
fig.2
VS0052 Issue:3 (I) - 05/11/15
