NI SCC-AI Series User Manual

USER GUIDE

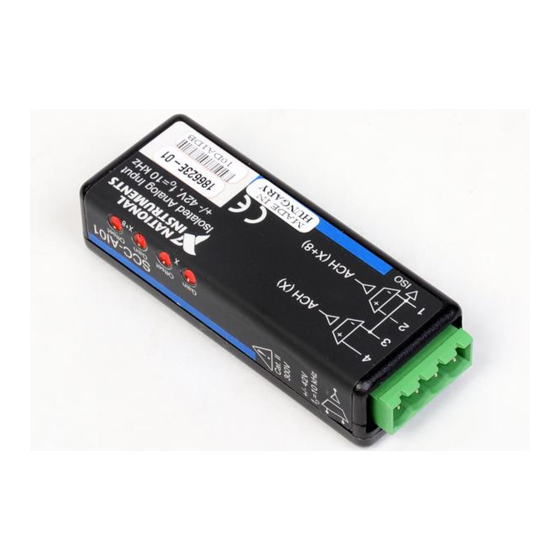

SCC-AI Series Isolated Analog
Input Modules
The SCC-AI Series isolated analog input modules can extract a relatively
low-amplitude input signal from a high-common-mode voltage so the
E/M Series DAQ device can measure the input signal. They also can
amplify and filter the input signal, resulting in higher measurement
resolution and accuracy.
SCC-AI Series modules are available in a range of gains from 0.2 to 200.
They contain lowpass filters of either 10 kHz or 4 Hz bandwidth. Table 1
gives the gain and bandwidth for each module.
Table 1. SCC-AI Module Input/Output Range, Gain, and Bandwidth
Model Input Range
±42 V
SCC-AI01
pk
±20 V
SCC-AI02
±10 V
SCC-AI03
±5 V
SCC-AI04
±1 V
SCC-AI05
±100 mV
SCC-AI06
±50 mV
SCC-AI07
±10 V
SCC-AI13
±5 V
SCC-AI14
Output Range
±8.4 V
/ VDC
±10 V
±10 V
±10 V
±10 V
±10 V
±10 V
±10 V
±10 V
Gain Bandwidth
0.2 10 kHz
0.5 10 kHz
1 10 kHz
2 10 kHz
10 10 kHz
100 10 kHz
200 10 kHz
1 4 Hz
2 4 Hz
