BRIO CLCTPOU520UVF2 Setup Manual

Counter-top point of use water dispenser
Hide thumbs Also See for CLCTPOU520UVF2:
Table of Contents

Advertisement

Quick Links

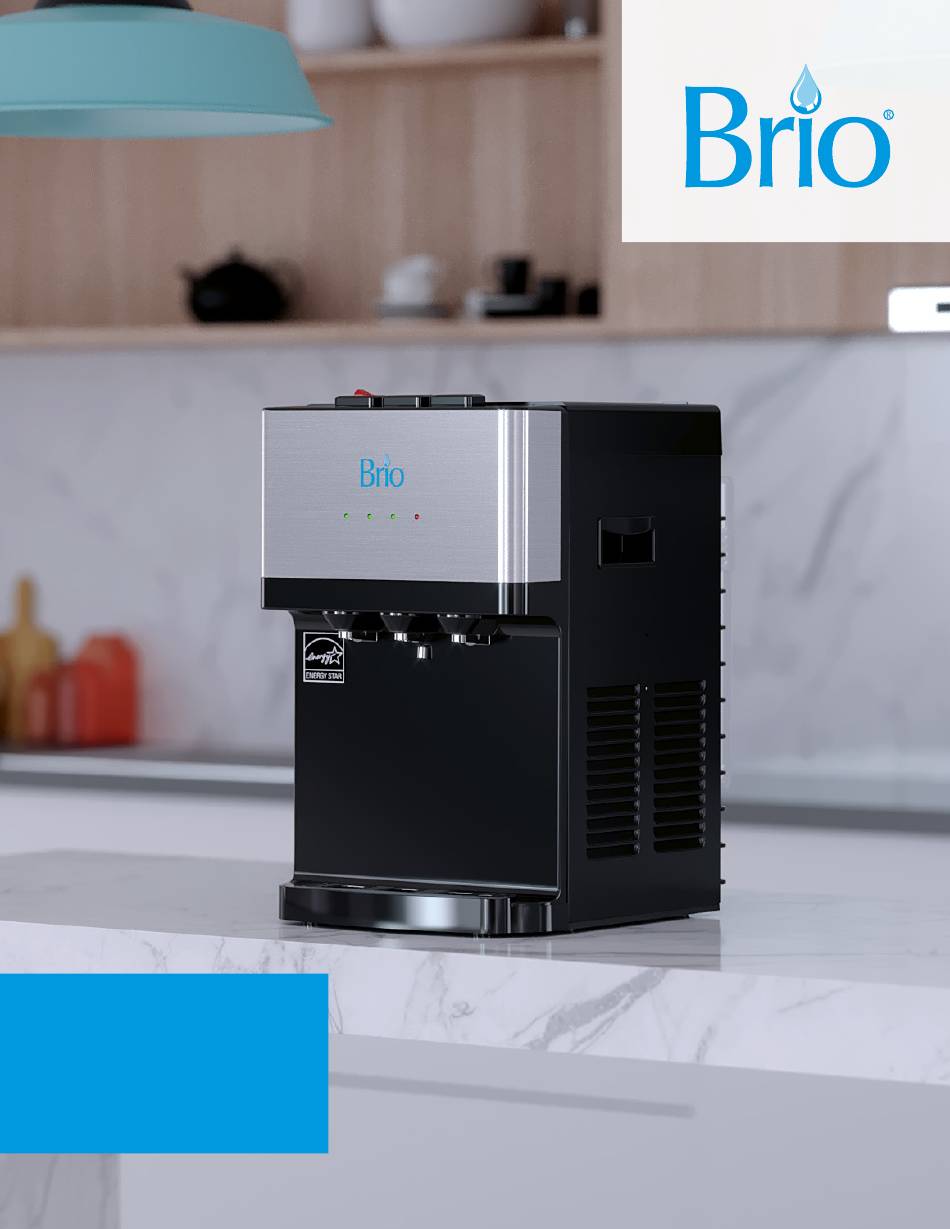

Counter-Top
Point of Use
Water Dispenser
Setup Manual
Model No.: CLCTPOU520UVF2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLCTPOU520UVF2 and is the answer not in the manual?

Questions and answers

Related Manuals for BRIO CLCTPOU520UVF2

Summary of Contents for BRIO CLCTPOU520UVF2

  • Page 1 Counter-Top Point of Use Water Dispenser Setup Manual Model No.: CLCTPOU520UVF2...

  • Page 2: Table Of Contents

    Table of Contents Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Intended Use .

  • Page 3: Safety Information

    Safety Information WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling, installing and operating the dispenser. WARNING: This product dispenses water at very high temperatures. Failure to use properly can cause personal injury.

  • Page 4: Intended Use

    Intended Use This appliance is intended to be used in household and similar applications such as: • Staff kitchen areas in shops, offices and other working environments • Farm houses • Clients in hotels, motels and other residential type environments •...

  • Page 5: Package Contents

    Package Contents Part Description Quantity Filter connecting tube Shut off valve tube (7 ft.) Elbow joint tube Filter flushing tube (4 ft.) Feed water adapter (with extra nut) Filter housing Filter (1 sediment, 1 carbon) Mounting bracket Filter clip Grounding bracket Plumber’s tape Pressure-reducing valve Tubing cutter...

  • Page 6: Installation

    Installation 1 . Determine Installation Location Place the dispenser upright. Locate the dispenser on a hard and level surface in a cool shaded location near a grounded wall outlet. NOTICE: Do NOT plug in the power cord until the entire installation section is completed.

  • Page 7: Install The Filters And Tubing

    3 . Install the Filters and Tubing Click the two black mounting brackets (H) onto the top of the condenser. Attach one filter housing (F) to the top of a mounting bracket (H). Connect the filter connecting tube (A) to the filter housing (F).
  • Page 8 Slide the other filter housing (F) onto the remaining mounting bracket (H) and connect the other end of the filter connecting tube (A). Connect the shut off valve with tube (B) to the left filter housing (F). Connect the filters (G) into the filter housings (F).

  • Page 9: Connect To The Cold Water Supply

    4 . Connect to the Cold Water Supply CAUTION: DO NOT CONNECT THIS WATER LINE TO A HOT WATER SUPPLY LINE. The water supply to the unit MUST be from the COLD WATER LINE. Using HOT WATER will severely damage your filters. Turn off and then disconnect the current cold water supply line.

  • Page 10: Flush The Filters And Complete The Installation

    5 . Flush the Filters and Complete the Installation IMPORTANT: Follow this procedure every time you replace your filters. IMPORTANT: Ensure the water supply is off before you begin. Connect the red filter flushing tube (D) to the right filter housing (F). Lay the open end of the filter flushing tube (D) over a sink or receptacle to collect water.

  • Page 11: Operation

    Operation IMPORTANT: This unit has been tested and sanitized prior to packing and shipping. During transit, dust and odors can accumulate in the tank and lines. Dispense and dispose at least one quart of water prior to drinking any water. Turn the Dispenser On/Off Plug in the dispenser and turn the On/Off switch to On.

  • Page 12: Troubleshooting

    Troubleshooting Problem Solution • It takes up to one hour after setup to dispense cold water. • Make sure the power cord is properly connected to a working outlet. The cold water is not • Make sure the back of the dispenser is at least 20 cm from a wall and there is free airflow on all 20 cm sides of the dispenser.

  • Page 13: Clean The Dispenser

    Clean the Dispenser CAUTION: Before cleaning, make sure the power switch is in the O (off) position and unplug the water dispenser. IMPORTANT: This dispenser contains UV technology that will help keep your dispenser clean. However, if you do need to clean your dispenser for any reason, follow these steps: Remove remaining water from reservoirs in the dispenser by dispensing from the hot and cold taps into a pitcher or bucket.

  • Page 14: Filter Replacement Schedule

    Filter Replacement Schedule Filter Type Replacement Schedule Function Reduces chlorine, taste and odor, lead Carbon 6 months or 950 gallons and cysts. Performs a coarse filtration of original Sediment 6 months or 950 gallons water. Removes mud, sand, iron, rust, and suspensions and impurities.

  • Page 15: Warranty

    Warranty Brio (“Vendor”) warrants to the original purchaser of the Brio Water Coolers (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship.
  • Page 16 Contact Us Call: +1 844-257-4103 ©2020 DTWUSA...
