GETTING STARTED GUIDE

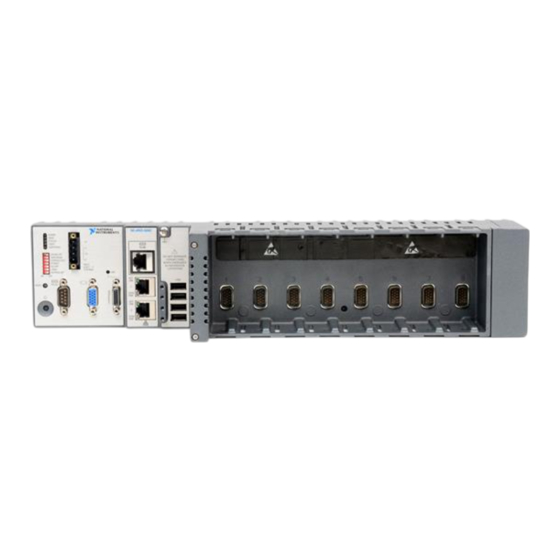

NI cRIO-9082
Reconfigurable Embedded Chassis with Integrated Intelligent Real-
Time Controller for CompactRIO
This document describes how to begin using the National Instruments cRIO-9082.
Safety Guidelines
Caution
Product misuse can result in a hazard. You can compromise the safety protection
built into the product if the product is damaged in any way. If the product is
damaged, return it to NI for repair.
Safety Guidelines for Hazardous Locations
The cRIO-9082 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous
locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations; and
nonhazardous locations only. Follow these guidelines if you are installing the cRIO-9082 in a
1
9 0 8
I O -
c R
N I
Do not operate the cRIO-9082 in a manner not specified in this document.
Advertisement
Table of Contents
Related Manuals for NI cRIO-9082
Summary of Contents for NI cRIO-9082
- Page 1 Safety Guidelines for Hazardous Locations The cRIO-9082 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations; and...
-
Page 2: Electromagnetic Compatibility Guidelines
Special Conditions for Hazardous Locations Use in Europe and Internationally The cRIO-9082 has been evaluated as Ex nA IIC T4 Gc equipment under DEMKO 07 ATEX 0626664X and is IECEx UL 14.0089X certified. Each device is marked II 3G and is suitable for use in Zone 2 hazardous locations, in ambient temperatures of 0 °C ≤... -
Page 3: Preparing The Environment
In addition, take precautions when designing, selecting, and installing measurement probes and cables to ensure that the desired EMC performance is attained. Preparing the Environment Ensure that the environment in which you are using the cRIO-9082 meets the following specifications. Operating temperature 0 °C to 55 °C... -
Page 4: Verifying The Kit Contents
2. Ferrite 4. Getting Started Guide Installing Software on the Host Computer Before using the cRIO-9082, you must install the following application software and device drivers on the host computer in this order: LabVIEW 2011 or later LabVIEW Real-Time Module 2011 or later LabVIEW FPGA Module 2011 or later NI CompactRIO Device Drivers 4.0 or later... -
Page 5: Installing C Series Modules
I O - Verify that power is not connected to the I/O connector(s) on the C Series module. If the system is in a nonhazardous location, the cRIO-9082 can be powered on when you install modules. Press the latches on the C Series module. - Page 6 6. USB Retention Standoff 13. DIP Switches 7. RJ-45 Ethernet Ports 1 and 2 Connecting the cRIO-9082 to Ground You must connect the cRIO-9082 grounding terminal to the grounding electrode system of the facility. What to Use • Ring lug •...
- Page 7 C Series modules. The cRIO-9082 has a primary power input, V1, and a secondary power input, V2. The POWER LED on the cRIO-9082 indicates which power input is in use, as shown in the following table.
- Page 8 (24 VDC, 5 A, 100 VAC to 120 VAC/200 VAC to 240 VAC input) What to Do Complete the following steps to connect a power supply to the cRIO-9082. Ensure that your power supply is powered off. Install the ferrite on the negative and positive leads of the power supply, as shown in the following figure.
- Page 9 For Windows systems, the network behavior is determined by the Windows network drivers. For RT systems, the cRIO-9082 attempts to initiate a DHCP network connection at powerup. If the cRIO-9082 is unable to obtain an IP address, it connects to the network with a link-local IP address with the form 169.254.x.x...
-
Page 10: System Reset Options
LabVIEW Help. System Reset Options The following table lists the reset options available on the cRIO-9082. These options determine how the system behaves when the controller is reset in various conditions. Use the... - Page 11 Info Code rdcriostartup STATUS LED Indicators The STATUS LED is off during normal operation. The cRIO-9082 indicates specific software error conditions by flashing the STATUS LED yellow a certain number of times every few seconds, as shown in the following table.
- Page 12 If the problem persists, contact National Instruments. The cRIO-9082 indicates specific hardware error conditions by flashing the STATUS LED red a certain number of times every few seconds, as shown in the following table. Table 5. STATUS LED Hardware Indicators...
-
Page 13: Where To Go Next
NI corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. NI also has offices located around the world. For telephone support in the United States, create your service request at ni.com/support... - Page 14 . You can find information about end-user license agreements (EULAs) ni.com/patents and third-party legal notices in the readme file for your NI product. Refer to the Export Compliance Information at ni.com/ for the NI global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other legal/export-compliance import/export data.
