UPS5000-E-(25 kVA–125 kVA)-FM
Quick Guide
Issue: 04
Part Number: 31508115
Date: 2019-06-20
1
Overview
UPS Model
UPS5000-E-125K-FM
1. Before installation, read the user manual carefully to get familiar with product information and
safety precautions.
2. Use insulated tools when installing the equipment.
3. Only engineers certified by Huawei or its agent are allowed to install, commission, and maintain
the UPS. Otherwise, personal injury or equipment damage may occur, and the resulting UPS
faults are beyond the warranty scope of Huawei.
Capacity Configuration
25 kVA, 50 kVA, 75 kVA,
100 kVA, 125 kVA
Copyright © Huawei Technologies Co., Ltd. 2019. All rights reserved.
Weight (Full
Configuration)
330 kg

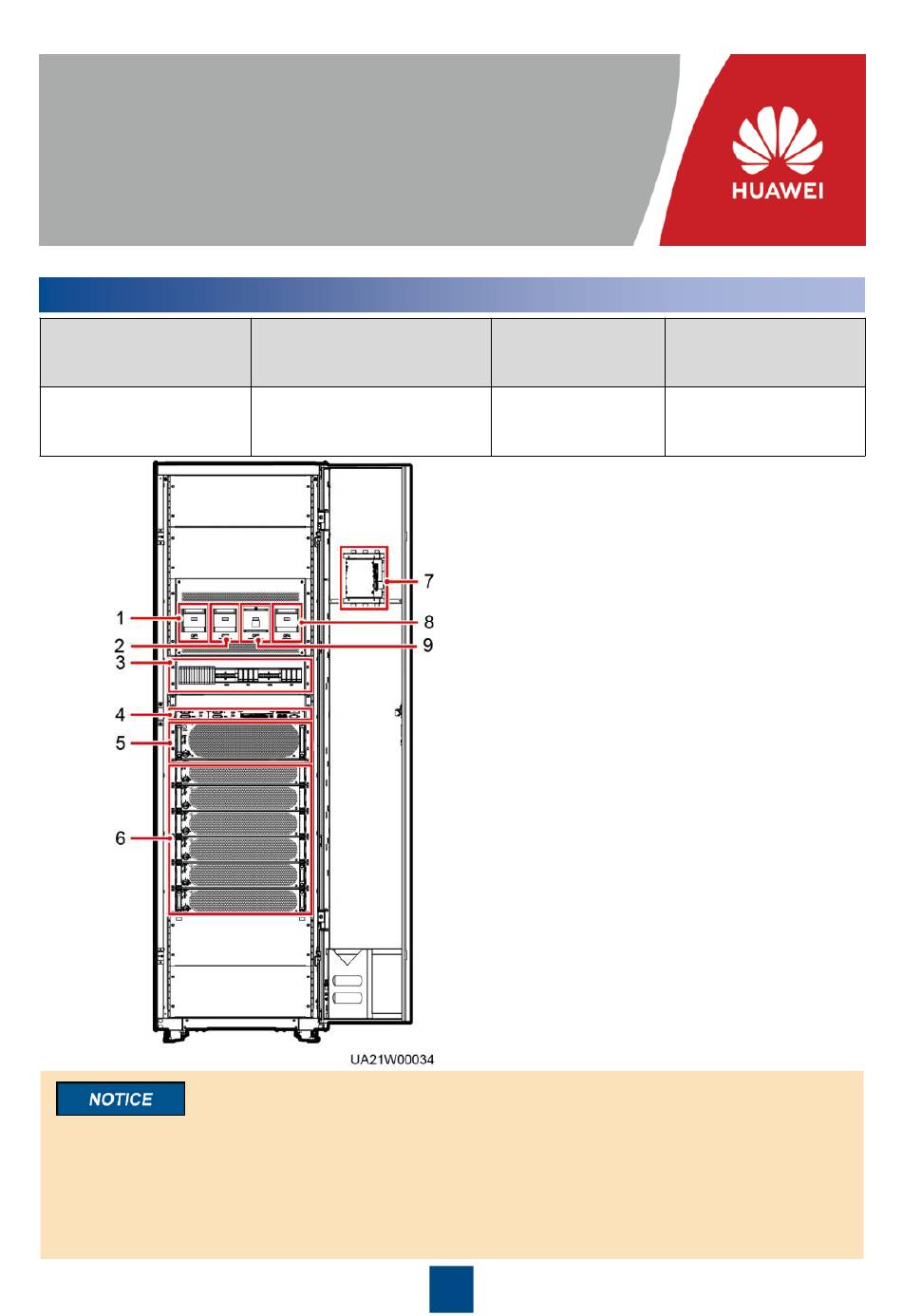

(1) Mains input switch
(2) Bypass input switch
(3) Surge protective
module (optional)
(4) Control module
(5) Bypass module
(6) Power modules
(7) Monitor display
module (MDU)
(8) Output switch
(9) Maintenance
bypass switch
1
Dimensions (H x W
x D)
2000 mm x 600 mm
x 850 mm
