Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1.
SAFETY INSTRUCTIONS
1.1
GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice
!
regulations are adhered to when using this bench.
Locate bench in a suitable working area.
"
Keep the work area clean, uncluttered and ensure there is adequate lighting.
"
WARNING! Use bench on level and solid ground, preferably concrete. Avoid tarmacadam
!
since the bench may sink into the surface.
Keep the bench clean and tidy in accordance with good workshop practice.
"
Keep children and unauthorised persons away from the working area.
"
DO NOT use the bench for any purpose other than that for which it is designed.
#
DO NOT exceed maximum capacity of workbench.
#
DO NOT undertake work on the bench without the workpiece being adequately secured. Use
#
clamps or a vice (not included) to secure the workpiece. Available from your Sealey dealer.
DO NOT use the bench out of doors.
#
DO NOT get the bench wet or use in damp or wet locations or areas where there is
#
condensation.
DO NOT clean the bench with any solvents which may damage the paint surface or the
#
protective coating on the wooden top.
Maximum weight for each drawer is 25kg, full load for workbench is 250kg.
!
2.
CONTENTS AND SPECIFICATION
2.1
Powder coated steel panels with 40mm wood laminate top. Two drawers, open storage space for larger items. Supplied flat packed.
Table Size (W x D): 1372 x 508mm
2.2
Working Height: 865mm
Capacity: 250kg
2.3

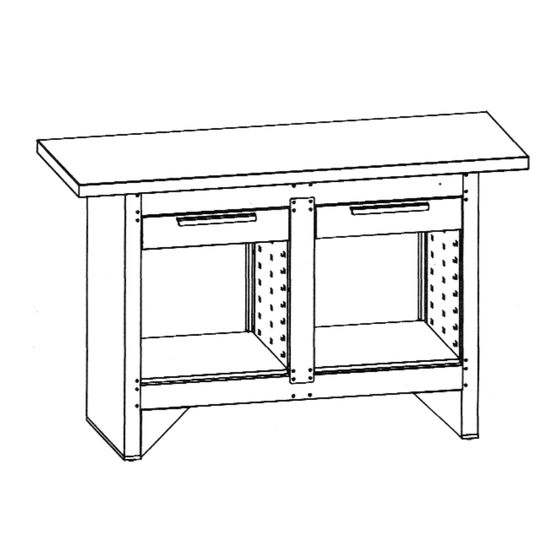

Carefully unpack the product and check the contents against the diagram below. Should any items be missing or damaged make
immediate contact with your Sealey dealer.
A . . . .SIDE PANEL
C . . . .BOTTOM RAIL
D . . . .TOP RAIL
E . . . .CENTRE SUPPORT
G . . . .LEFT SIDE PANEL
H . . . .RIGHT SIDE PANEL
J . . . . .BACK PANEL
K . . . .SHELF
INSTRUCTIONS FOR:
HEAVY-DUTY WORKBENCH WITH 2 DRAWERS
BALL BEARING RUNNERS
AP2020BB
MODEL No's :
M . . . . .DRAWER
O . . . . .CORNER BRACE
P . . . . .WOODEN TOP
Q. . . . .LEFT SIDE RUNNER U . . . . .HEX HEAD SCREW 5/8"
R . . . . .RIGHT SlDE RUNNER
S . . . . .SCREW (M5x12)
T . . . . .ADJUSTABLE LEG LEVELLER
AP2020BB - 1 - 260407
