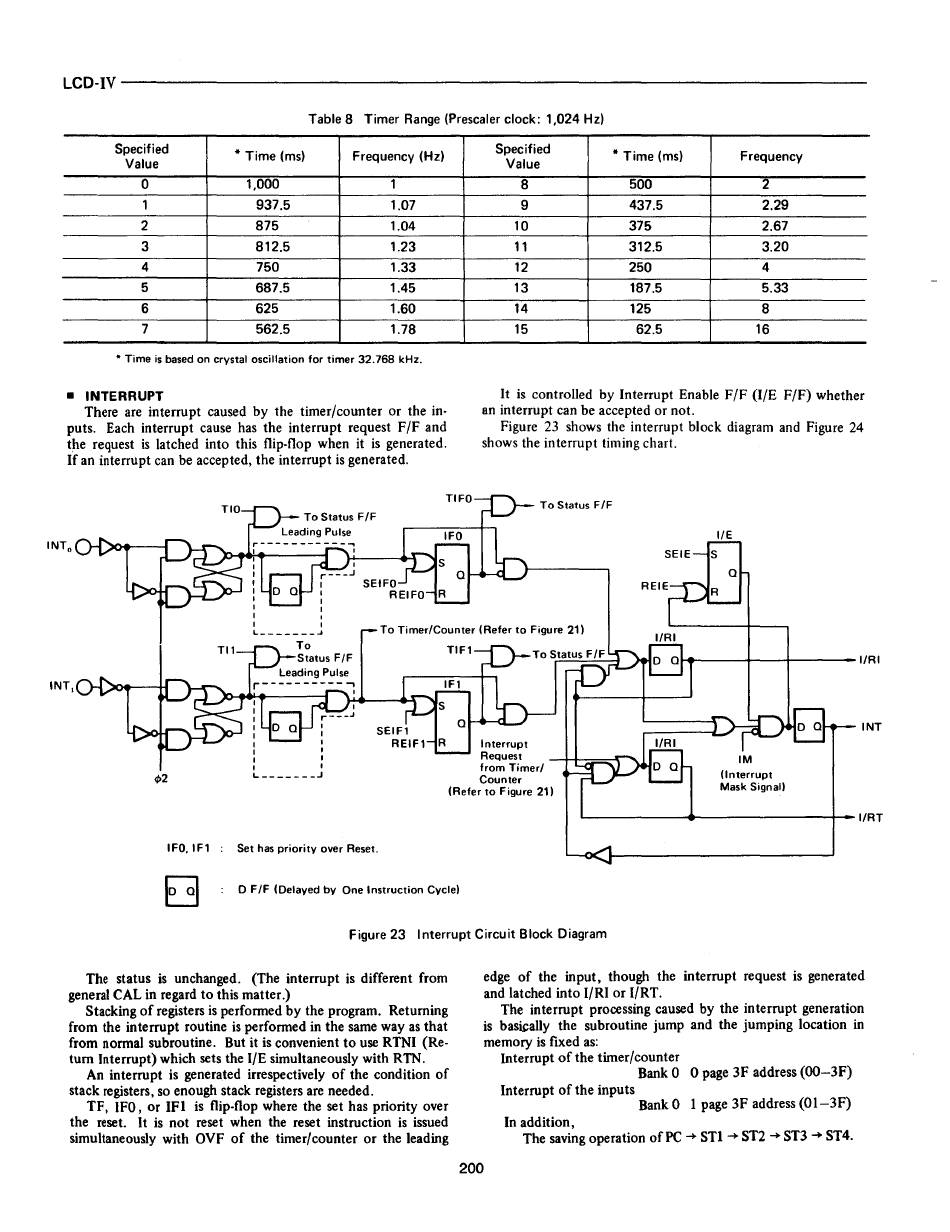

LCO-IV----------------------------------------------------------------
Table 8 Timer Range (Prescaler clock: 1,024 Hz)
Specified
*
Time (ms)
Frequency (Hz)
Value
0
1,000
1
1
937.5
1.07
2
875
1.04
3
812.5
1.23
4
750
1.33
5
687.5
1.45
6
625
1.60
7
562.5
1.78
*
Time is based on crystal oscillation for timer 32.768 kHz.
• INTERRUPT
There are interrupt caused by the timer/counter or the in-
puts. Each interrupt cause has the interrupt request F /F and
the request is latched into this flip-flop when it is generated.
If an interrupt can be accepted, the interrupt is generated.
INT,
IFO,IF1
Set has priority over Reset.
o
F/F (Delayed by One Instruction Cycle)
Specified
*
Time (ms)
Frequency
Value
8
500
2
9
437.5
2.29
10
375
2.67
11
312.5
3.20
12
250
4
13
187.5
5.33
14
125
8
15
62.5
16
It
is controlled by Interrupt Enable F/F (lIE F/F) whether
an interrupt can be accepted or not.
Figure 23 shows the interrupt block diagram and Figure 24
shows the interrupt timing chart.
To Status F/F
lIE
... - - - + - - - t - - - - - I / R I
(Interrupt
Mask Signal)
INT
~--------~-------------4--I/RT
Figure 23 Interrupt Circuit Block Diagram
The status is unchanged. (The interrupt is different from
general CAL in regard to this matter.)
Stacking of registers is performed by the program. Returning
from the interrupt routine is performed in the same way as that
from normal subroutine_ But it is convenient to use RTNI (Re-
turn Interrupt) which sets the I/E simultaneously with RTN.
An interrupt is generated irrespectively of the condition of
stack registers, so enough stack registers are needed.
TF, IFO, or IFl is flip-flop where the set has priority over
the reset. It is not reset when the reset instruction is issued
simultaneously with OVF of the timer/counter or the leading
edge of the input, though the interrupt request is generated
and latched into I/RI or I/RT.
The interrupt processing caused by the interrupt generation
is basically the subroutine jump and the jumping location in
memory is fIXed as:
200
Interrupt of the timer/counter
Bank 0 0 page 3F address (OO-3F)
Interrupt of the inputs
Bank 0 1 page 3F address (Ol-3F)
In addition,
The saving operation of PC
~
STl
~
ST2
~
ST3
~
ST4.
